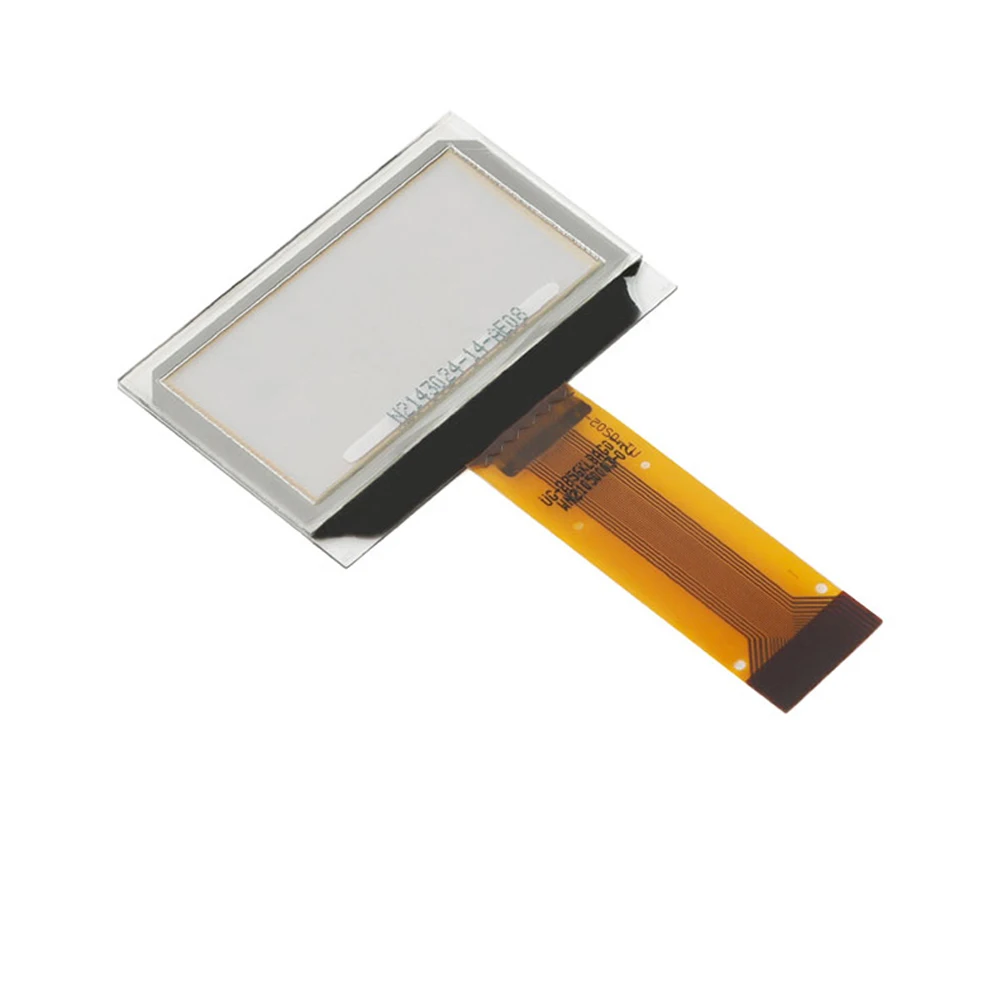

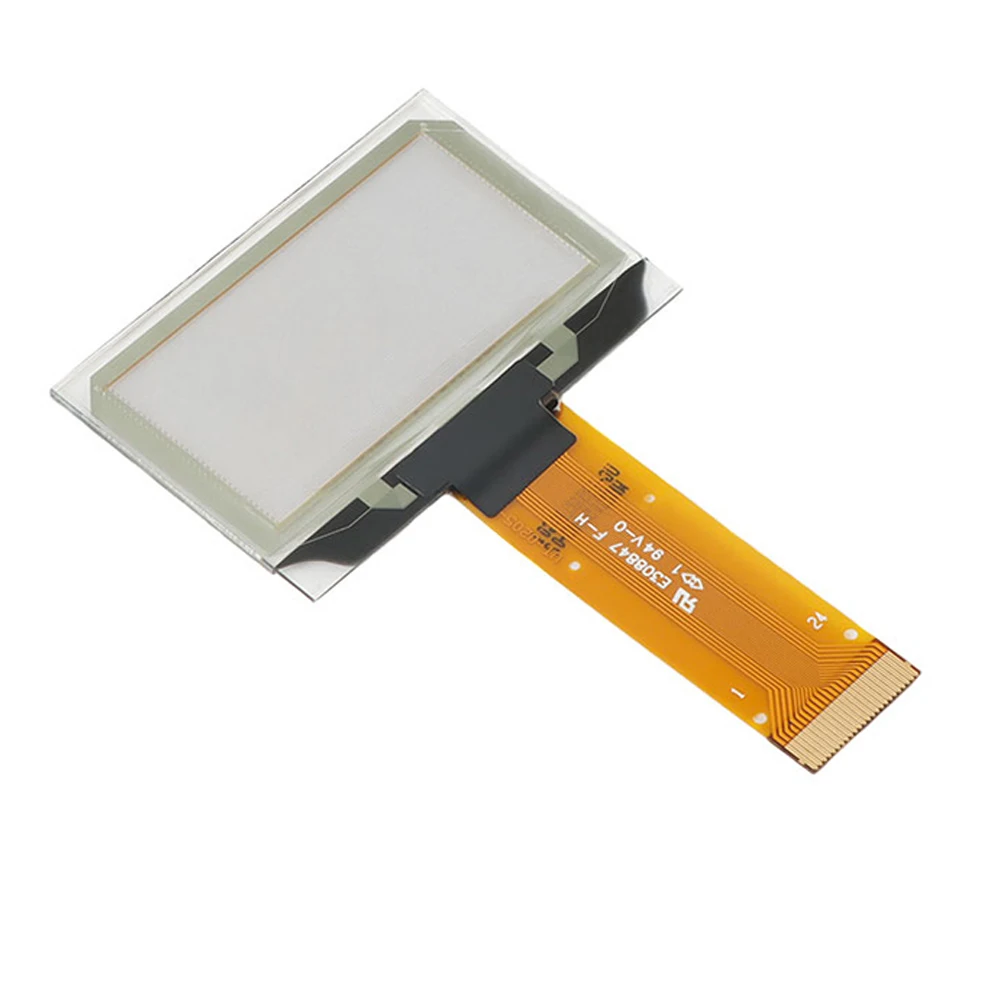

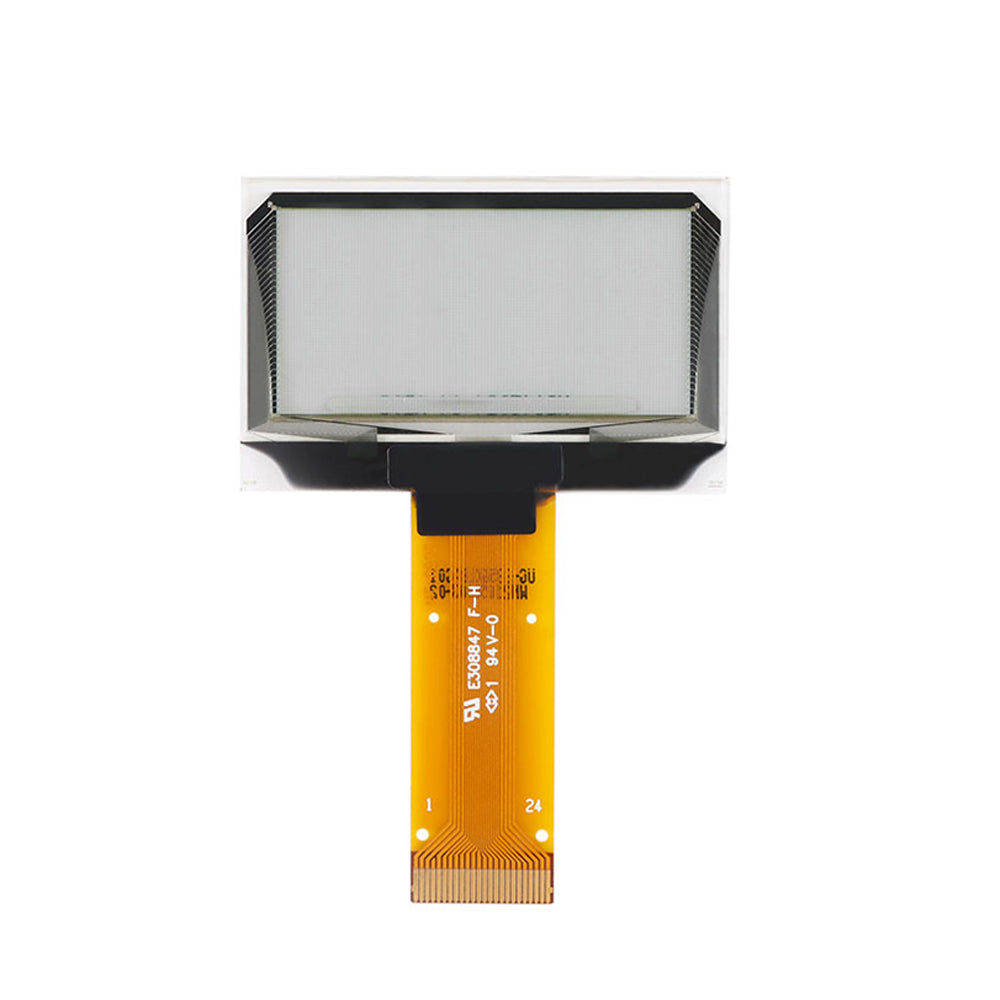

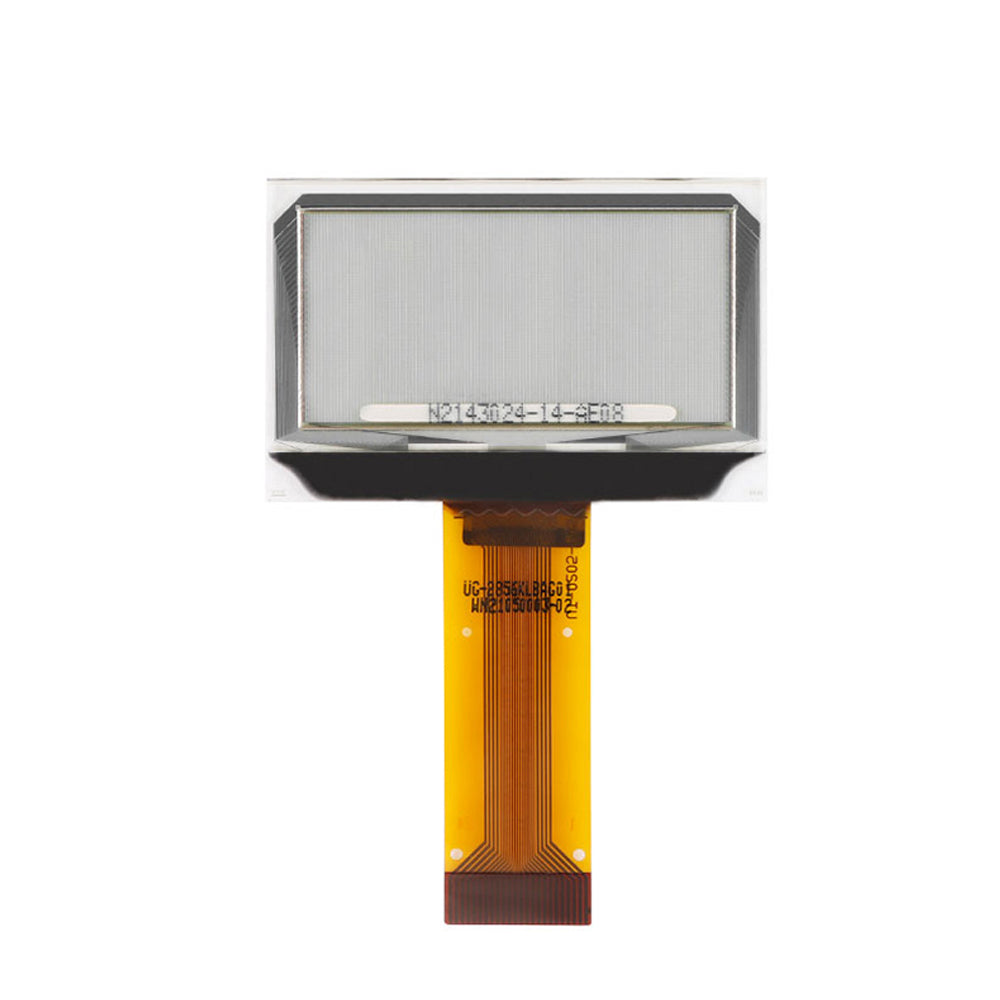

LONTEN 1.51 inch OLED Transparent bare screen 128*64 SPI/IIC connector SSD1309 driver blue 24pin for smart home Custom

Material: PM OLED

Resolution: 128*56 (the actual resolution of the screen is 128*64, there is a small area near the cable that cannot be completely transparent, but it can be displayed, so it can be understood that the completely transparent area is 128*56, and the display resolution is 128* 64)

Interface Type: 8-bit 68xX/8OXX Parallel, 3-/4-wire SPl, l2C

Logic voltage: 3.3v

Display voltage: 12.5V

Control chip: sSD1309

Display color: blue

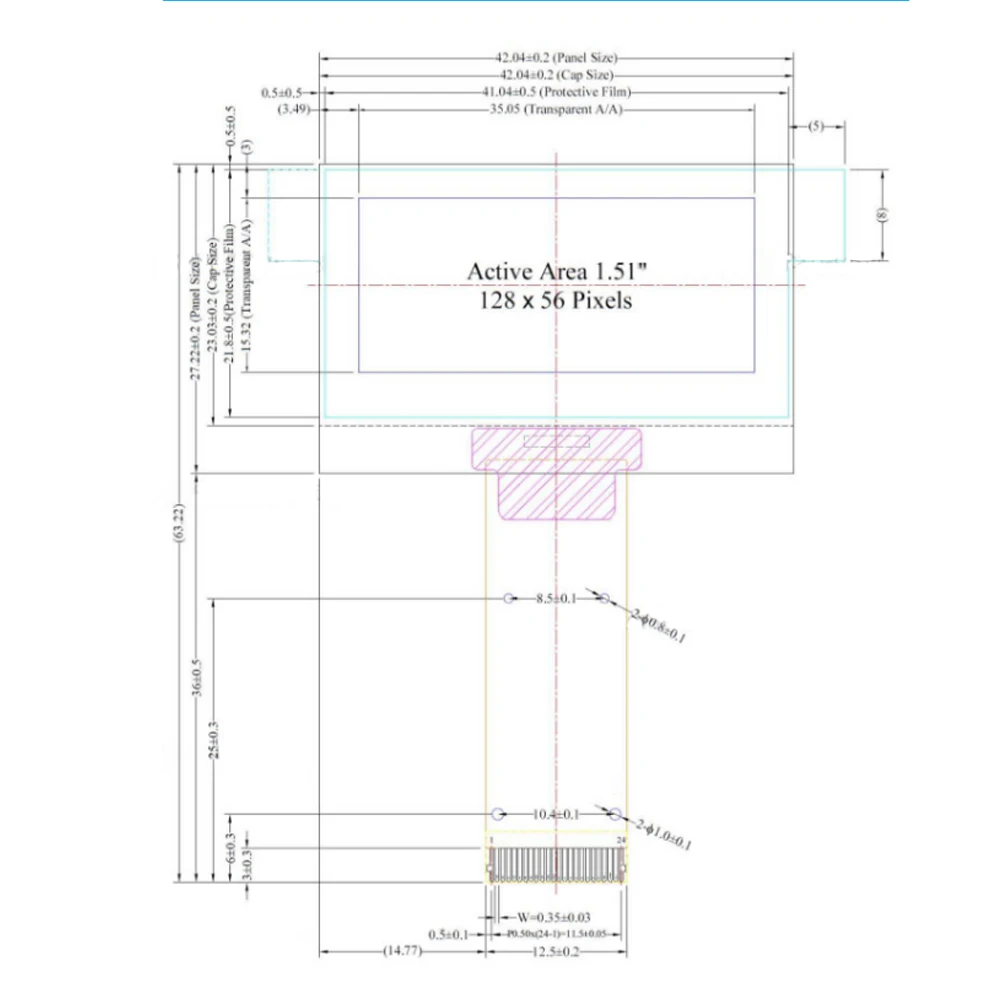

Display area: 35.05×15.32(mm)

Panel size: 42.04×27.22×1.25(mm)

Module size: 42.04 × 63.22 × 1.25 (mm) (including cable)

Pixel pitch: 0.274×0.274 (mm)

Pixel size: 0.254 × 0.254(mm)

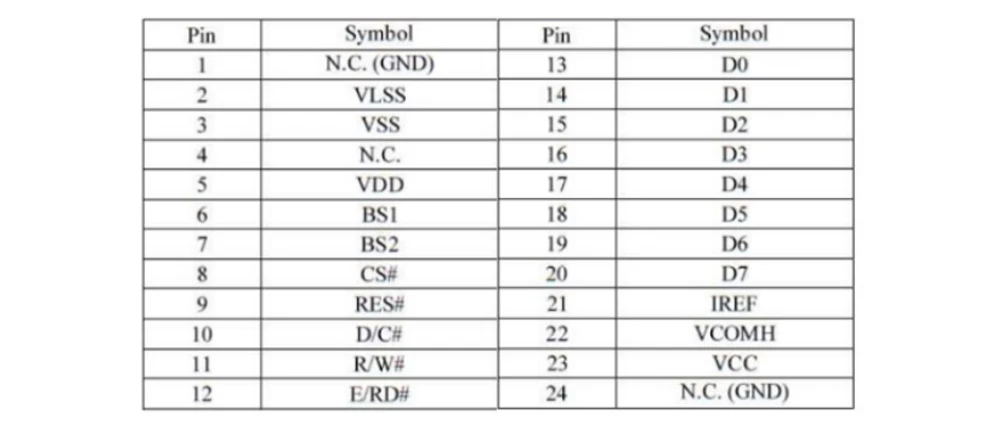

Number of pins: 24pin (0.5mm pitch connection type)

Viewing direction: full viewing angle

Working temperature: -40~70 degrees

Advantages: Transparent OLED displays are widely used in high-end smart furniture products. Can be directly replaced with non-transparent 1.54" OLED
