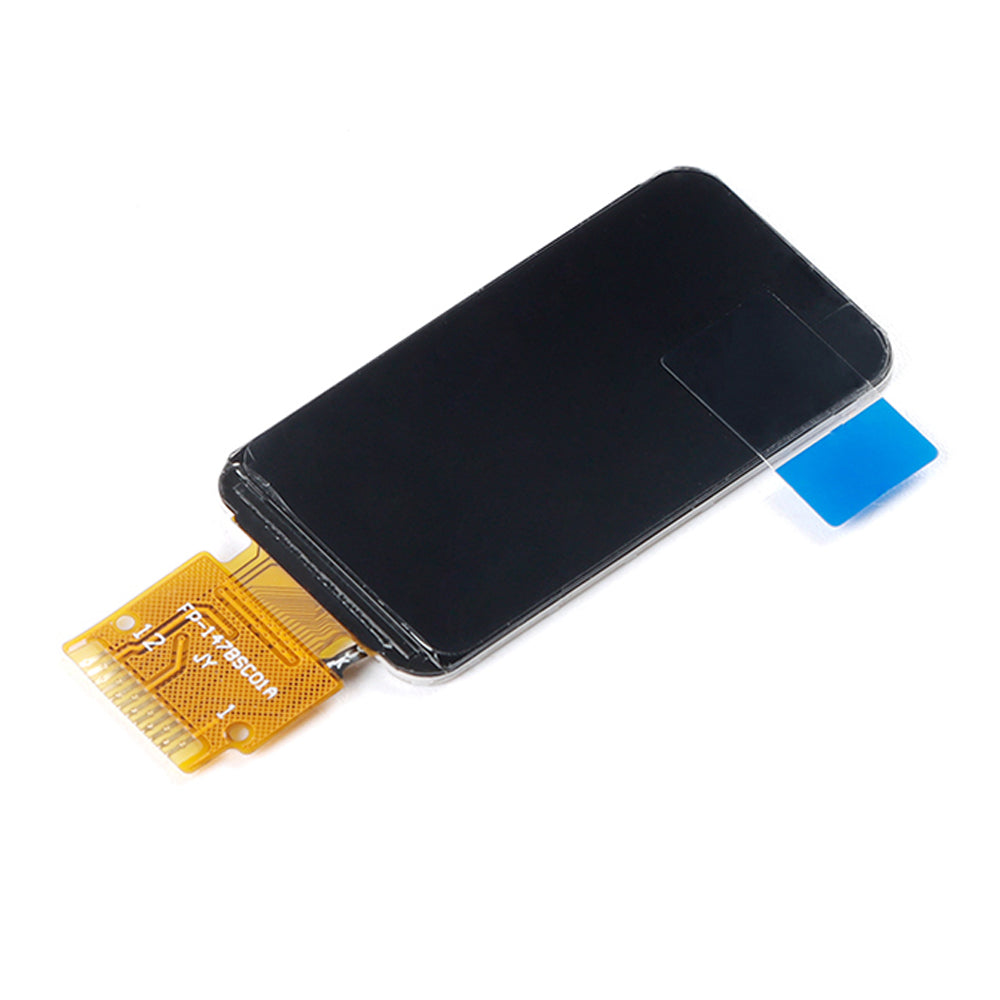

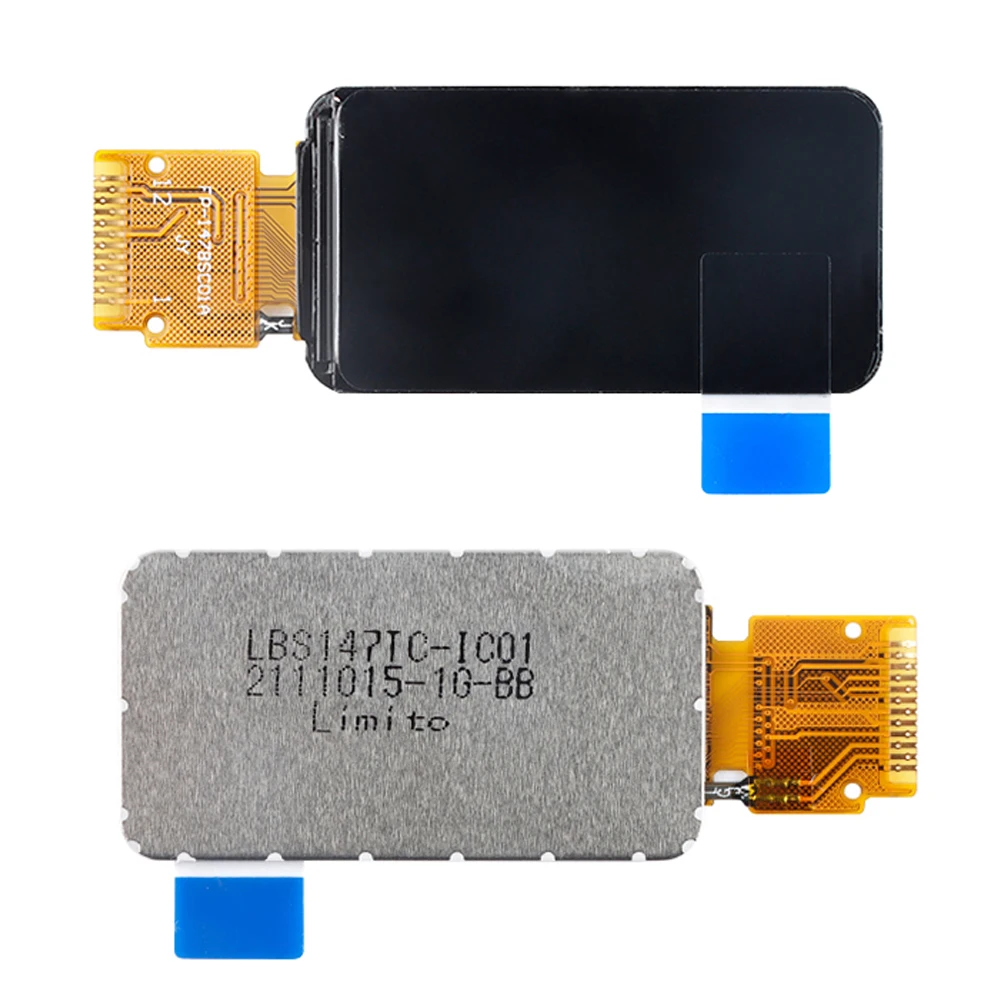

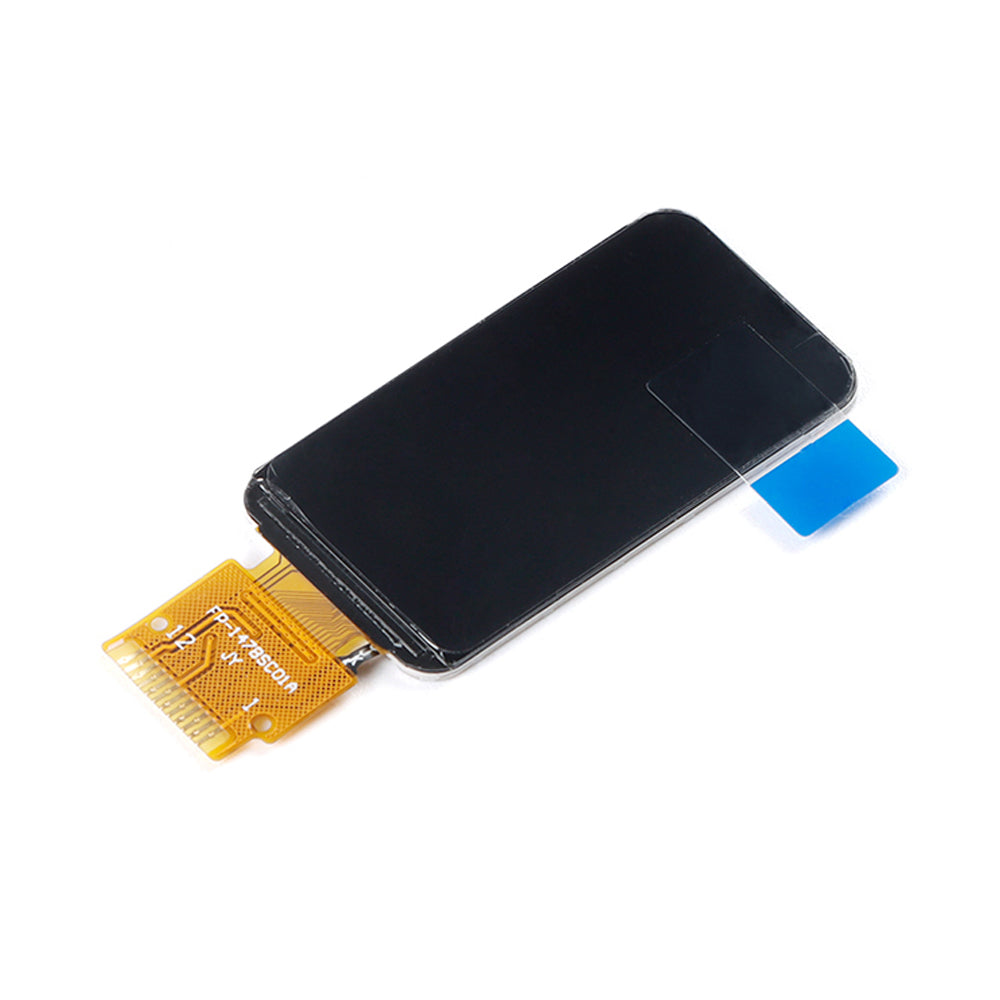

LONTEN 1.47 inch RGB TFT LCD screen 172*320 SPI interface ST7789 driver IPS LCD display screens Custom

Size: 1.47 inch IPS color LCD

Resolution: 172(H)RGBx320(V)

Interface type: SPI interface

Control chip: ST7789V3

Highlights of this screen: HD IPs, the display direction can be adjusted.

Display color: colorful

Display area: 17.3892(H) x 32.352(V)

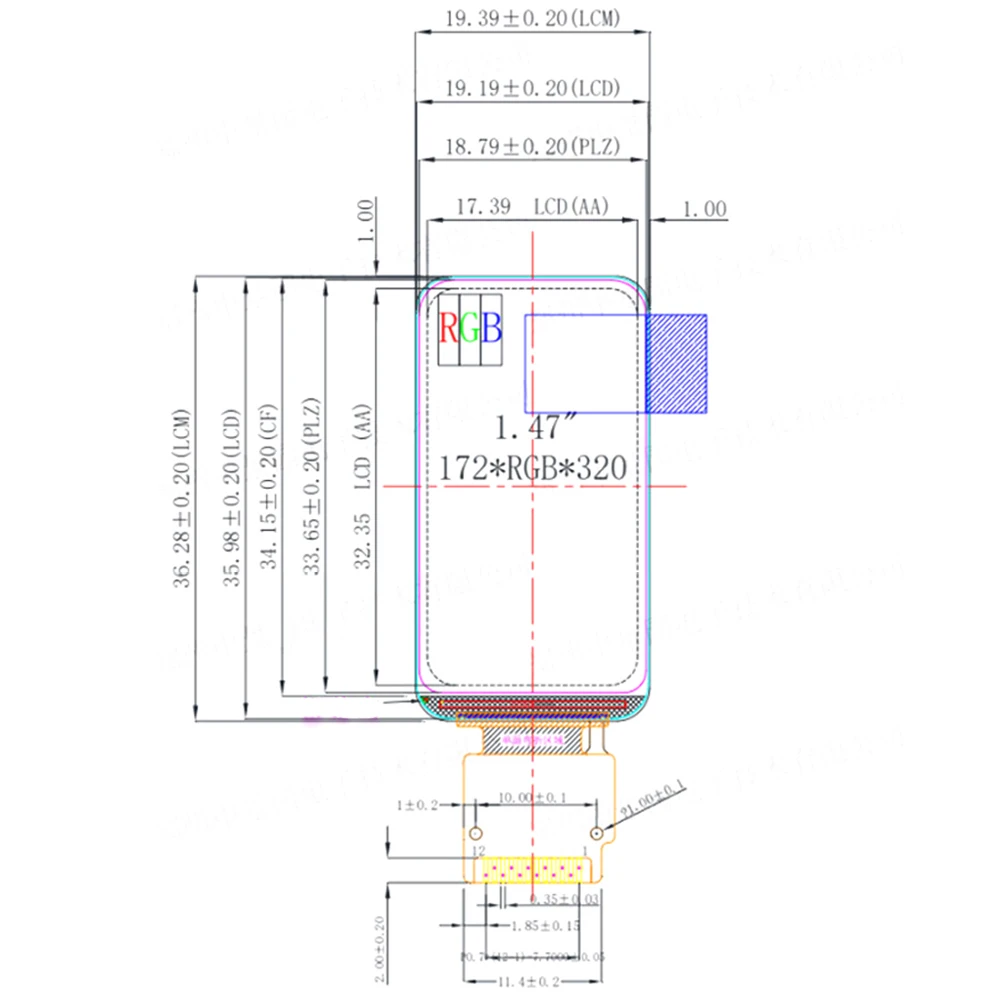

Panel size: 19.39(H)x36.28(V)x1.46(D)

Pixel pitch: 0.0337(H)x0.1011(V))

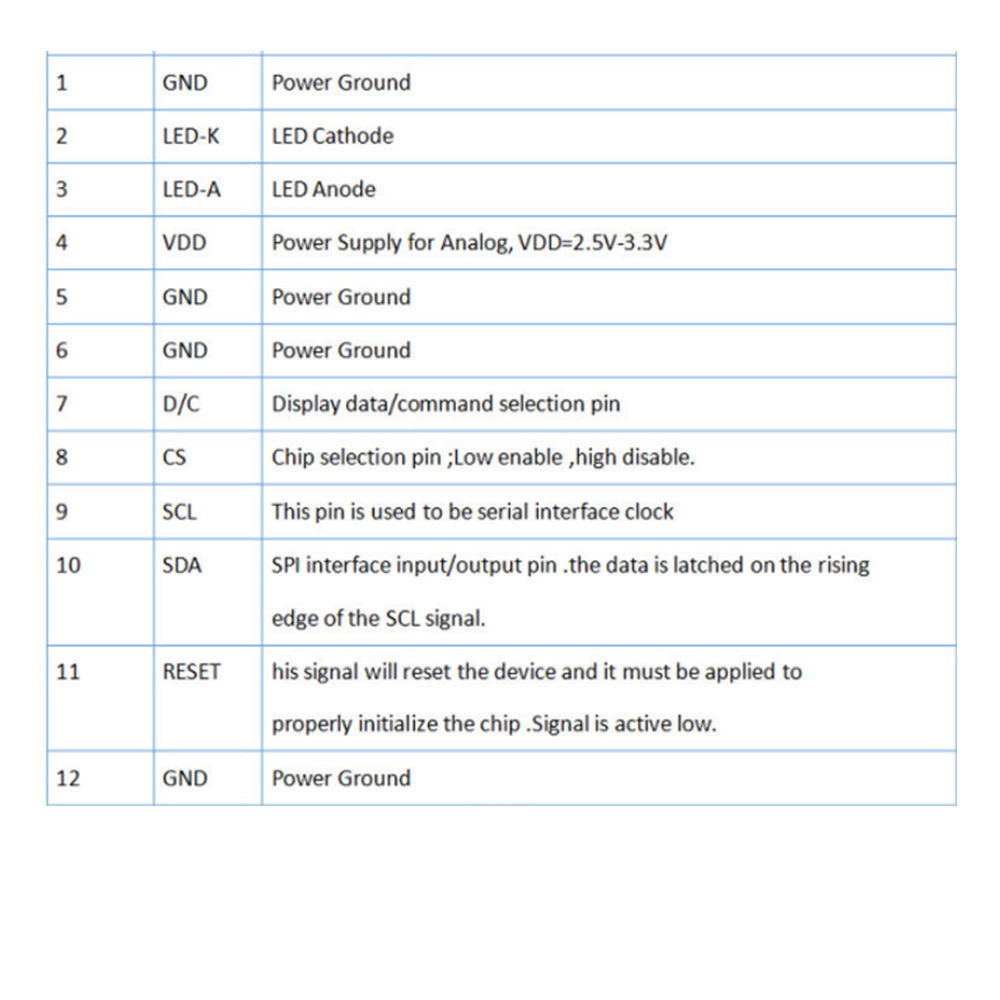

Number of pins: 12pin (soldering 12pin, 0.7mm pitch)

Viewing direction: full viewing angle

Working temperature: -20~70 degrees

Logic voltage: 3.3v

Backlight Type: 3 White LED Parallel

Brightness: 600 (TYP)Cd/m2

Weight: 2.7g

Connection method: 0.7mm pitch welding FPC
