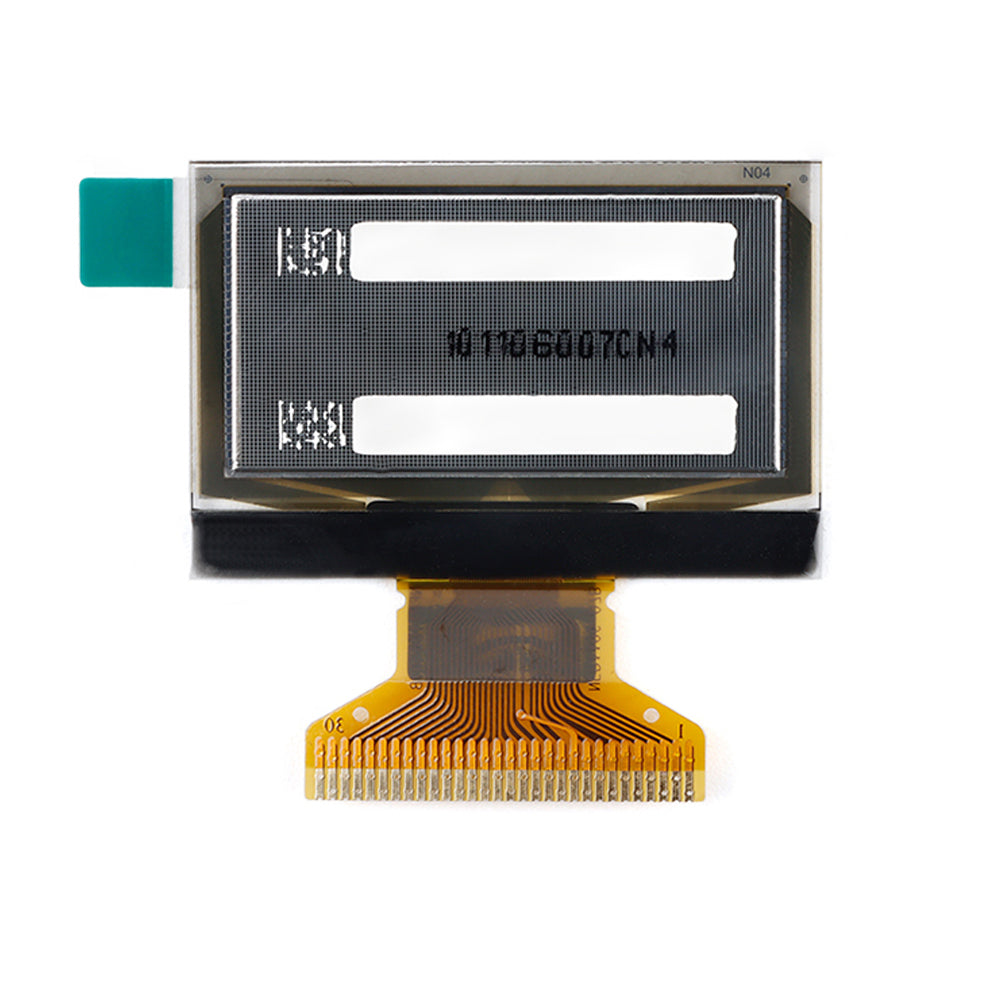

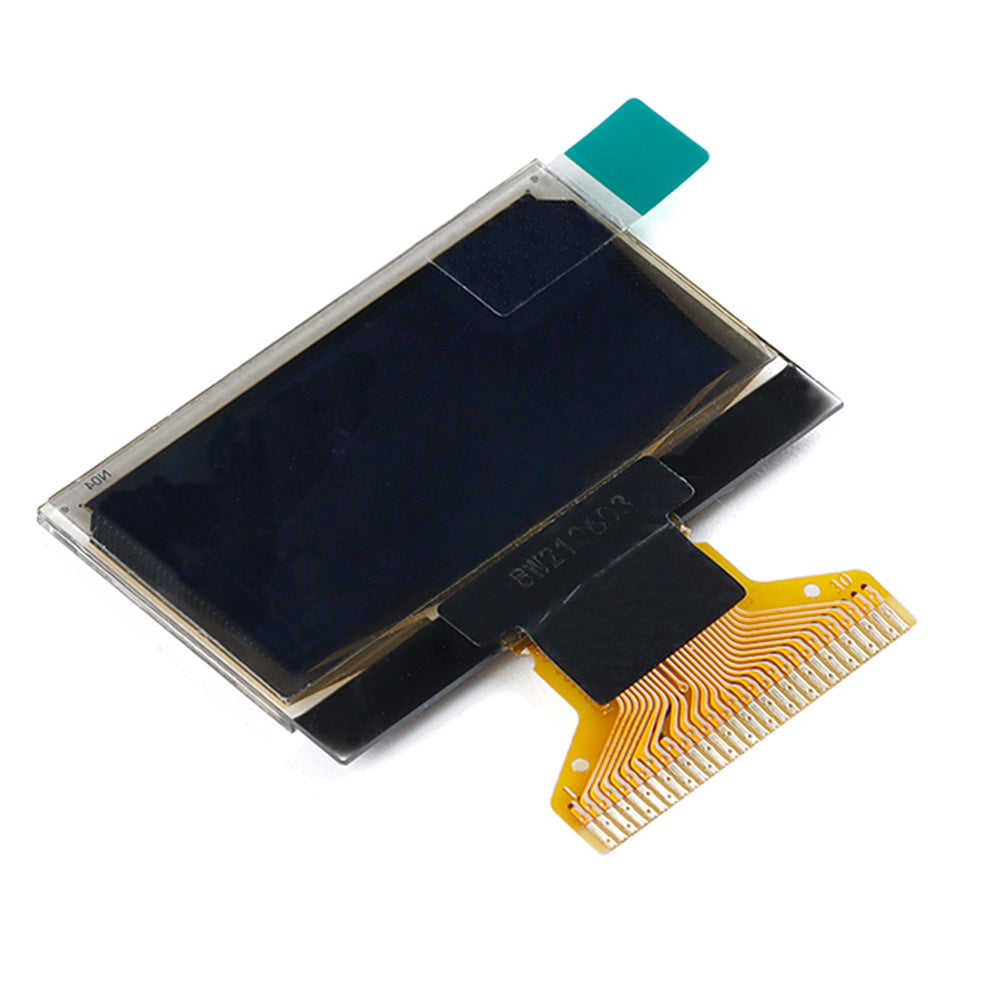

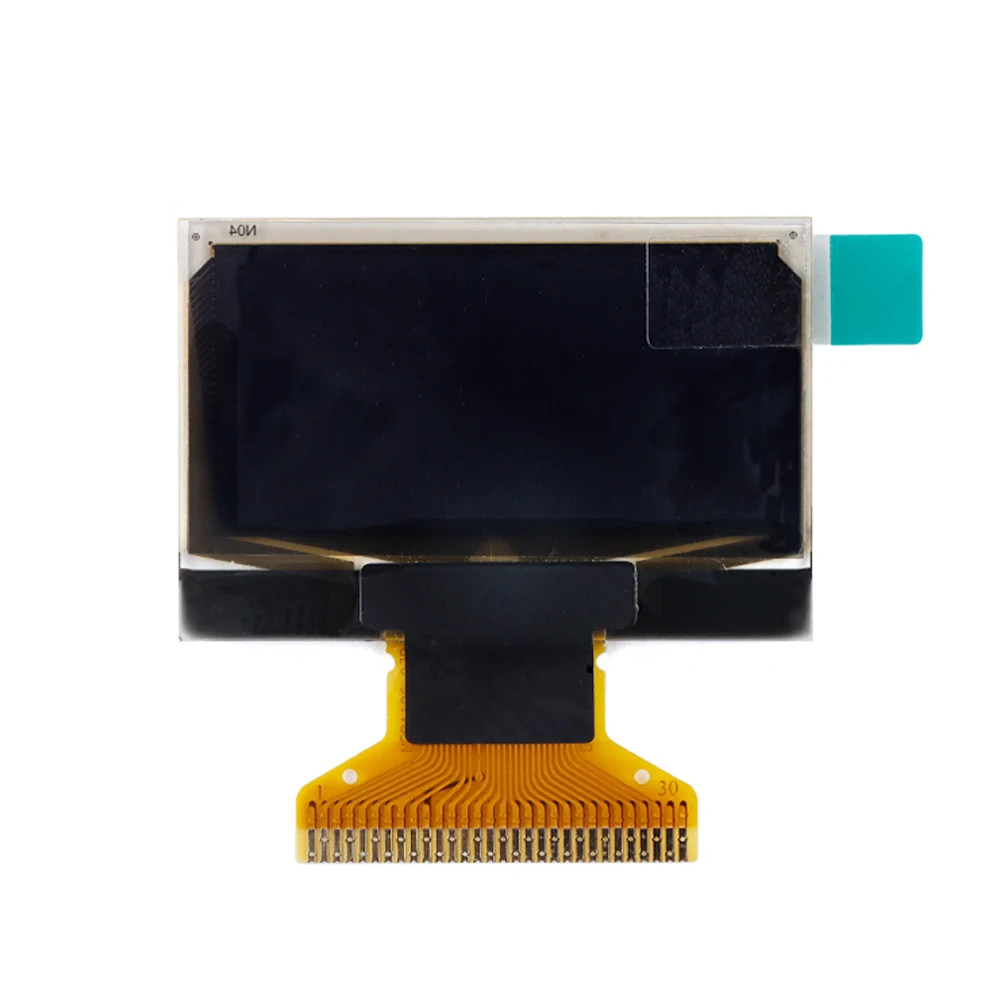

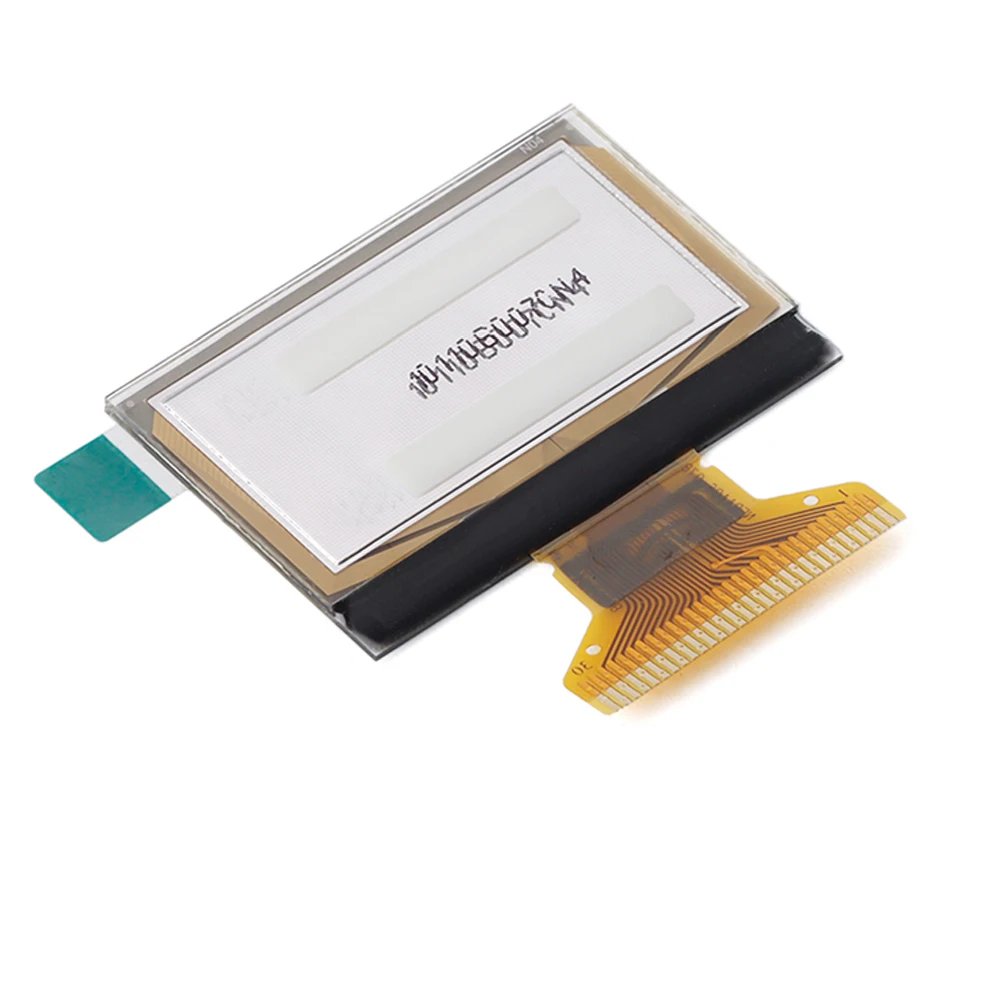

LONTEN 1.3 inch 128*64 OLED screen 12864 LCD white screen 30pin SH1106G screens Custom

Size: 1.30-inch OLED monochrome display

Resolution: 128x64

Control chip: SH1106G

Interface Type: 8-bit 68xX/80Xx Parallel, 3/4-wire SPI, l2C

Display color: white

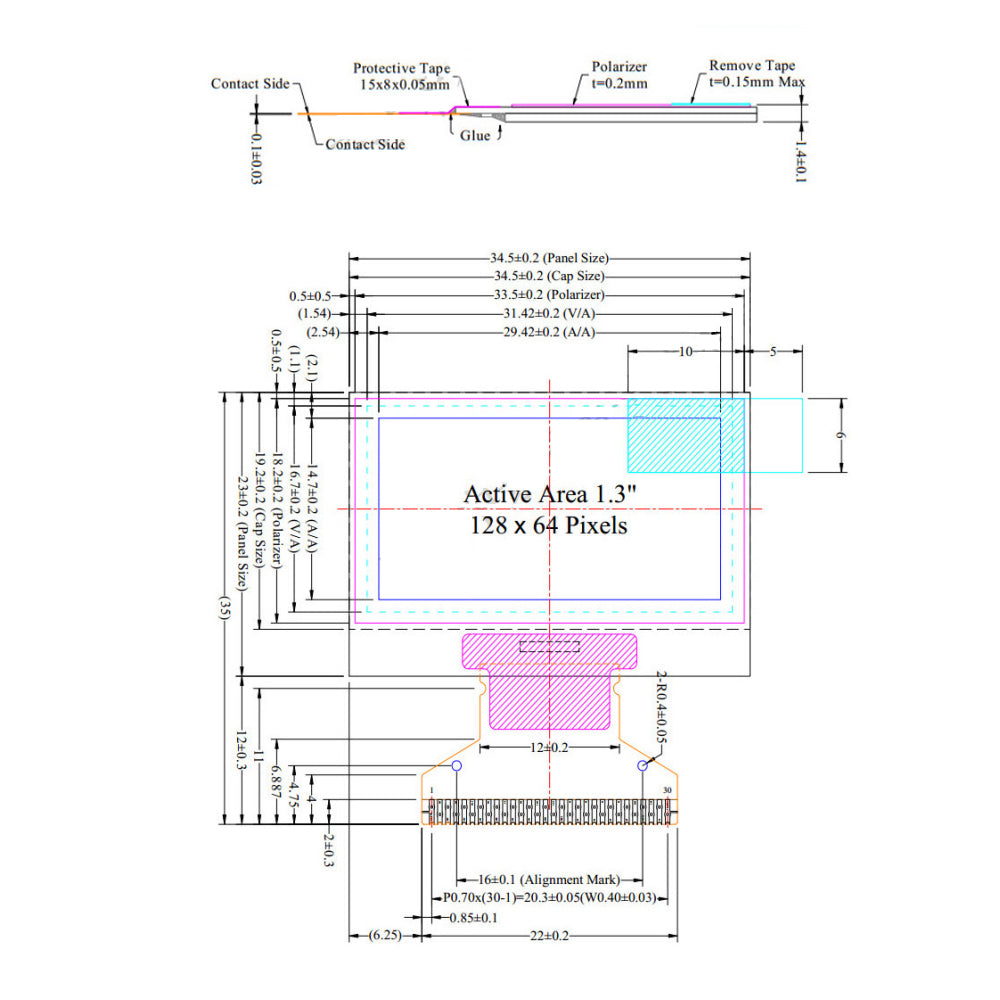

Display area: 29.42x14.7 (mm)

Panel size: 34.5x 23.0 x1.4(mm)

Pixel size: 0.21x0.21(mm)

Pixel pitch: 0.23x0.23(mm)

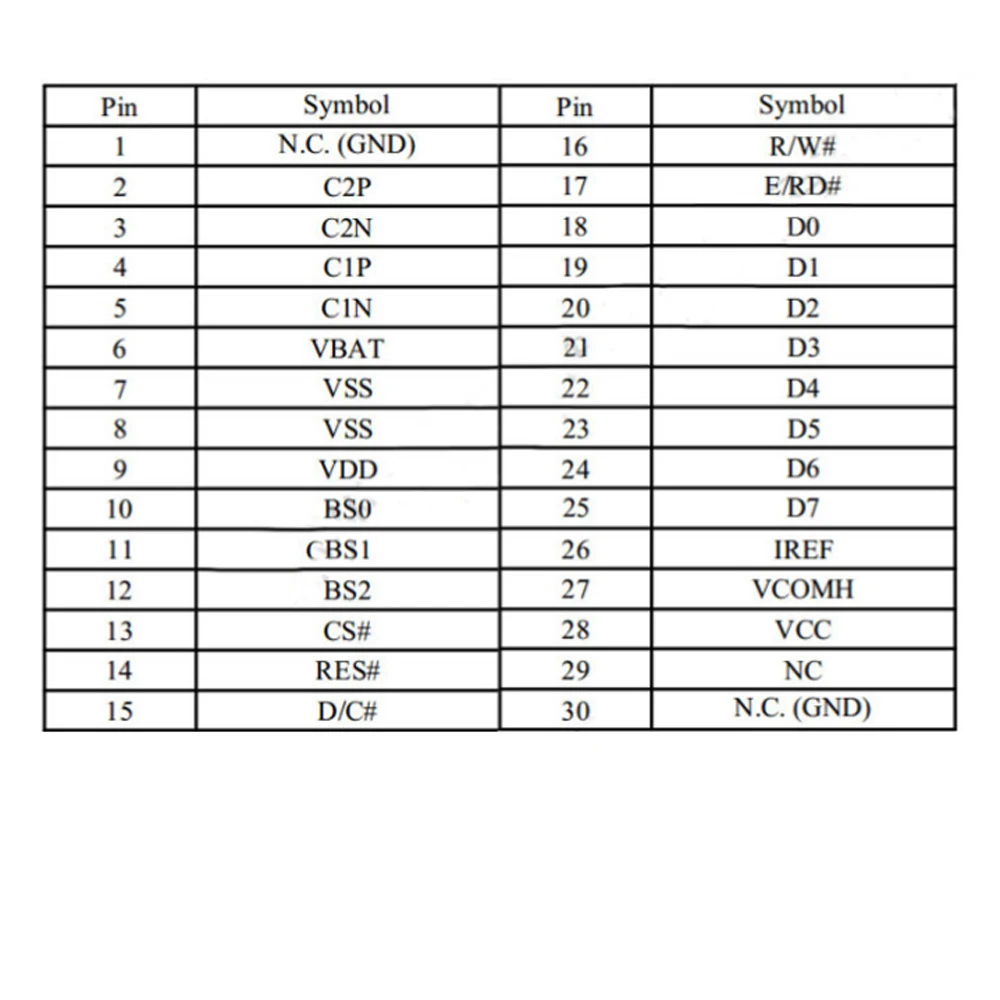

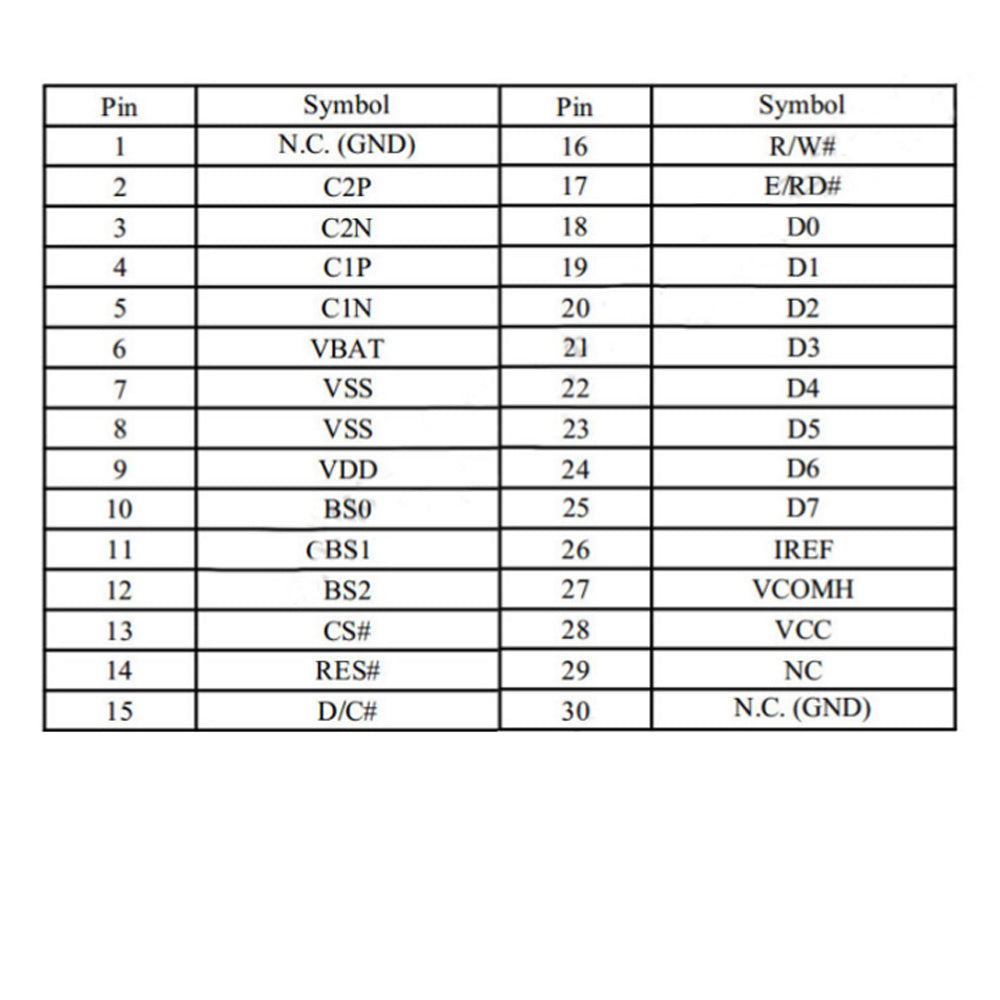

Number of pins: 30pin (soldering 30pin, 0.7 pitch)

Viewing direction: full viewing angle

Working temperature: -40 to 85 degrees

Working voltage: 3.3v

Connection method: 0.7mm pitch welded FPC
