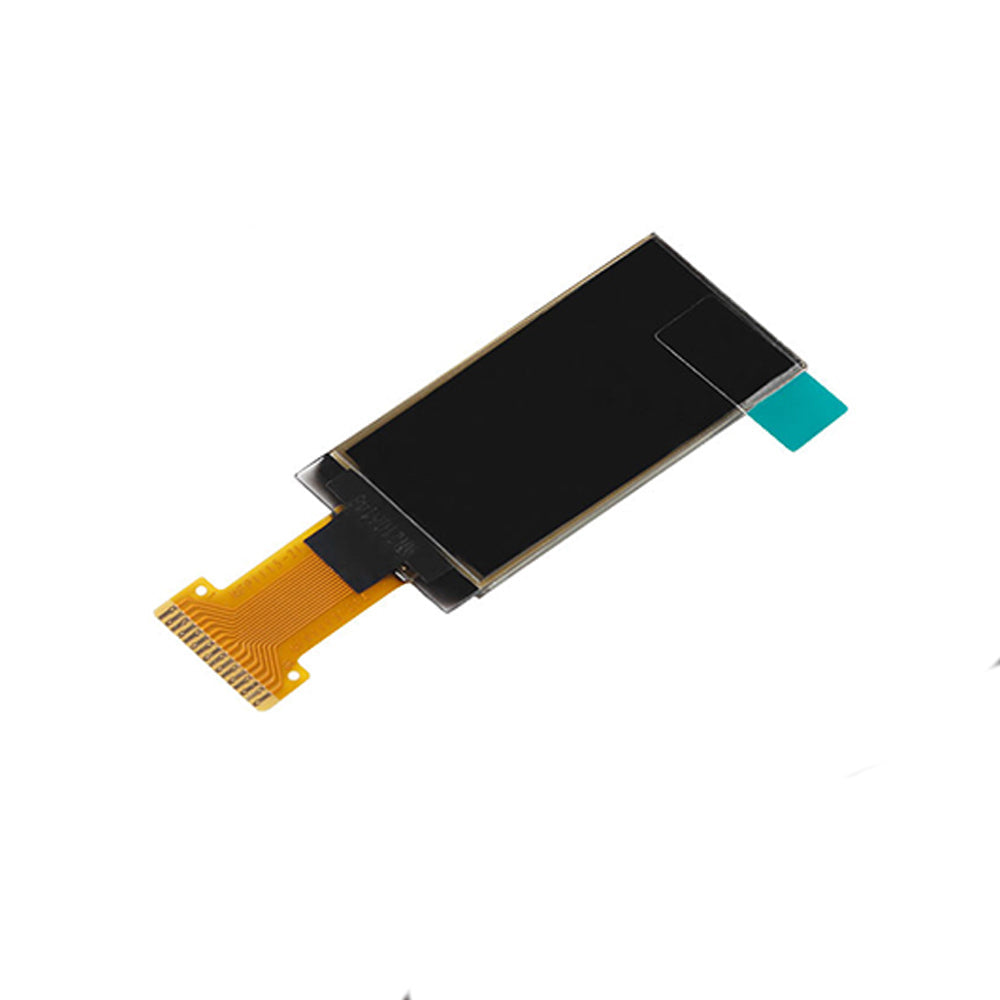

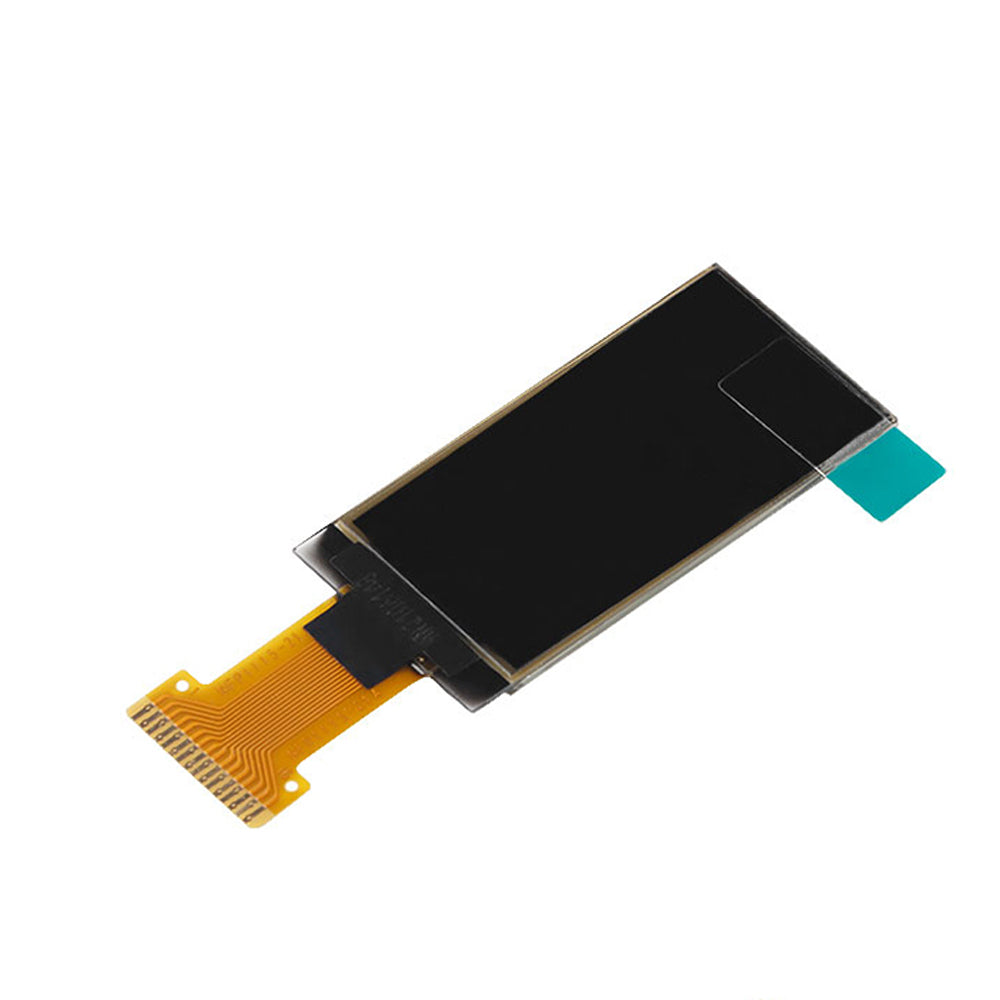

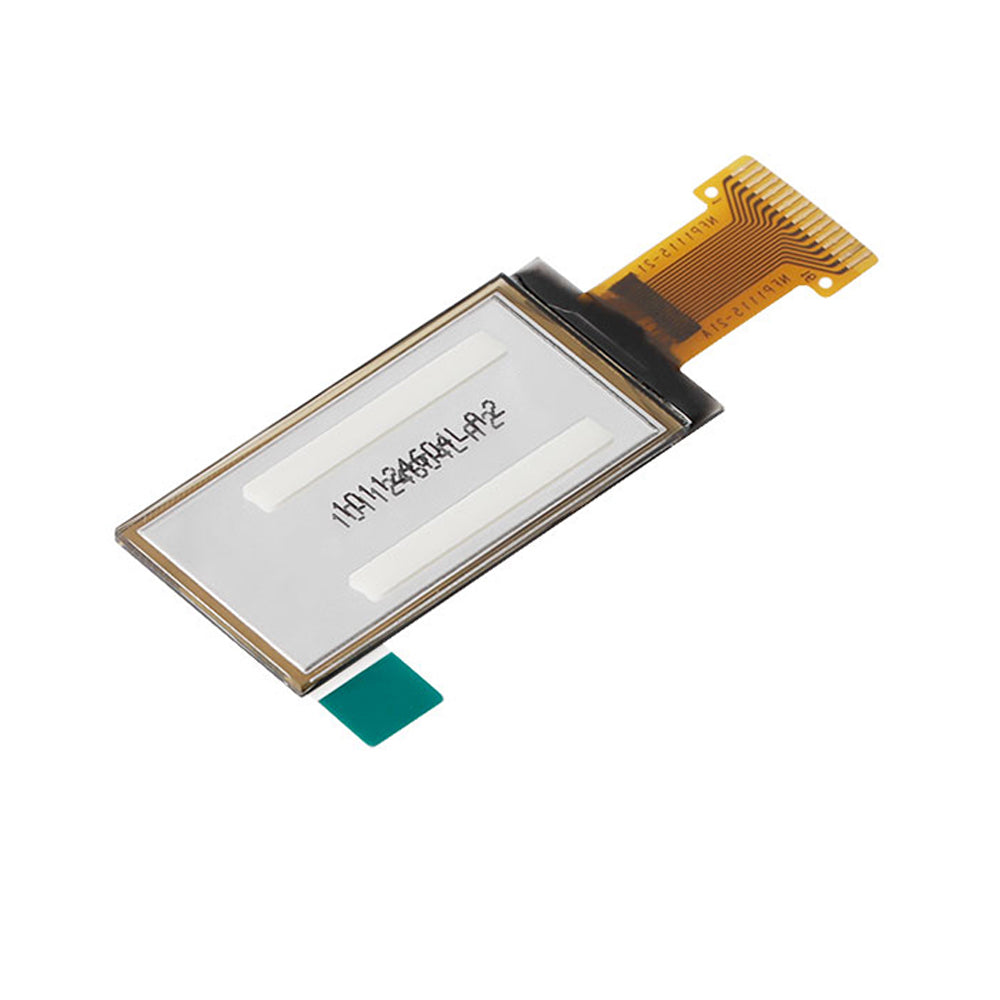

LONTEN 1.29 inch OLED screen display 128*64 SPI/IIC interface CH1115 driver solder type screens Custom

Size: 1.29 inches

Material: PM OLED

Resolution: 128*64

Control chip: CH1115

Advantages: side outlet; smaller footprint, more compact, compatible with SSD1306 drivers

Built-in boost, no boost circuit required

Display area: 29.42×14.7 (mm)

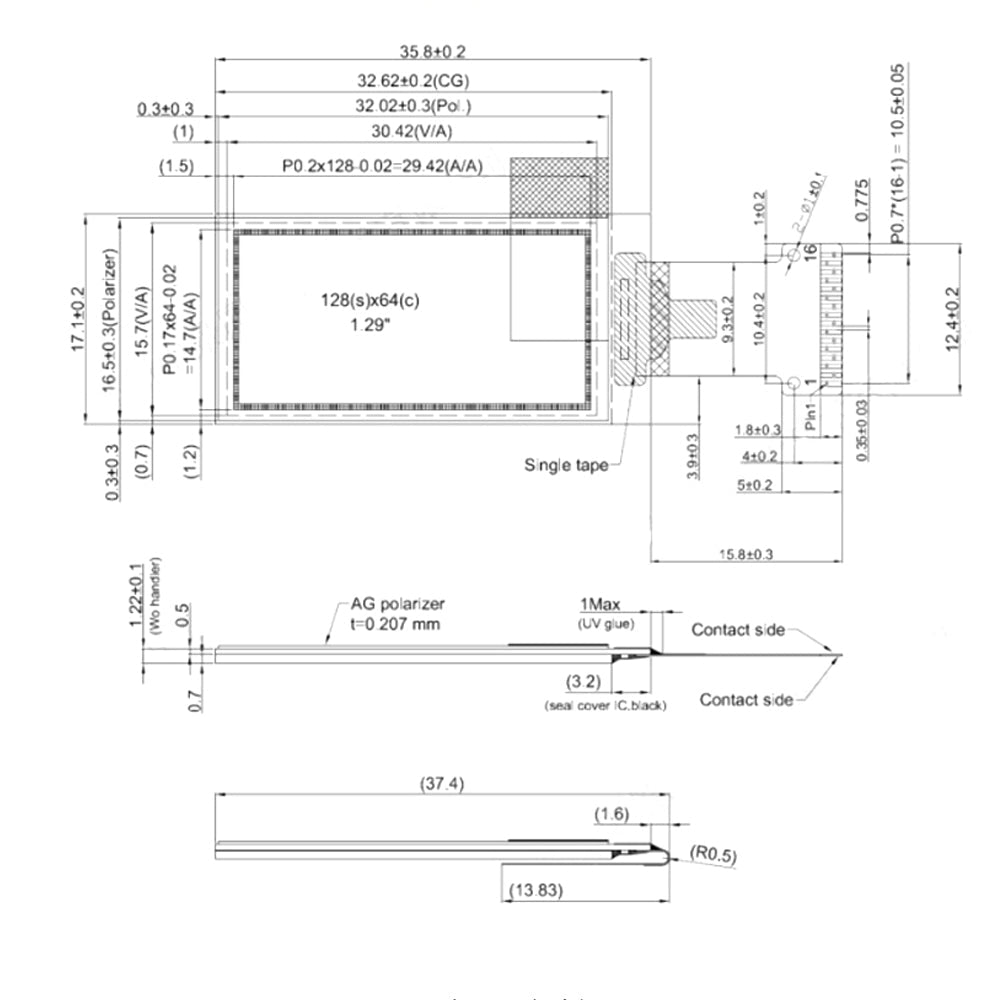

Panel size: 35.8x17.1x1.22(mm)

Interface type: SPI/IIC interface

Display color: white

Working voltage: 3.3v

Pixel size: 0.23×0.23 (mm)

Pixel pitch: 0.25×25(mm)

Connection method: 6Pin welding type

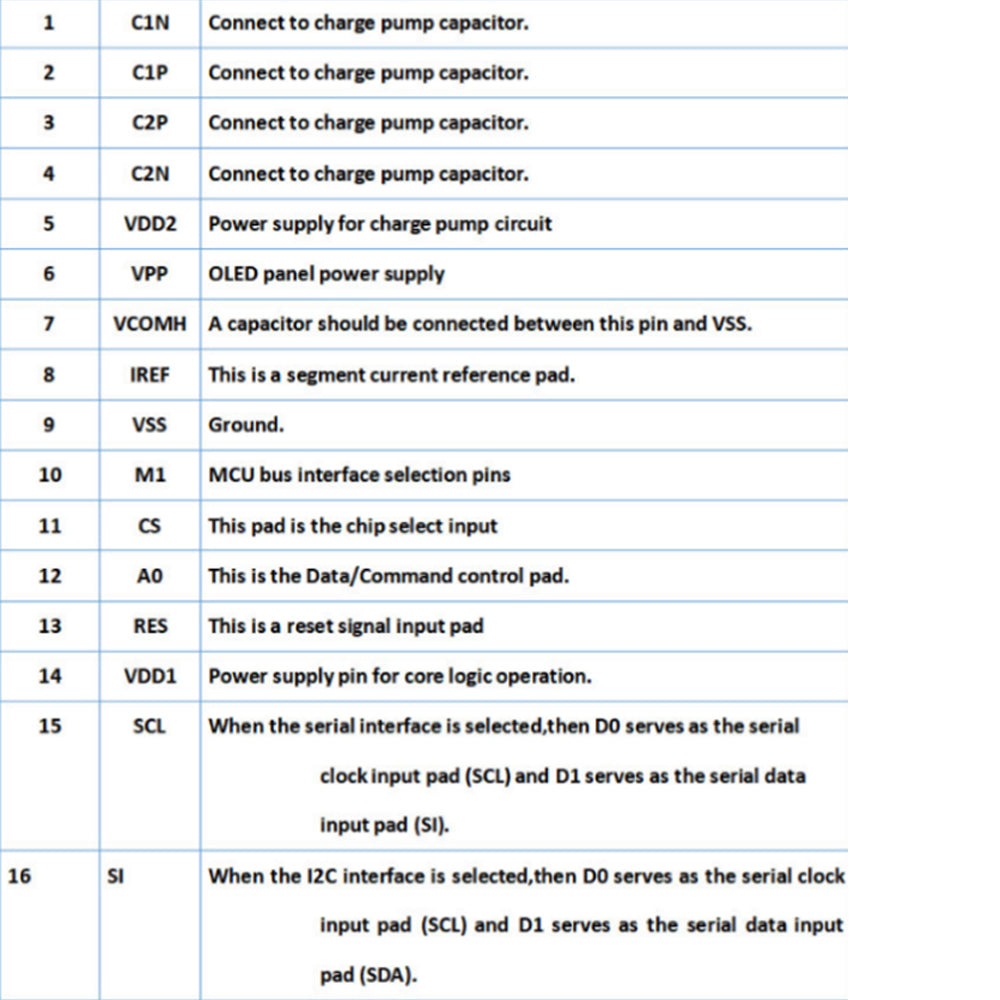

Number of pins: 16Pin (0.7mm pitch welding type, 0.5mm pitch plug-in type)

Viewing direction: full viewing angle

Working temperature: -40~70 degrees
