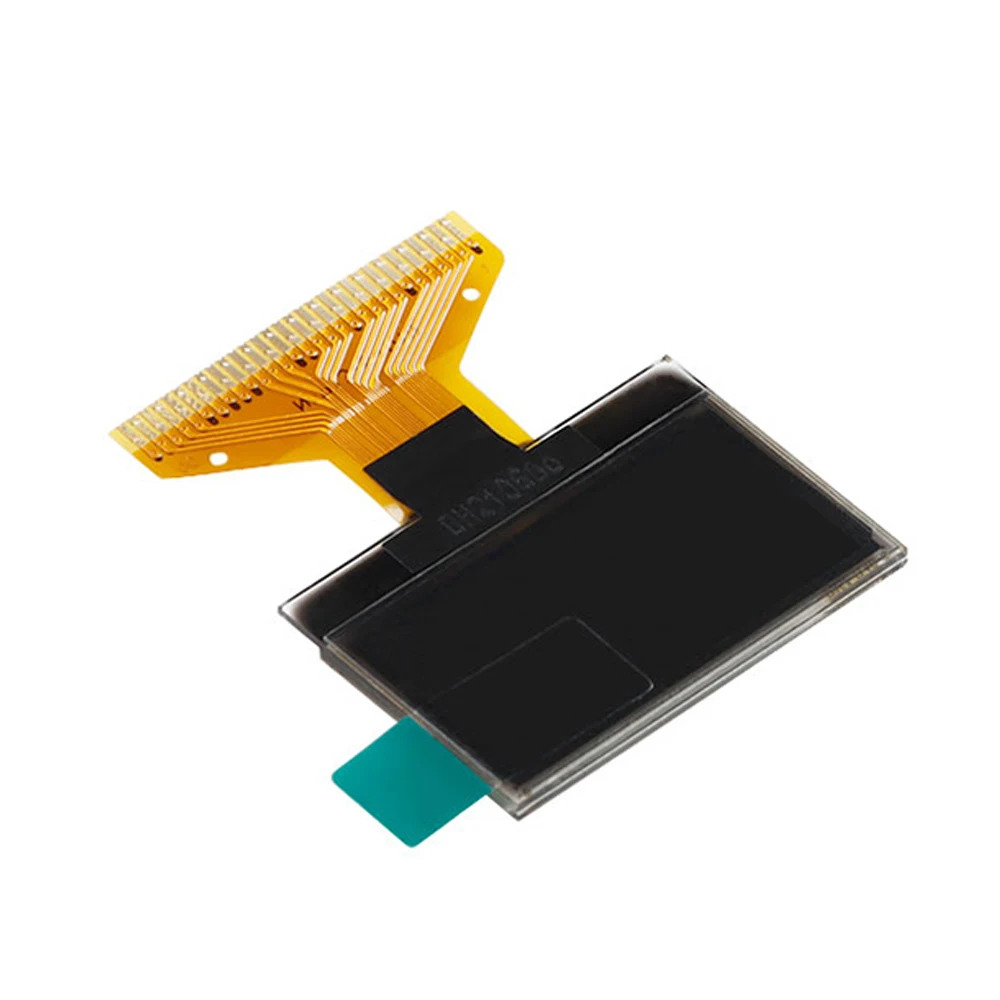

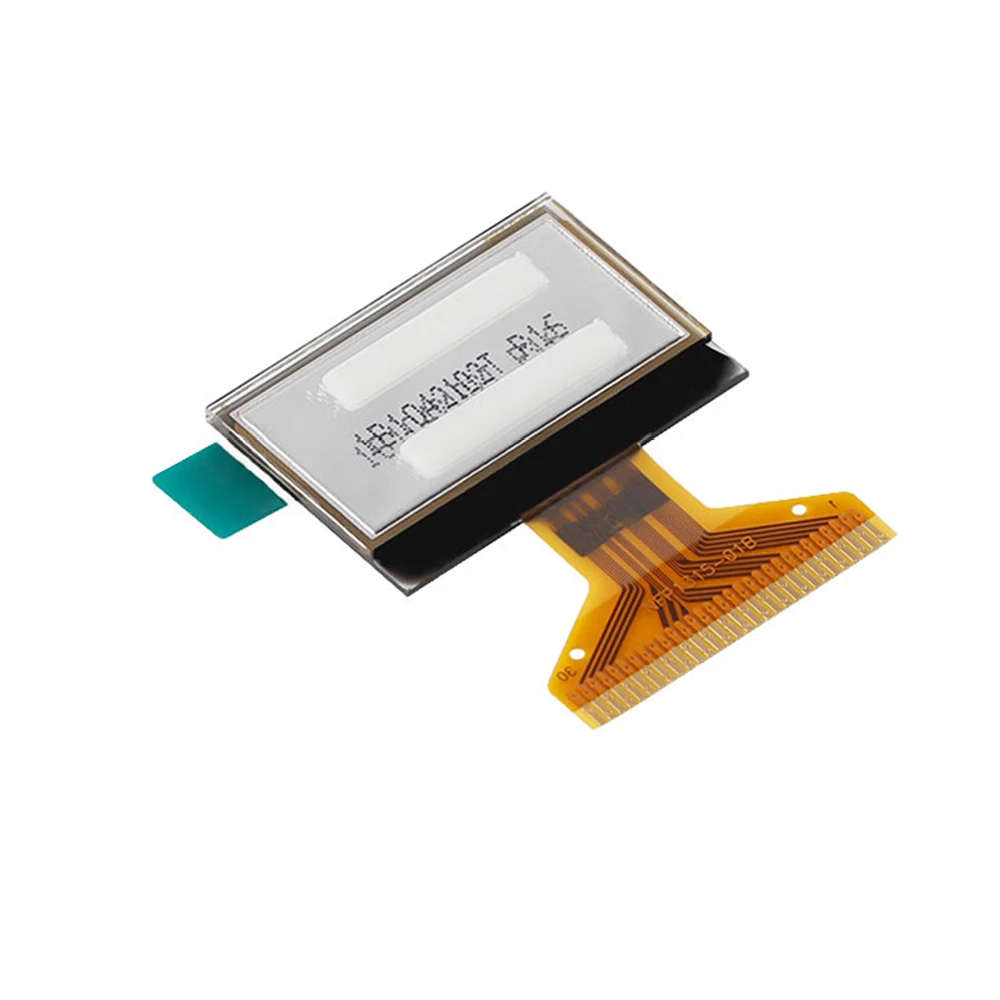

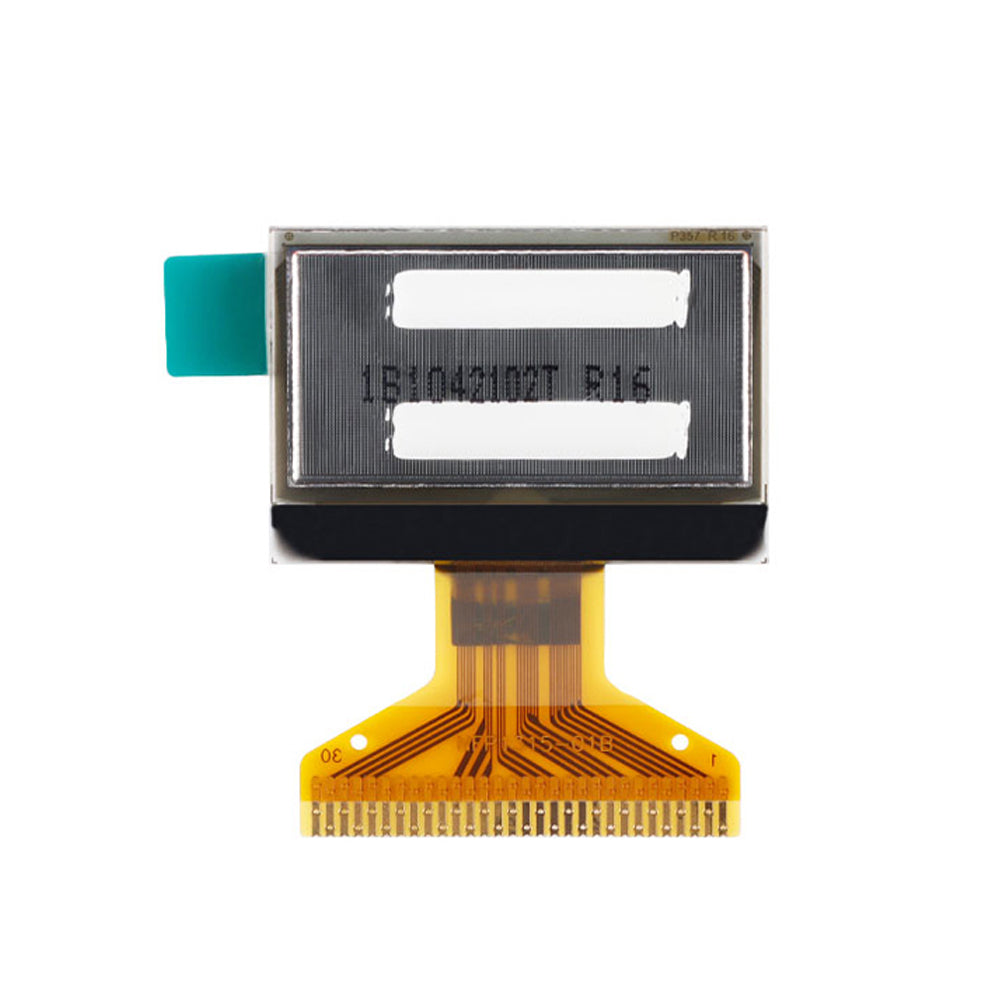

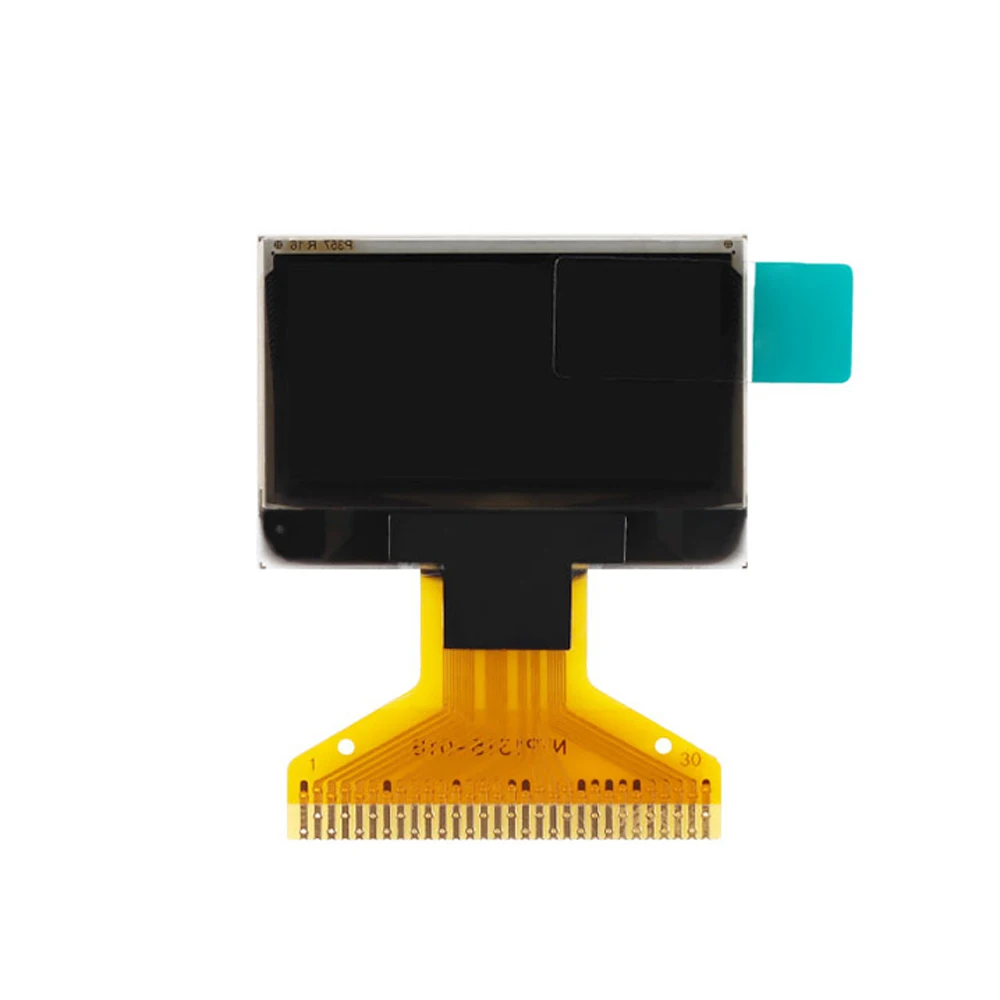

LONTEN 0.96 inch OLED screen 128*64 SSD1315 driver white 4 wire SPI/IIC screens Custom

Size: 0.96 inch OLED monochrome display

Resolution: 128x64

Interface Type: 4-wire SPI/IIC

Control chip: SSD1315

Display color: white

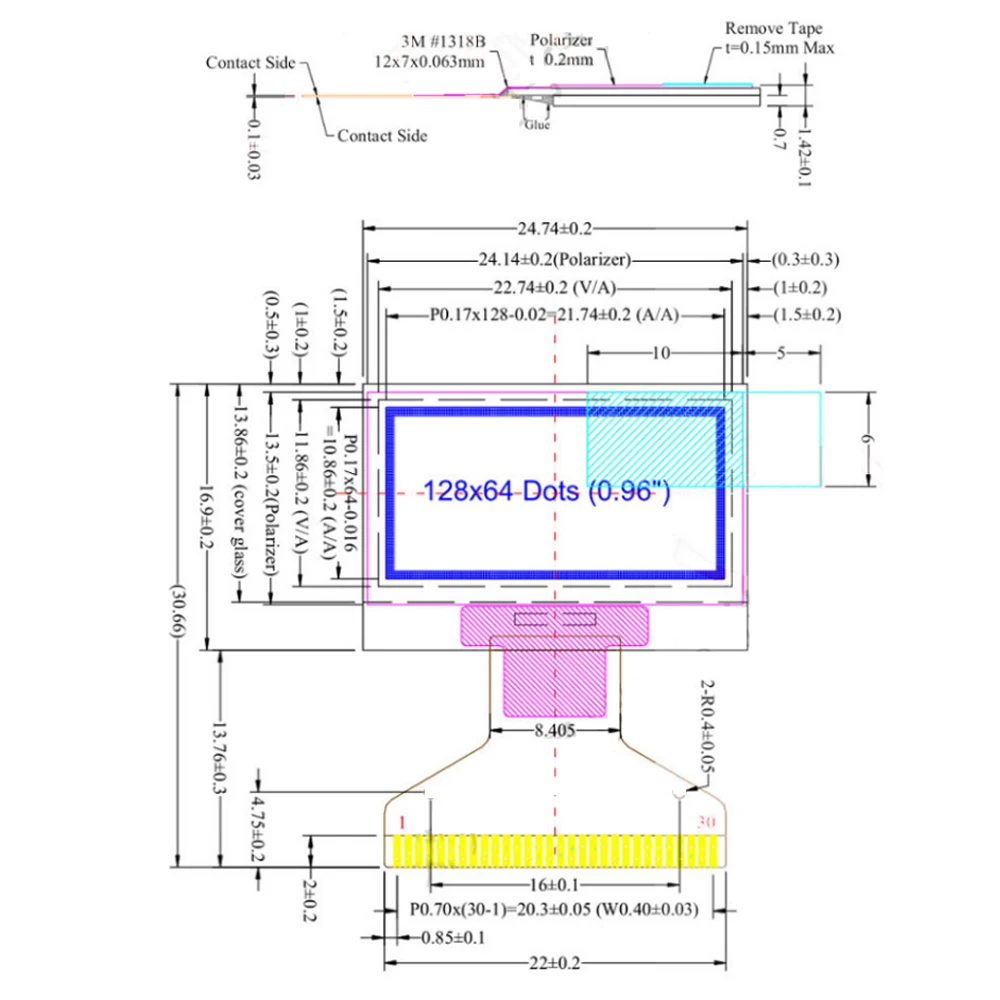

Display area: 21.74x10.86(mm)

Panel size: 24.74x16.9x1.42(mm)

Pixel size: 0.15x0.15(mm)

Pixel pitch: 0.17x0.17(mm)

Number of pins: 30pin (soldering 30pin, 0.7mm pitch)

Viewing direction: full viewing angle

Working temperature: -40~70 degrees

Working voltage: 3.3v

Connection method: 0.7mm pitch welding FPC
