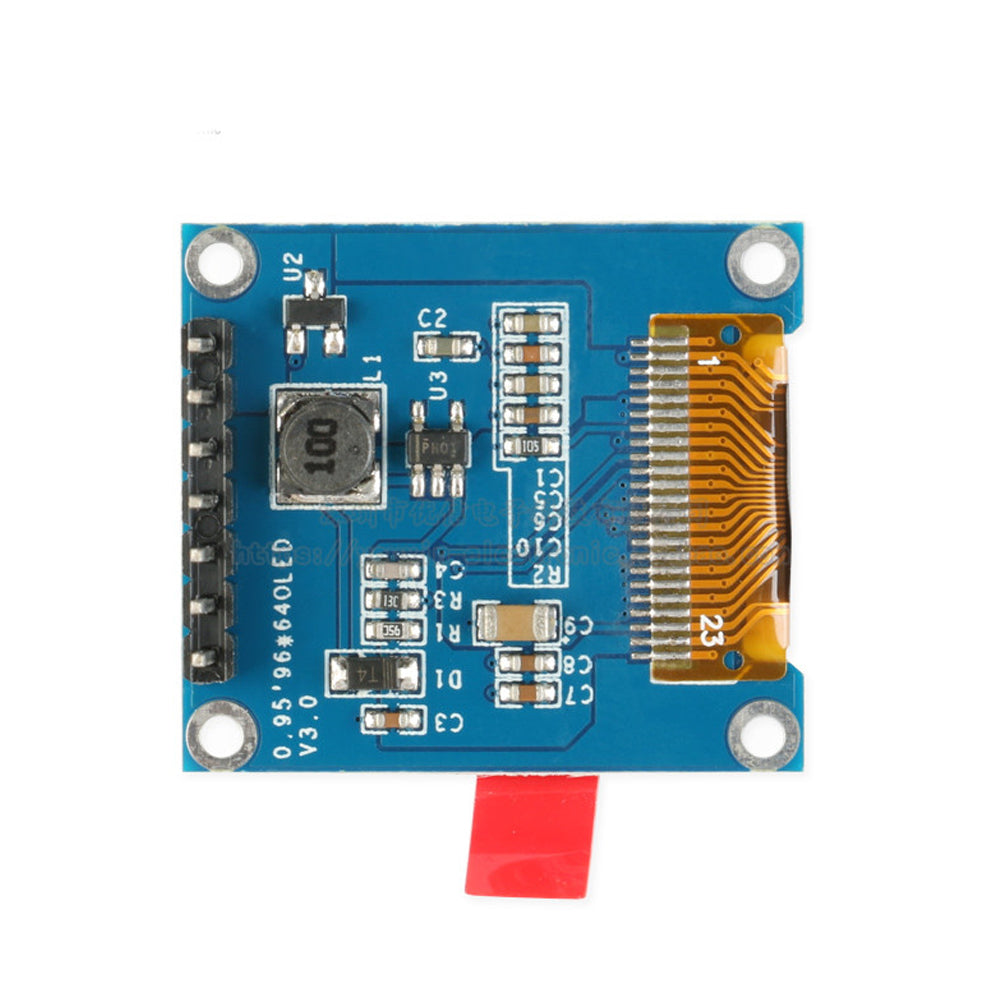

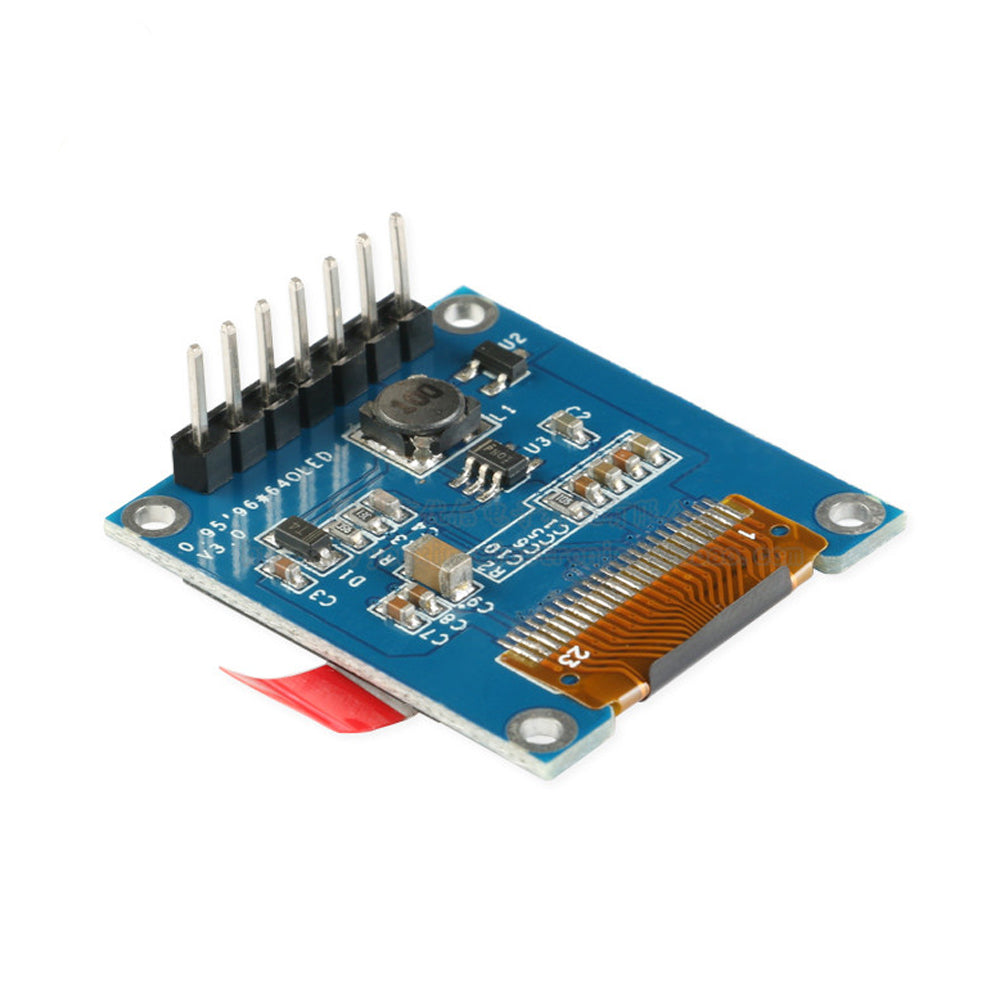

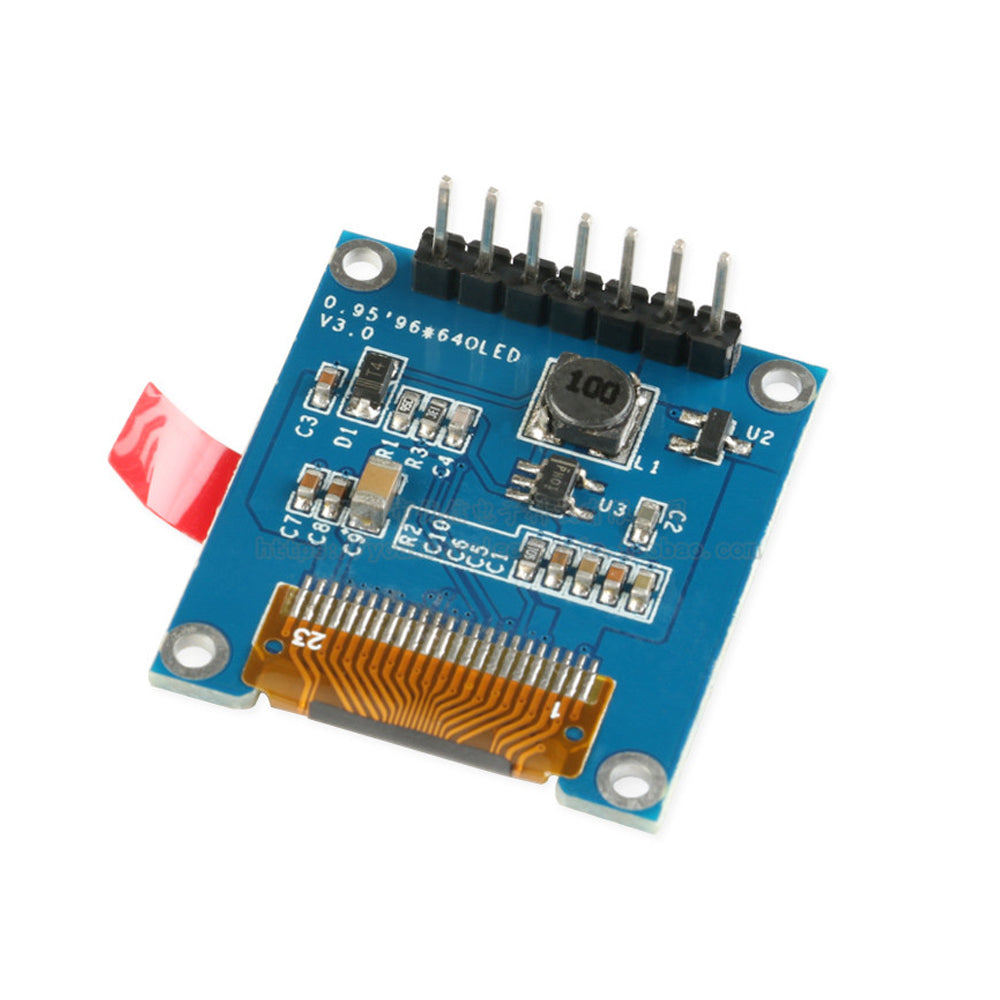

LONTEN 0.95 inch OLED screen display 96*64 screen module SSD1331 Full Color For Arduino DIY SPI Custom
LONTEN 0.95 inch OLED screen display 96*64 screen module SSD1331 Full Color For Arduino DIY SPI Custom
Regular price
$16.14 USD
Regular price
$16.14 USD
Sale price
$16.14 USD
Unit price
/
per
Product parameters
Resolution: 96*64
Color: 65536 colors
Driver IC: SSD1331SPI

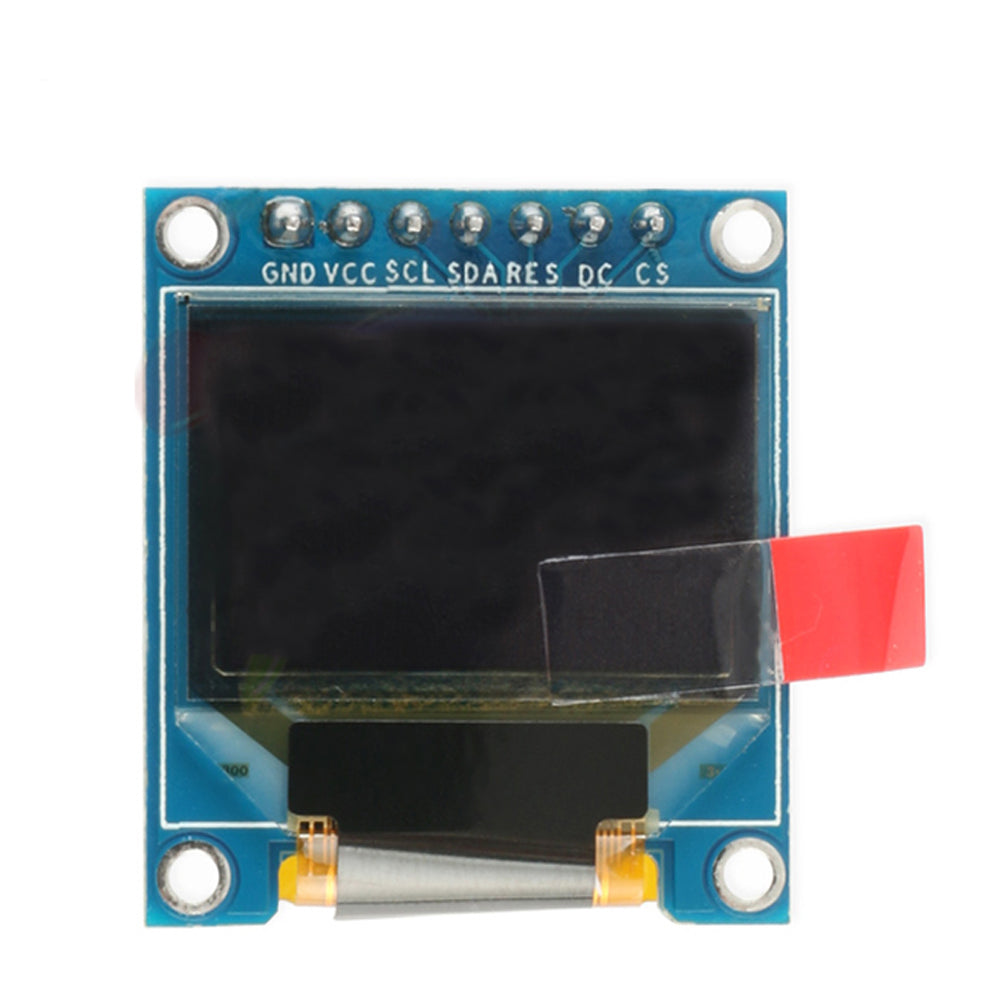

Interface definition:
1. GND (power ground)
2. vCC (power positive)
3. SCI (clock line)
4. SDA (data cable)
5. RES* (reset line) eight
6. DC (Data/Command)
7. CS (Chip Select)
provide information
1. Module test program 2. Module original schematic 3. OLED data sheet
