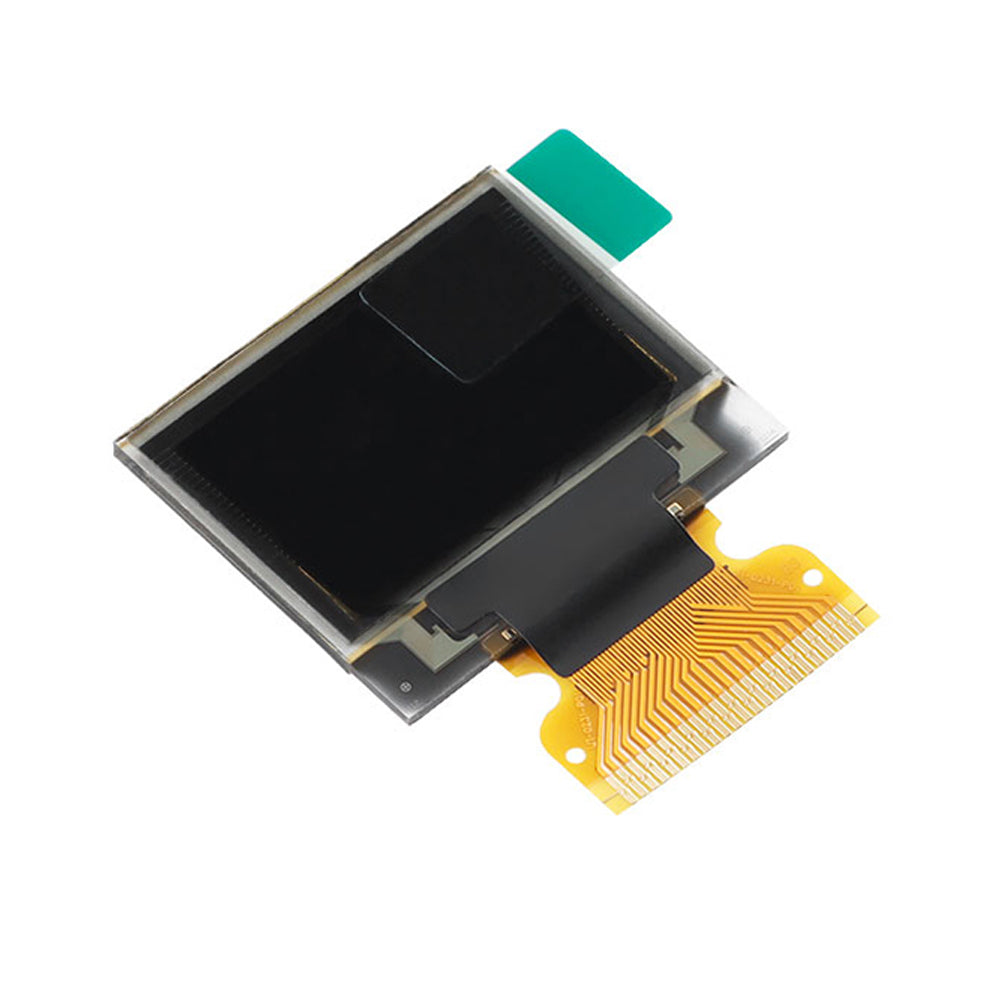

LONTEN 0.95 inch OLED screen 96(RGB)*64 SPI Parallel interface SSD1331 drive 23pin screens Custom

Size: 0.95 inches

Material: High Brightness PM OLED

Resolution: 96(RGB)X64

Control chip: sSD1331z

Brightness adjustment: support software brightness adjustment

Display color: full color

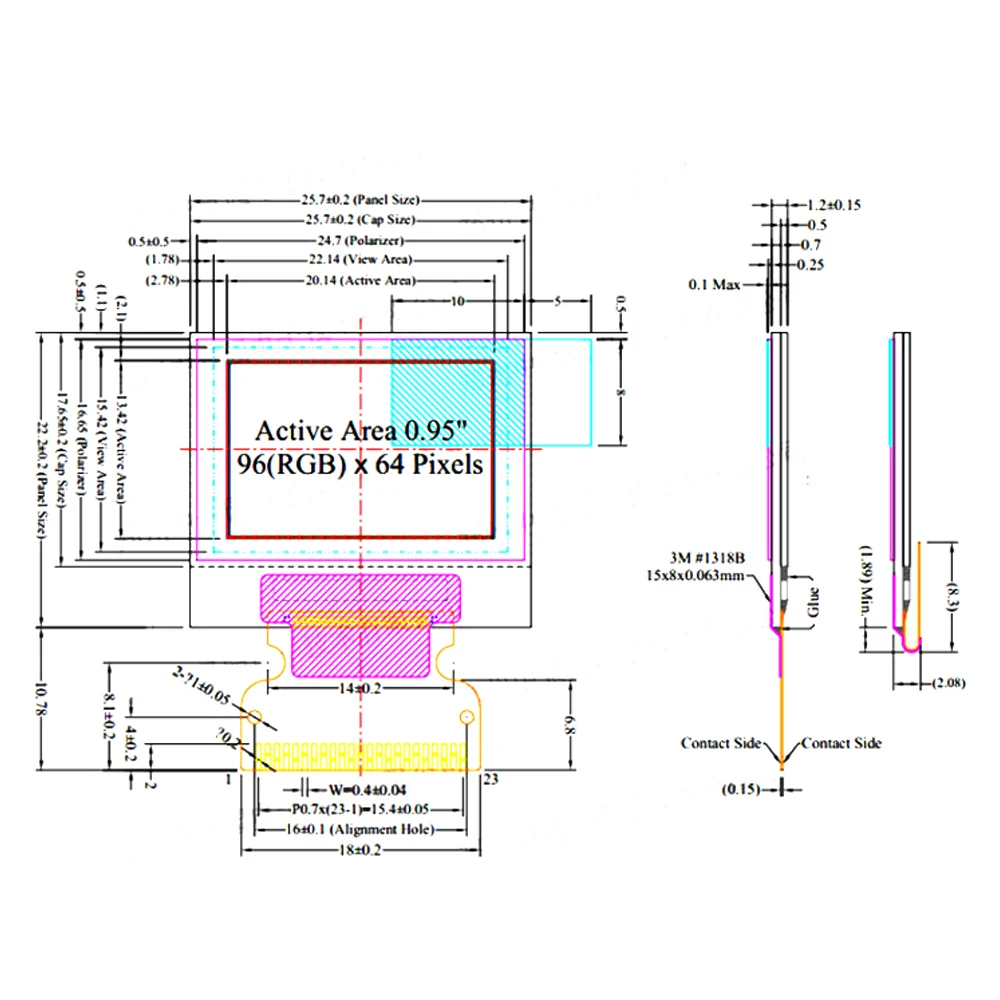

Display area: 20.14×13.42(mm)

Panel size: 25.70×22.20×1.50(mm)

Interface Type: 8-bit 68xX/80XX Parallel, 4-wire SPI

Pixel size: 0.05×0.19 (mm)

Pixel pitch: 0.07×0.21 (mm)

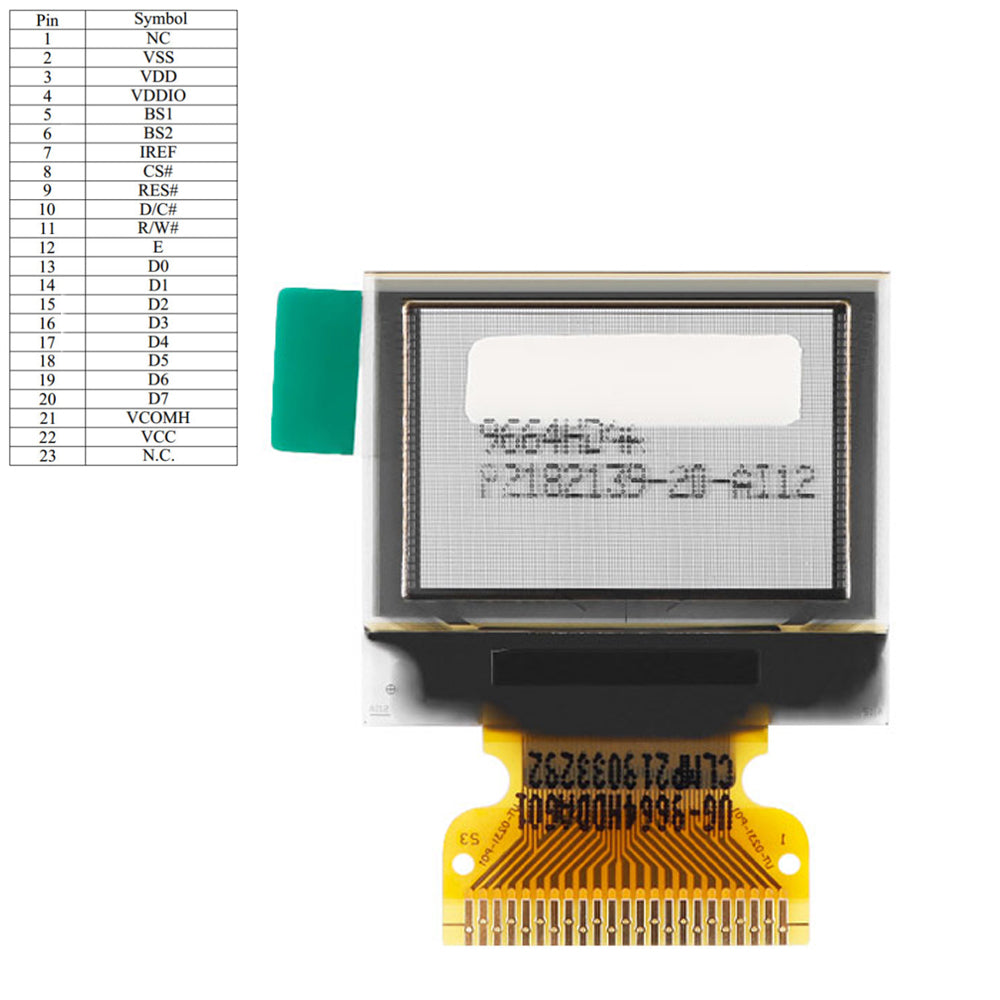

Number of pins: 23

Connection method: welding type (0.7mm pitch 23pin)

Viewing direction: full viewing angle

Working level:

Logic voltage 3.3V

Drive voltage 14V

Working temperature: -40 to 70 degrees
