LONTEN 0.91 inch OLED screen 128*32 IIC interface SSD1306 driver white screen display Custom

Size: 0.91 inch OLED monochrome display

Resolution: 128x32

Control chip: SSD1306

Interface type: IIC interface

Display color: white

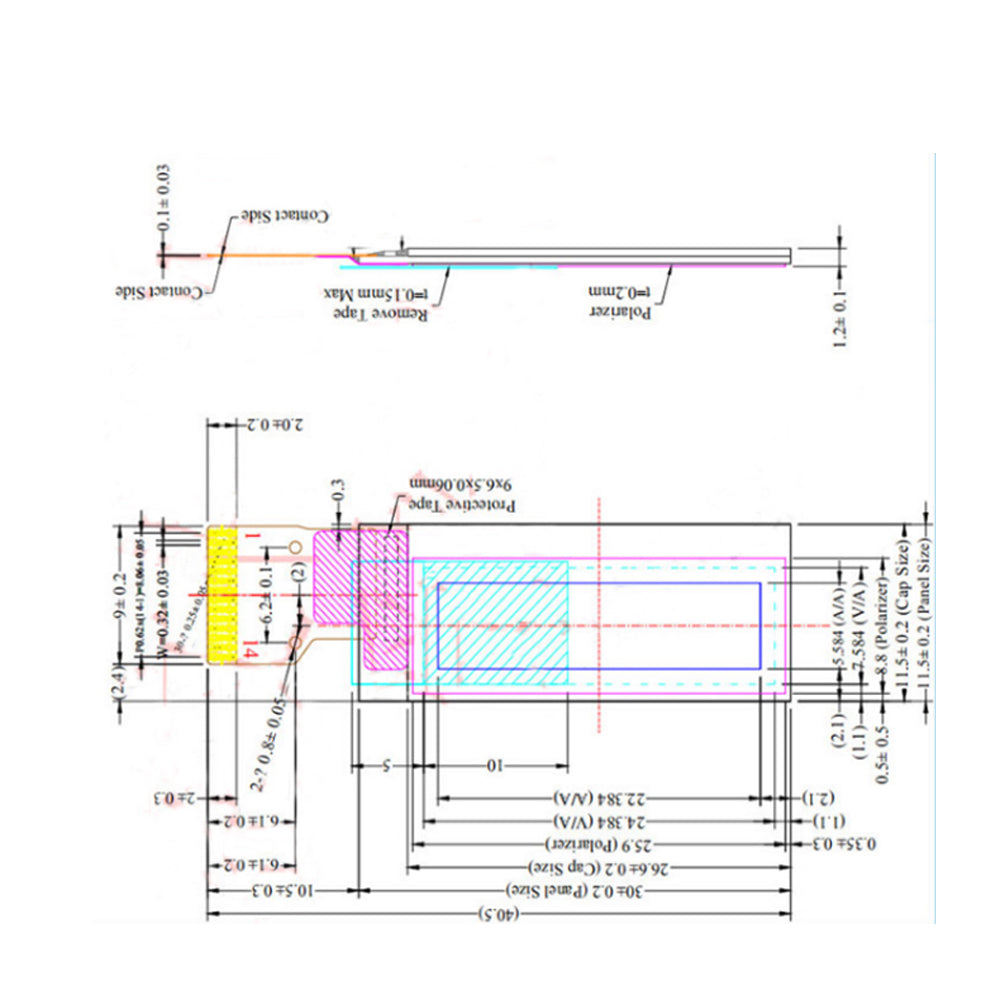

Display area: 22.384x5.584(mm)

Panel size: 30.0x11.5x1.2(mm)

Pixel size: 0.159x0.159(mm)

Pixel pitch: 0.175x0.175(mm)

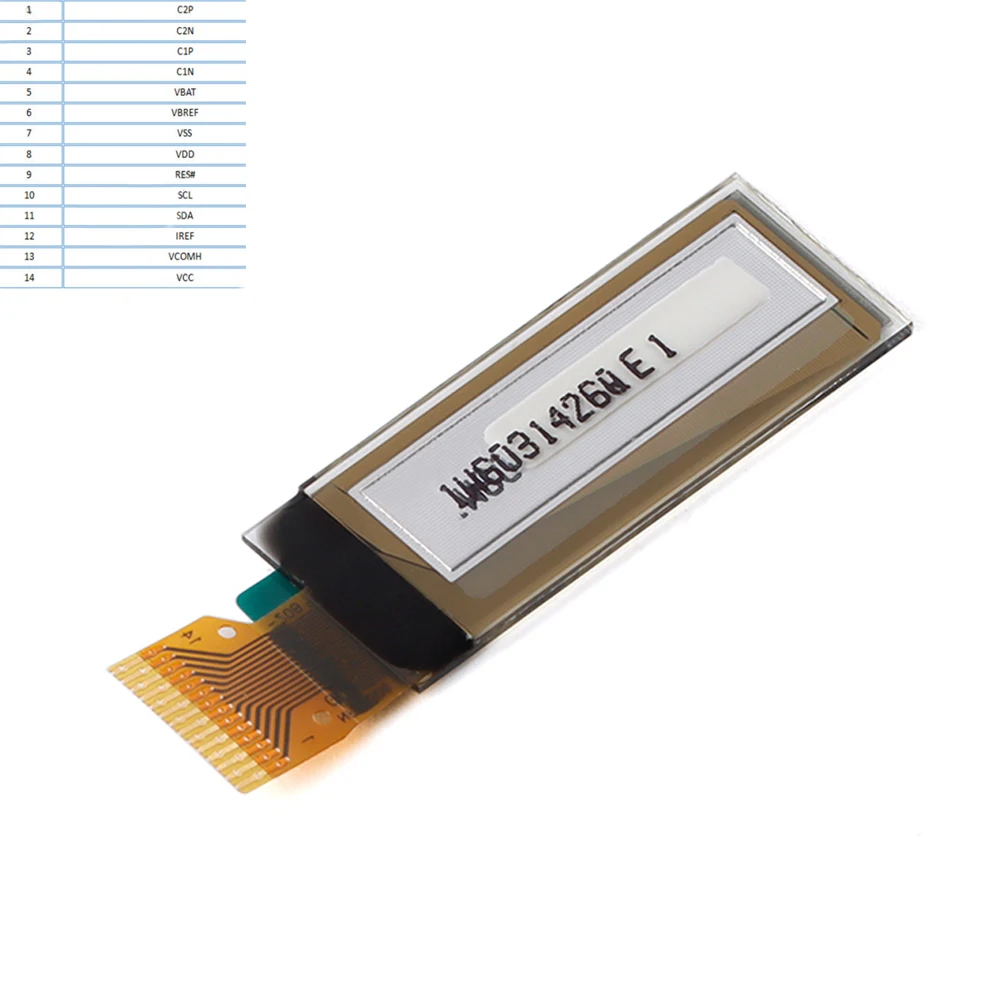

Number of pins: 14pin (soldering 14pin, 0.62 pitch)

Viewing direction: full viewing angle

Working temperature: -40~85 degrees

Working voltage: 3.3v

Connection method: 0.62mm pitch

Welded FPC
