LONTEN 0.66 inch OLED screen 64*48 white LED 28pin SSD1306 driver screens Custom

Size: 0.66-inch OLED monochrome display

Resolution: 64x48

Control chip: SSD1306

Interface type: 8-bit 68XX/80XX Parallel, 4-wire SPI, 12C

Display color: white

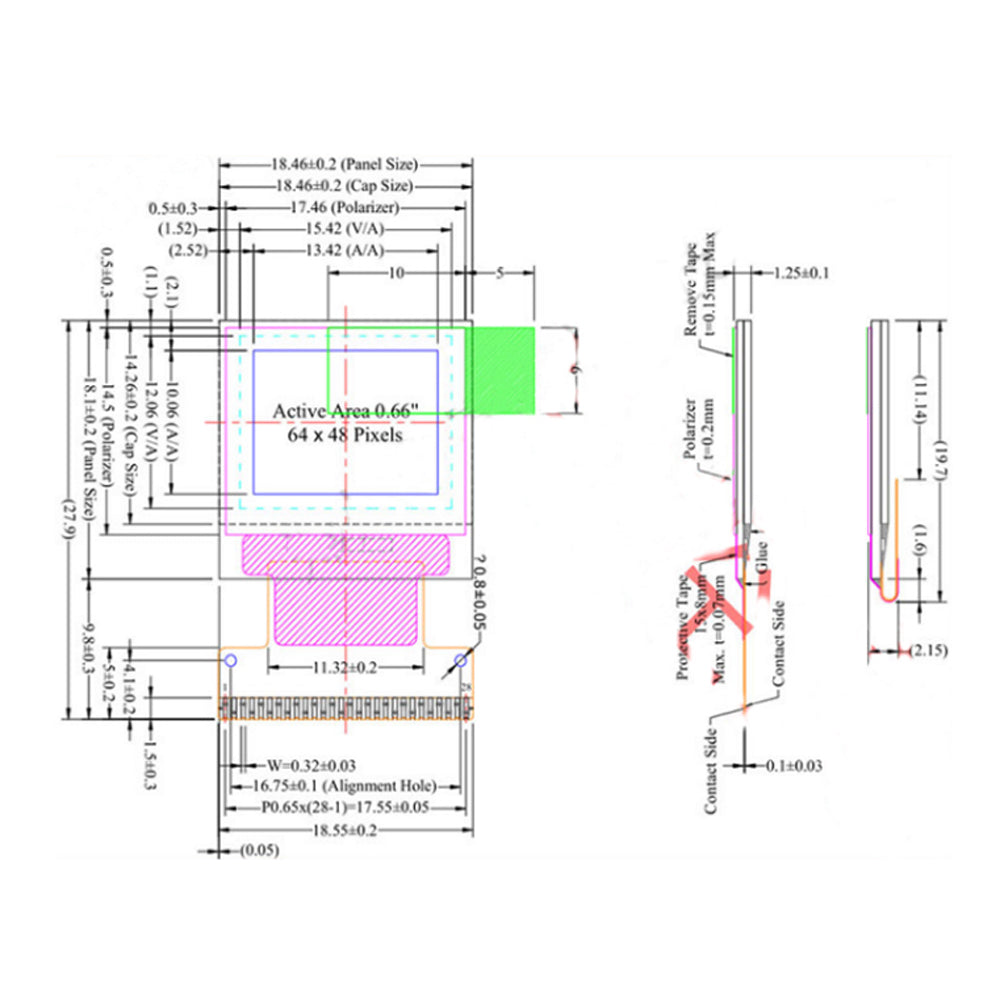

Display area: 13.42x10.06(mm)

Panel size: 18.46x18.1x1.25(mm)

Pixel size: .19x0.19 (mm)

Pixel pitch: 0.21x0.21(mm)

Number of pins: 28pin (soldering 28pin, 0.65 pitch)

Viewing direction: full viewing angle

Working temperature: -40~85 degrees

Working voltage: 3.3v

Connection method: 0.65mm pitch welding type FPc
