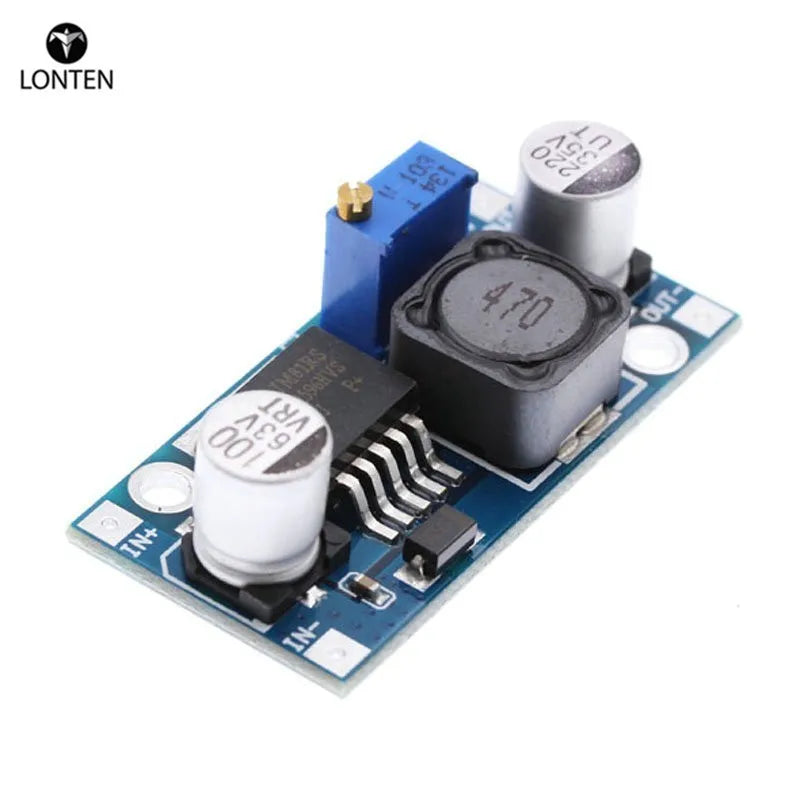

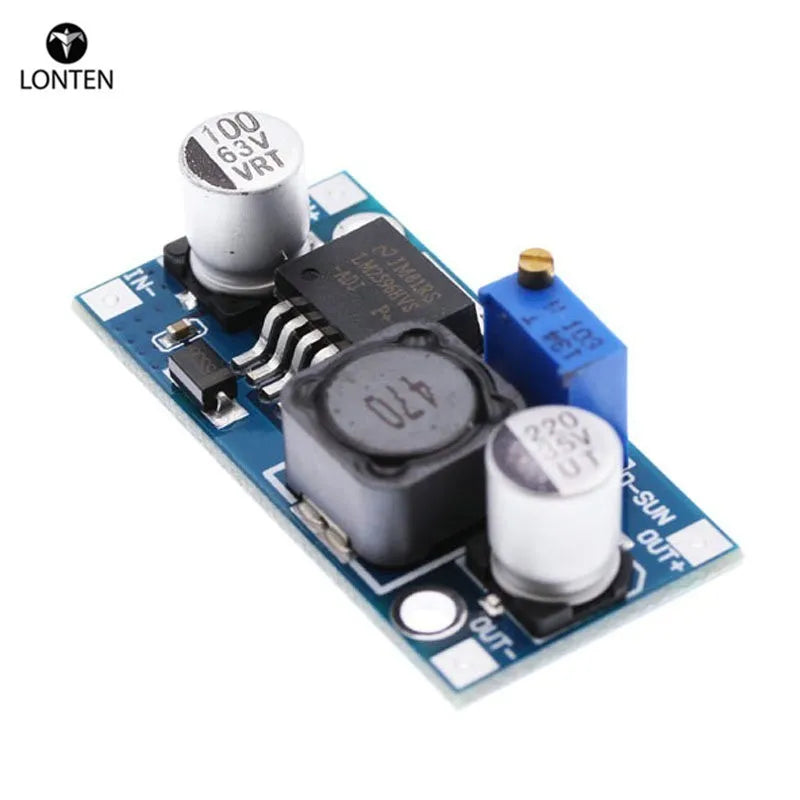

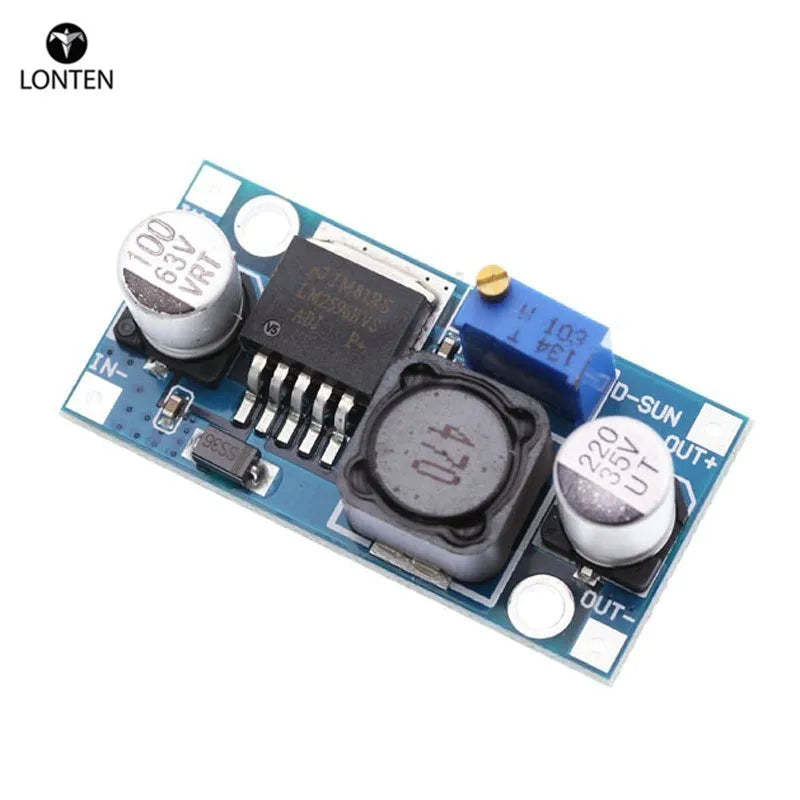

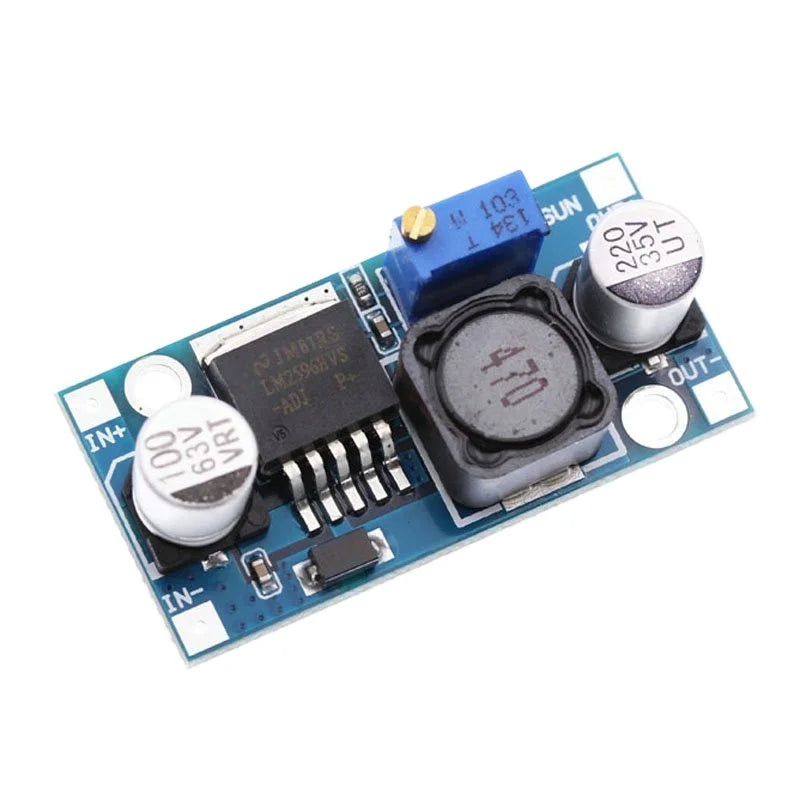

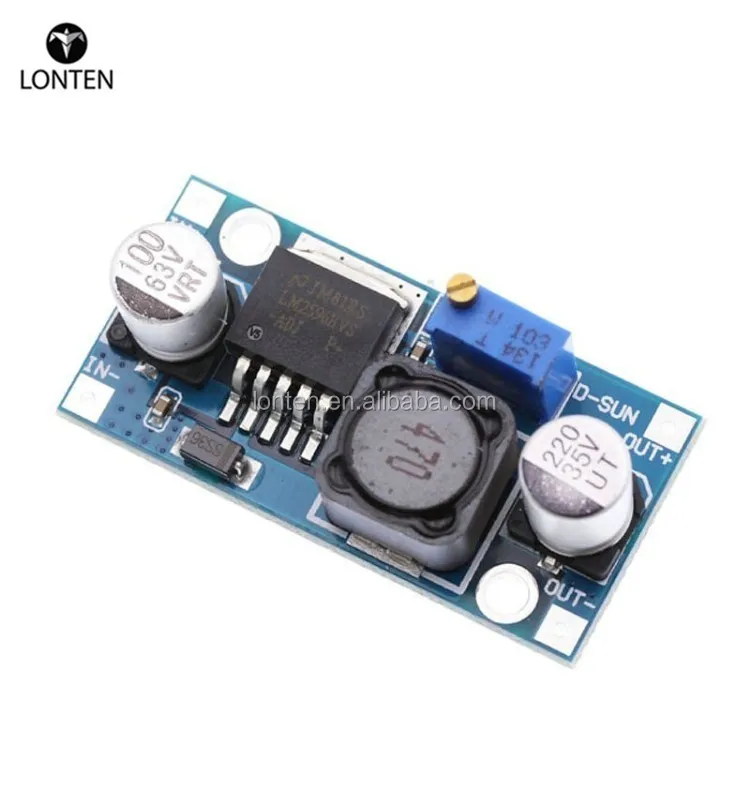

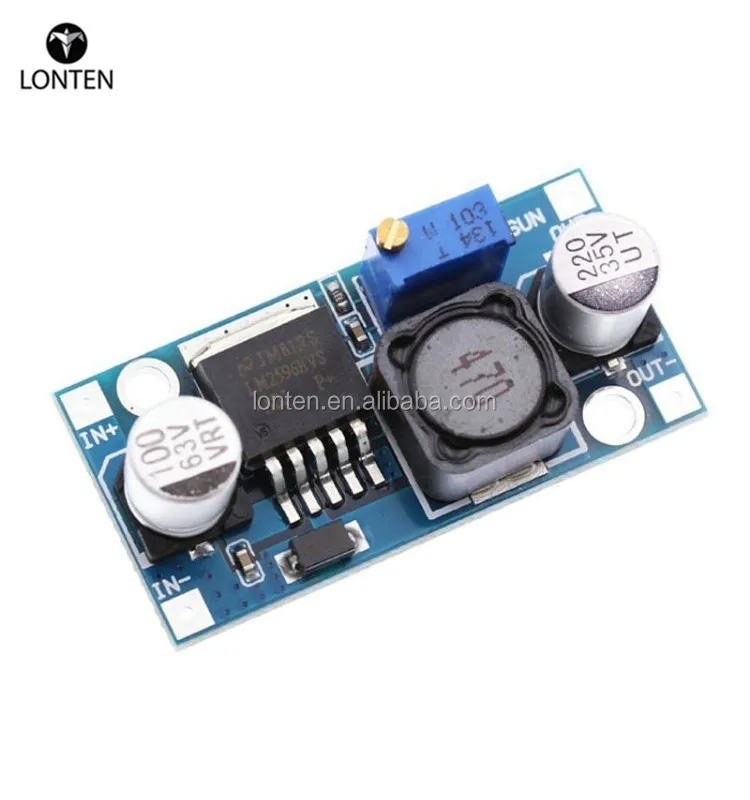

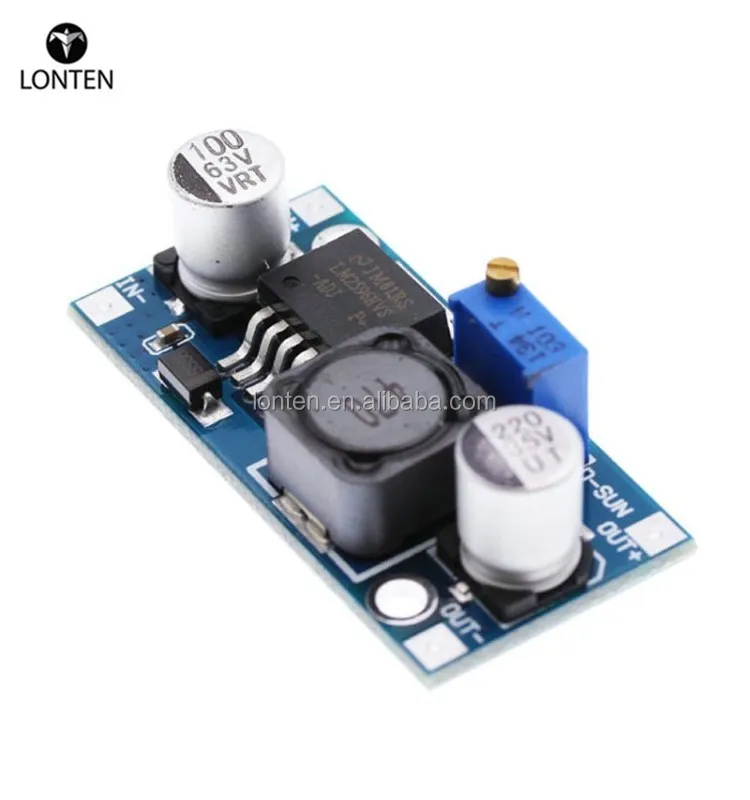

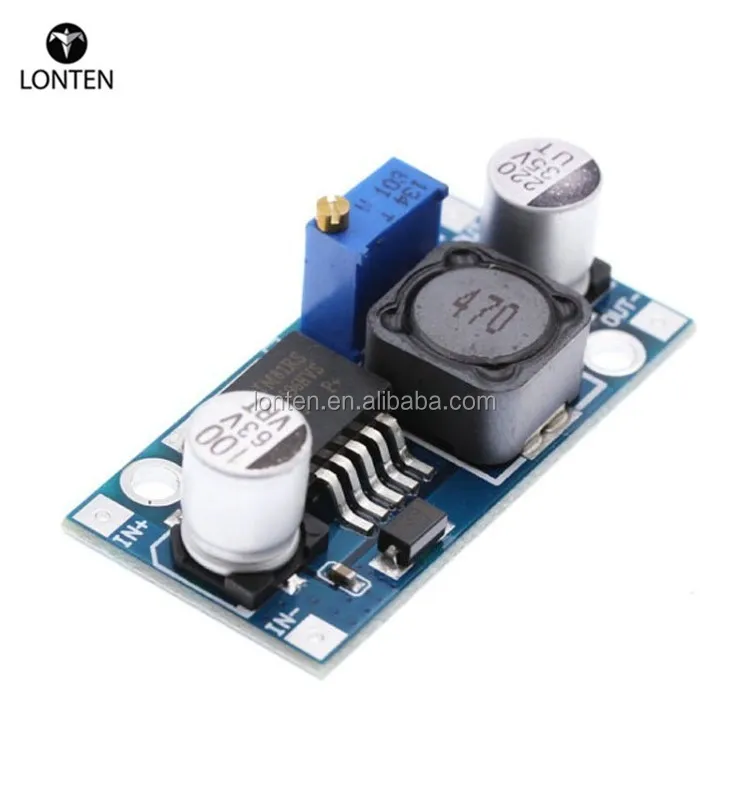

Custom LM2596HVS LM2596 HV LM2596HV DC-DC Adjustable Step Down Buck Converter Power Module 4.5-50V To 3-35V Urrent Limiting Manufacturer
Custom LM2596HVS LM2596 HV LM2596HV DC-DC Adjustable Step Down Buck Converter Power Module 4.5-50V To 3-35V Urrent Limiting Manufacturer
Couldn't load pickup availability
Note: The price is Bundle(optiona)1,Lonten provide electronic component for robotics,welcome OEM ,ODM,for more please contact.
- :
- Type:Voltage Regulator
- Condition:New
- Supply Voltage:standard
- Dissipation Power:standard
- Operating Temperature:standard
- Model Number:LM2596HV
- is_customized:Yes
- Package:SMD
- Application:DC-DC
It's LM2596HVS Not LM2596S Chip,please know it
- Input Voltage:4.5V ~ 50V
- Output Voltage:3V ~ 40V
- Output Current:3A (max)
- Conversion efficiency:92%(the highest)
- Output Ripple:<30mV
- Switching frequency:150KHz
- Operating Temperature:-45 ° ~ +85 °
- Size:43mm * 21mm * 14mm (L * W* H)

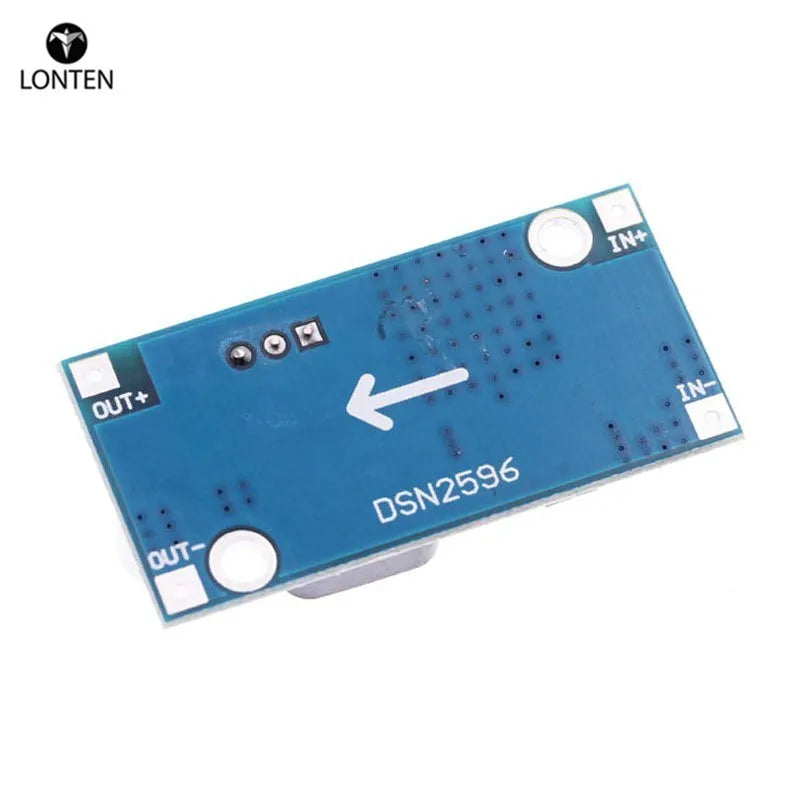

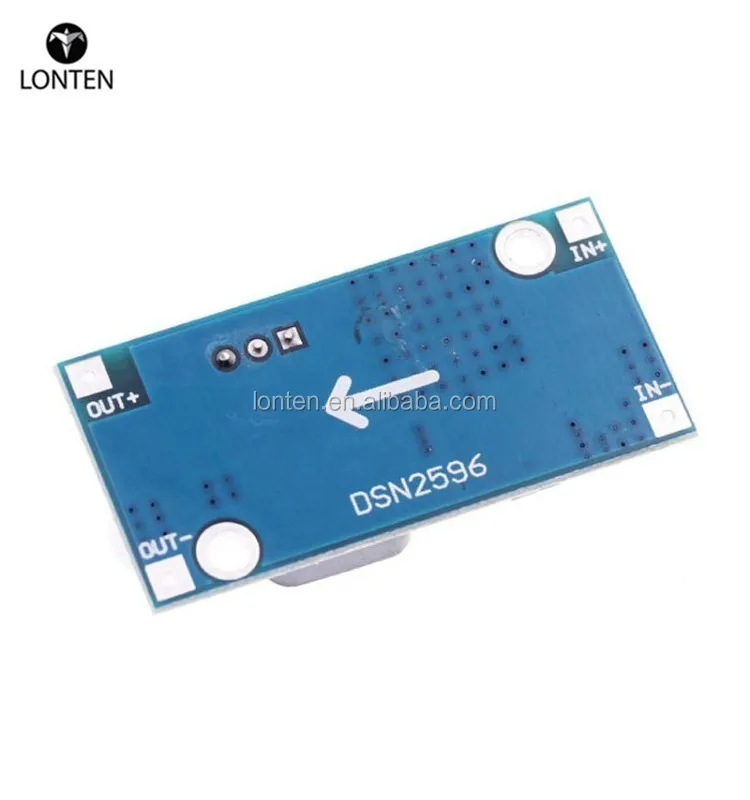

Positive outputOUT +OUT-output negative
Input voltage range: DC4.5V to50V (inputvoltagemust be greater thanthe outputvoltao1.5Vor morehigh.Could notboost)
Output voltage range: DC3Vto 40Vvoltage is continuously adjustable, high efficiency(up to 92%)the maximum outputcurrent of3A.
Measured12V input, 5Voutputcurrent is 1Aload regulationrate of l than1%
Note: This is thestep-down module, the input voltagemust behigher than the outputvoltage.
Outputcurrent is greater than2.5A (or outputpower greater than10W)to work long hours, please addheat sink.
- Unit Type:piece
- Package Weight:0.03kg (0.07lb.)
- Package Size:10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
