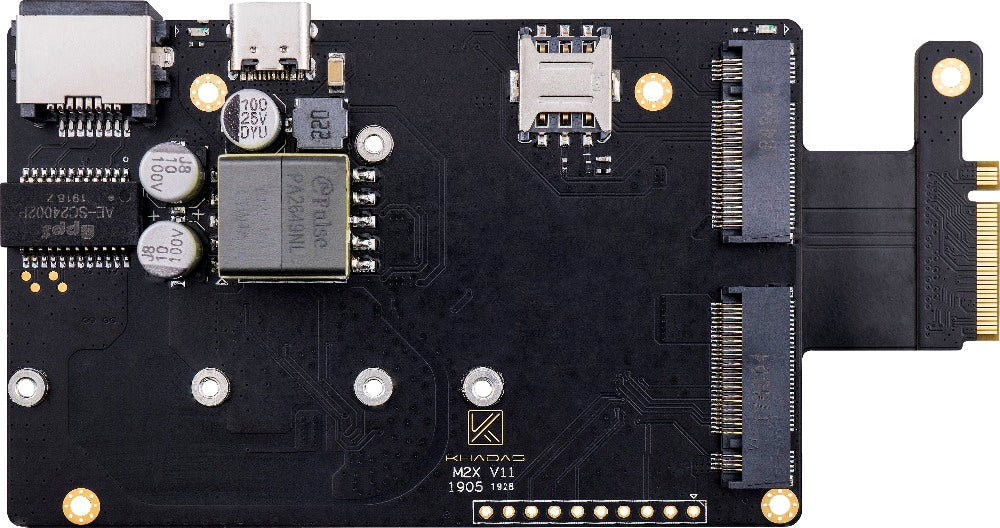

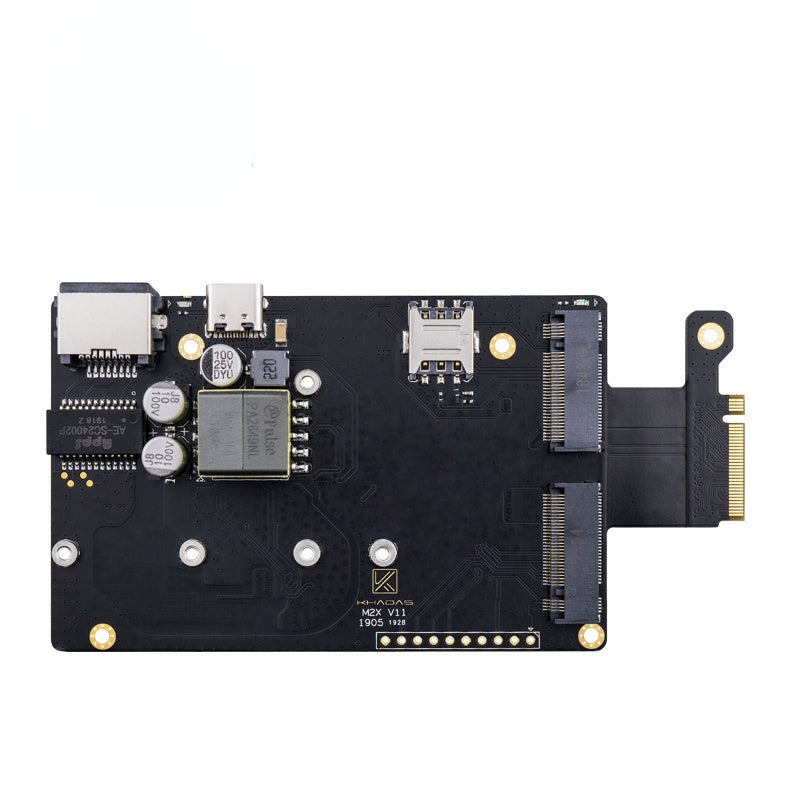

M2X Extension Board
* Only x1 NIC can be used at one time, either the 100mb/s RJ-45 port on the M2X, or the 1000mb/s RJ-45 port on the VIM3.
* Edge-V can only use the SSD feature, when connected to the M2X Extension Board. The Ethernet port can receive electrical power, but no network data input. Please check Edge-V's schematic for full details.

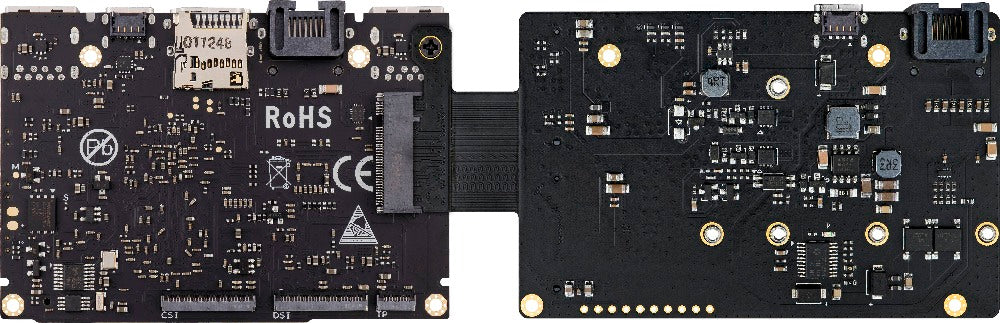

M2X with VIM3

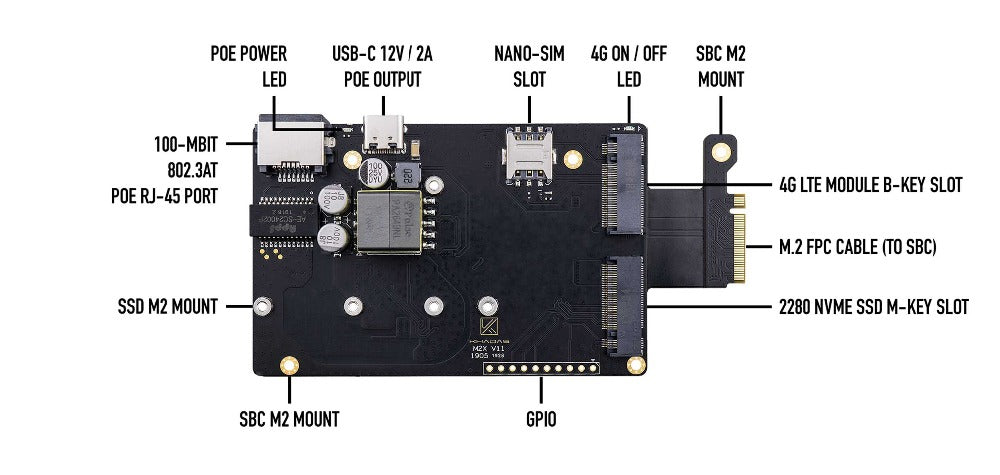

INTERFACES
Features:
- M.2 Slot (M-Key) for 2280 NVMe SSDs
- M.2 Slot (B-Key) for 4G LTE Modules
- Nano-SIM Card Slot
- 100-Mbit Ethernet Port (w/ 802.3at Power-over-Ethernet)
- 10-Pin GPIO Header
- Rigid-Flex FPC Cable for connection to VIM3 / Edge-V
- Power Output: 24W (12V, 2A) via USB-C port or VIN connector
- POE Active LED
- 4G Active LED
Compatibility:
- VIM3 (Full-Featured, PCIe x1 Lane)
- Edge-V (SSD-only, PCIe x4 Lane)
In The Box:
- M2X Extension Board
- VIN2VIN Cable
- M2 Screws x4
- M2 Standoffs x8
-
SSD & 4G Module Mounting Screws x2
SPECIFICATIONS
