4x 20KG 90/180/270/360Degree Digital Servo Large Torque Aluminium Metal Gear For 1/8 1/10 Scale RC Car Boat Plane Waterproof

$40.25 USD

~~$59.35 USD~~ $40.25 USD

Sale Sold out

Ships From China

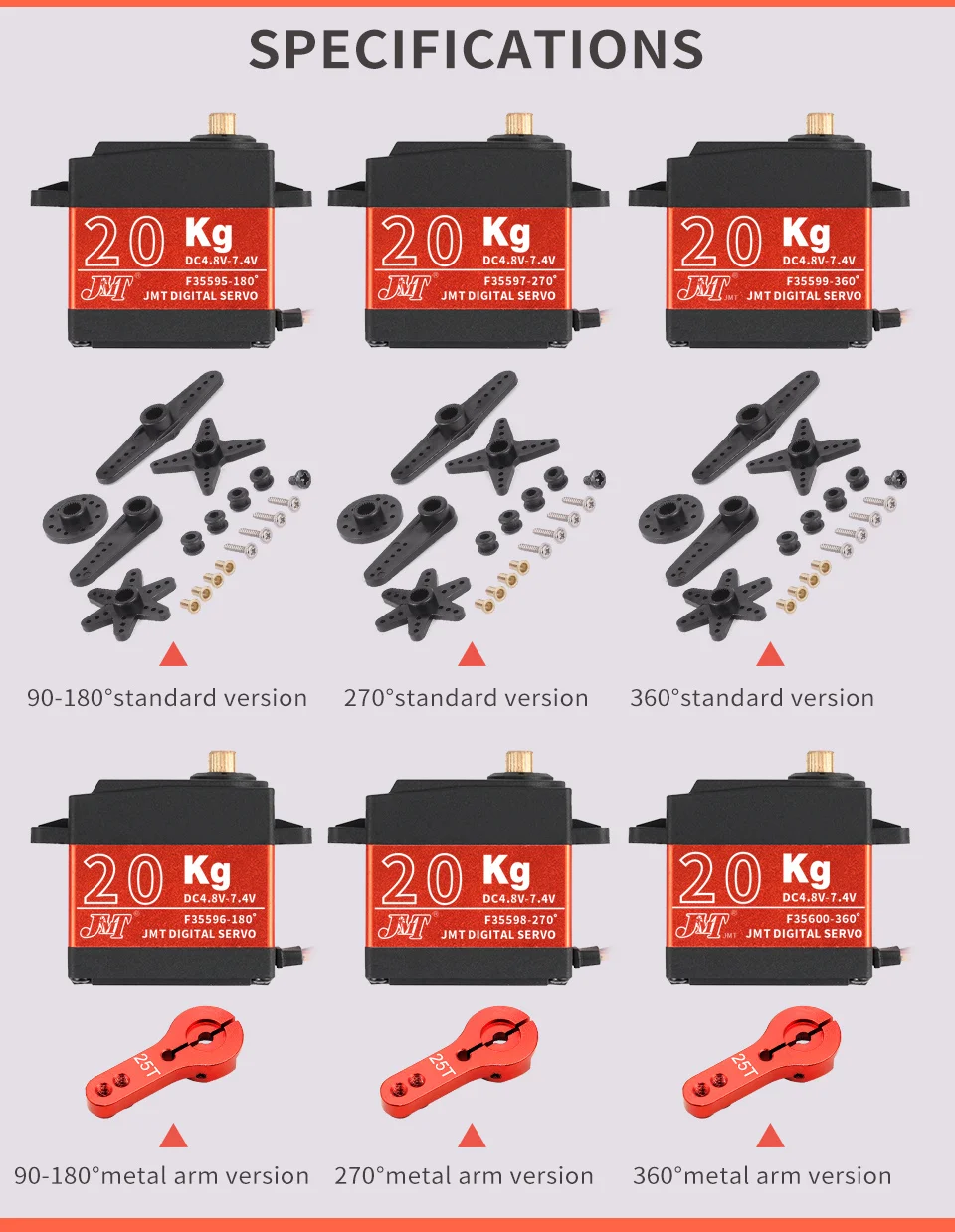

Color 360D With 25T Arm Standard 270D 90-180D With 25T Arm Standard 90D-180D 270D With 25T Arm Standard 360D

Quantity

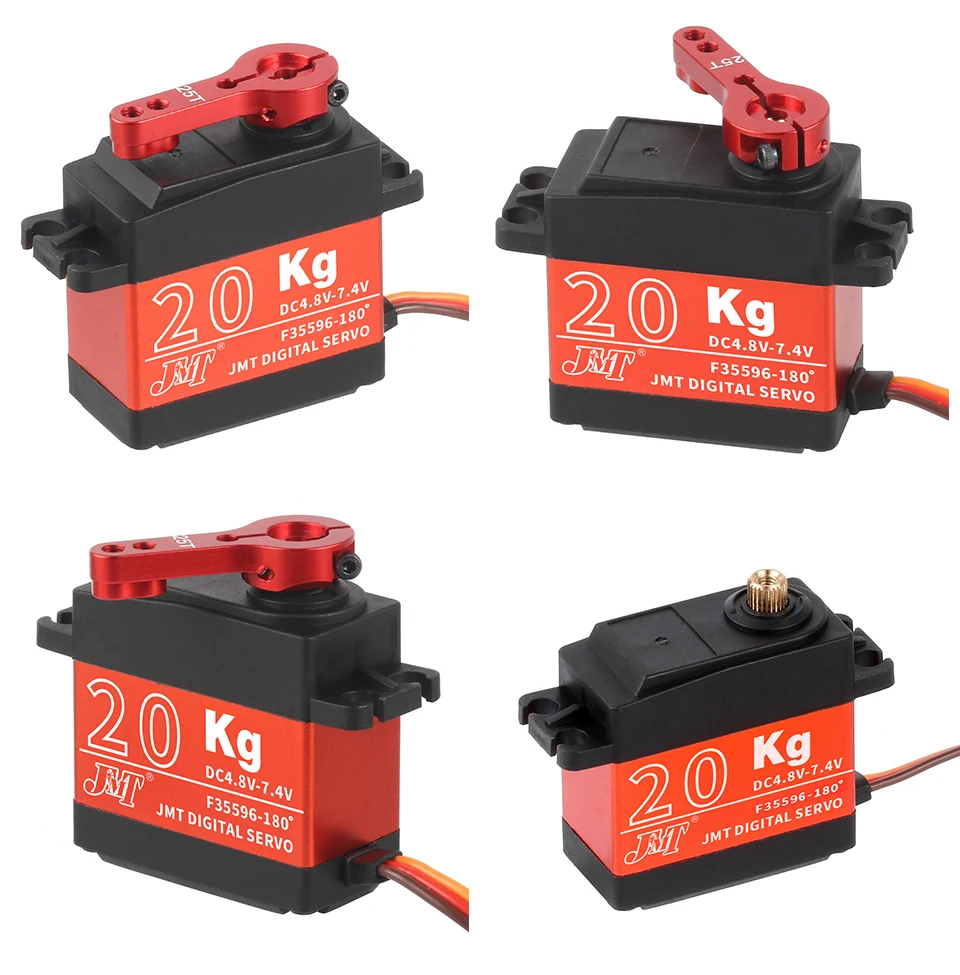

4x Waterproof 20KG 90/180/270/360Degree Digital Servo Large Torque Aluminium Metal Gear For 1/8 1/10 Scale RC Car Boat Plane

Package Content:

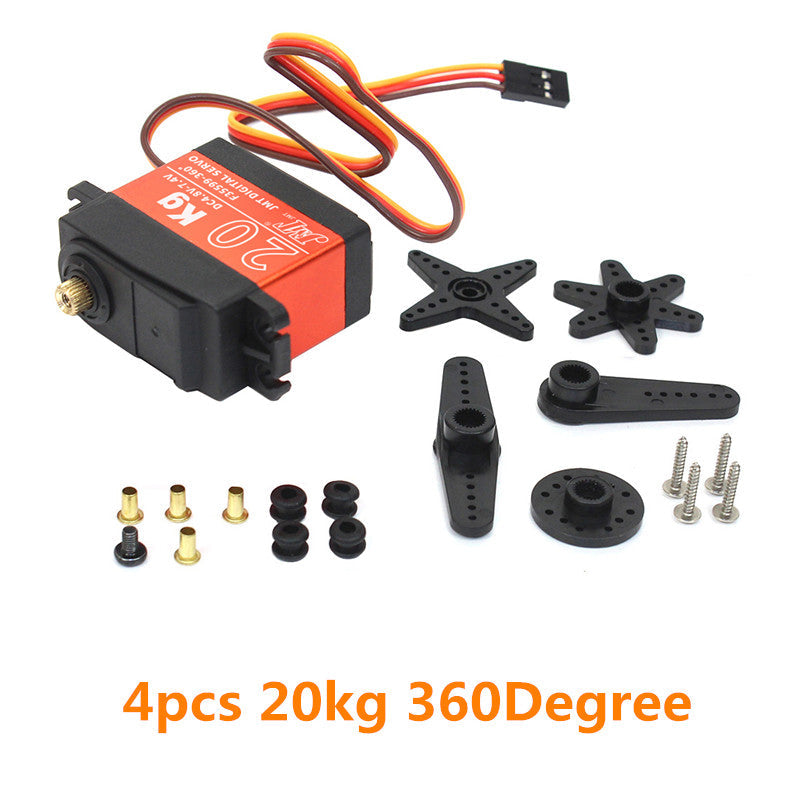

4* 20KG digital servo

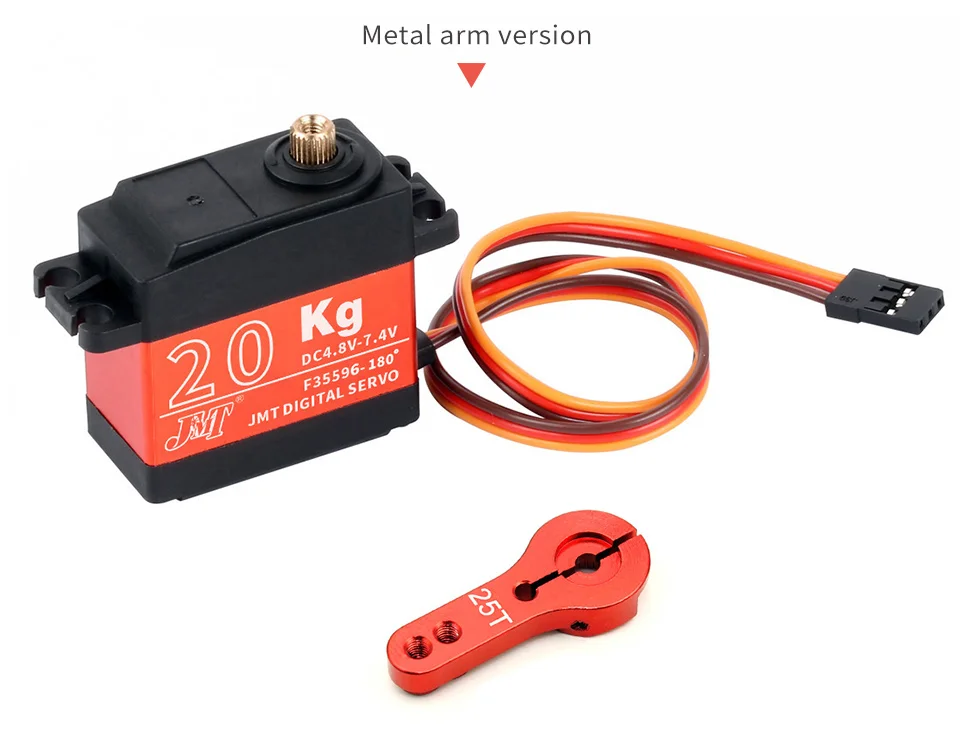

4* 25T Servo Arm(optional, the standard version Not including it)

Features:

1. Multiple waterproof design, to meet the application of different occasions, the use of imported ball bearings, imported metal gears, high accuracy and low noise, smooth rotation

2. The middle shell is made by CNC machining of aluminum alloy. The surface is anodized, which helps the motor to dissipate heat, improve the strength of the servo housing, and has a stylish appearance.

3. Built-in imported potentiometer (more than 1 million rotation life), accurate positioning. The main control IC uses the most advanced ASIC to process signals, has higher resolution, fast response time, large torque, and smooth and smooth rotation

4. High-precision metal gears with hard anodizing CNC aluminium middle Shell

Specification:

Control system :PWM control （1500 u-sec is the central point）

Working voltage:4.8V ~ 6V

Working temperature: -20C°~ +60C°

Torque :4.8V /17.2kg.cm

6.0V /20.3kg.cm

Idle speed :4.8V/0.15sec / 60 deg

6.0V/0.13sec / 60 deg

Steering angle: 0-180 degree ;

Idle current:4.8V/470mA 6.0V /650mA

Load current :4.8V/750mA 6.0V /950mA
