Lonten Tech

Custom Industrial IoT Wireless Expansion Module Designed for Raspberry Pi Compute Module 4, Suitable For Getaway, Wireless Router Manufacturer

Custom Industrial IoT Wireless Expansion Module Designed for Raspberry Pi Compute Module 4, Suitable For Getaway, Wireless Router Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

DESCRIPTION



CM4-IO-WIRELESS-BASE doesn't include Compute Module 4




Industrial IoT Wireless Expansion Module Designed For Raspberry Pi Compute Module 4


Part List Comparison




BASIC KIT

BASIC KIT + 4G MODULE

CM4 wireless base board

Black ABS case

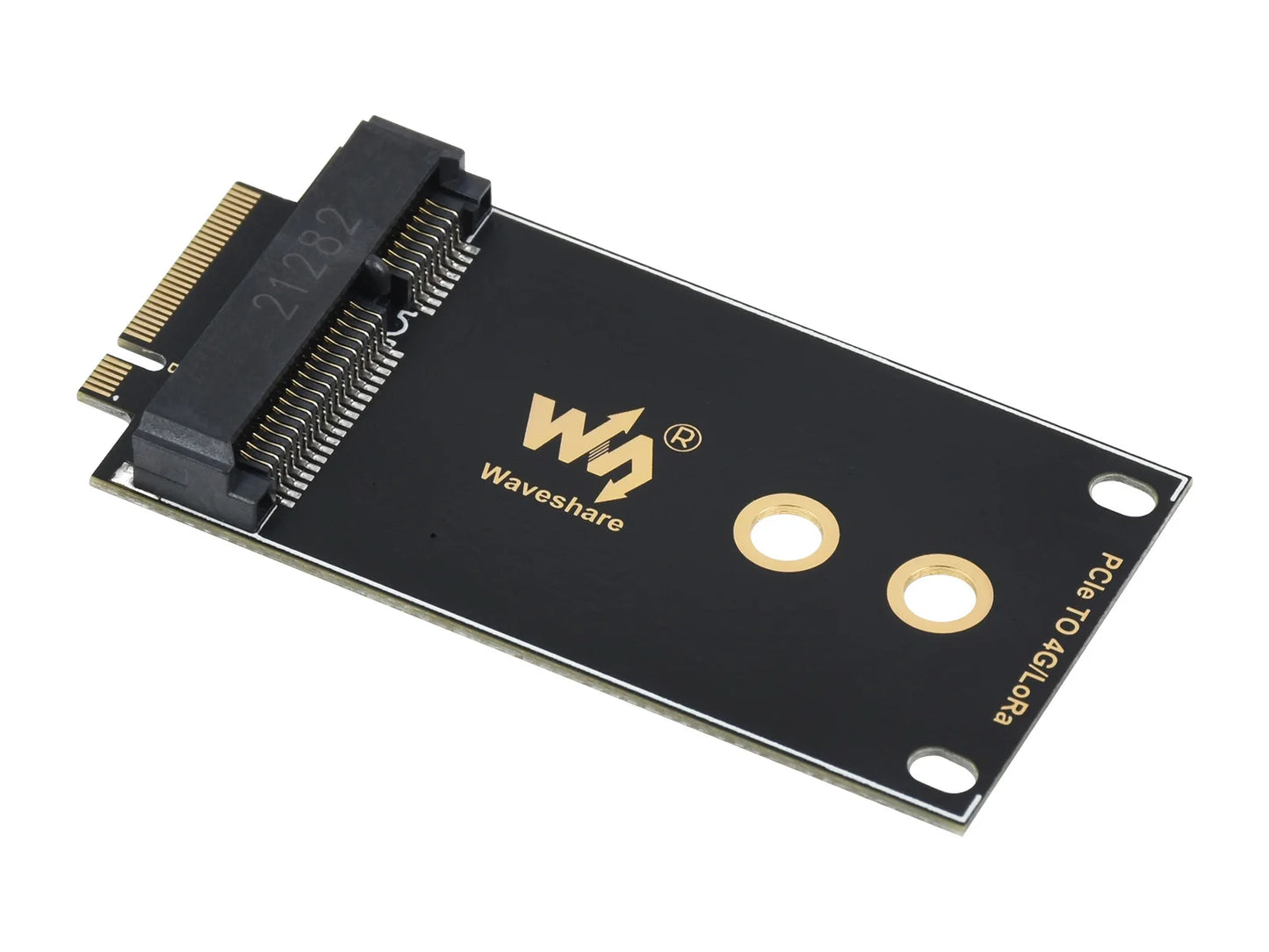

PCIe to 4G/LoRa adapter

SIM7600G-H-PCIE 4G module



PCB antenna



* please refer to Package Content for exact part list info.

Specifications

CM4 SOCKET

suitable for all variants of Compute Module 4

NETWORKING

Gigabit Ethernet RJ45

M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module

Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication

USB

USB 2.0 × 3

PIN HEADER

Non-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins

CAMERA

MIPI CSI-2 × 1 (15pin 1.0mm FPC connector)

VIDEO

HDMI × 1, supports 4K 30fps output

RTC

Real-time clock with battery socket and ability to wake Compute Module 4

STORAGE

MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

FAN HEADER

5V/12V, allows speed adjustment and measurement

POWER INPUT

5V or 7~36V

DIMENSIONS

145 × 90 × 40mm

Comparing The Expansion Boards
4G/5G/LoRa Wireless Modules Support

Onboard M.2 Slot, Comes With Mini-PCIe Adapter As Well,
Compatible With 4G/5G/LoRa Wireless Modules With M.2 Or Mini-PCIe Interface


An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended:  SIM7600G-H-M.2 , SIM8202G-M2 SIM8200EA-M2

SIM7600G--PCIE 4G Module   Optional

  • 4G/3G/2G communication, GNSS positioning, global coverage

  • Standard Mini-PCIe interface, high compatibility

  • Multi-constellation high accuracy positioning GNSS receiver support

  • Suitable for LTE, UMTS, and GSM network with global coverage

  • Abundant software functions: OTA, LBS, TLS, VoLTE

  • Up to 150Mbps (Max) downlink data rate and 50Mbps (Max) uplink data rate

  • Supports popular OS driver: Windows, Linux, Android etc.

  • AT commands of the SIM7600G-H-PCIE series are compatible with the SIM7500/SIM7600 series modules

  • Please refer to SIM7600G-H-PCIE product page for details

  • For quantity of 20pcs or more, other M.2 or Mini-PCIe modules are customizable (SIM7600CE-T / E-H / A-H, etc.), feel free to contact us

Rich Interfaces

Providing Interfaces Including: CSI / HDMI / USB / ETH / CAN / RS485 / M.2 B KEY


Reserved Space For Heat Dissipation

for reference ONLY, heatsink and cooling fan are NOT included.

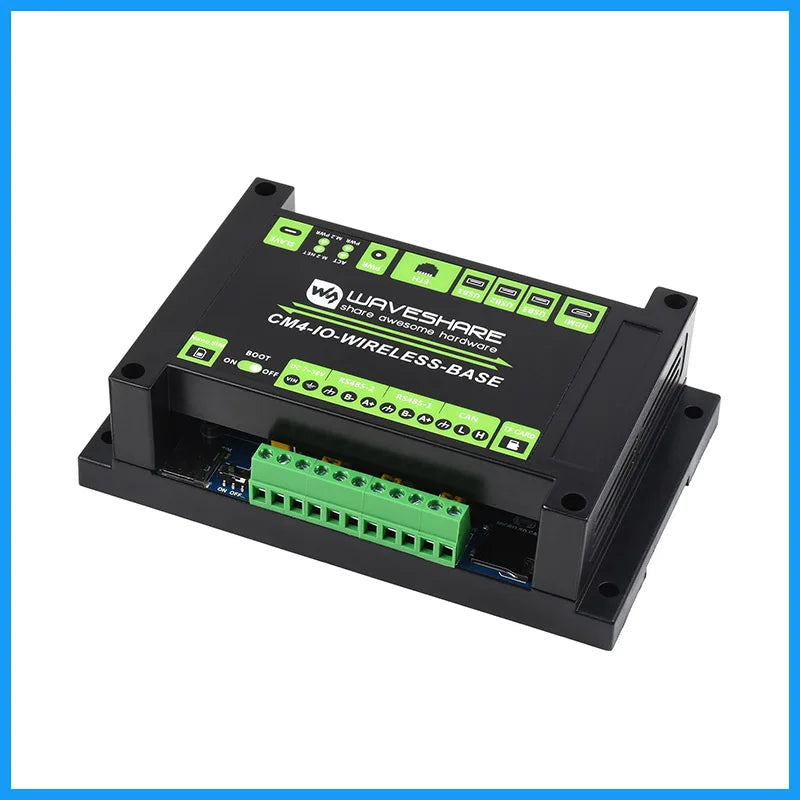

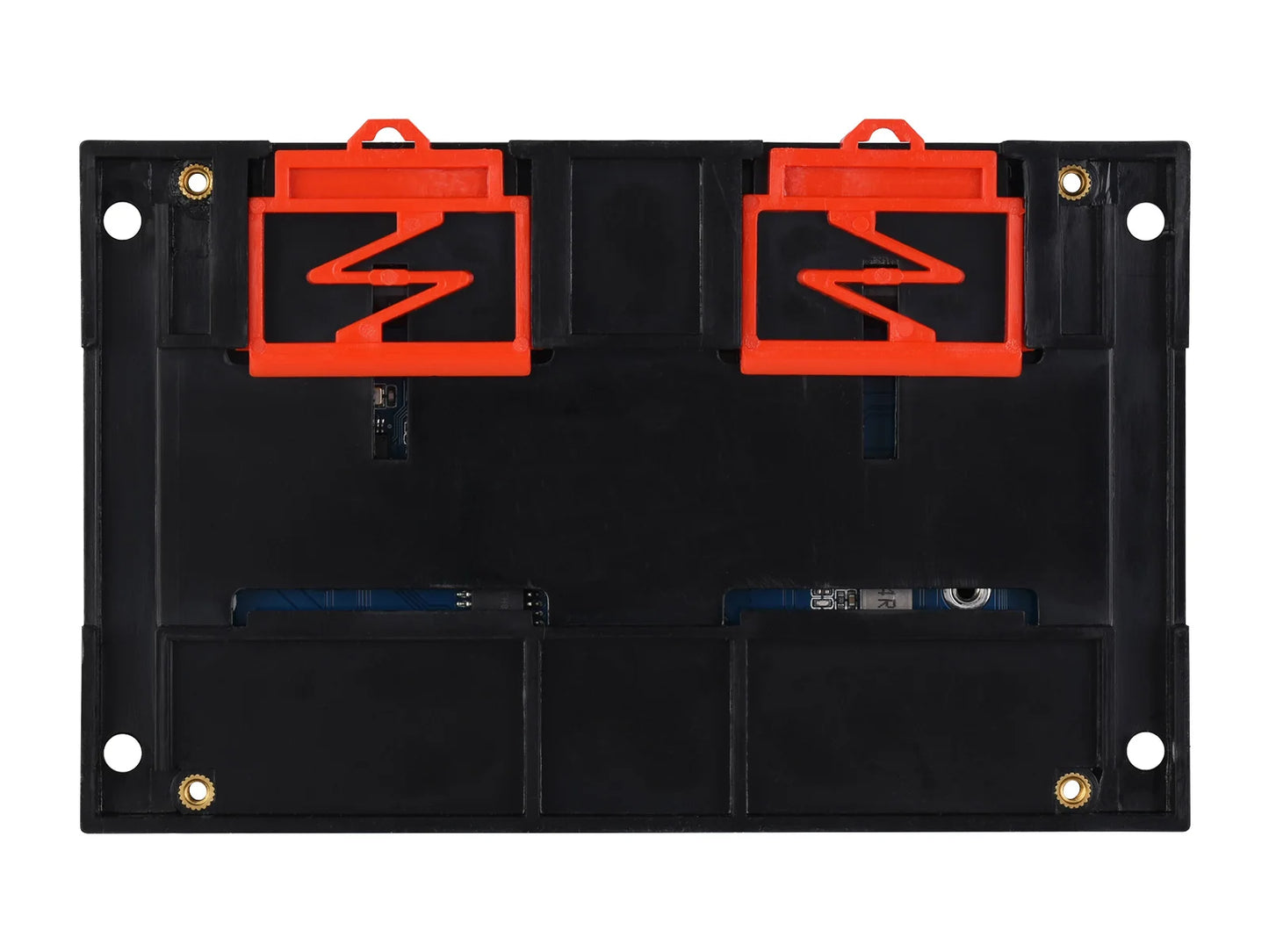

Rail-Mount Support

Rail-Mount ABS Protection Case, Easy To Install, More Safe Operation


Application Example

Suitable For IoT Gateway, 4G/5G Router, IoT Data Acquisition And Monitoring, Industrial PLC, Or Other Industrial Applications


for reference only, CM4, display are NOT included.

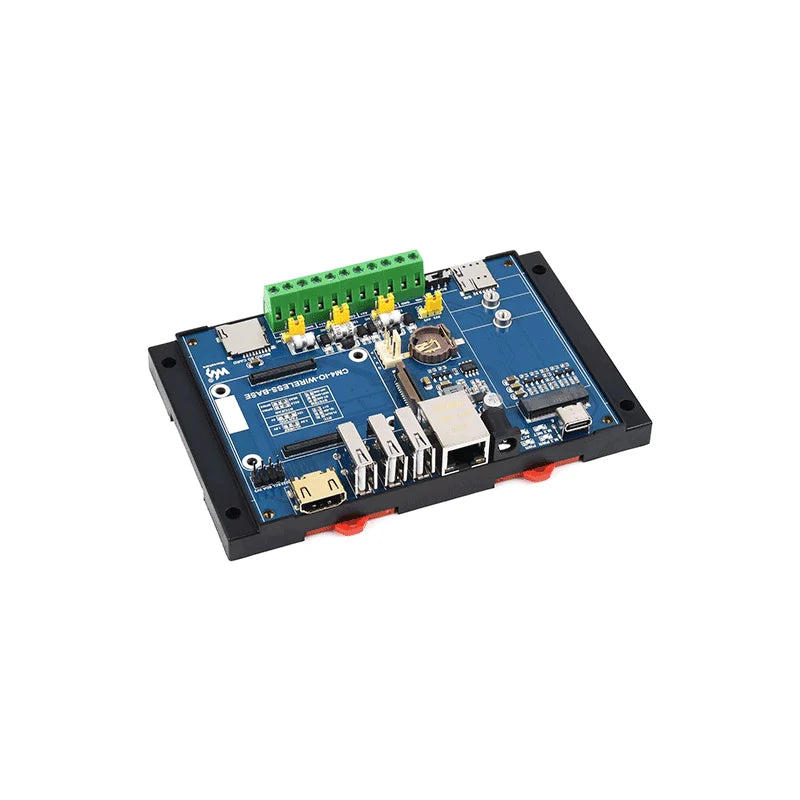

What's On Board

  1. CM4 socket
    suitable for all variants of Compute Module 4

  2. HDMI connector
    supports 4K 30fps output

  3. USB 2.0 ports
    3x USB 2.0, for connecting sorts of USB devices

  4. RJ45 Gigabit Ethernet
    10/100/1000M compatible

  5. DC power supply
    7 ~ 36V DC input

  6. CM4 status indicator
    PWR: Raspberry Pi power indicator
    ACT: Raspberry Pi operating status indicator

  7. 4G/5G module status indicator
    M.2 PWR: module enable indicator
    M.2 NET: module operating status indicator

  8. PWR & USB
    5V DC power supply or USB programming port

  9. M.2 B KEY
    supports 4G/5G modules, or other communication modules using USB channel

  10. Nano-SIM card slot
    supports standard Nano-SIM card for 5G/4G/3G/2G communication

  11. BOOT selection
    ON: CM4 will be booted from USB-C interface
    OFF: CM4 will be booted from eMMC or Micro SD card

  12. DC power supply
    7 ~ 36V DC input

  13. Dual non-isolated RS485
    2x RS485, with 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R optional balancing resistor jumper)



14. Non-isolated CAN
ESD protection and transient spike voltage protection (reserved       120R optional balancing resistor jumper)

15. Micro SD card slot
for connecting a Micro SD card with pre-burnt image (Lite                 variant ONLY)

16. FAN header
for connecting cooling fan, allows speed adjustment and                   measurement

17. CAM
MIPI CSI camera port, 15Pin 1mm pitch

18. RTC battery holder
supports CR1220 button cell

19. M.2 VCC selection
select 3.3V or 4.2V power supply

20. RTC interruption configuration
PI-RUN: CM4 will reboot on RTC interruption
GL-EN: CM4 powerdown on RTC interruption
D17: D17 pin is triggered on RTC interruption (default)

21. IO-VREF selection
set the CM4 IO logic level as 3.3V (default) or 1.8V

22. FAN power supply selection
select 12V (default) or 5V power to drive the fan

23. System function configuration
BT_DIS: BT disabled, for CM4 with antenna variant ONLY
WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY
WP_DIS: boot mode switch, ONLY be used when NOT booted            from eMMC or SD card

24. RTC/FAN I2C bus selection
SDA0/SCL0: I2C-10 is shared with CSI/DSI (default)
GPIO3/2: I2C-1 is shared with GPIO header

25. Partial GPIO header
including 1x I2C, 2x GPIO pins, and power supply

Outline Dimensions

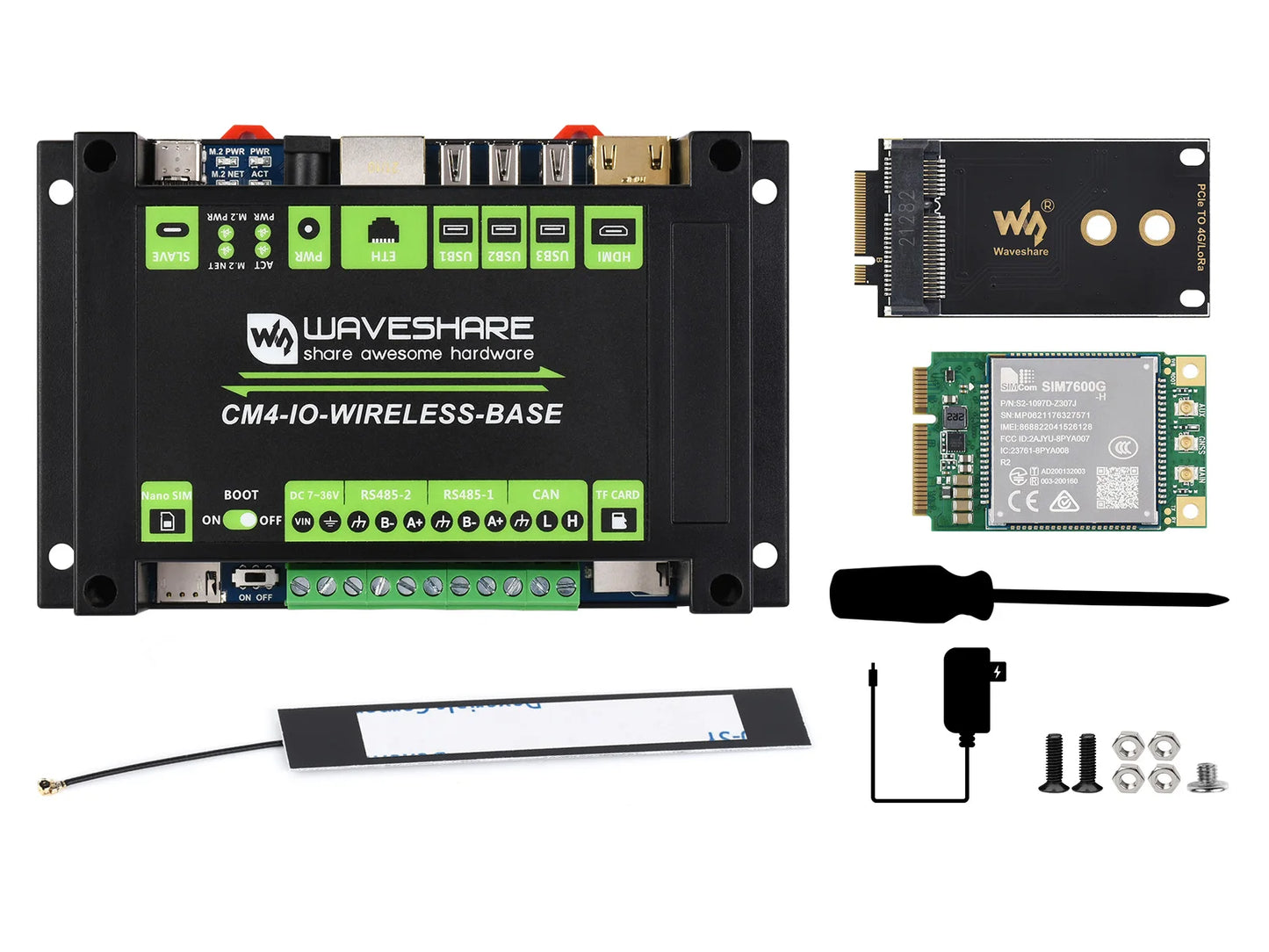

PACKAGE CONTENT



Weight: 0.336 kg

  1. CM4-IO-WIRELESS-BASE x1

  2. PCIe to 4G/LoRa adapter x1

  3. Screwdriver x1

  4. Screws pack x1

  5. OPTIONS 4G module
    SIM7600G-H-PCIE
    PCB antenna IPEX connector
    12V 2A power adapter





 Welcome Customize Order!
