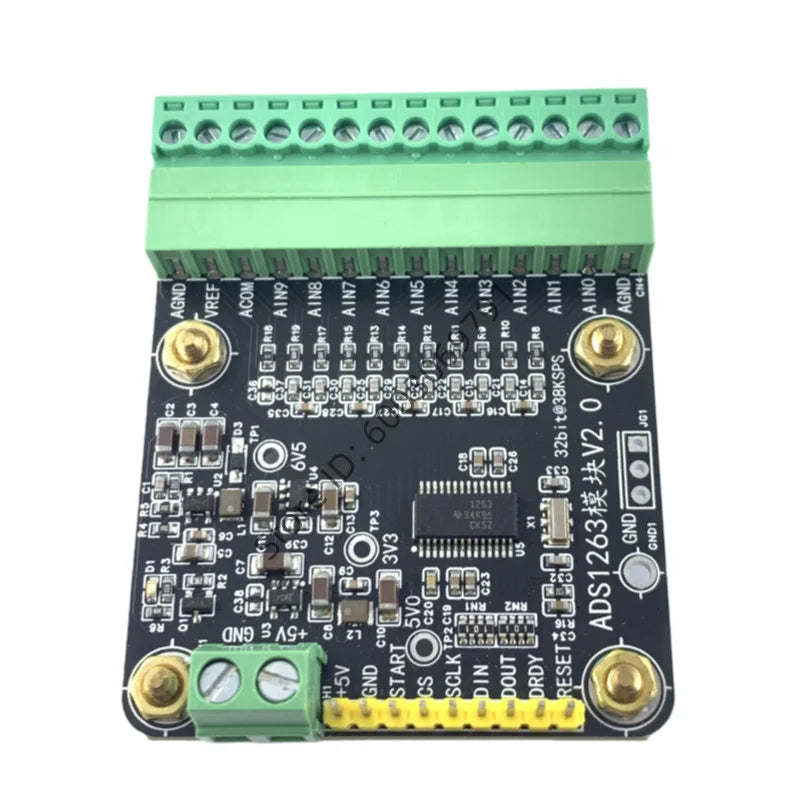

ADS1263 Module, 10-Channel 32-Bit 38K Precision Low-Speed ADC Data Acquisition Analog-to-Digital Converter Module

Parameter

-Module Name: ADS1263 Module

-Module Type: Digital to Analog Conversion Module (Low Speed Precision ADC)

-Module power supply range: single power supply DC 5V

-Input voltage range: 5V or 2.5V (with REFMUX register configured)

-Number of input channels: 10 channels (differential input is 5 channels)

-Sampling rate: 38Ksps (Max)

-ADC resolution: 32-bit

-Reference voltage: Internal reference 2.5V, or choose external reference input

-Input impedance: 40M Ω

-Module Communication Protocol: SPI

-Control level: 3.3V

-Power protection: reverse connection protection (no overvoltage or overcurrent protection)

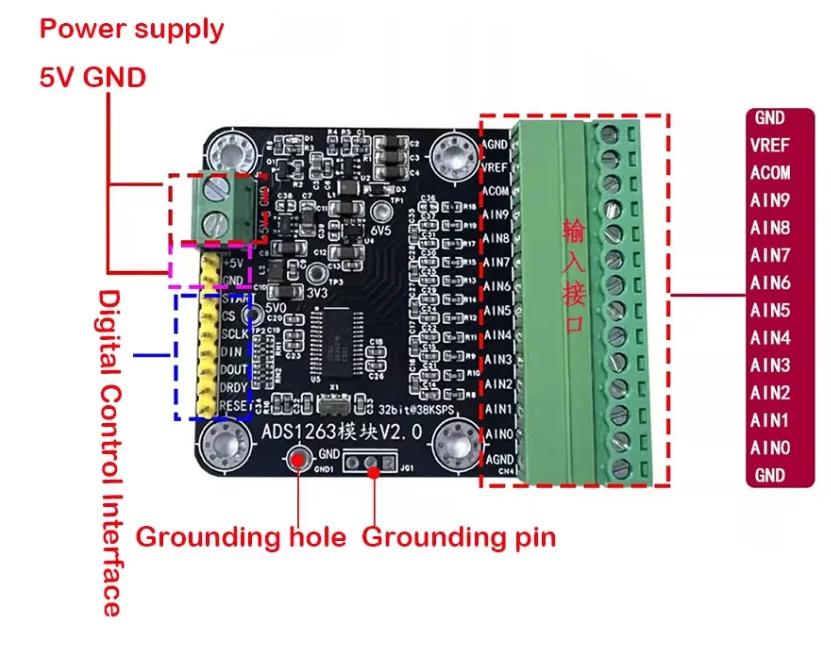

-Control interface: 2.54mm single pin interface

-Input interface: wiring terminal
