Custom Hot 3.5 Inch TFT LCD Display Touch Screen Monitor for Raspberry Pi 3 2 Model B Raspberry Pi 1 model B+ 480x320 RGB Pixels with c Manufacturer

Custom Hot 3.5 Inch TFT LCD Display Touch Screen Monitor for Raspberry Pi 3 2 Model B Raspberry Pi 1 model B+ 480x320 RGB Pixels with c Manufacturer

$12.50 USD
$12.50 USD $12.50 USD
Sale Sold out
Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provide Raspberry PI electronic component ,for more please contact.
Item specifics
  • :
  • Demo Board Type: ARM
  • Model Number: 3.5 inch tft lcd Module
  • Type: TFT
  • LCD Interface: SP1
  • Touch Screen Controller: XPT2046
  • Backlight: LED
  • Color Levels Index: 65536
  • Resolution: 320*480 (Pixel)
  • Packing: Carton
  • Operating Temp: (Centigrade) TBD
  • Aspect Ratio: 8:5
  • Backlight Current: TBD
var PAGE_CONFIG = { videoEnv:"" }
Product Description

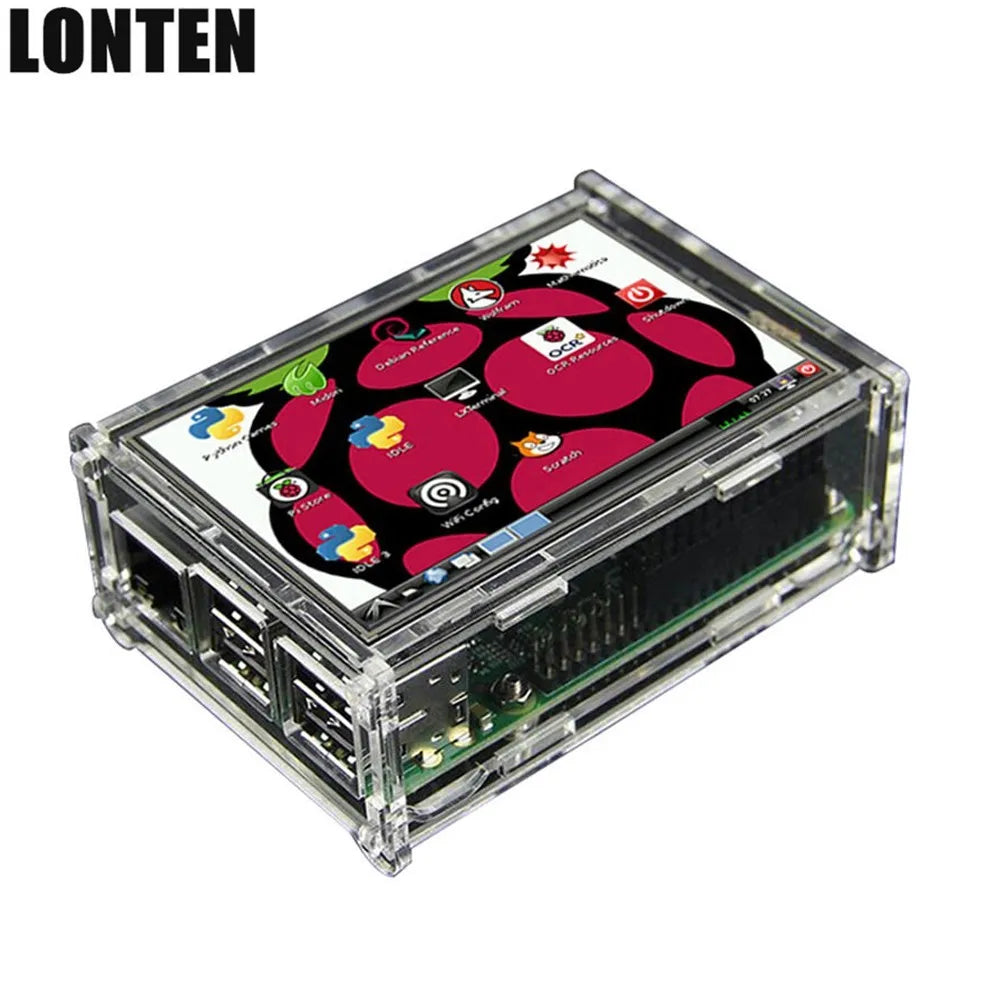

3.5 Inch TFT LCD Display Touch Screen Monitor for Raspberry Pi 3 2 Model B Raspberry Pi 1 model B+ 480x320 RGB Pixels with case

Description

Pls use the Raspbian Mirroring which before 2017-01-11,do not update the latest mirroring (2017-03-02), because the latest mirroring will influence the touch.  Pls waiting for the official release update file to resolve this problem.

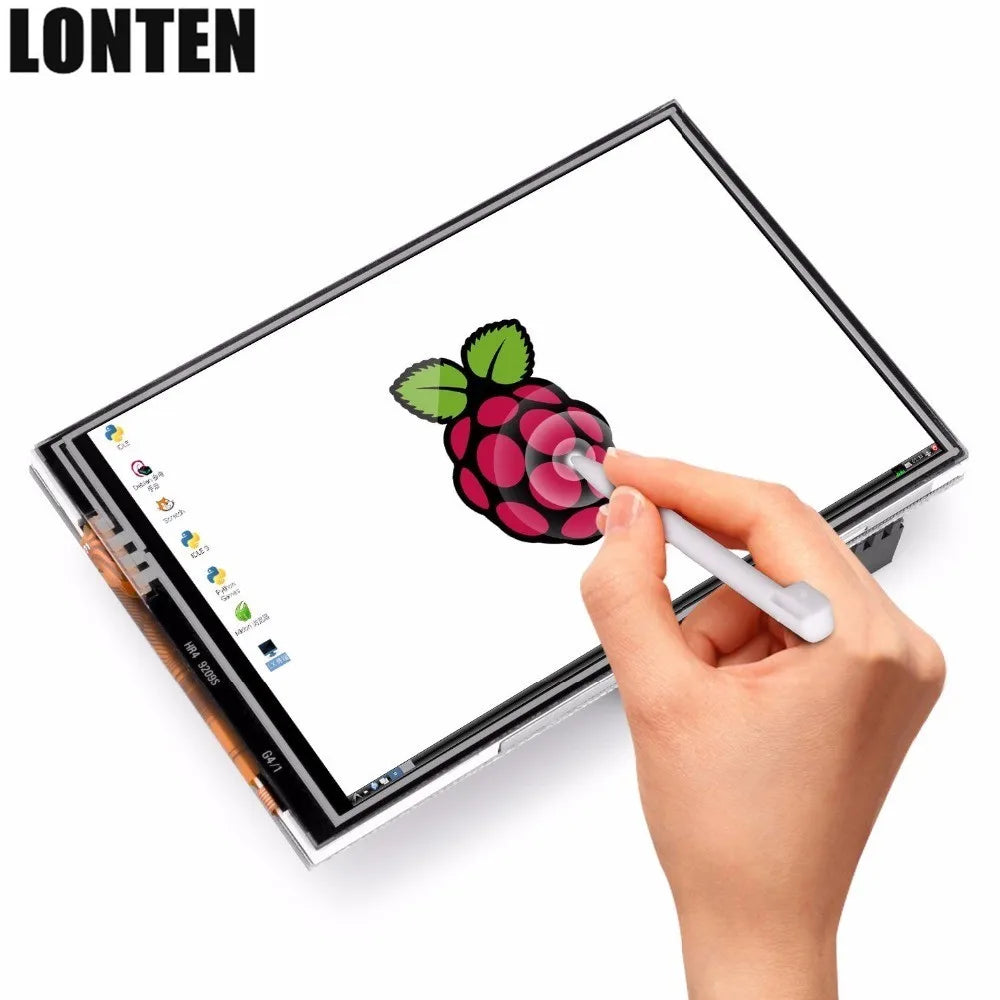

This 3.5 inch touch screen module is designed especially for Raspberry  Pi, using the latest Linux Core system (vision 3.18.9), the latest  Raspberry Pi official UI desktop file system and the fastest SPI  transmission data, an ideal alternative solution for monitor and  convenient Men-Machine interface for Raspberry Pi, combined with the  portable power, DIY anywhere anytime.





Specifications
1. Type:TFT
2. LCD Interface:SP1
3. Touch Screen Controller: XPT2046
4. Backlight: LED
5. Color Levels Index: 65536
6. Resolution: 320*480 (Pixel)
7. Power Consumption/Backlight Current


Package includes:

1 * 3.5" LCD for Raspberry Pi

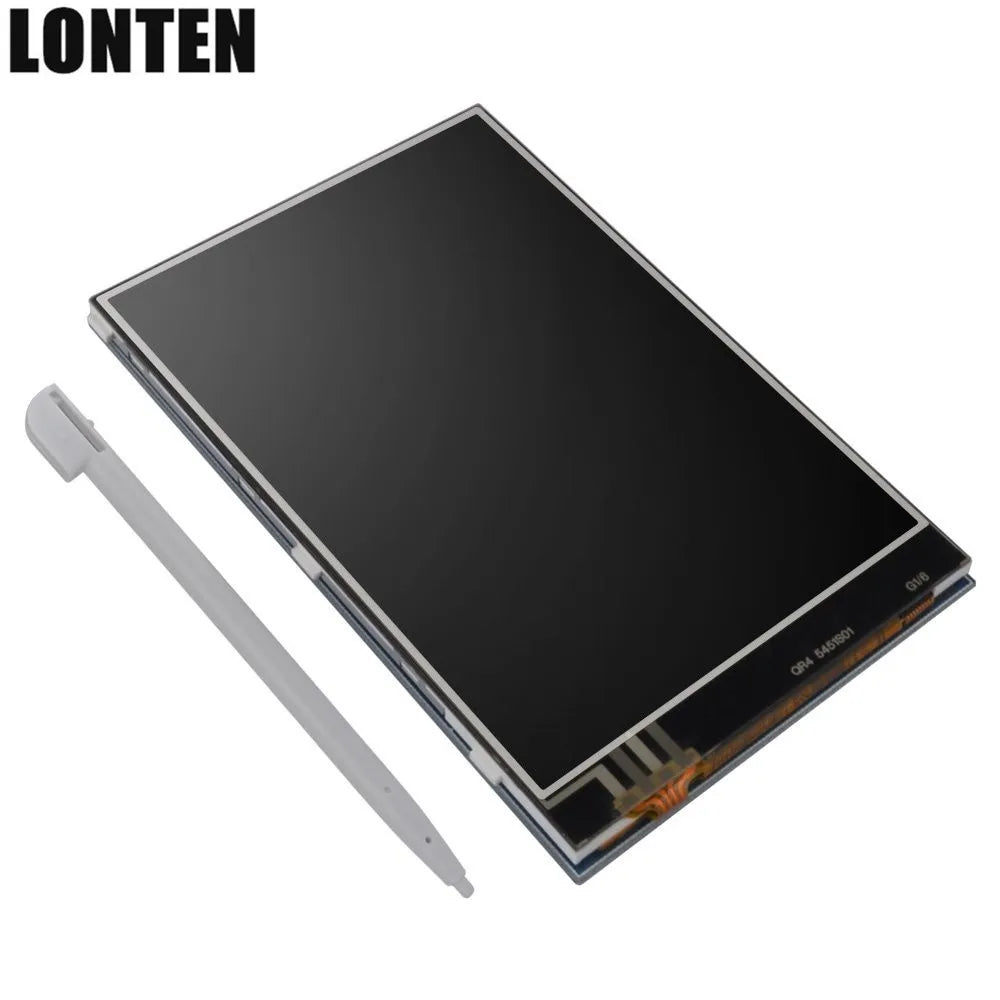

1 * pen for 3.5 LCD Touch Screen

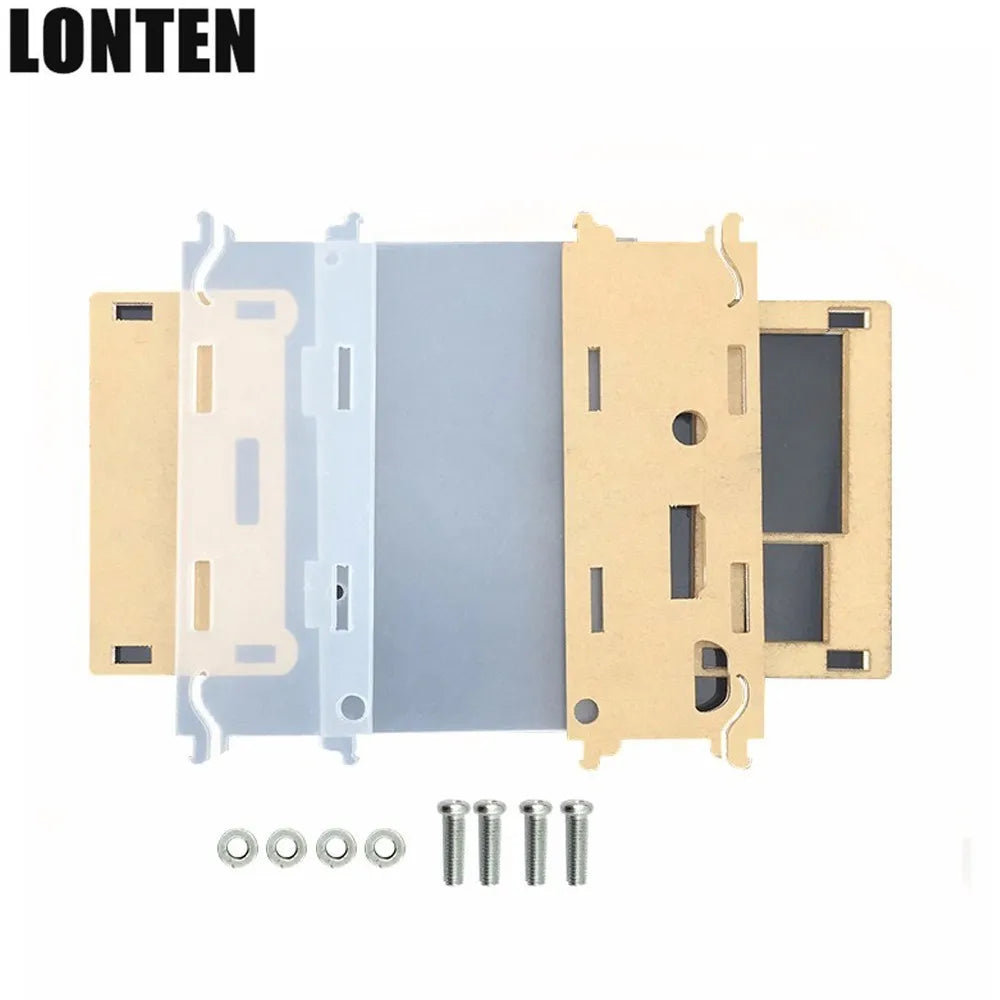

1 *  Acrylic Case



12

1212121212121(1)





Assembly drag



3456

7





Specifications

  • Type:TFT
  • LCD Interface:SP1
  • Touch Screen Controller: XPT2046
  •  Backlight: LED
  •  Color Levels Index: 65536
  •  Resolution: 320*480 (Pixel)
  •  Power Consumption/Backlight Current





Interface


PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
18 LCD_RS Instruction/Data Register selection
19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel
21 TP_SO SPI data output of Touch Panel
22 RST Reset
23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS Touch Panel chip selection, low active
