Custom HD + 2AV+ VGA 4.3 inch vehicle-mounted LCD suite projection AT043TN24 resolution 480*272 DIY on-board computer monitors Manufacturer



HDMI + 2AV+ VGA 4.3 inch vehicle-mounted LCD suite projection AT043TN24 resolution 480*272 DIY on-board computer monitors

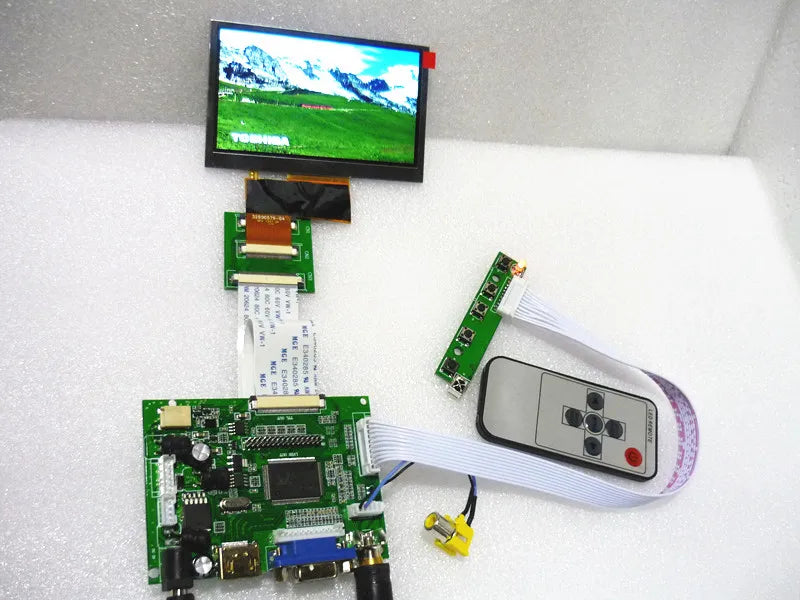

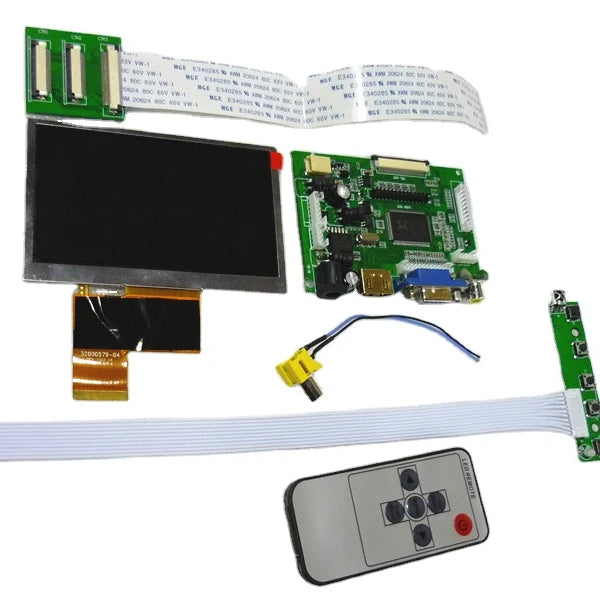

Shipping list:

4.3"LCD screen 1 PCS

Driver board 1 PCS

AV video connector 1 PCS

Five key press keypad 1 PCS, the remote controller 1 PCS

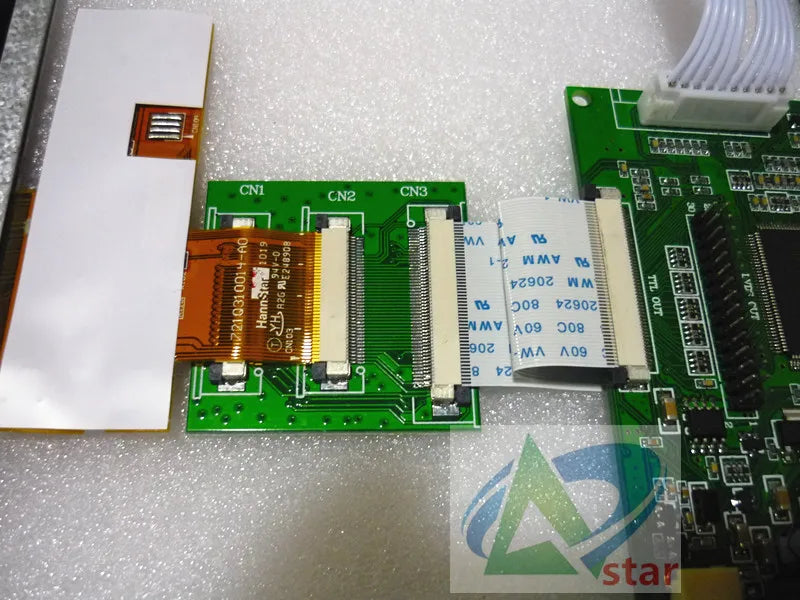

Extend the adapter plate 1 PCS



Panel Brand: CHIMEI INNOLUX

Panel Model: AT043TN24 V.7

Panel Type: a-Si TFT-LCD, Panel

Panel Size: 4.3 inch

Resolution: 480(RGB)*272, WQVGA

Display Mode: TN, Normally White, Transmissive

Surface: Antiglare

Brightness: 400 cd/m² (Typ.)

Contrast Ratio: 500:1 (Typ.)

Display Color: 16.7M (8-bit)

Response Rime: 10/15 (Typ.) (Tr/Td)

Viewing Angle: 70/70/50/70 (Typ.) (CR≥10) (L/R/U/D)

Frequency:

Lamp Type: 8S1P WLED

Signal Interface: Parallel RGB (1 ch, 8-bit)

Input Voltage: 3.3V (Typ.)

RoHS

Note:

This controller board support Automatically Switch to AV2(Reversing View camera). Please connected ACC to 12V.



1.Power Supply(5V-24V) 2.HDMI 3.VGA Connector 4.AV15.AV1+AV2 6.Keyboard 7.TTL Signal 50Pin 8.LVDS Signal 1/2 ch 6bit 8bit 9.12V Backlight
