• High Accuracy:

  • Temperature Accuracy:± 0.5 ℃

  • Humidity Accuracy:± 3 % RH ( 25 ℃ )

• Wide measurement ranges:

  • Measuring Range (Humidity):0 ~ 100% RH

  • Measuring Range (Temperature):-40 ~ + 80 ℃

• Better compatibility:

  • Digital output

  • I²C interface

• Fully calibrated

• Excellent long-term stability

• Quick response and anti-interference capability

• Wide voltage support 2.5-5.5V DC

Description

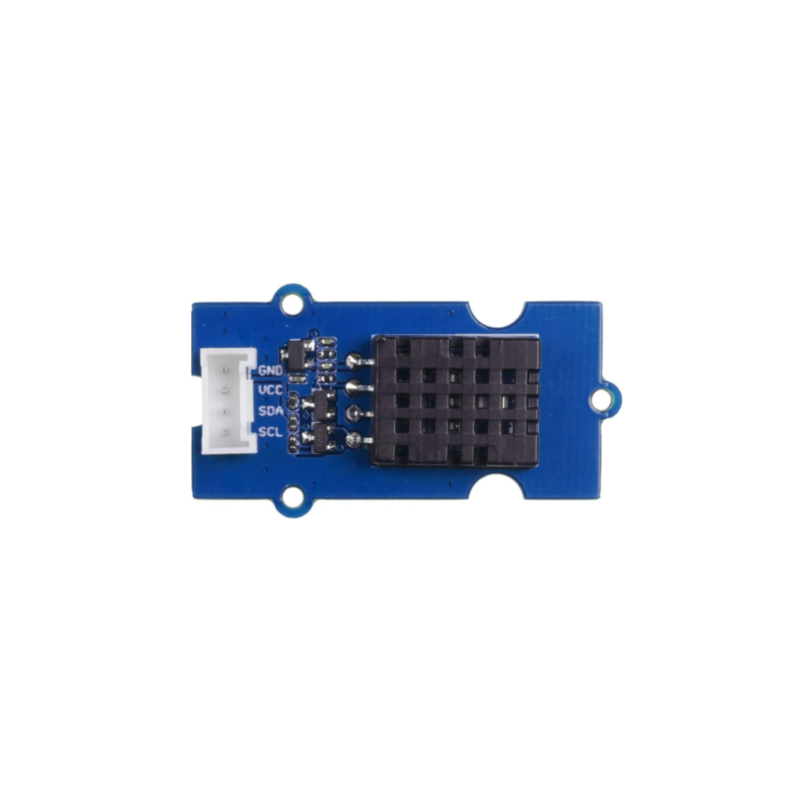

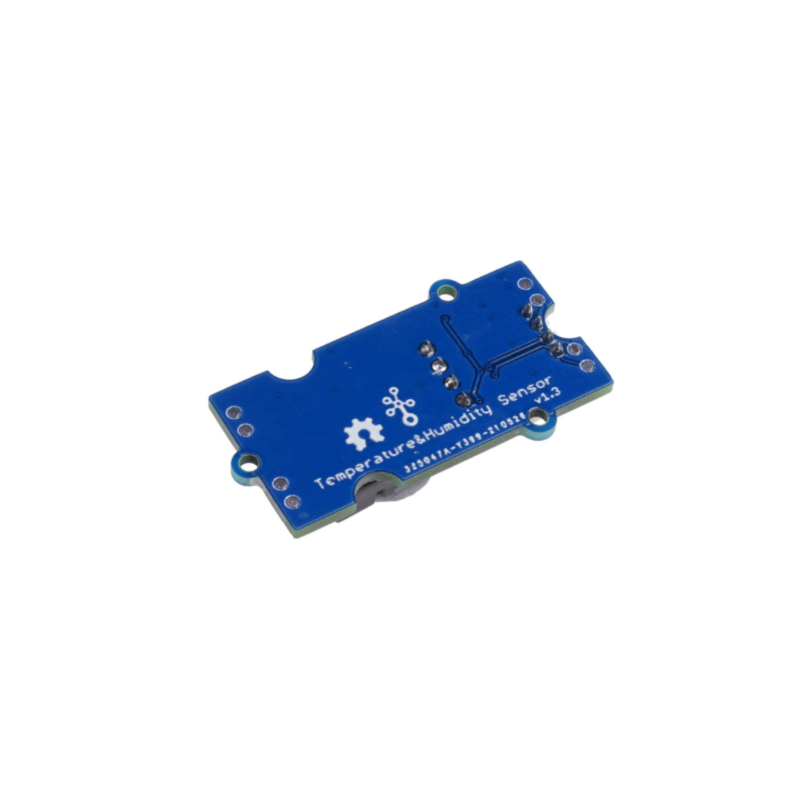

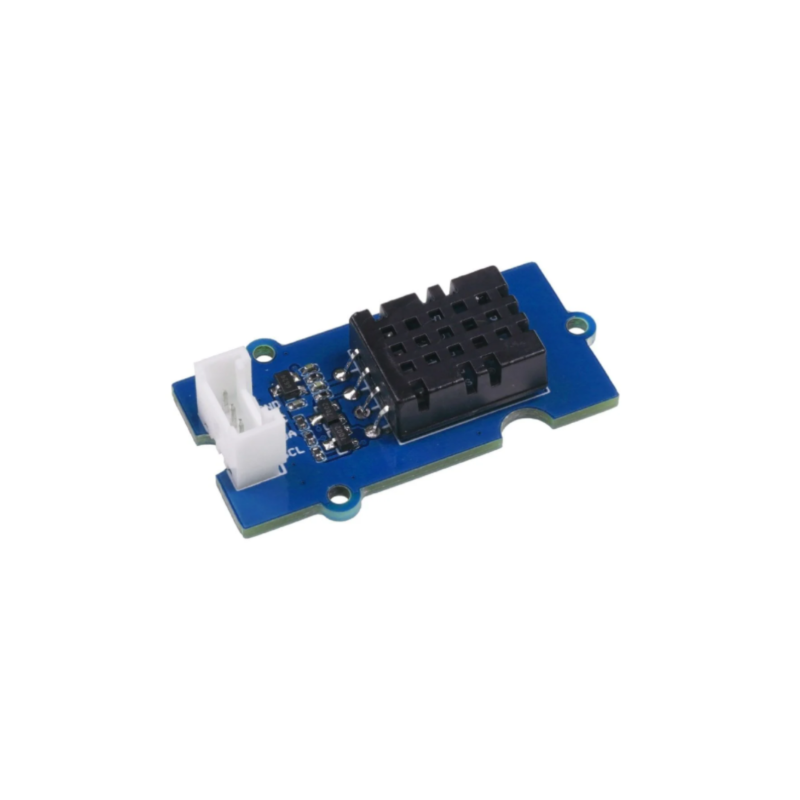

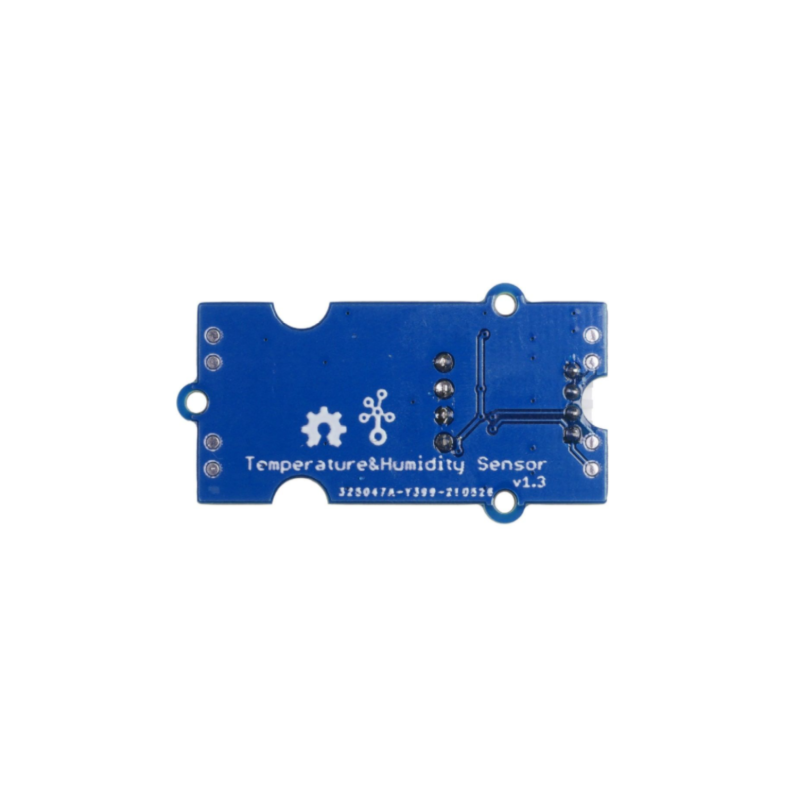

Grove - DHT20 Temperature & Humidity Sensor is the newly released version, an upgraded version of the DHT11. It’s a high quality, low-cost digital temperature, and humidity sensor. DHT20 features a brand-new ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity module, and a standard on-chip temperature element. Besides its performance, the efficiency of DHT20 has also improved over the previous generation, making it more cost-effective. Following the miniaturization and changes, the DHT20 is proven to be more robust in harsher conditions! DHT20 is also more versatile with its I2C signal which supports multiple masters!

With the wider and more precise range of measurement, the DHT20 will be more than suitable for various IoT uses, especially for cases such as precision farming and quality control! Each DHT20 sensor is factory calibrated and tested to ensure that it maintains its stable performance in the long-term for the years to come.

With its rigidity, reliability, and performance, the DHT20 is very suitable for HVAC, automobiles, data loggers, weather stations, home appliances, and even medical uses and other related temperature and humidity detection and controlled areas.

Comparison between DHT20 and DHT11

The DHT20 is an upgraded version of the DHT11, equipped with a new temperature and humidity sensor chip.

Specification

Applications

• HVAC

• Dehumidififier

• Testing and Inspection

• Equipment

• Consumer Goods

• Automobile

• Automatic Control

• Data Recorder

• Weather Station

• Home Appliance

• Humidity Control

• Medical Treatment

• and other related temperature and humidity detection control project
