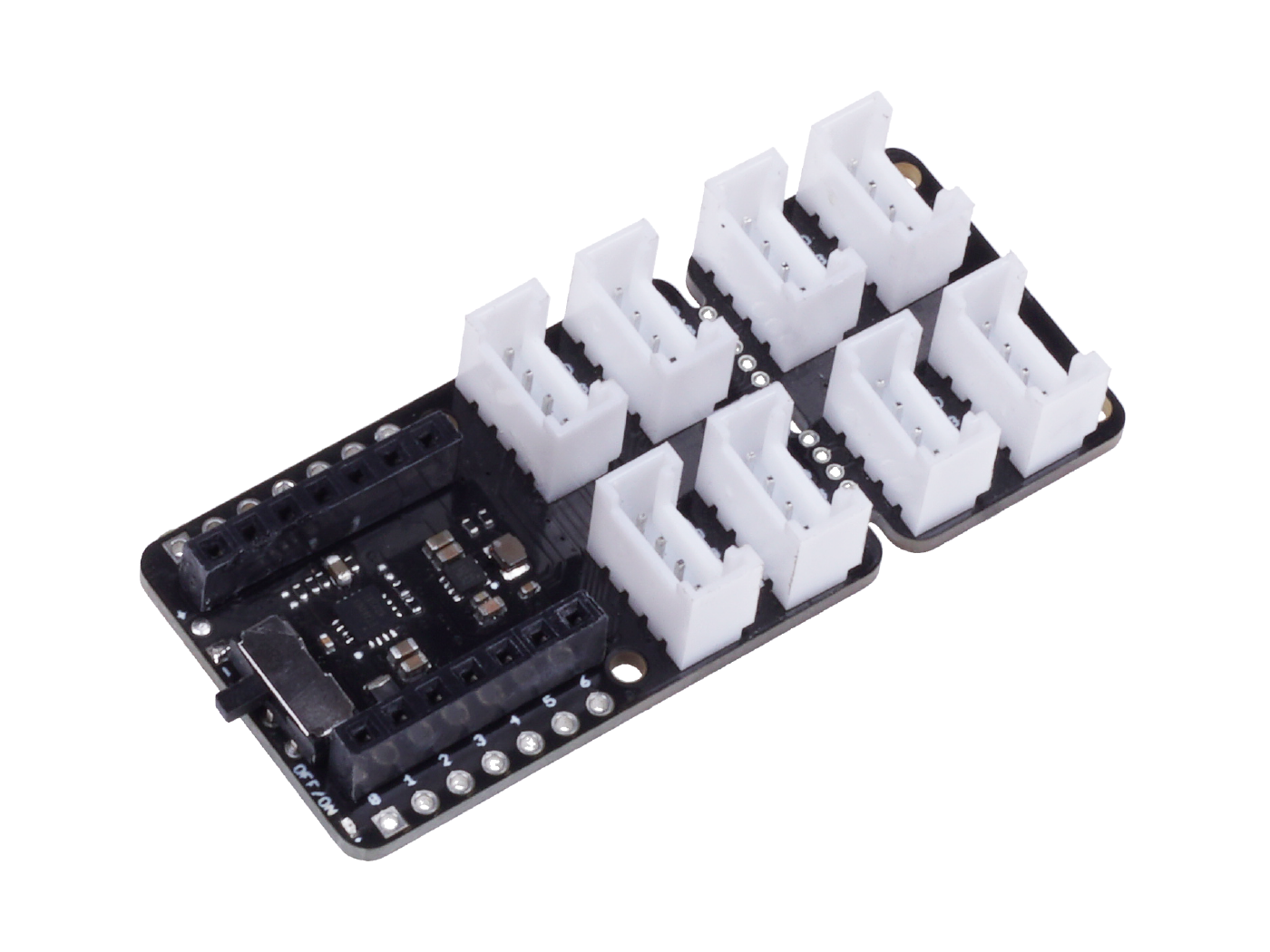

Grove Shield for Seeeduino XIAO - with embedded battery management chip Custom PCB guitar amp pcba pcba router wifi customize

Grove Shield for Seeeduino XIAO - with embedded battery management chip Custom PCB guitar amp pcba pcba router wifi customize

$12.00 USD
$52.00 USD $12.00 USD
Sale Sold out


Feature

  • On-board Lithium Battery Charging and Management Function

  • Grove connectors (Grove IIC*2, Grove UART*1), all 14 GPIO led out

  • Compact and Breakable Design

  • SPI-Flash Bonding Pad Reserved

  • On-board Power Switch and Charging Status Indicator Light

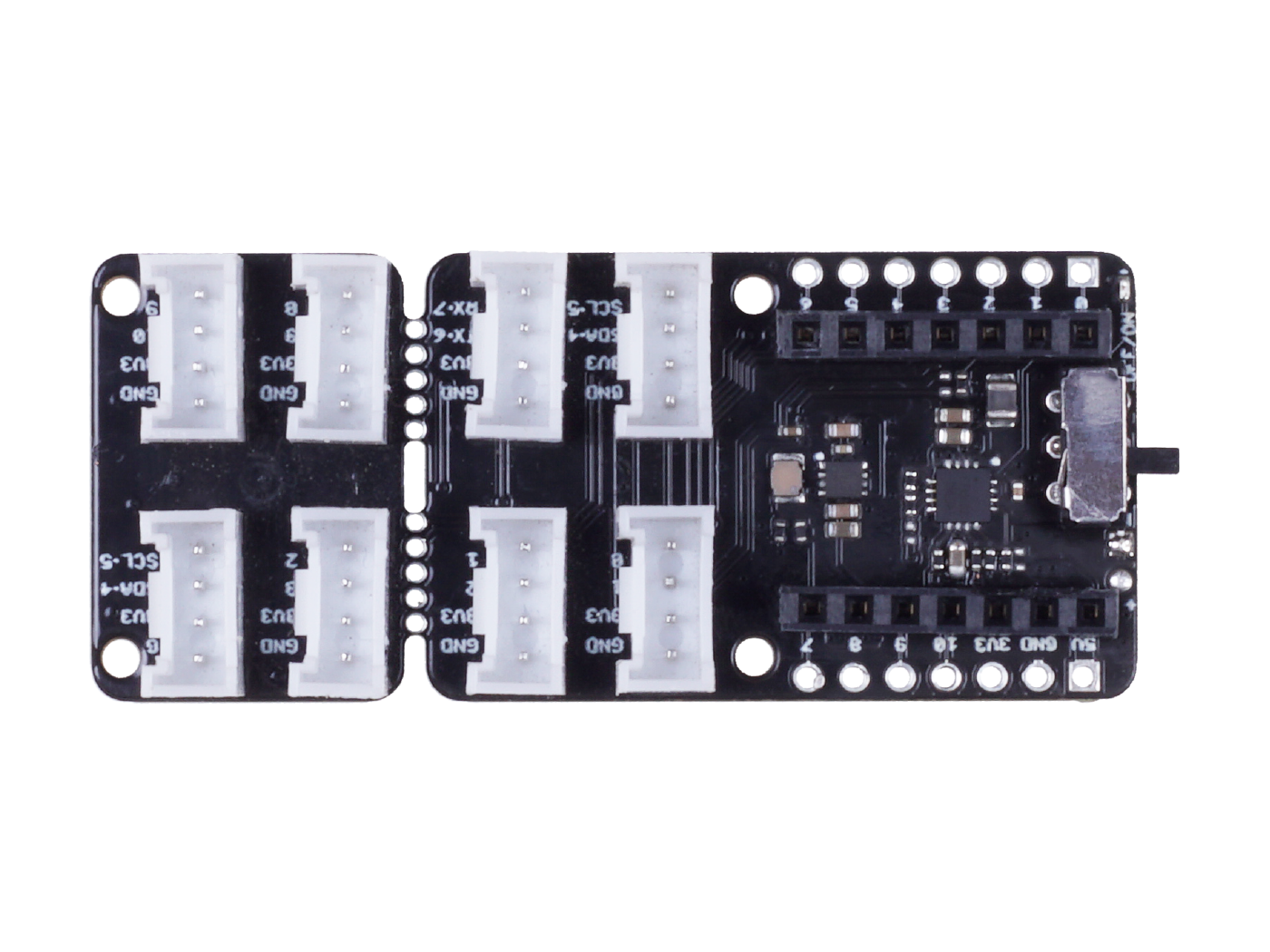

Hardware Overview

Application

  • Wearable devices

  • Rapid prototyping

  • Grove modules testing

  • Projects require small size

Specification

Parameters

values

Power Supply

5V / 3.7V Lithium Battery

Load Capacity

800mA

Charging current

400mA (Max)

Operating Temperature

- 40°C to 85°C

Storage Temperature

-55°C to 150°C

Grove Interface

Grove * 8 (IIC*2 / UART*1)


Demo





Pinout



Supported Boards

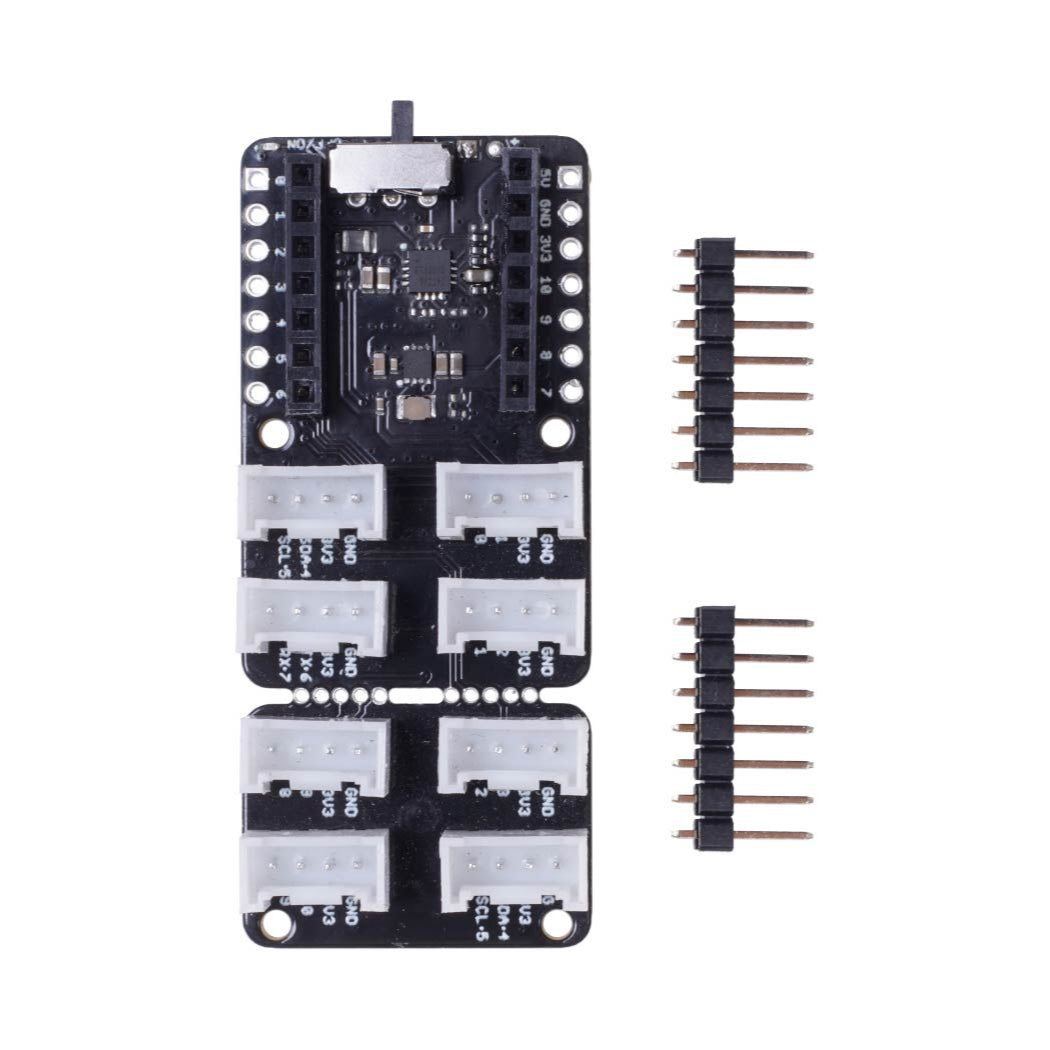

Part list

Items

Quantity

Grove Shield for Seeeduino XIAO

1

1*7pins male header

2

 Welcome Customize Order!
