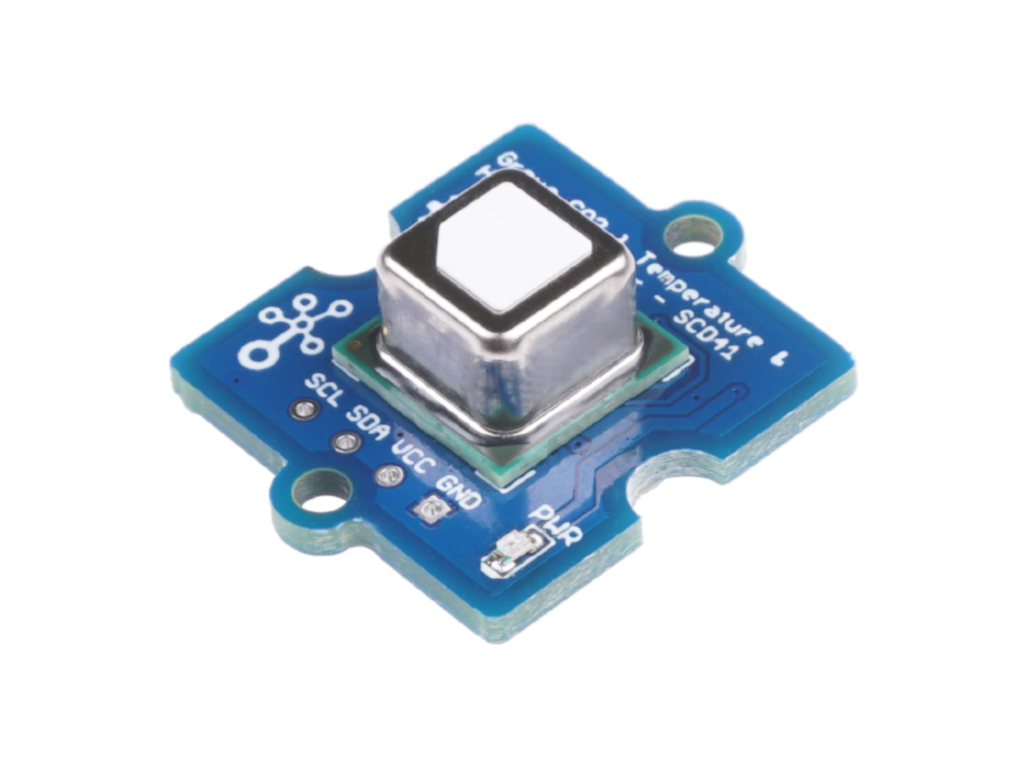

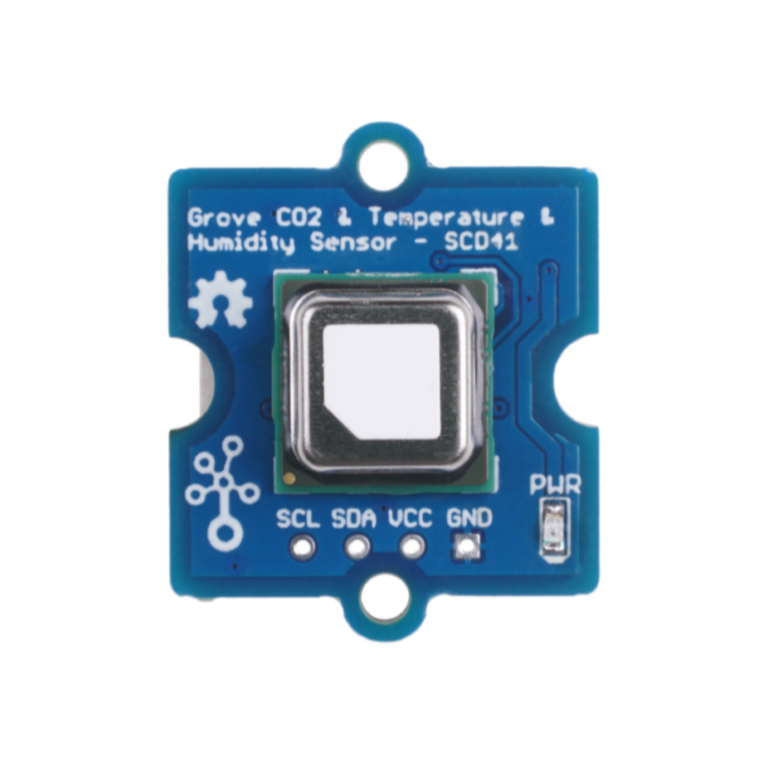

The Grove - CO2 & Temperature & Humidity Sensor - SCD41 is a small but powerful module which made by Sensirion. It is a multiple function sensor which can measure temperature, pressure, humidity and CO2 at the same time. It is based on the SCD41 module and you can use this sensor in your GPS, IoT devices or other device which needs those four parameters

PRODUCT DETAILS

Description

The Grove - CO2 & Temperature & Humidity Sensor - SCD41 is a small but powerful module which made by Sensirion. It is a multiple function sensor which can measure temperature, pressure, humidity and CO2 at the same time. It is based on the SCD41 module and you can use this sensor in your GPS, IoT devices or other device which needs those four parameters.

We've released the  Seeed Gas Sensor Selection Guide  and the  Grove Selection Guide , it will help you choose the Grove that best suits your needs.

This product is  Grove - CO2 & Temperature & Humidity Sensor for Arduins (SCD30) - 3-in-1 lighter version. The SCD41  packsare cheaper and lighter.



Features

• 3-in-1 for multiple measurement

• low power consumption

• Wide measurement range from 30 to 40,000 ppm

• Wide power supply range, from 2.4v to 5.5v

• Easy project operation: Digital interface I2C, Breadboard-friendly, Grove compatible

• Best performance-to-price ratio



Specification



Parameter	Value
Input voltage	3.3V / 5V
Operating range	-10~+60℃; 0-100% r.H.; 30-40,000 ppm

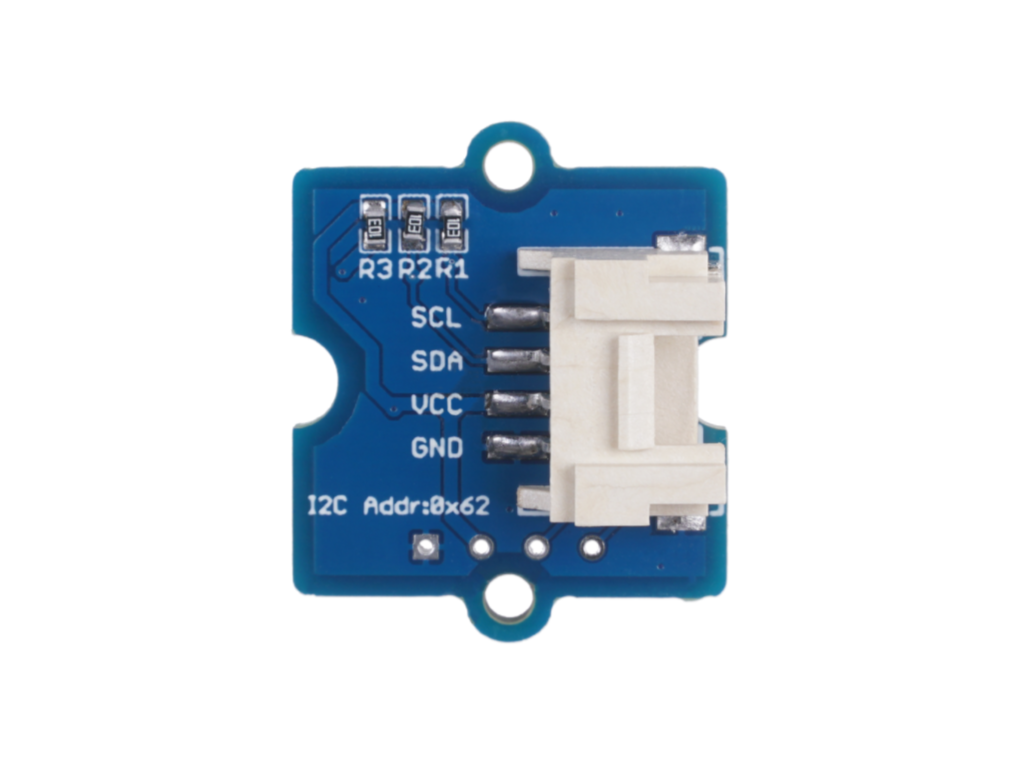

I2C Address	0x62
Interface	I2C



Compare with SCD30

Module No.	Precision	Range	Low Power Trigger	Size
SCD30	± 30ppm +3%	400 - 10,000ppm	×	35 × 23 × 7 mm
SCD41	± 40ppm +5%	400 - 5,000ppm	√	10.1 × 10.1 × 6.5 mm



Application Ideas

• Air Purifier
• Environmental Monitoring
• Plant Environmental Monitoring system
•  weather station
