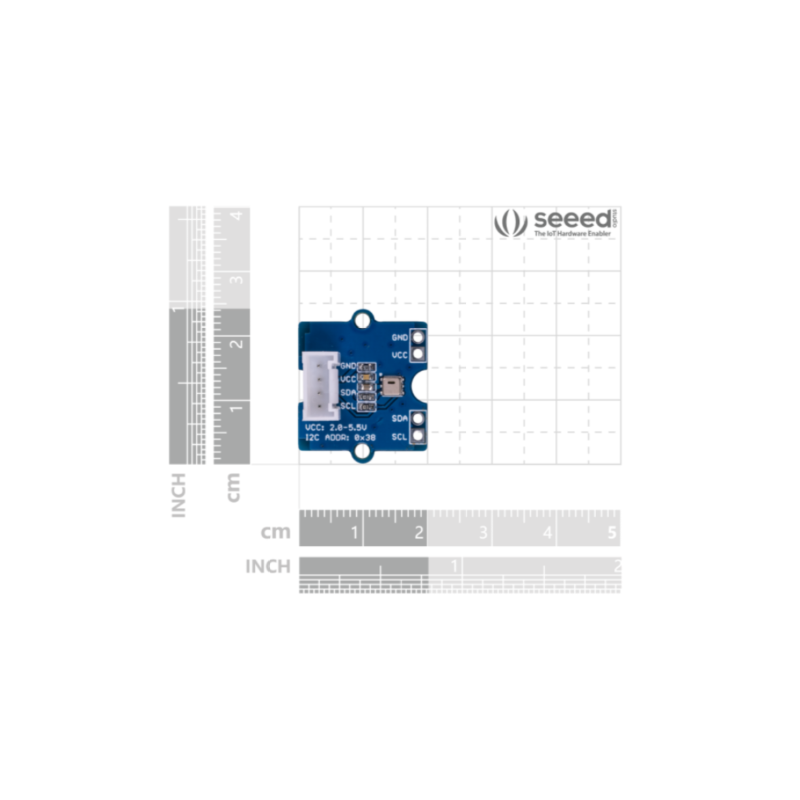

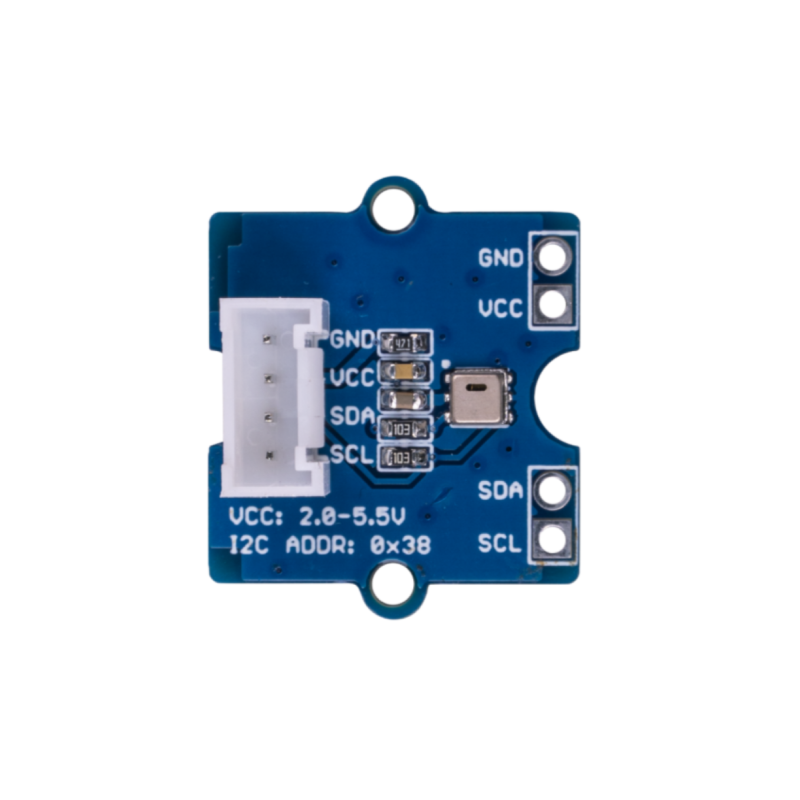

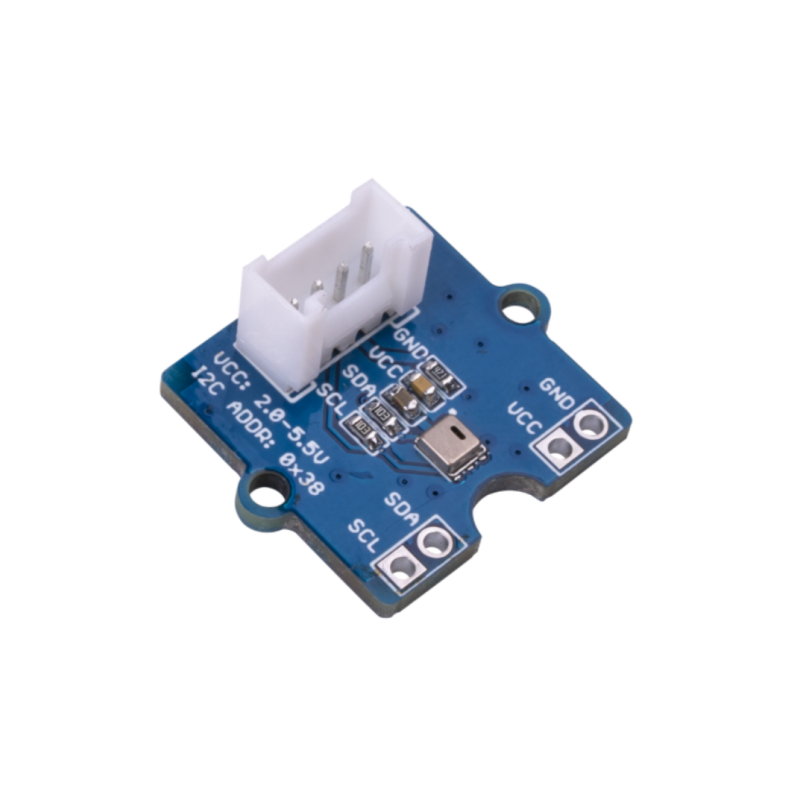

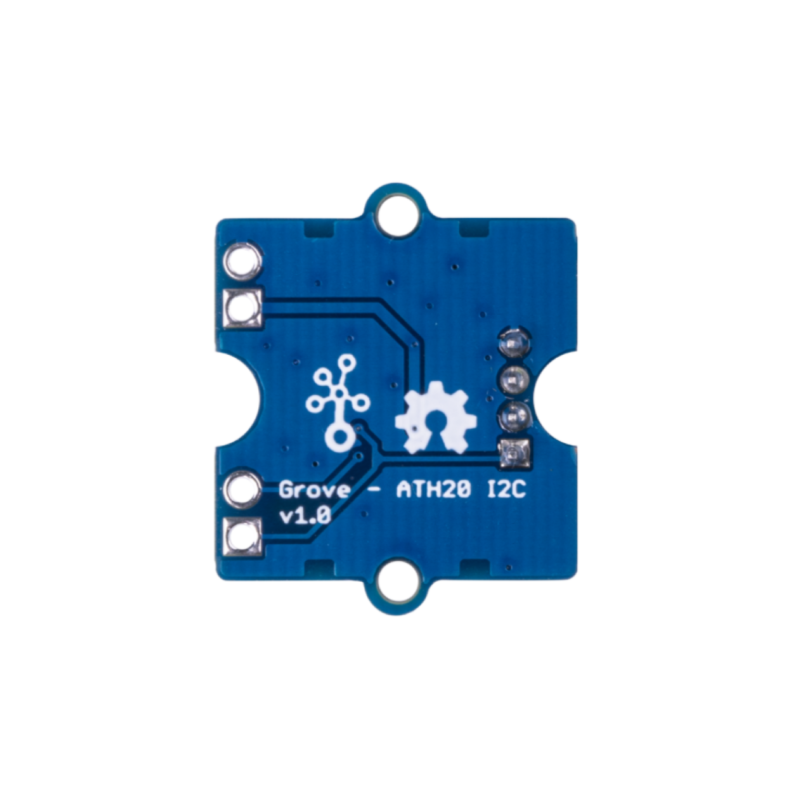

Custom Grove - AHT20 I2C Industrial Grade Temperature and Humidity Sensor Custom PCB battery dmx wireless rgb stick pcba

Key Features

• Temperature measurement range -40 ~ 85°C, Humidity measurement range 0 ~ 100% RH

• Digital output, Grove I2C interface

• Excellent long-term stability

• SMD package suitable for reflow soldering

• Quick response and strong anti-interference ability

• Compatible with Arduino

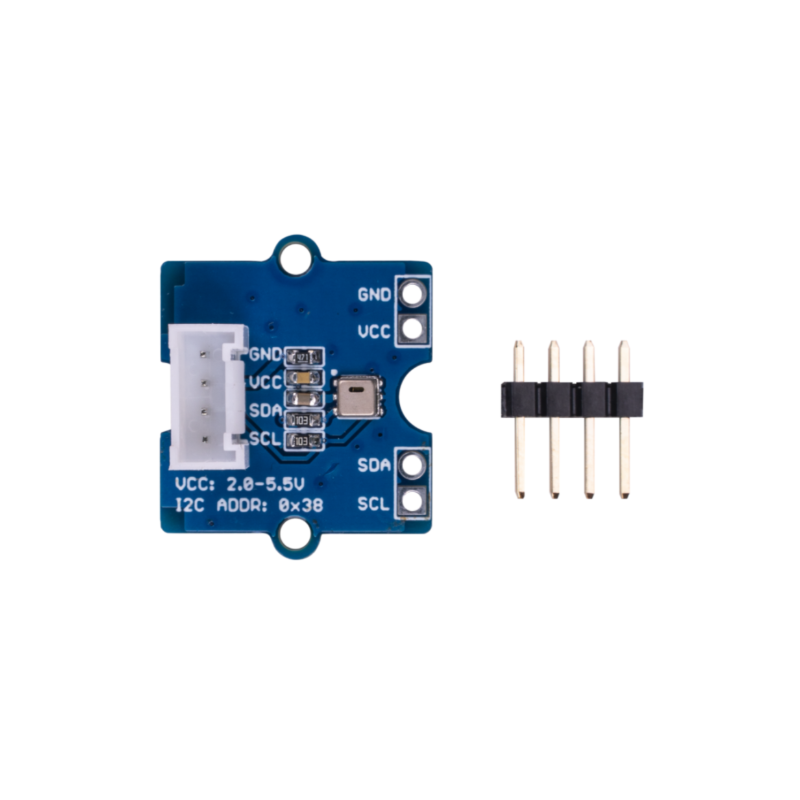

• 4-pin interface reserved

Description

AHT20 is a new generation of temperature and humidity sensor embedded with a dual-row flat and no-lead SMD package, suitable for the reflow soldering. AHT20 is equipped with a newly designed ASIC chip: an improved MEMS semiconductor capacitive humidity sensor, and a standard on-chip temperature sensor.

The performance of AHT20 is more stable in harsh environments compared with the previous generation of temperature and humidity sensor such asGrove - Temperature & Humidity Sensor Pro (AM2302/DHT22), as a matter of fact, AHT20 is fittable in mostindustrial scenarios.

The output is the I2C protocol with the Grove interface. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Just plug and play to get started easily!

Specification

• Operating Voltage: DC:2.0-5.5V

• Measuring Range (humidity) 0 ~ 100% RH

• Temperature Range: -40 ~ + 85 ℃

• Humidity Accuracy: ± 2% RH (25 ℃)

• Temperature Accuracy ± 0.3 ℃

• Resolution: Temperature: 0.01 ℃, Humidity: 0.024% RH

• Output Interface: Grove I²C Interface

• I2C address: 0x38
