Our Technicist has been weld and debug for the F550 Frame kit with KKmulticopter Flight Controller Board,ESC,Receiver,Motor.
It can help Beginner to get and play easier.These Parts has been tested and connect and make sure in the best condition before package.
Of course,the Frame kit and some parts also need buyer\'s assembly.Hope understand.
Any question,please contact,Thanks for your interest in advance.

Hex-Rotor HexaCopter RTF W/ F550 FlameWheel Kit + KK 2.3 Controller + ESC Motor Weld&debug Battery TX RX Pros

Effect pictures(Products in unassembly)

Tips:1 / 3 / 5 is CW Propeller ,2 / 4 / 6 is CCW Propeller

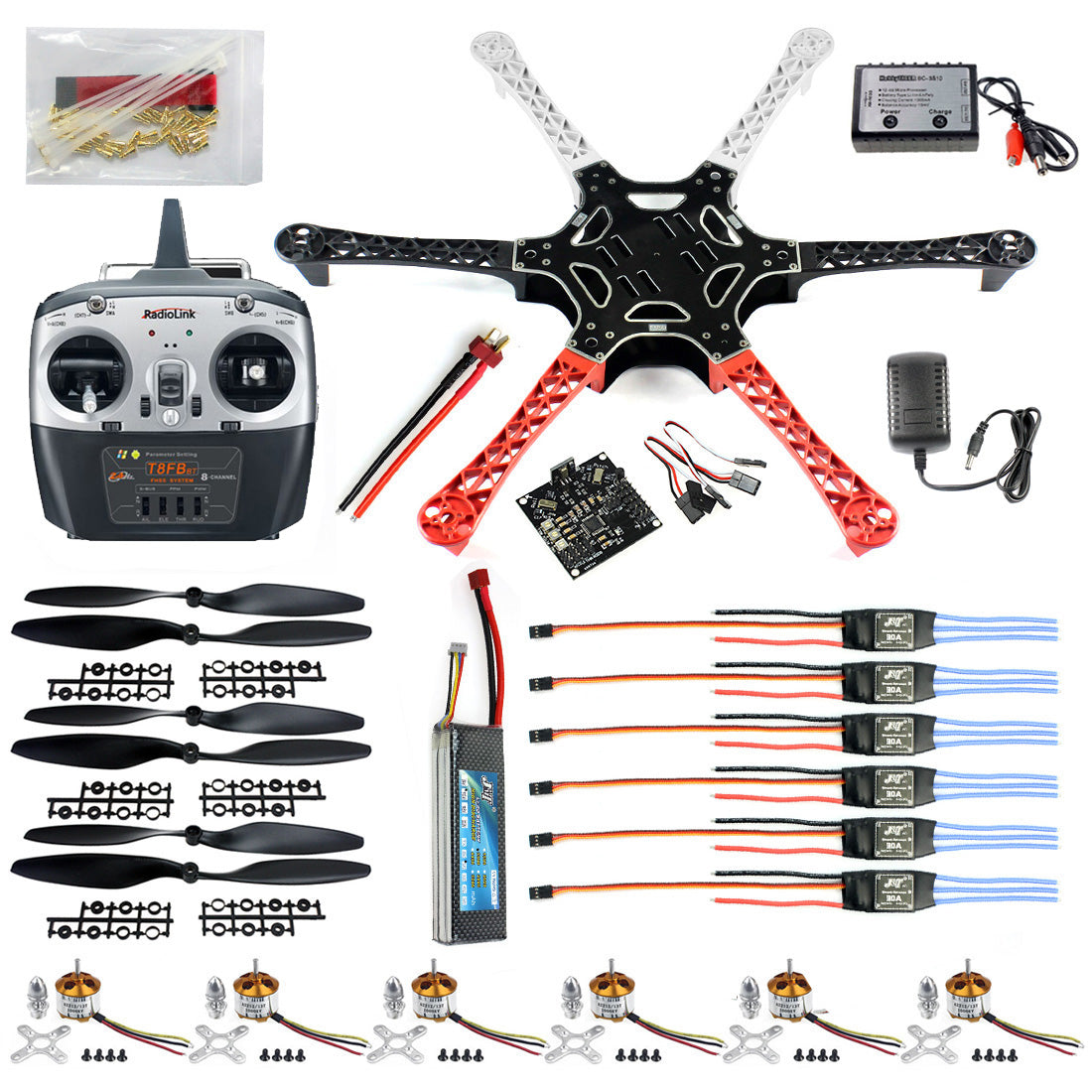

These products have been tested,Parcel comes as picture:

Detail:

(The color of the Flamewheel arms,will be changed by manufactured.Random shipped,if you have request,please contact in advance to confirm inventory,no negative or dispute accepted for the color reason,thanks understand and help again)

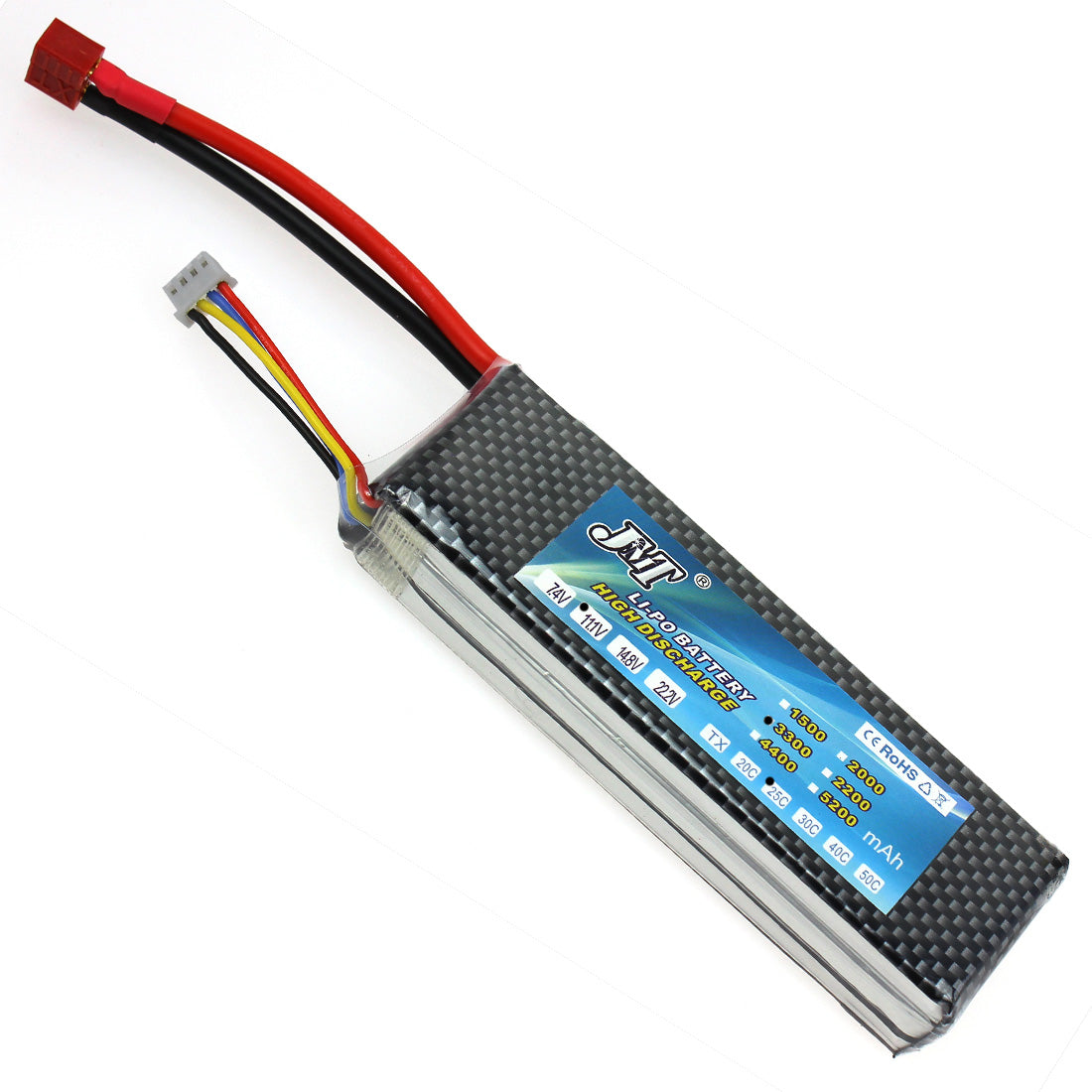

11.1V 3300Mah 25C Lipo battery

T8FB Technical Parameters

1. Size: T8FB - 173*102*206mm, R8EH - 48.5*21*11mm.
2.Weight: 0.47kg(including R8EH)
3.Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
4.Modulation mode: GFSK
5.Channel bandwidth: 400KHz
6.Band width:1200KHz
7.Spread spectrum: FHSS
8.Adjacent channel rejection: >36dBM
9.Transmitter power: <100mW (20dBM)
10.Sensitivity: -104dBM
11.Speed rate:38kbps
12.PWM output: 1.0ms~2.0ms
13.Section precision: 2000, 0.5us per section
14.Cycle:15 ms/per frame
15.Radio T8FB operating voltage: 4.8V~18V
16.Radio T8FB operating current: <110mA
17.Receiver R8EF operating voltage: 4.6~10V
18.Receiver R8EF operating current: <30mA
19.Control distance: more than 1000 meters air, the actual control distance depends on the flying environment.

R8EH Receiver (With Bluetooth-compatible):
Channel: 8CH
Operating voltage: max 10V.
Operating current: 19-25mA(input voltage 5V)
Size: 48.5*21*11mm
Weight: 7g
Section precision: 4096
Signal output: S-BUS, PPM and PWM PWM
signal mode: Green LED, output 8 channel PWM signal.
SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.

Specifications:
- Model Flame Wheel 550 (F550)
- Weight: about 1106gram(not include battery)
- Diagonal Wheelbase 550mm *1

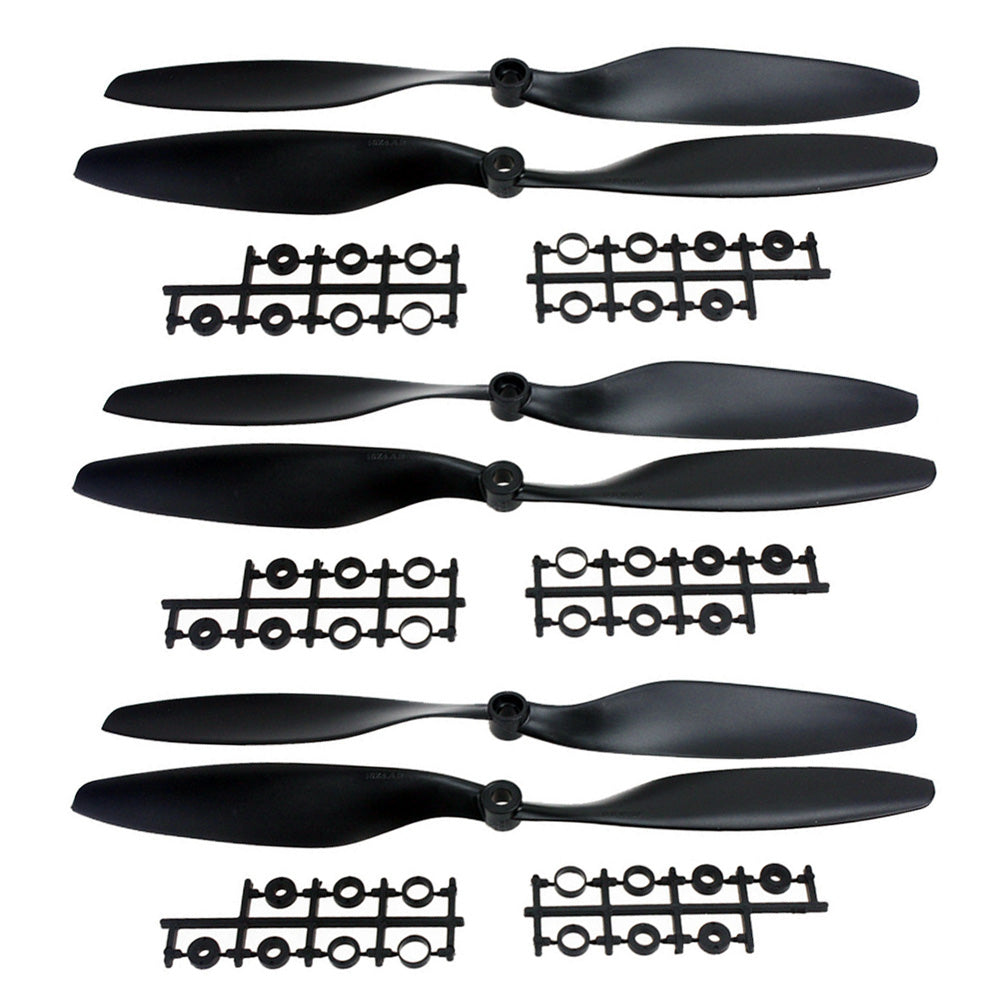

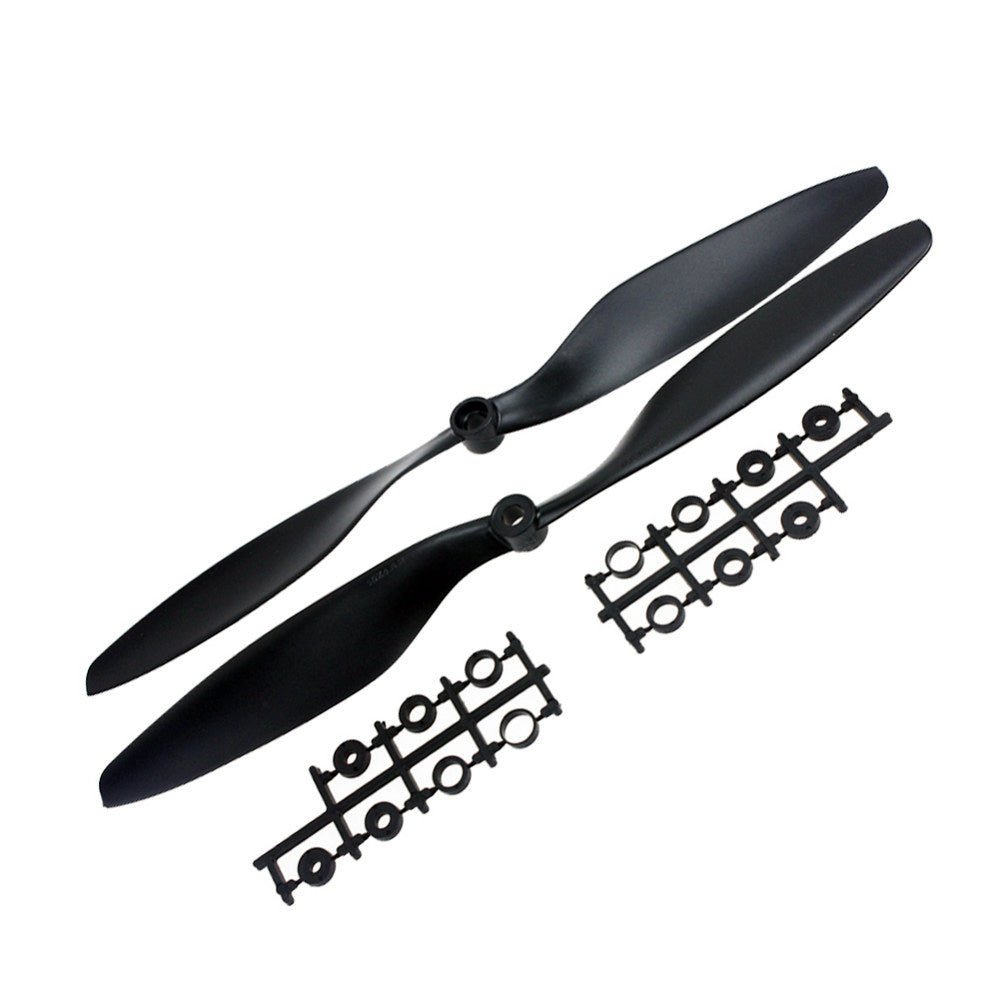

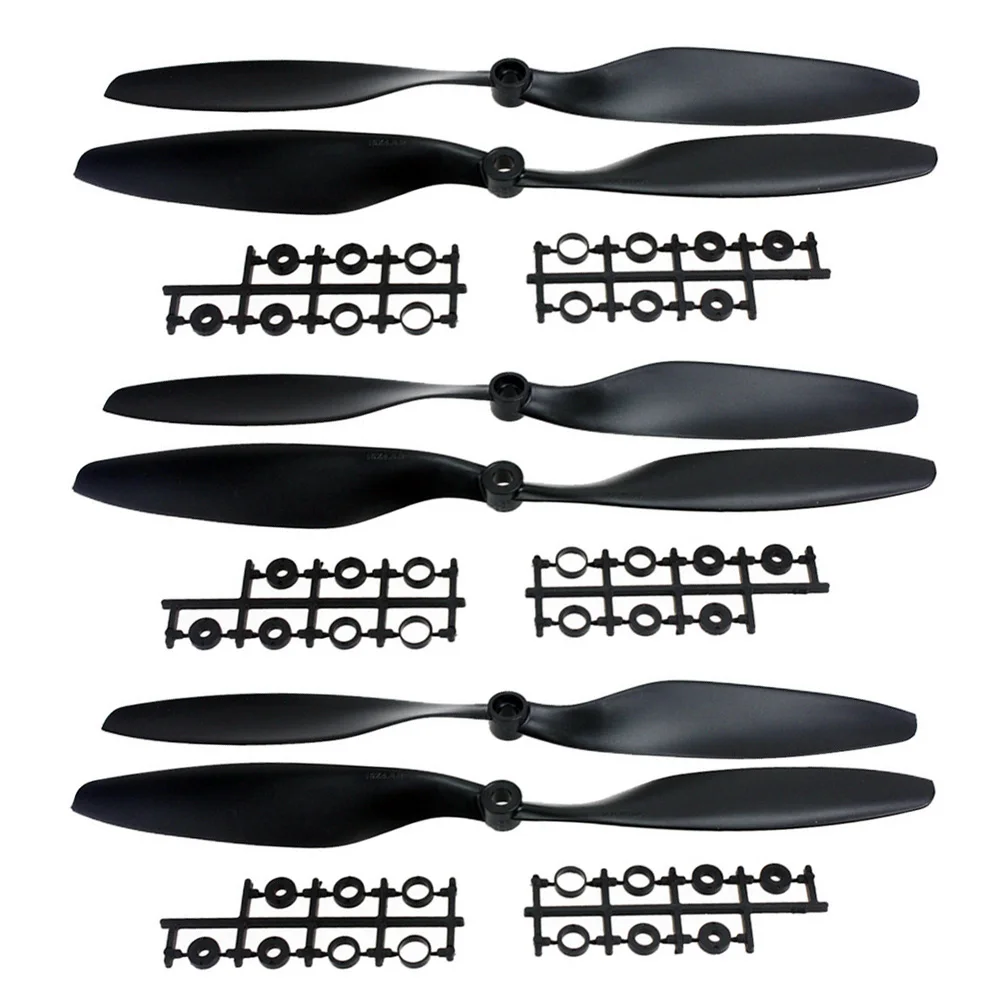

- Propeller 10 ×4.5in * 3-pairs
- Brushless Motor A22122 13T *6

- Brushless ESC 30A*6

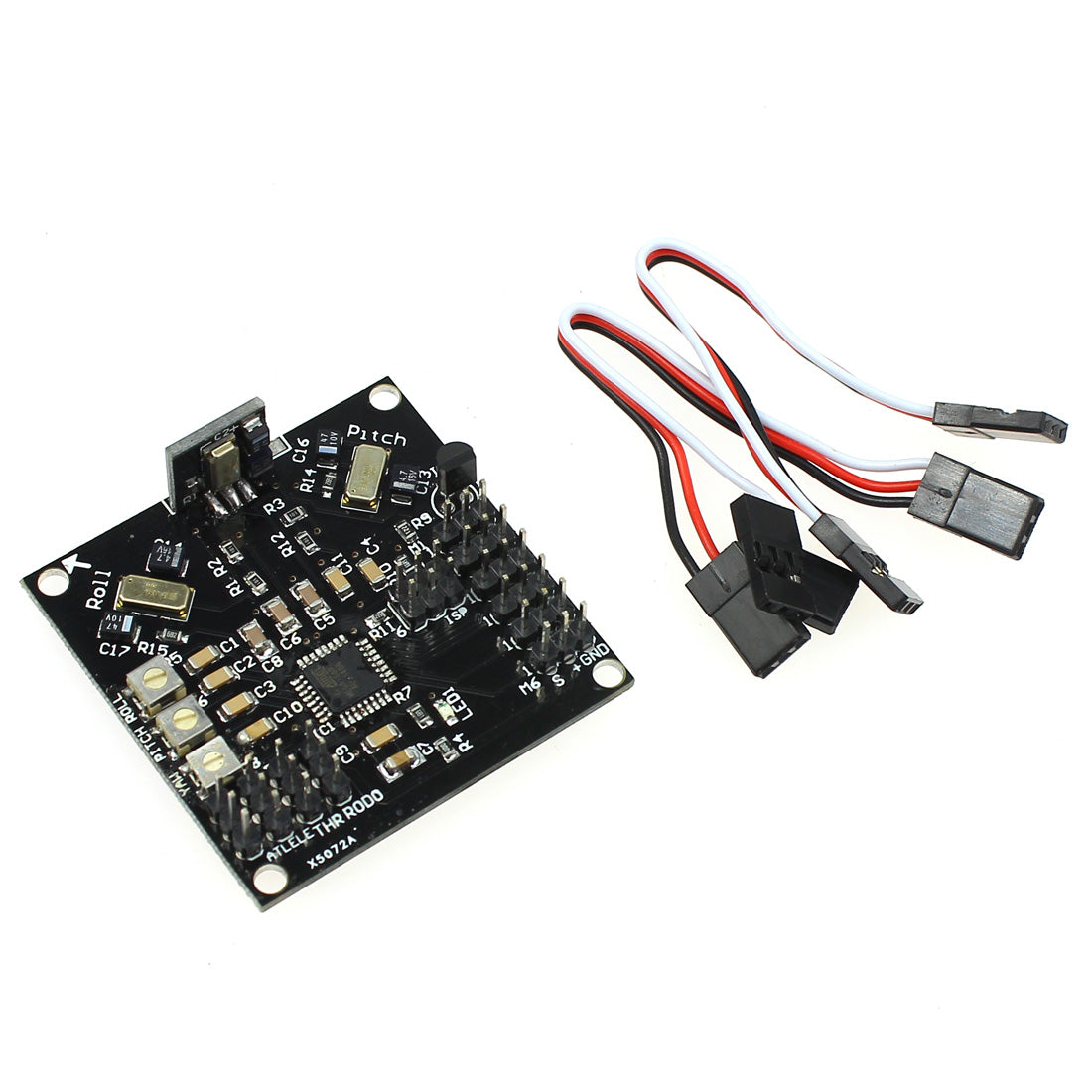

- KKMulticopter V2.3 Circuit board Flight Controller With

AVR USB Programmer* 1

- FMT 11.1V 3300Mah 25C Lipo battery *1

- RadioLink T6EHP-E 2.4G 6Ch Transmitter and Receiver *1

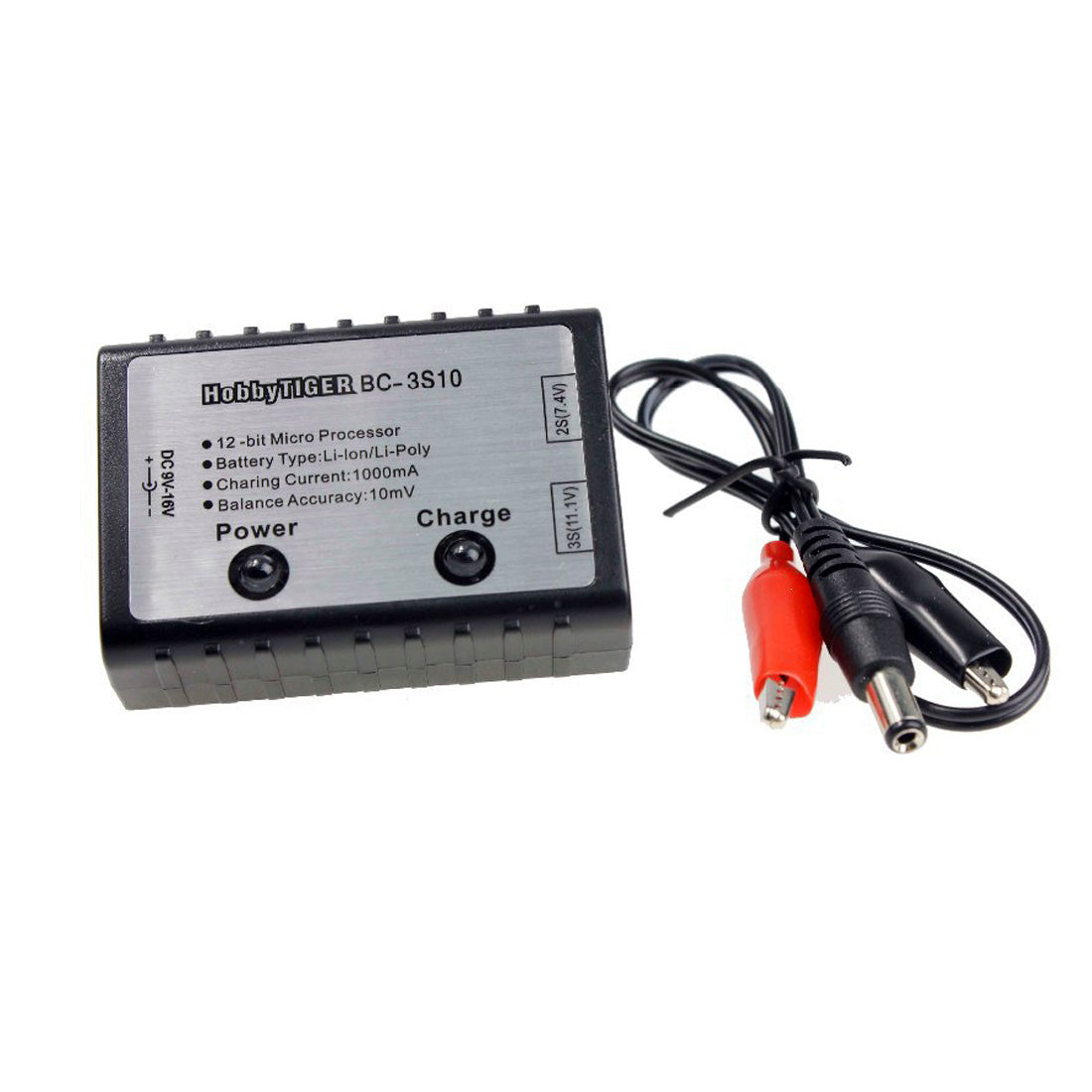

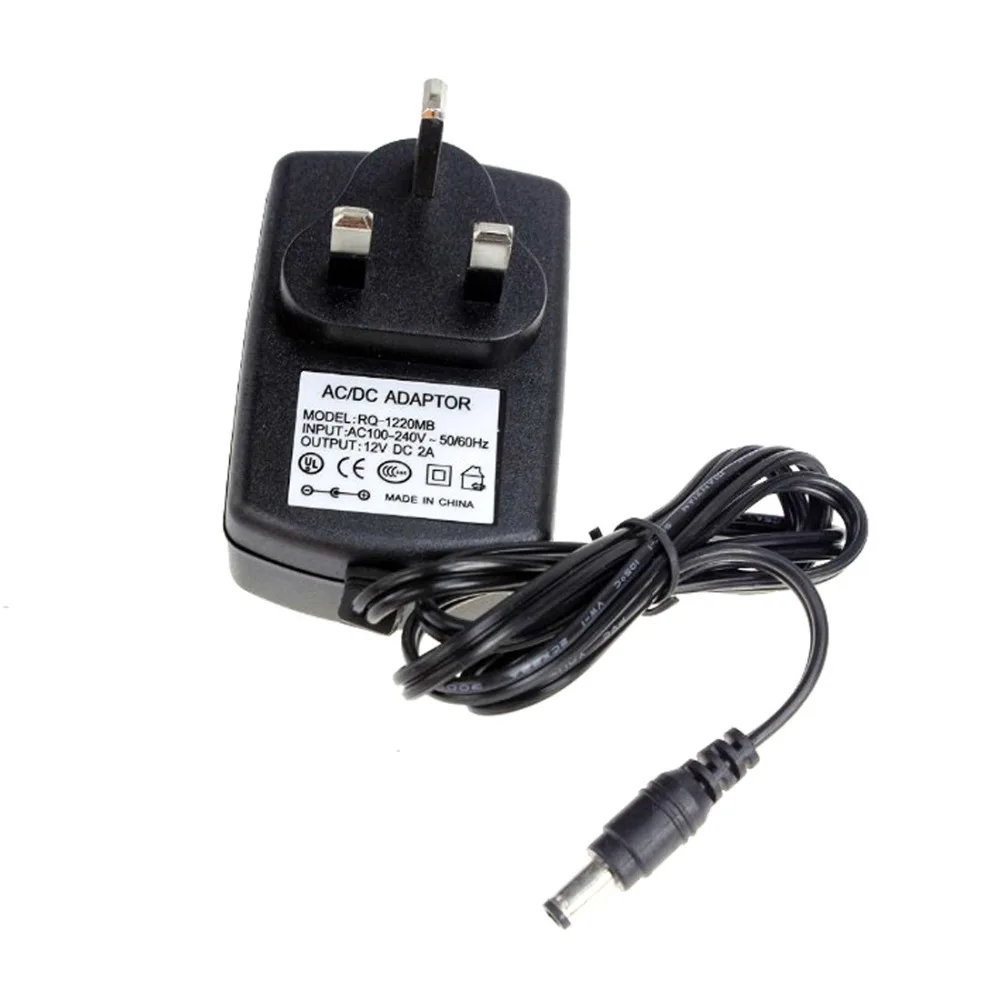

- Balance charger + Adapter *1 set

(If you have request for the plug of the adapter,please leave message or contact us before purchase,or we will ship according to common sense,the adapter\'s style sometimes is different from the picture shows,function same,if you mind,please contact us before purchase,it\'s my pleasure to serve you!)

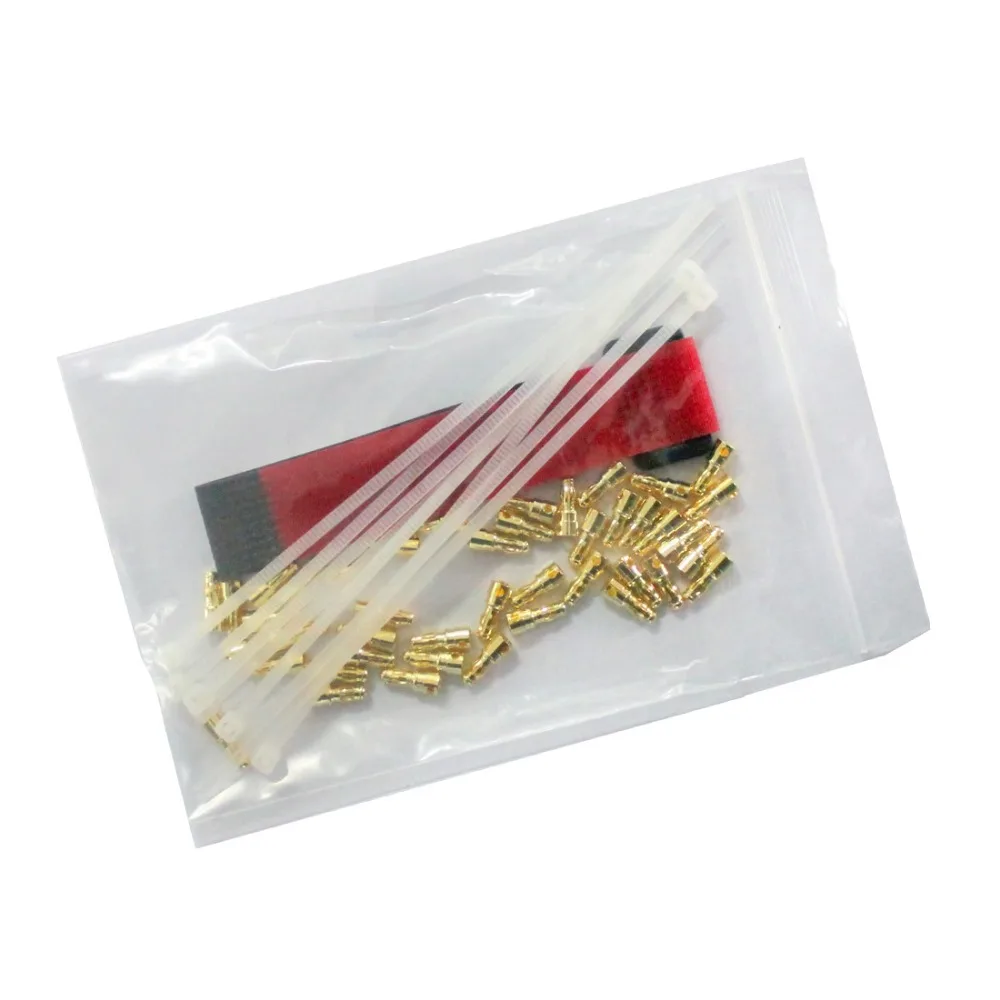

- connecting Plug *1 bag

(Some parts have been tested and weld before shipped)
