RX2A PPM IBUS FS-RX2A Pro Receiver Mini RX for FS-I6 FS-I6X FS-I6S FS-TM8 FS-TM10 FS-I10
Specification:
Item name: FS-RX2A receiver
Channel: 10(IBUS), 8(PPM)
RF Range: 2.408-2.475GHZ
Number of bands: 135
RX Sensitivity: -92dBm
2.4GHz protocol: AFHDS 2A
Signal output: IBUS, PPM
Antenna length: 33mm
Power input: 3.3-5V
Control distance: 400m+
Current: 30MA
Size: 12*15mm

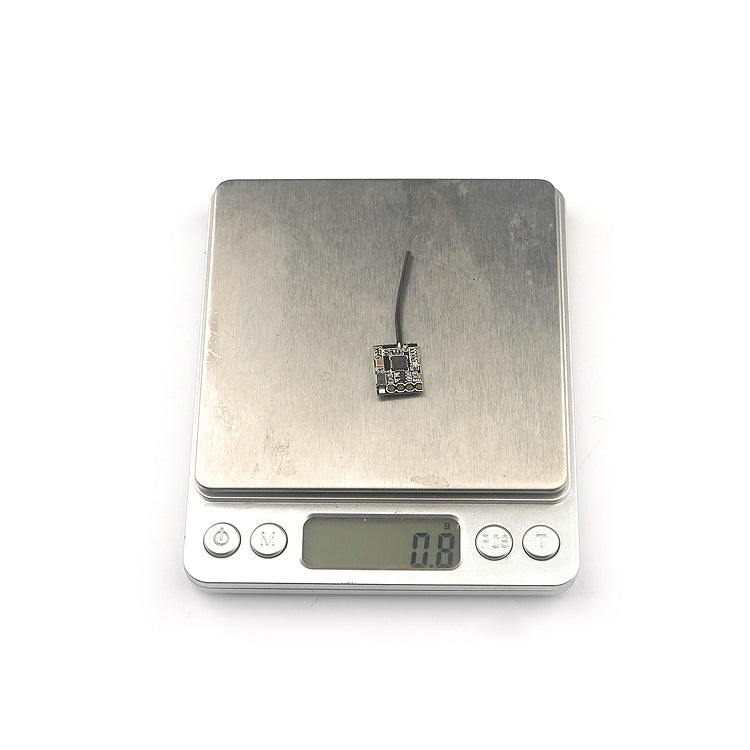

Weight: 1g
Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-I6,FS-I6X,FS-I6S,FS-TM8,FS-TM10,FS-I10. Turnigy EVO
Note: Failsafe only work on IBUS, not in PPM.
Binding Procedure:
1. Press and hold the Binding button, and supply power to the receiver, green LED blinks fast means entering the binding mode.
2. Make the transmitter enter BIND mode.
3. The LED indicator become slowly blink means the binding is succeed.
4. Make the transmitter quit the BIND mode, the receiver LED indicator stay on means receiving signal.
Package included:
1* receiver
