Custom FET1052-C System on Module( i.MX RT1052 SoC) Custom PCB usb hub pcba oem odm electronic pcb board

CPU: i.MXRT1052

Architecture: Cortex-M7

Frequency: 528MHz

RAM: 512KB SRAM ,16MB SDRAM,32MB SDRAM(optional)

ROM: 4MB QSPI NorFlash(16MB optional)

System: UcLinux,FreeRTOS,RT-Therad,Bare Metal

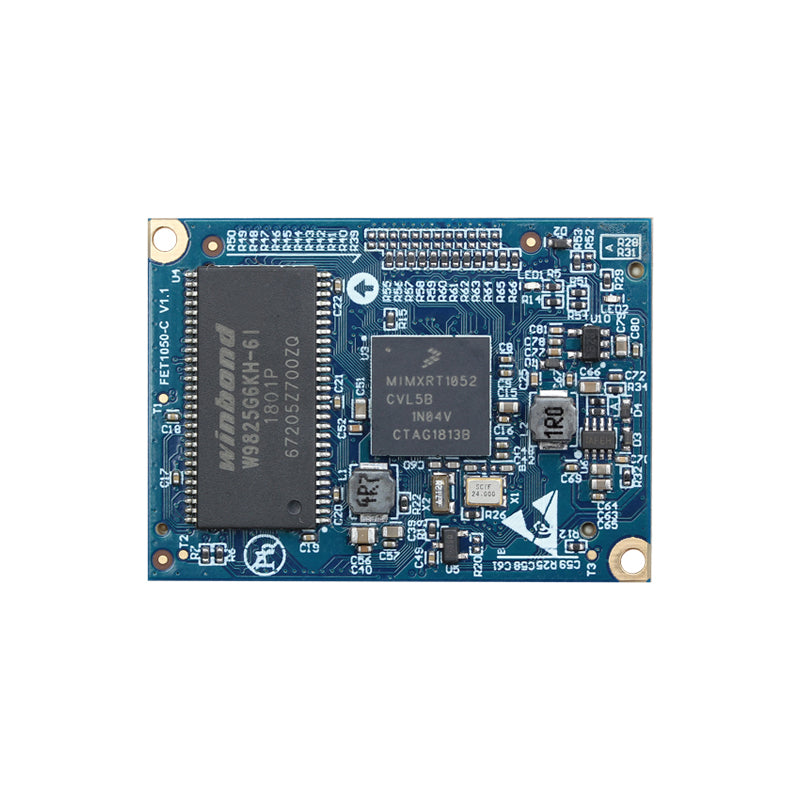

NXP i.MX RT 1052 based System on Module FET1052 -C

FET1052-C is an system on module designed based on NXP Cortex-M7 i.MX RT1050 series processor, the one we use is i.MXRT1052. It operates at speeds up to 528MHz to provide high CPU performance and best real-time response. The i.MX RT1052 processor has 512 KB on-chip RAM,which can be flexibly configured as TCM or general-purpose on-chip RAM. 16MB/ 32MB SDRAM, 4MB/ 16MB QSPI-NorFlash are optional on SoM FET1052-C.

The SoM FET1052-C is an industrial grade item with working temperature ranges from -40℃ to +85℃ and it has a compact appearance that dimensions only 31mm * 43mm, the SoM is designed with a couple of 80-pin connectors with pitch of 0.8mm, all 160pins of the processor are drawn out with GPIO up to 124 pins. Other peripheral pins such as UART, Ethernet, USB, CAN, PWM, ADC, LCD and CAMERA are all available. What's more, OS uClinux is supported very well.
