Custom F08618-M Assembled HMF S550 F550 Upgrade RTF Kit with Landing Gear & APM 2.8 Flight Controller GPS Compass & Gimbal

Custom F08618-M Assembled HMF S550 F550 Upgrade RTF Kit with Landing Gear & APM 2.8 Flight Controller GPS Compass & Gimbal

Regular price $271.83 USD
Regular price $290.83 USD Sale price $271.83 USD
Sale Sold out

Assembled HMF S550 F550 Upgrade RTF Kit with Landing Gear & APM 2.8 Flight Controller GPS Compass & Gimbal



       aeProduct.getSubject() aeProduct.getSubject()

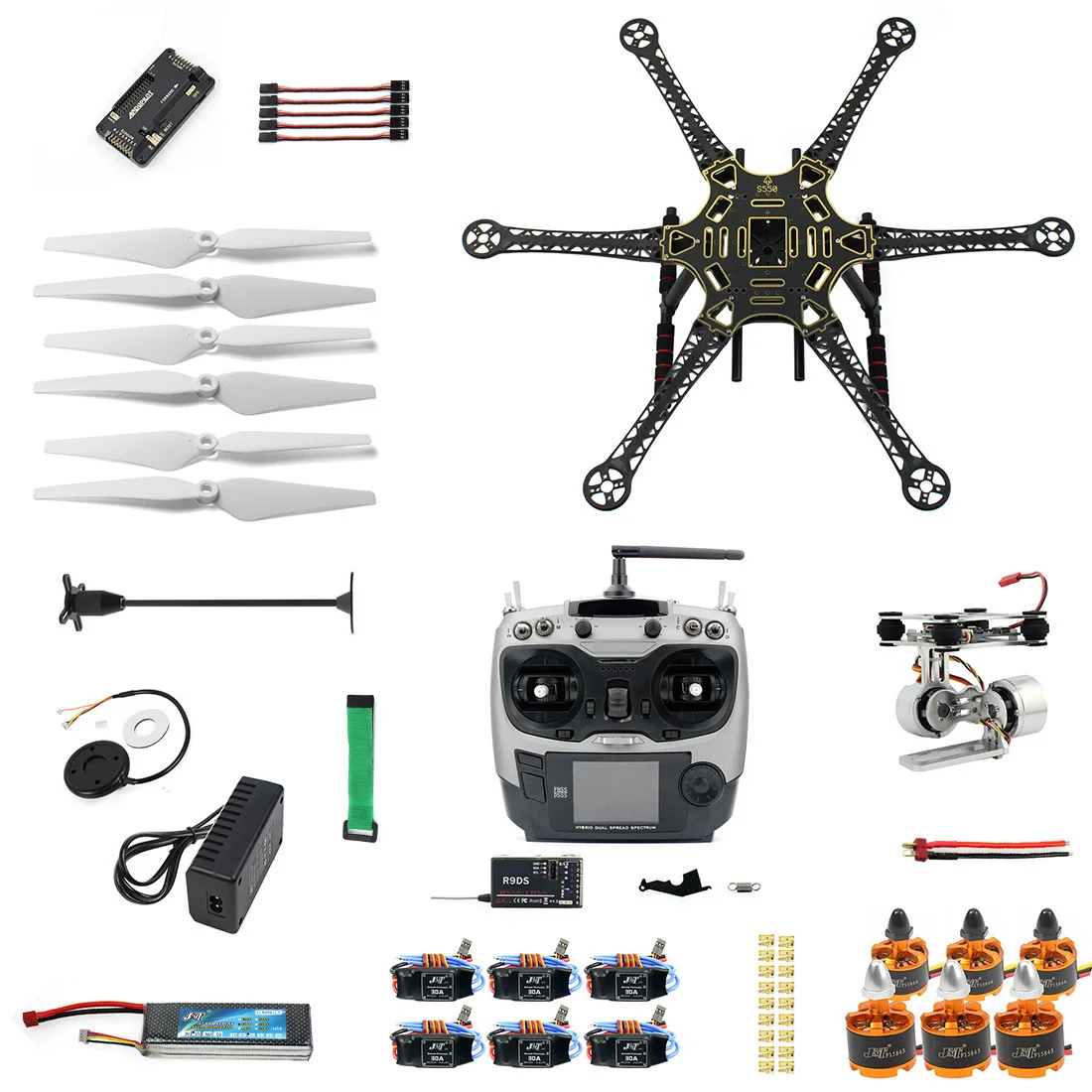

Packing including :

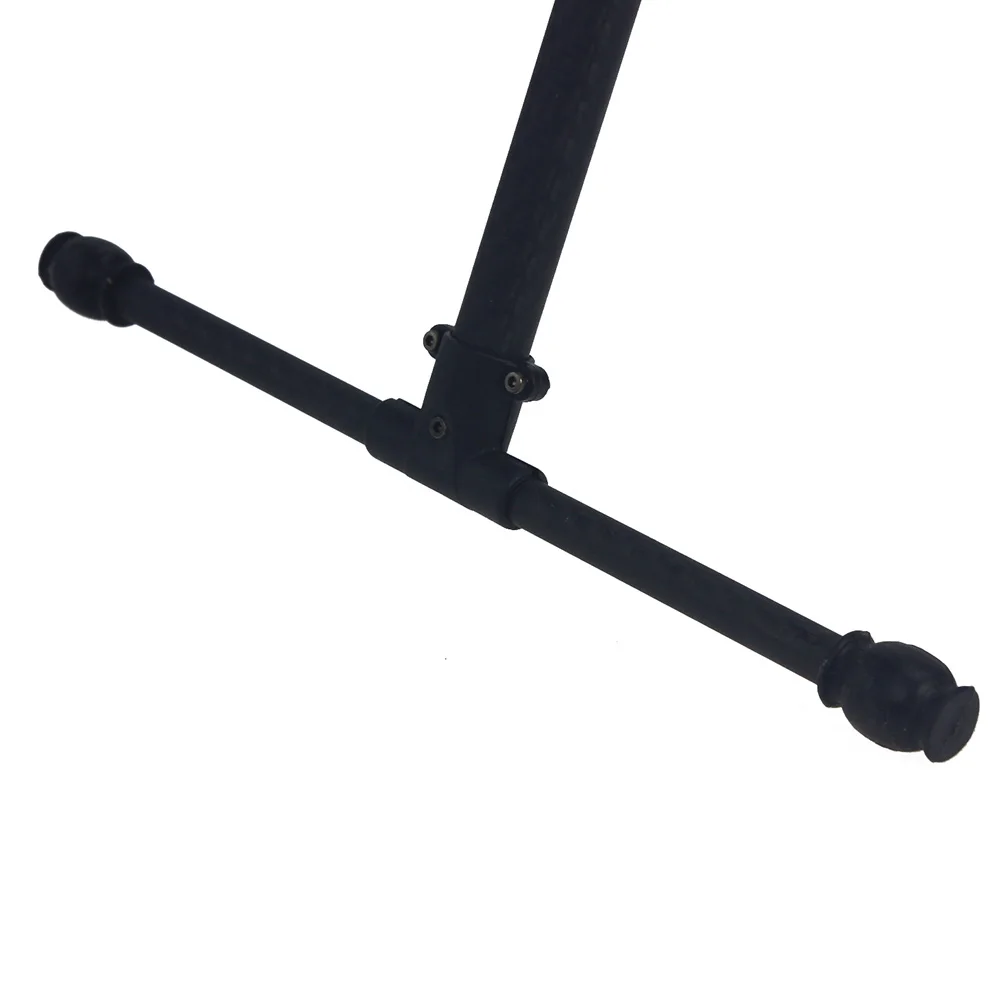

1 X HMF S550 F550 Upgrade Hexacopter Frame Kit with Landing Gear

3 X D2212 920KV Clockwise Brushless Motor

3 X D2212 920KV Counter-clockwise Brushless Motor

6 X 30A Brushless ESC

3 X 9443 propellers

1 X APM 2.8 Multicopter Flight Controller

1 X GPS with Compass

1 X Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver

1X Aluminum 2-axis Gimbal Camera Mount PTZ

1 X 11.1V 3300Mah 25C 3S lithium battery

1 X IMAX RC B3 Pro Compact Balance Charger

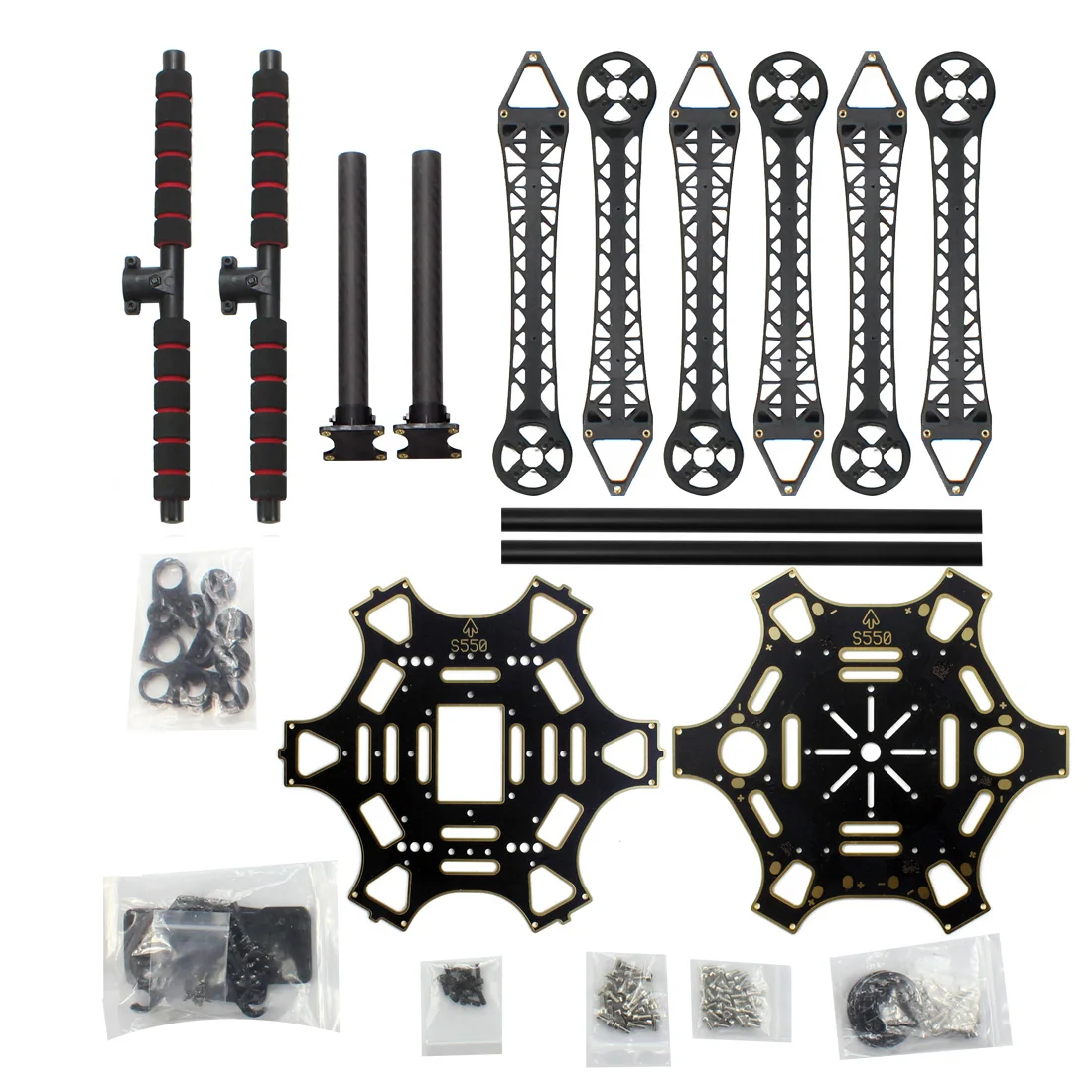

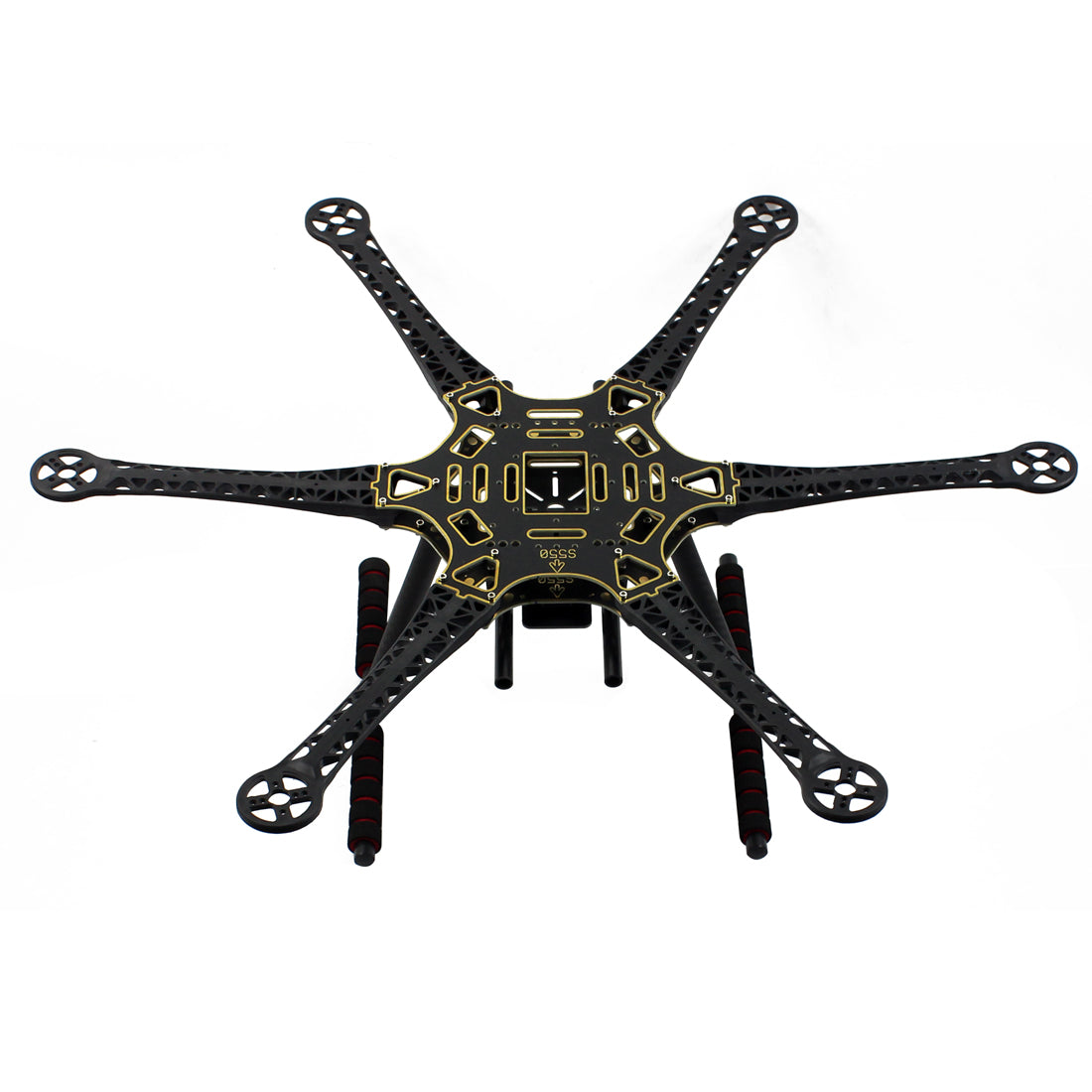

HMF S550 F550 Upgrade Hexacopter Frame Kit with Landing Gear



HMF S550 F550 Upgrade Hexacopter Frame Kit with Landing Gear for FPV

Attention: just the frame kit
Features:
- Adopts S800 upward tilt arm design
- Plastic injection moduling, ensures hardness and lighter weight
- Brushless gimbal compatible for FPV

Specifications:
- Wheelbase: 528mm
- Weight: 550g/720g(without/with gimbal)
- Motor suggest: 2212 KV980, 2216 KV880 KV900, 3108 KV720 KV900
- Prop suggest: 8038 9047 1038 1045 1047
- Battery suggest: 3S-4S 2200mAh-5200mAh

Previous: FCMODEL Quick Release Self-locking Propeller Holder Clamp CW/CCW 1-Pair Red

Next: HMF S550 F550 Upgrade FPV Hexacopter Frame Kit with 2-Axis Gopro Brushless Gimbal Combo

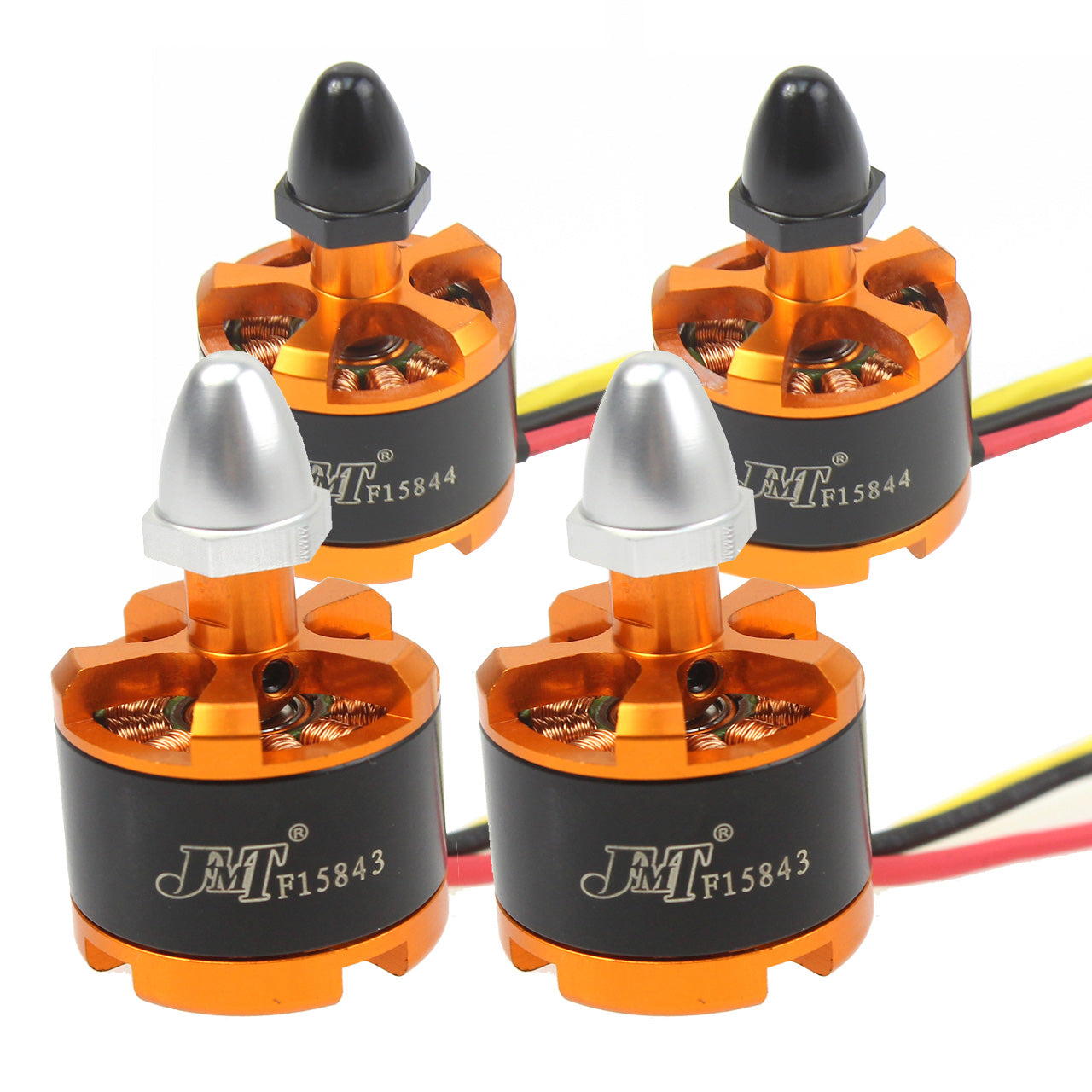

D2212 920KV Clockwise Counter-clockwise CW CCW Brushless Motor

Outer diameter: 28.0 mm
Height: 24.0 mm (Without Shaft)
K V: 920kv

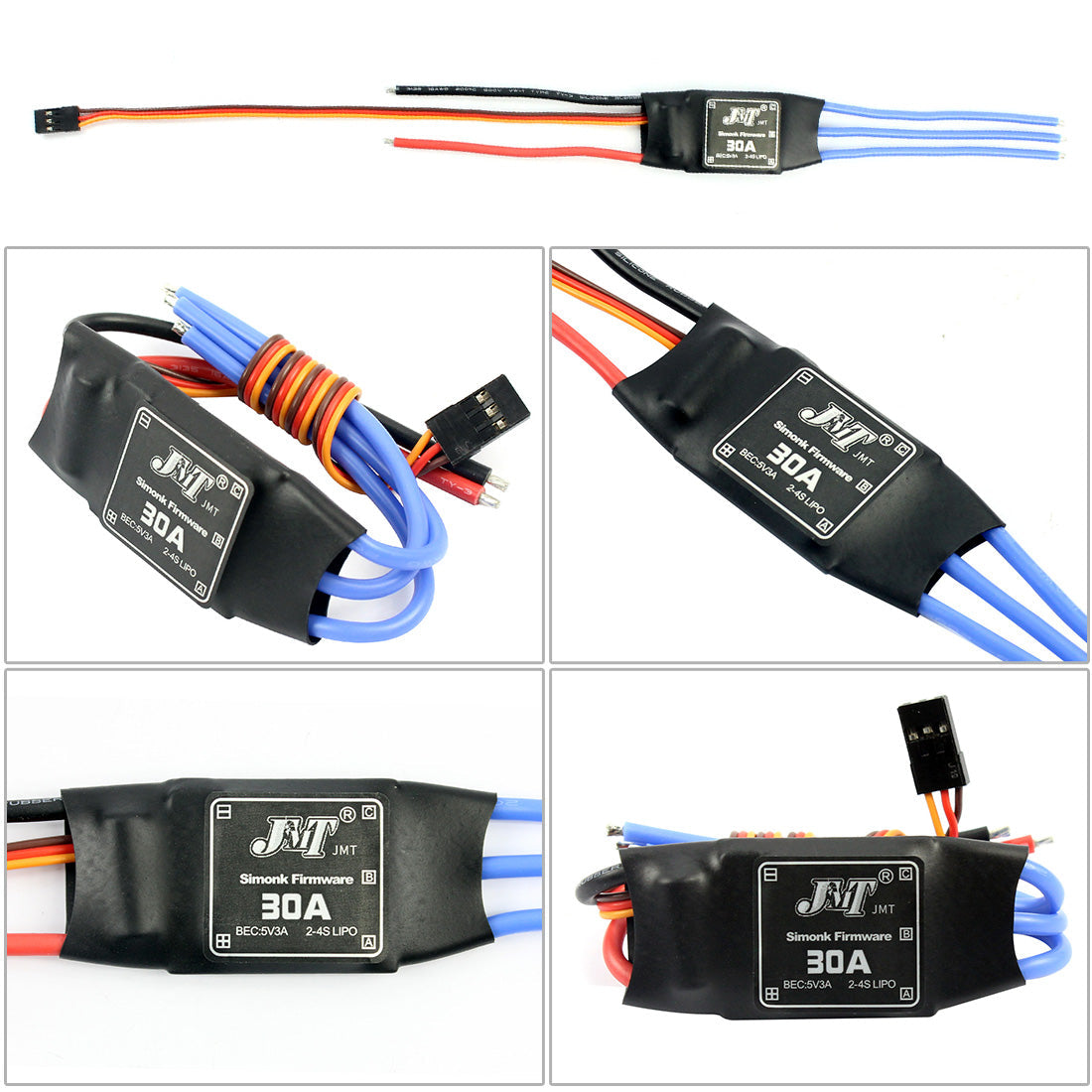

30A Brushless ESC Speed Controller

aeProduct.getSubject()


1.1 Output: Continuous 25A, Burst 40A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 3A
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 25mm (W) * 11mm (H).
1.6 Weight: about 25g.





propeller 9443

Length: 9.4 inches Product Pitch: 4.3 inches Color: White

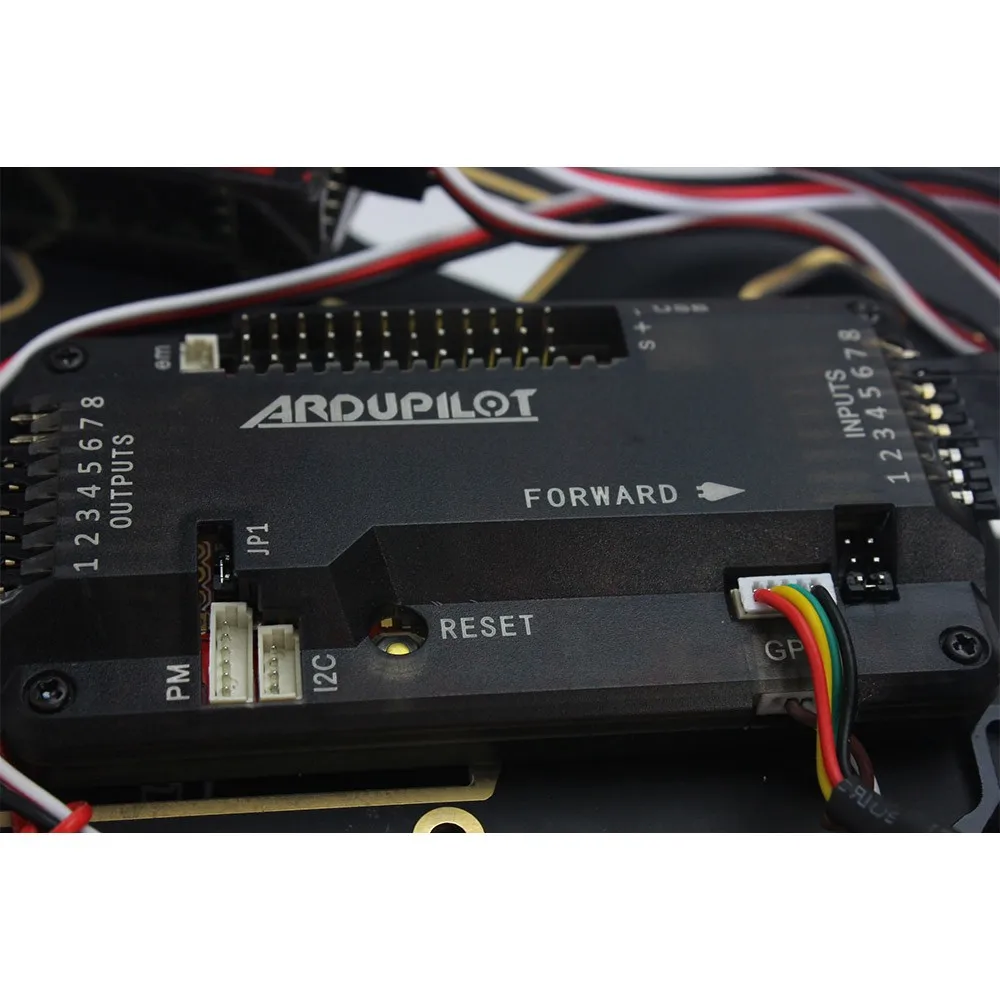

APM2.8 ArduPilot Mega APM 2.8 Multicopter Flight Controller 2.5 2.6 Upgraded


aeProduct.getSubject()
Size: 70*45*13.5
Weight: 28G
APM is an open source flight control, can you play APM well depend on individual ability.
Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you're not ready, then We recommend that you prepare some introductory information first.
Introduction: Eliminate V2.52  Version Old 1.0mm 6P SM06B GPS interface , changed to the DF13-4P compass external I2C interface, Place the DF13-5P GPS interface with external interfaces of the compass, more convenient to connections GPS with external compass.
Replaced the V2.52 I2C interface to multi-purpose MUX interfaces, which can be used by the users themselves through the Pad of Back Board freely configurable function output, UART0,UART2,I2C,OSD optional, defaults OSD interface, avoiding 2.52 version when you want to use both Data Transmission and OSD, you need to use Y-line separating the interface programme.
Improved OSD interface when used in conjunction with Data Transmission, because of the isolation resistance, more effective to avoid the interference of Data Transmission.
New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V, increased reliability, reduced probability of Bad Gyro health due to voltage problems.





GPS with Compass

GPS Features: - Built-in compass GPS module - Main chip: 6M - With fast satellite searching speed and high precision - Compatible with APM serial port and I2C port - Includes round plastic shell

- Pre-configured, Flashed with the correct settings, and tested - Super Bright LED,BlackPlane with Standard Mk style mounting holes 45mm X 45mm - Cable included - With L5883 compass Cable length in 25CM - Dimensions: 53.5*53.5*15.5 - Weight: 30g

- Quantity:1 Piece

Description: C/A code,1.023MHz Receiver Frequency:L1 [1575.42MHz] Locate performance 2D :3m(Average) 2D:2m(average),with WAAS drifting<0.02m> accuracy:1us coordinate system:WGS84 max attitude height:18000 Max speed:515m/s

Specification: tracking sensitivity:161dBm Capture sensitivity:148dBm cold start time:38s average Warm start time:35s average hot start time:1s average Capture time:0.1s Average Temperature:40 centi grade to +80 centi grade wide power supply voltage:+3.5V~+5.5V

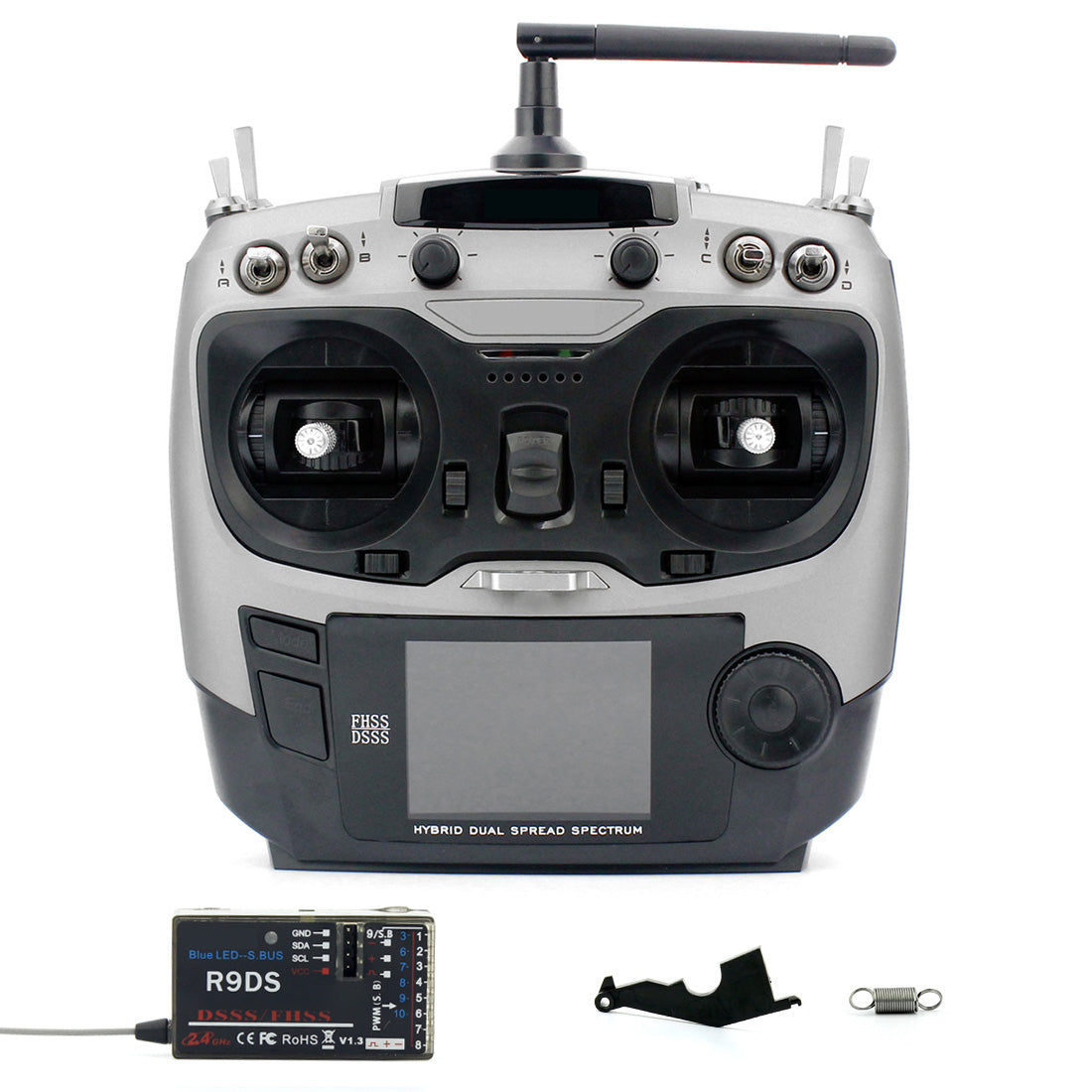

Radiolink AT9 2.4GHz 9 Channel Transmitter Radio & Receiver

1 Size: 183*193*100mm
2 Weight: 0.88kg
3 Frequency: 2.4GHz ISM band (2400MHz to 2485MHz)
4 Modulation mode: QPSK
5 Channel bandwidth: 5.0MHz
6 Spread spectrum: DSSS
7 Adjacent channel rejection: >38dbm
8 Transmitter power: <100mW(PCB testing), <20dbm(3 meter air testing)
9 Operating Current: <105mA
10 Operating Voltage: 7.4~15V
11 Control distance: more than 900 meters ground, 1.5kms air
12 Channel: 9 channels, 5~9 channels are customizable
13 Simulator model: under the simulator model the transmitter action turn off, change to power saving model
14 Screen: 2.8 inches 16 colorful screen , 240*320 pixels
15 Compatible model: Include all 120 degree and 90 degree swashplate helicopter, all fix wing and glider, five flying model and aircraft
Features
FULL TYPES AND FUNCTIONS
Suit for all airplanes including helicopter 8 swash plate models, fixed wing 2 airfoils 3 rears,
gliders 4 airfoils 2 rears and aircraft.
FAST RESPONSE
It takes 3ms only for 9 channels to response parallel, which is less than the average time 20ms.
SUPER STABLE AND LONG DISTANCE OPERATING
DSSS spread spectrum mode supplies better performance in anti-interference .
QPSK modulation mode.
Actual measurement: 900 meters ground and 1.5kms air.



Aluminum 2-axis Gimbal Camera Mount PTZ

Effective Picture,No Camera included,Purchase or ready separately:



aeProduct.getSubject()

Features:
- Simple structure and light weight,CNC aluminum alloy structure
- Brushless motor direct drive
- With anti-vibration rubber balls,easy to adjust
- Compatible with Gopro 3/3+(Not include camera
- with 2pcs 2208 motors and V3 gimbal controller,sensor
- with motor protector which can help heat dissipation
- gimbal weight: 400g

Note: This Product Not Suit For DJI Phantom Visitor 2.
And It Is Not The Mounting Holes, You Need To Drilled And Install By Yourself.

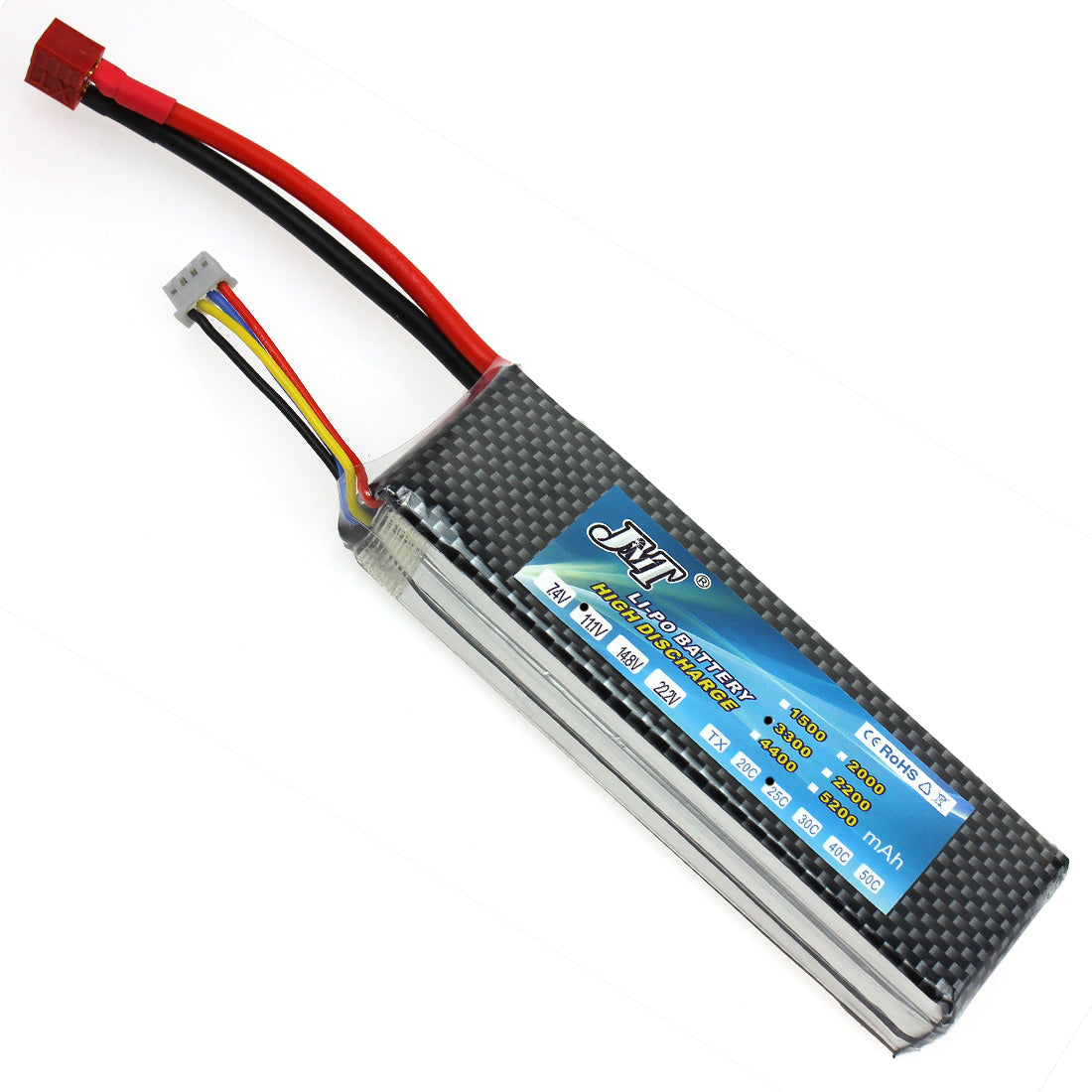

11.1V 3300Mah 25C Quad / multi-axis aircraft with 3S lithium battery



Size: about 139x 43 x19MM
Weight: about 268.8g

IMAX RC B3 Pro Compact Balance Charger

Feature:
Input Voltage : 100 - 240V AC50 / 60Hz
Output Current: 3*800mA
Suitable for 2 cell and 3 cell Li-Po Batteries
Led Indicator:
When power is on : Orange
Stand by mode : Green
Battery Charging : Red
Battery Full : Green
