Custom F00177 30A Brushless ESC Speed Controller For DIY FPV RC Quadcopter Hexacopter Multi-Rotor Aircraft Trex 450 Helicopter + FS

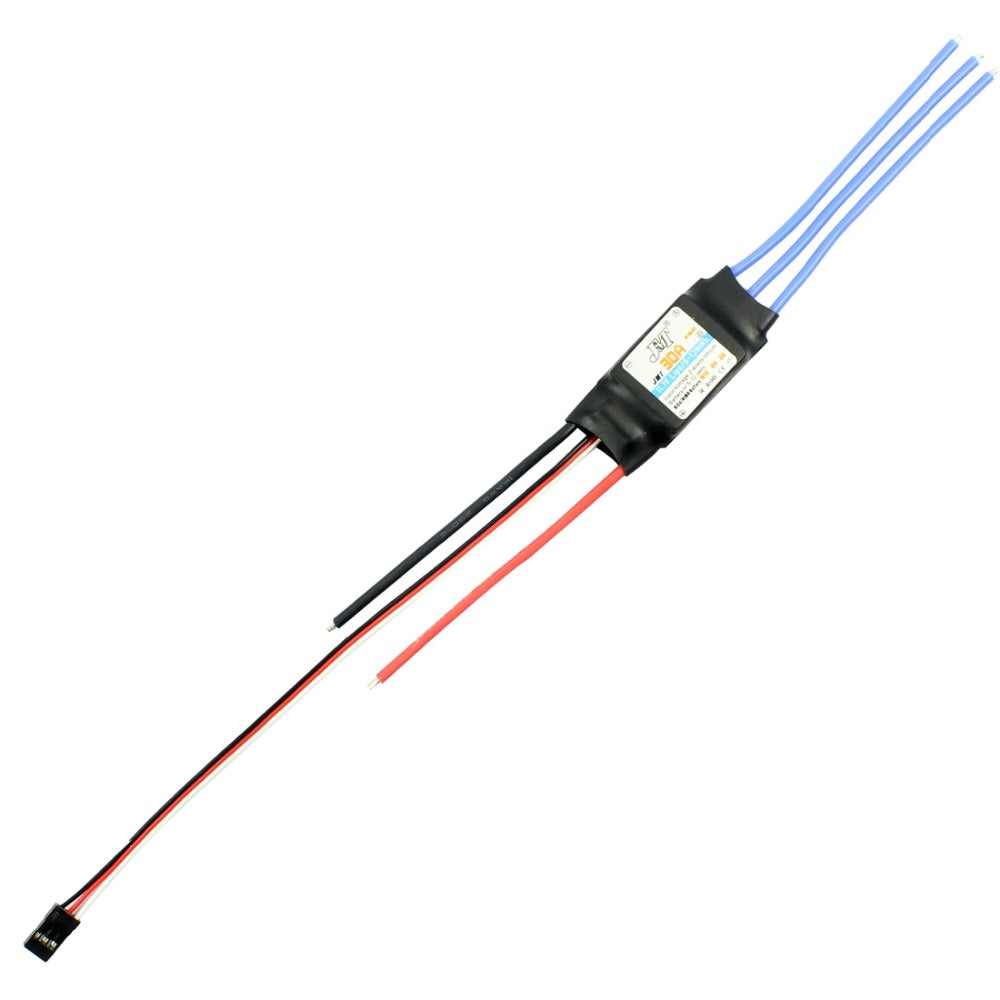

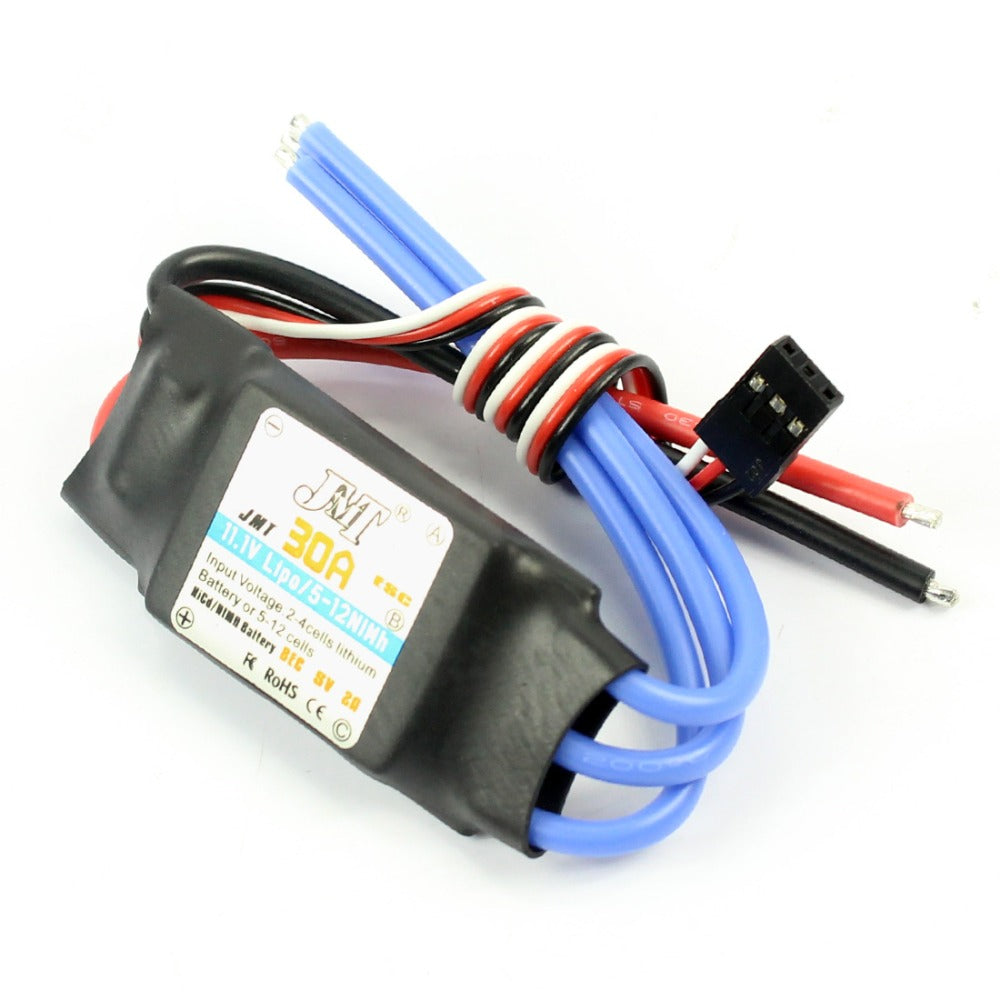

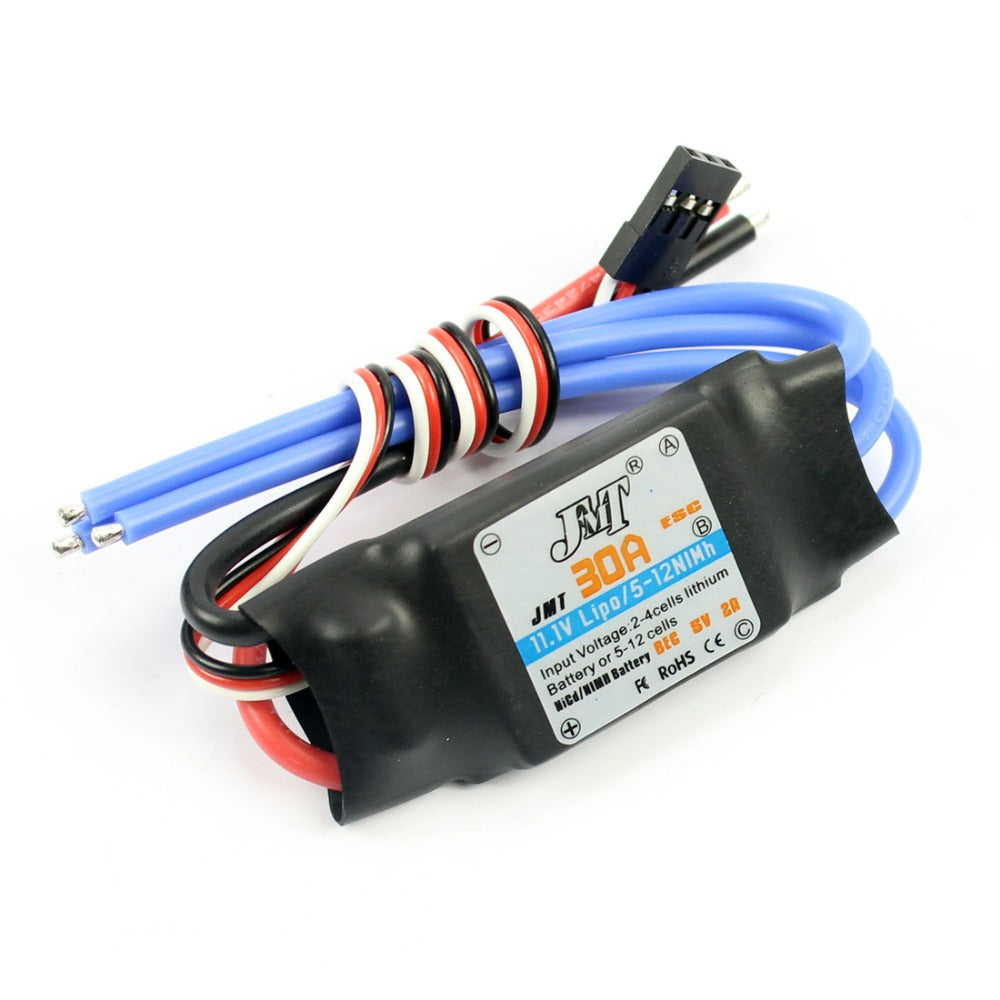

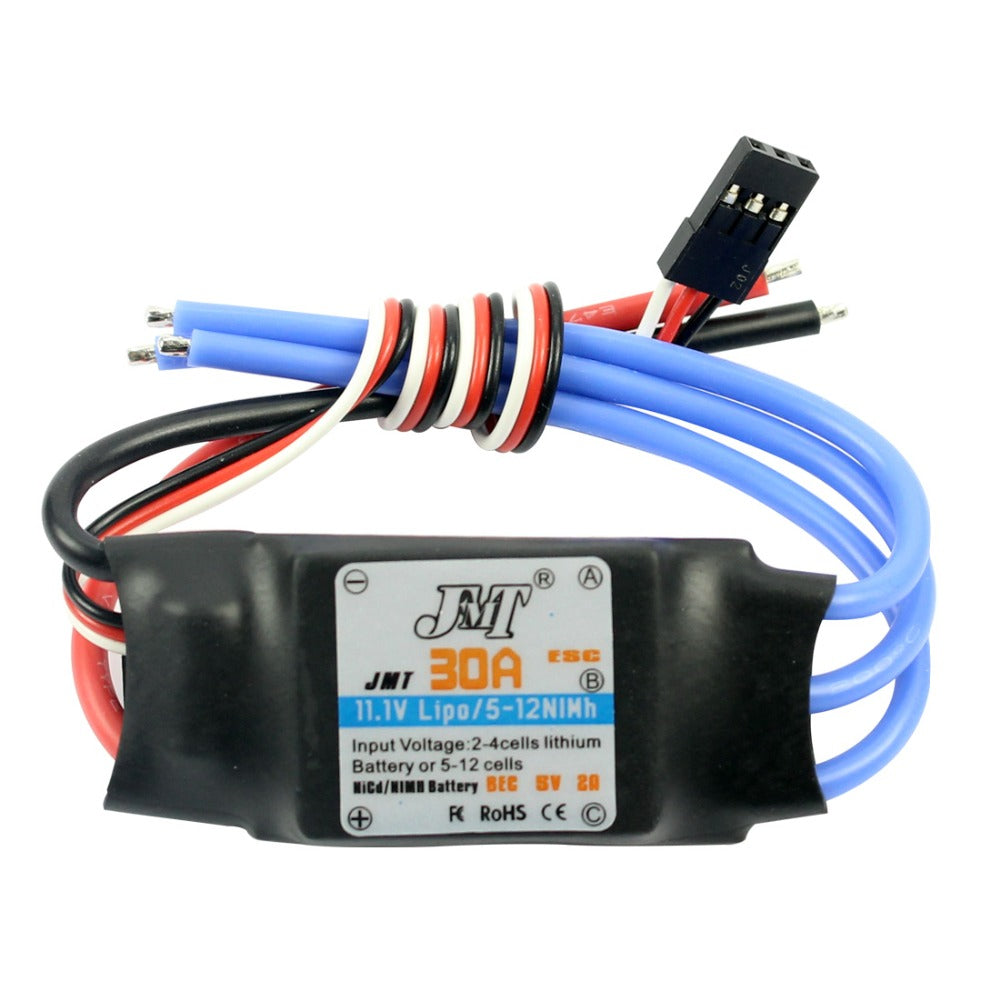

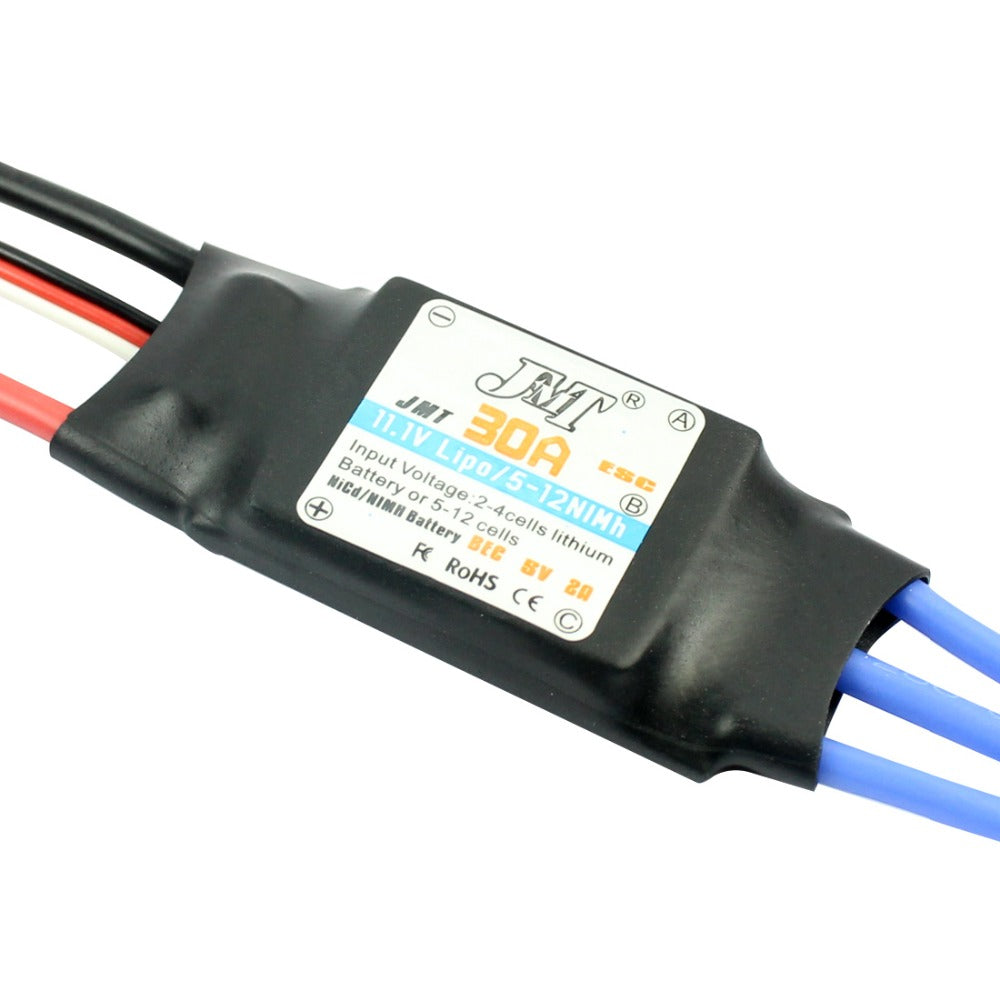

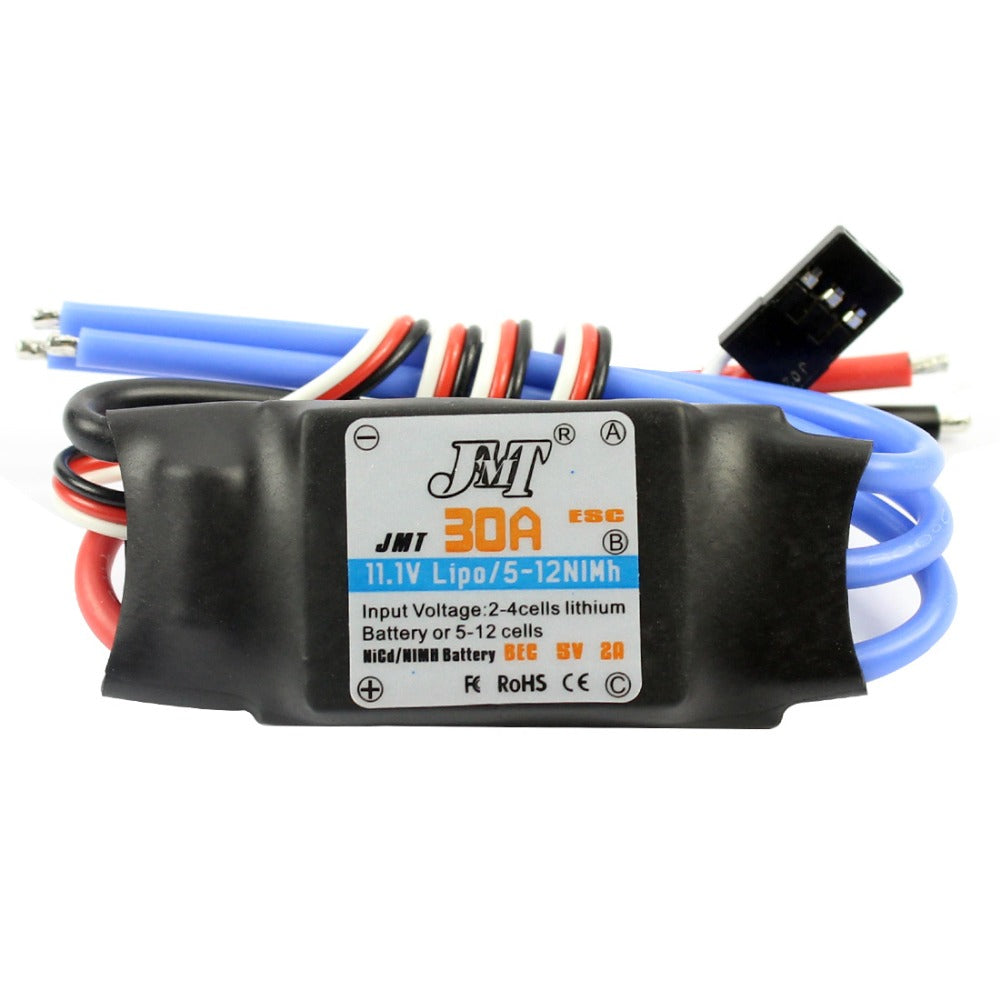

JMT 30A Brushless ESC Speed Controller For DIY FPV RC Quadcopter Hexacopter Multi-Rotor Aircraft Trex 450 Helicopter

• This ESC do not have the English instruction.
• Before producing, the manufacturer have set up the program, the ESC do not need additional program.

 JMT 30A Brushless ESC Speed Controller For RC RC Quadcopter Hexacopter Multi-Rotor Aircraft

1.  quantity:1PCS

2.  100% Brand New!

3.  No manual.

4.  For KK MK MWC RC Quadcopter Hexacopter Multi-Rotor Aircraft

5.  Preview:

1  Specification


1.1 Output:  Continuous 25A, Burst 40A up to 10 Secs.

1.2 Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.

1.3 BEC:  2A

1.4 Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.                                (BLM: BrushLess Motor)

1.5 Size:  45mm (L) * 25mm (W) * 11mm (H).

1.6 Weight: about 25g.

2  Features

2.1 Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.

2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:        Brake Setting: brake enabled / brake disabled.        Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).        Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.        Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.        Start Mode: normal / soft / very soft.        Timing: low / medium / high.        Reset:  reset  all  the programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

3   Advantages

3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.

3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability.

3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
