Overview

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

Features

• 3x USB ports, compatible with USB2.0/1.1
• 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
• Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

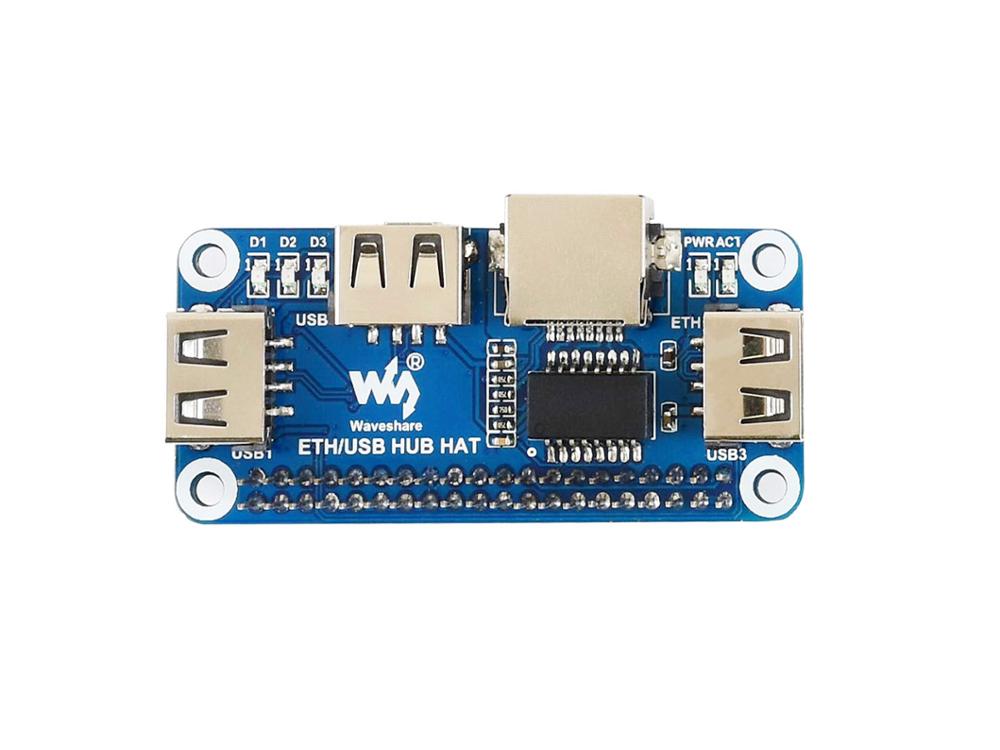

What's on Board

pecifications

• Operating voltage: 5V
• Dimension: 65mm × 30mm
• Mounting hole size: 3.0mm

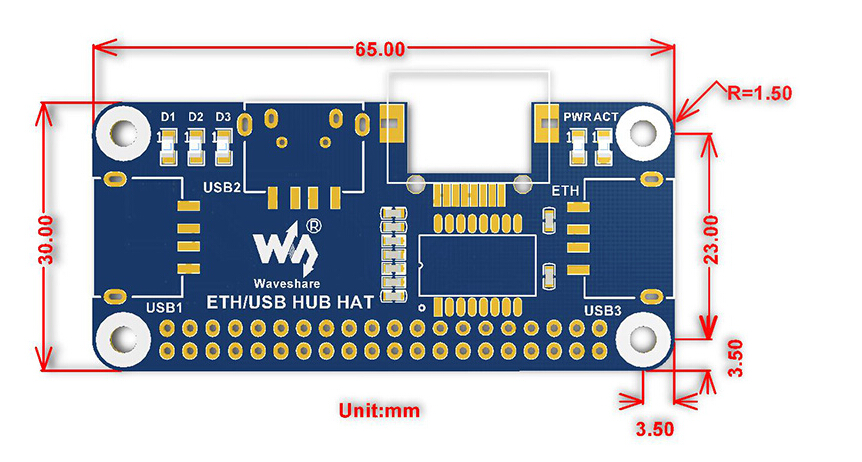

Dimensions
