DESCRIPTION

Overview

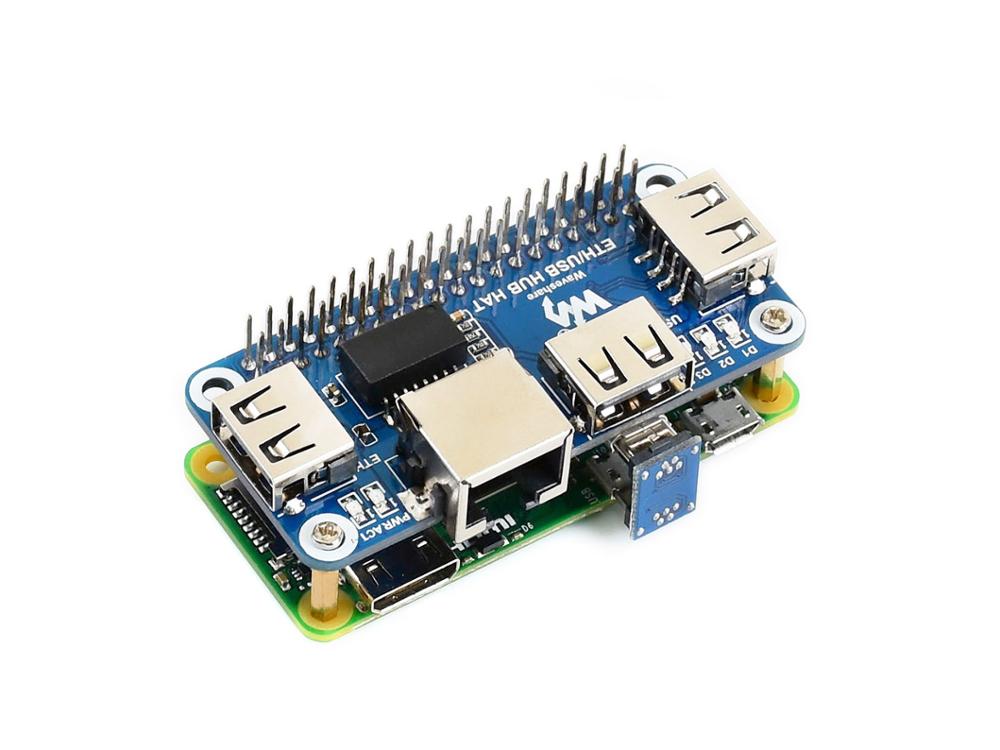

 This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.

 It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

Features

•  3x USB ports, compatible with USB2.0/1.1
•  1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
•  Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

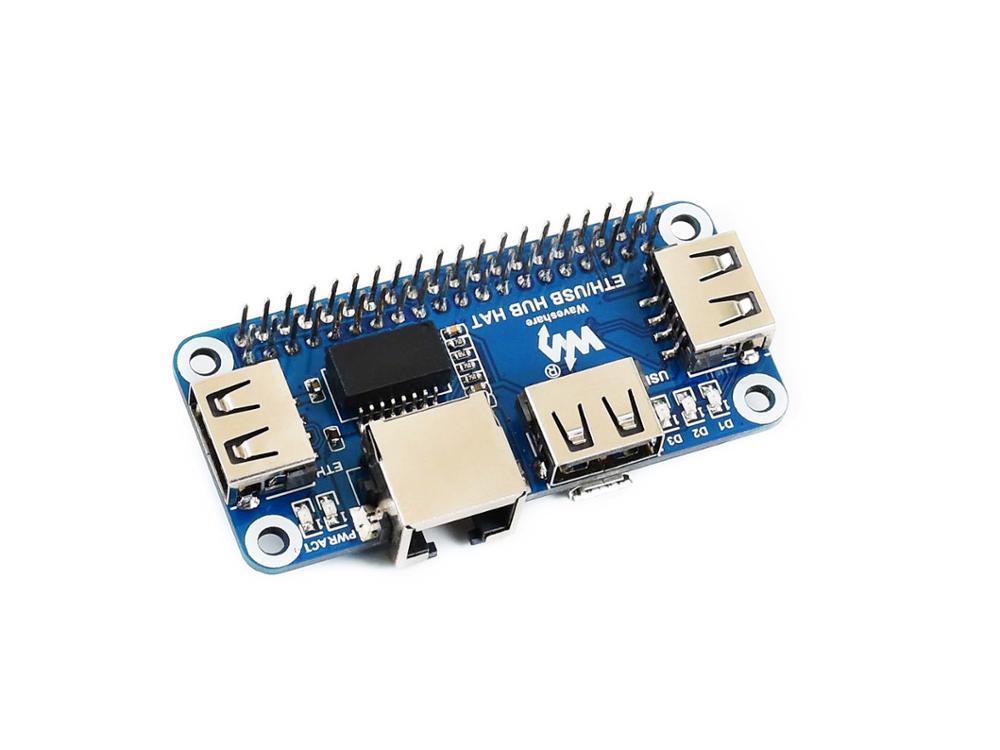

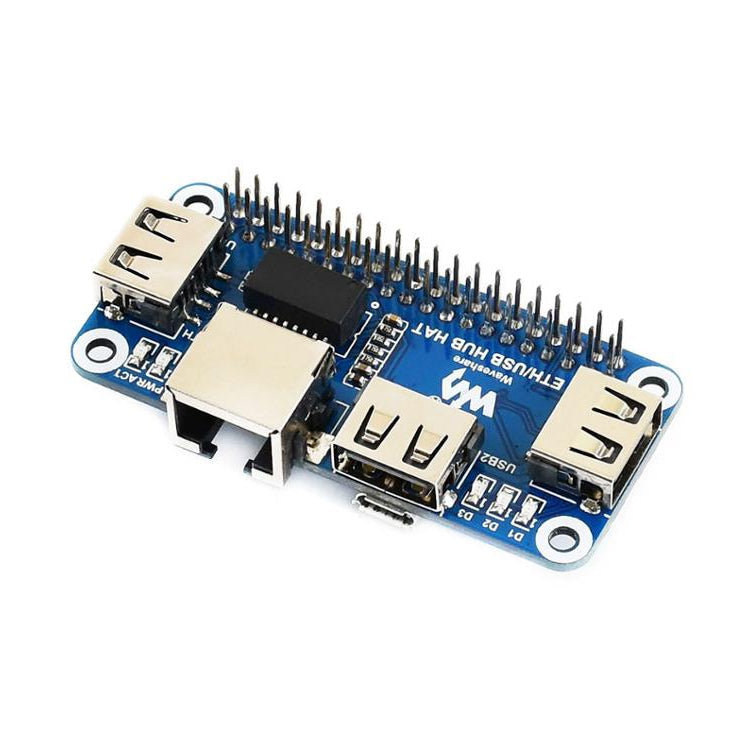

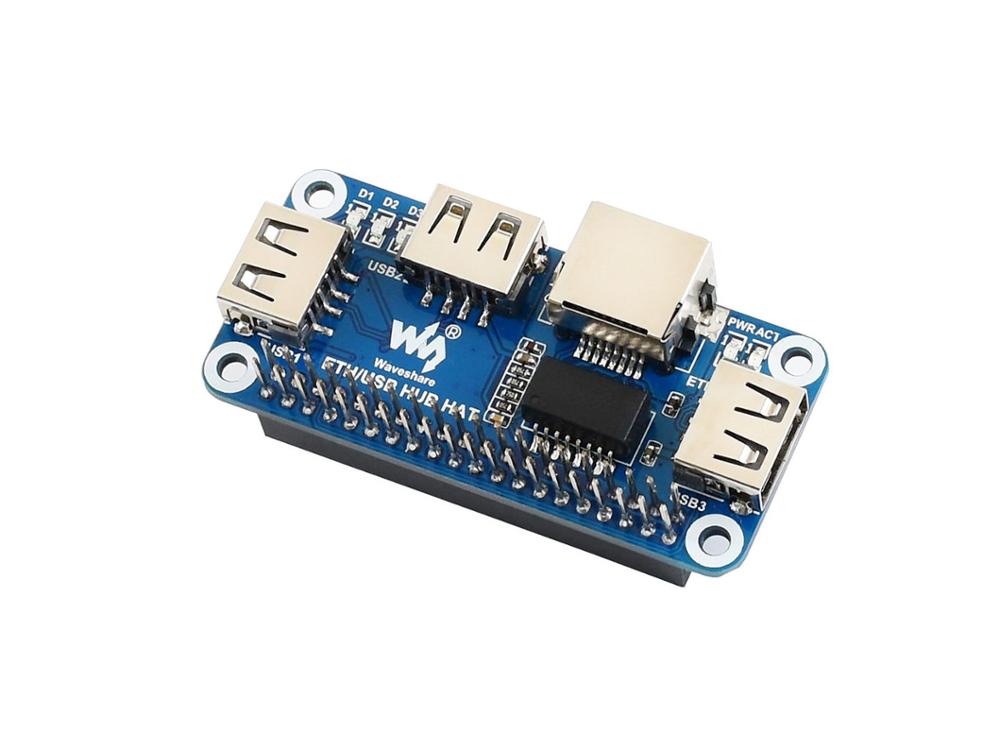

What's on Board

1. 1. aspberry Pi GPIO interface: for connecting Raspberry Pi
2. 2. USB extended ports: USB1~USB3
3. 3. RJ45 port: 10/100M Ethernet interface

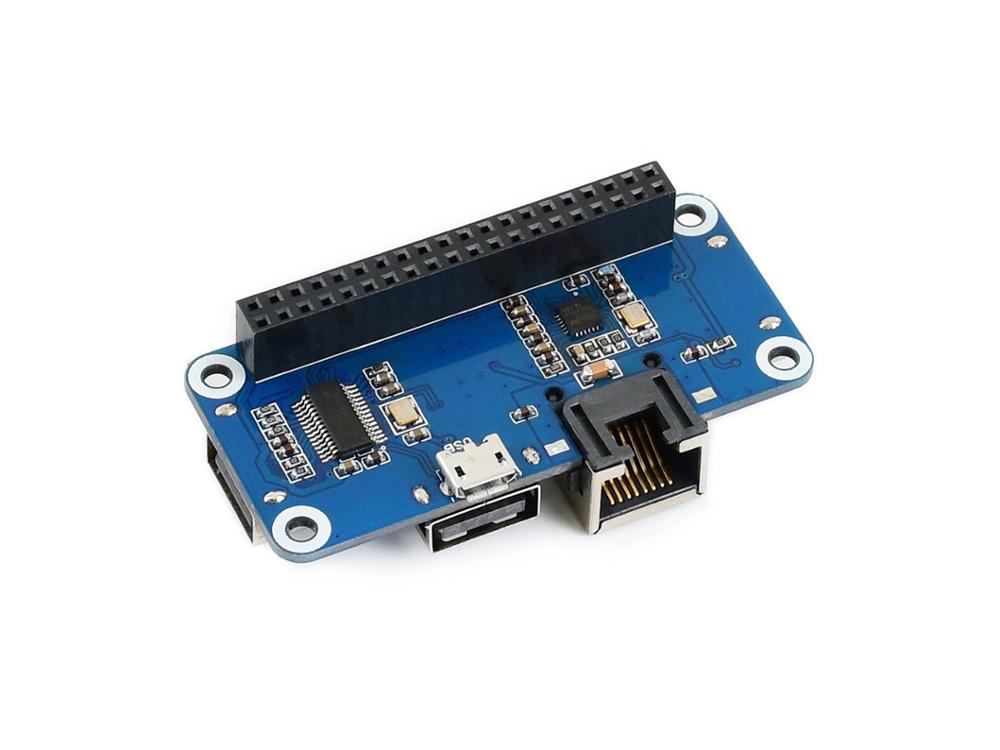

4. 4. USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port
   • Raspberry Pi Zero / Zero W / Zero WH: connected via Micro USB connector
   • Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
5. 5. TS8121A: Ethernet wave filter
6. 6. RTL8152B: 10/100M Ethernet chip
7. 7. FE1.1S: USB HUB chip
8. 8. LED indicators:
   • PWR: power indicator
   • ACT: Ethernet indicator
   • D1~D3: dedicated indicator for USB1~USB3 respectively

Specifications

•  Operating voltage: 5V
•  Dimension: 65mm × 30mm
•  Mounting hole size: 3.0mm

Dimensions

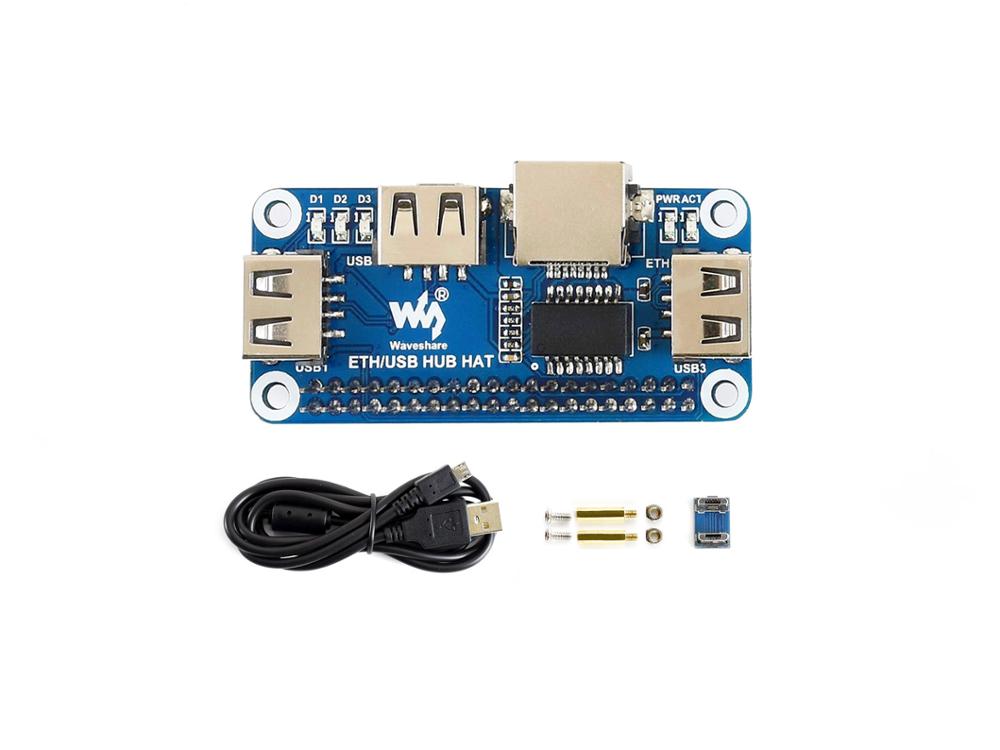

PACKAGE CONTENT

Weight: 0.068 kg
