Dual PD Power Module for Raspberry Pi 5, 9-24V DC / PD USB-C 12V Input, 5V 5A USB-C & USB-A Dual Output

[Overview]

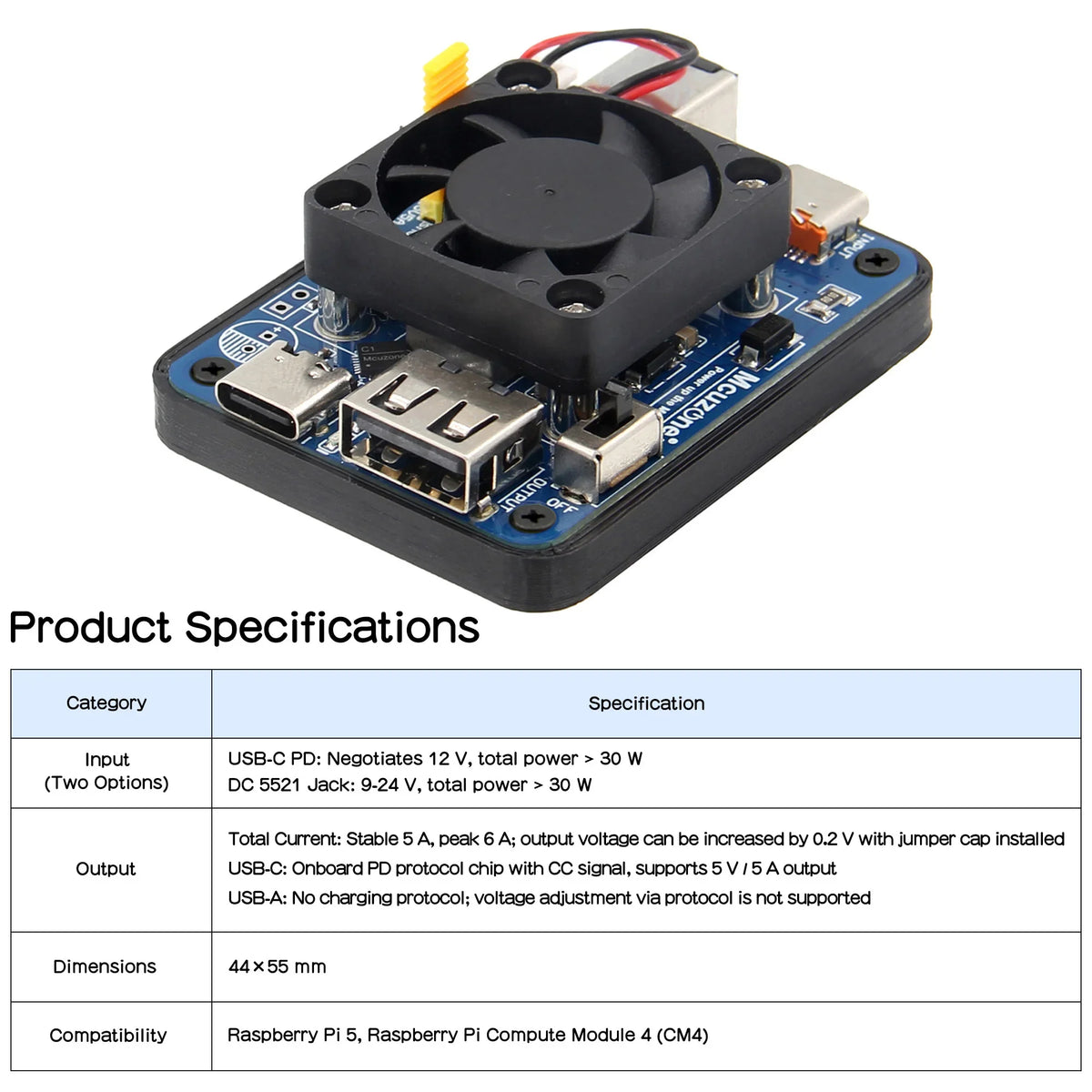

Designed specifically for the Raspberry Pi 5, this high-performance 27W power module delivers stable and efficient 5V/5A power through dual input methods and dual output interfaces. It ensures reliable operation for power-intensive applications and includes built-in protection and customization features.
[Features]

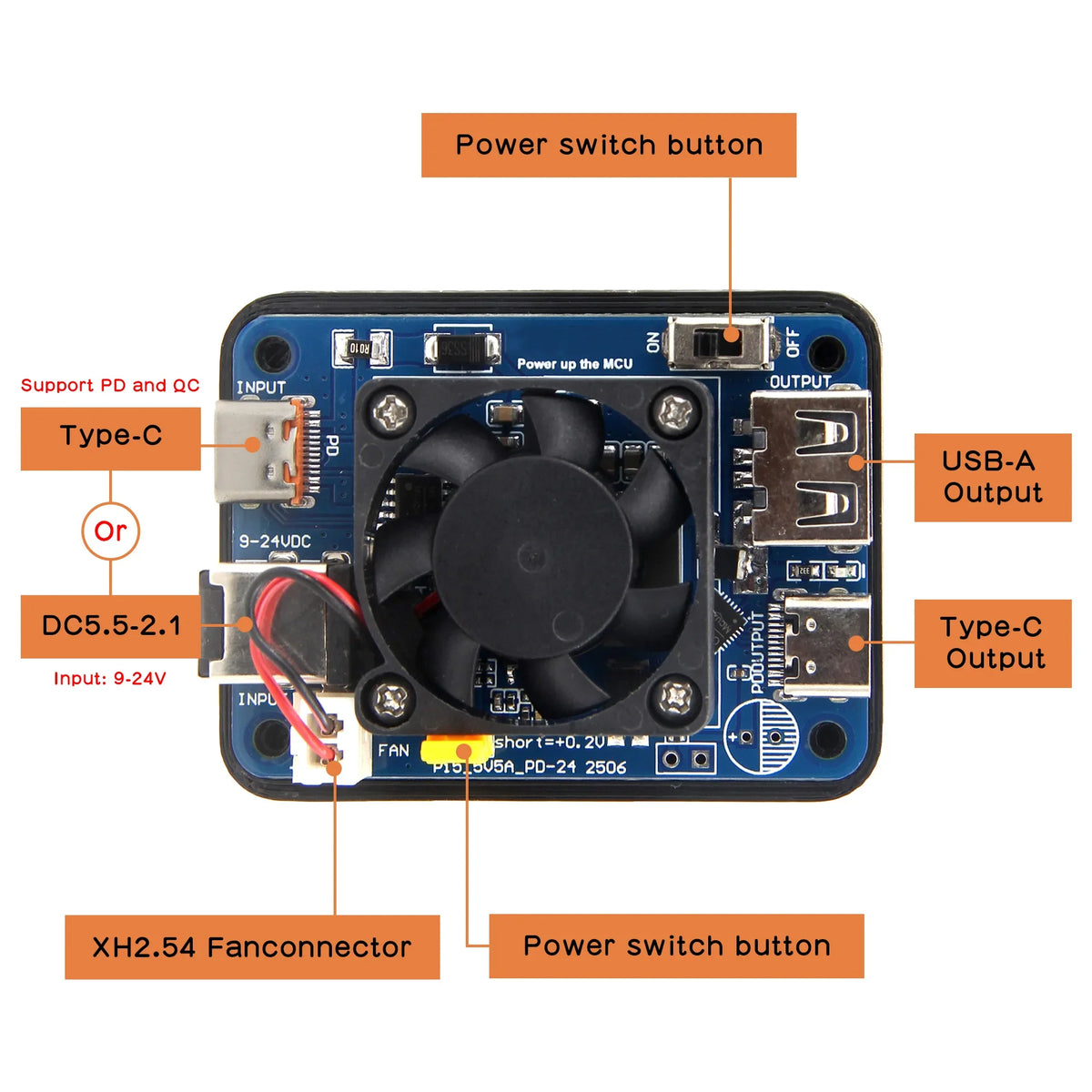

Dual Input Flexibility: Supports two input methods, using either input method based on your available equipment.
USB-C PD Input: Connects to a Power Delivery (PD) adapter for an automatic handshake to request 12V input.

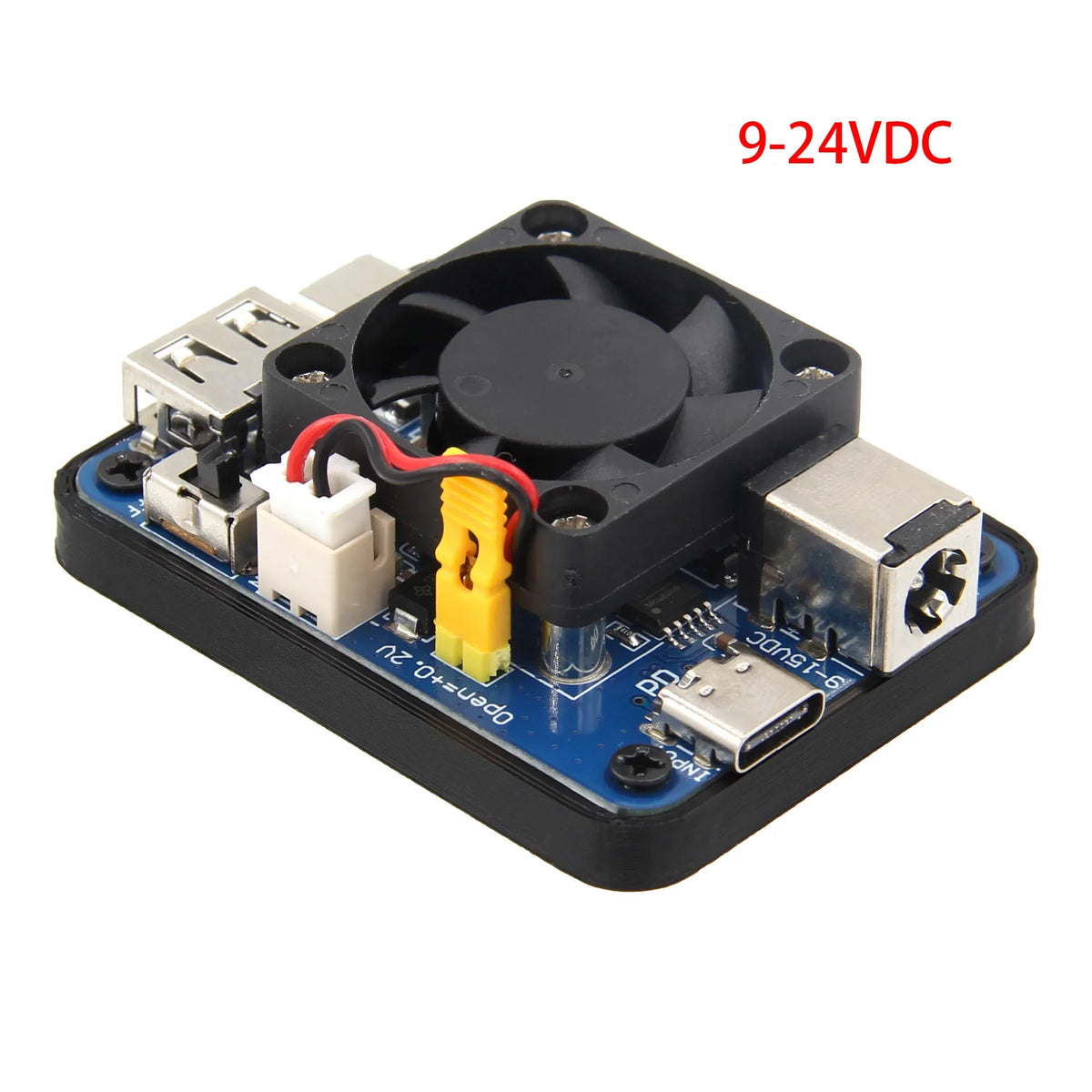

DC 5.5x2.1mm Input: Accepts a wide voltage range of 9-15V/9-24V from a standard DC power supply.
High-Current Dual Output: Provides a combined output of over 5A through two convenient ports, perfect for powering your Raspberry Pi 5 and additional peripherals simultaneously.
USB-C Output
USB-A 2.0 Output
Output Voltage Trimming: Equipped with a trimming jumper. Removing the jumper allows you to raise the output voltage by approximately 0.2V to compensate for voltage drop under high load.
Integrated Active Cooling: Includes a standard fan for optimal thermal management. The fan is automatically unnecessary for loads below 3A, ensuring quiet operation during lighter tasks.
Enhanced Protection & Mounting: Comes with a standard 3D-printed base for secure tabletop placement and protection of the unit.

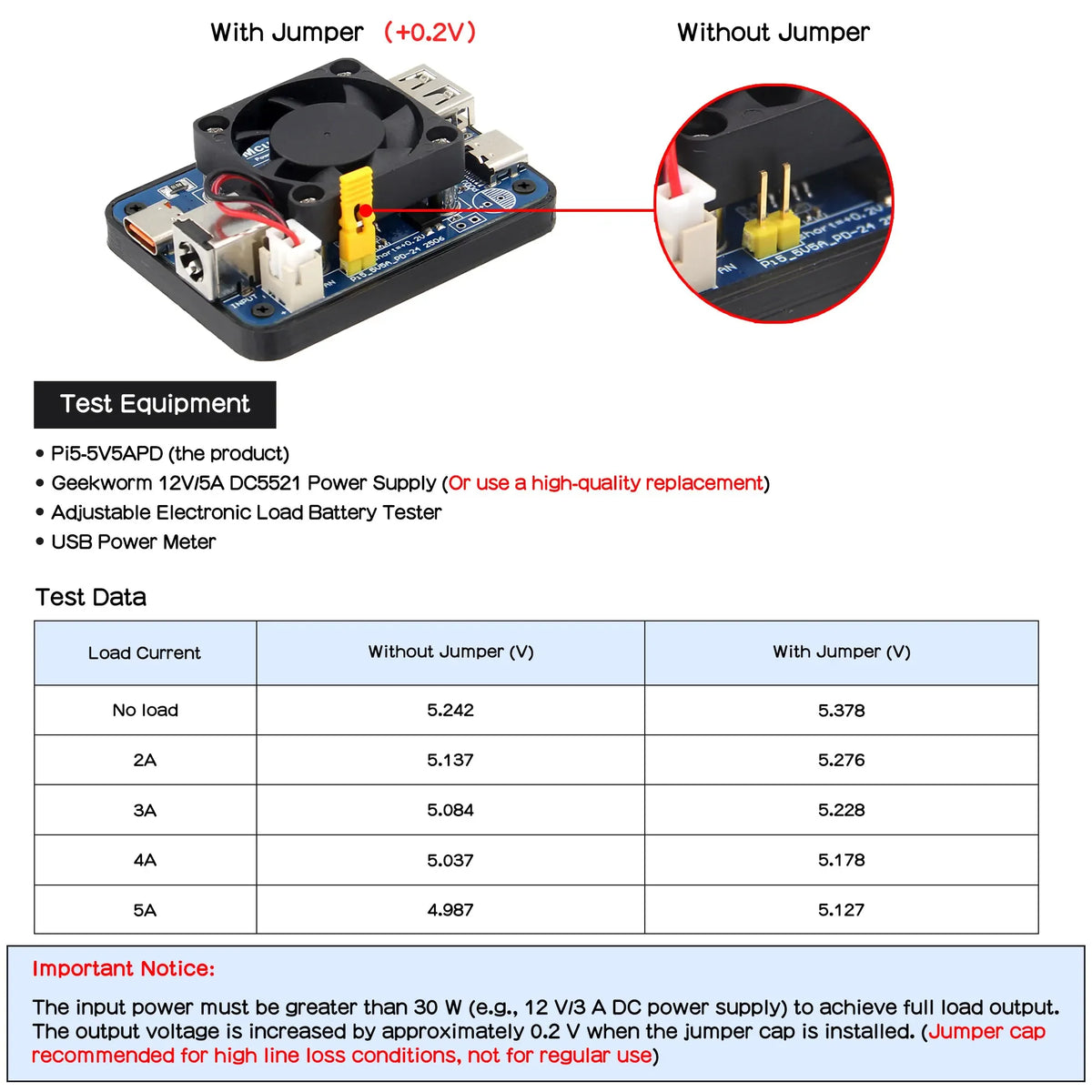

To compensate for cable voltage drop, a jumper is provided:
For the 9-15V version, removing the jumper increases the output voltage by +0.2V.
For the 9-24V version, shorting the jumper increases the output voltage by +0.2V.
[Packing List]

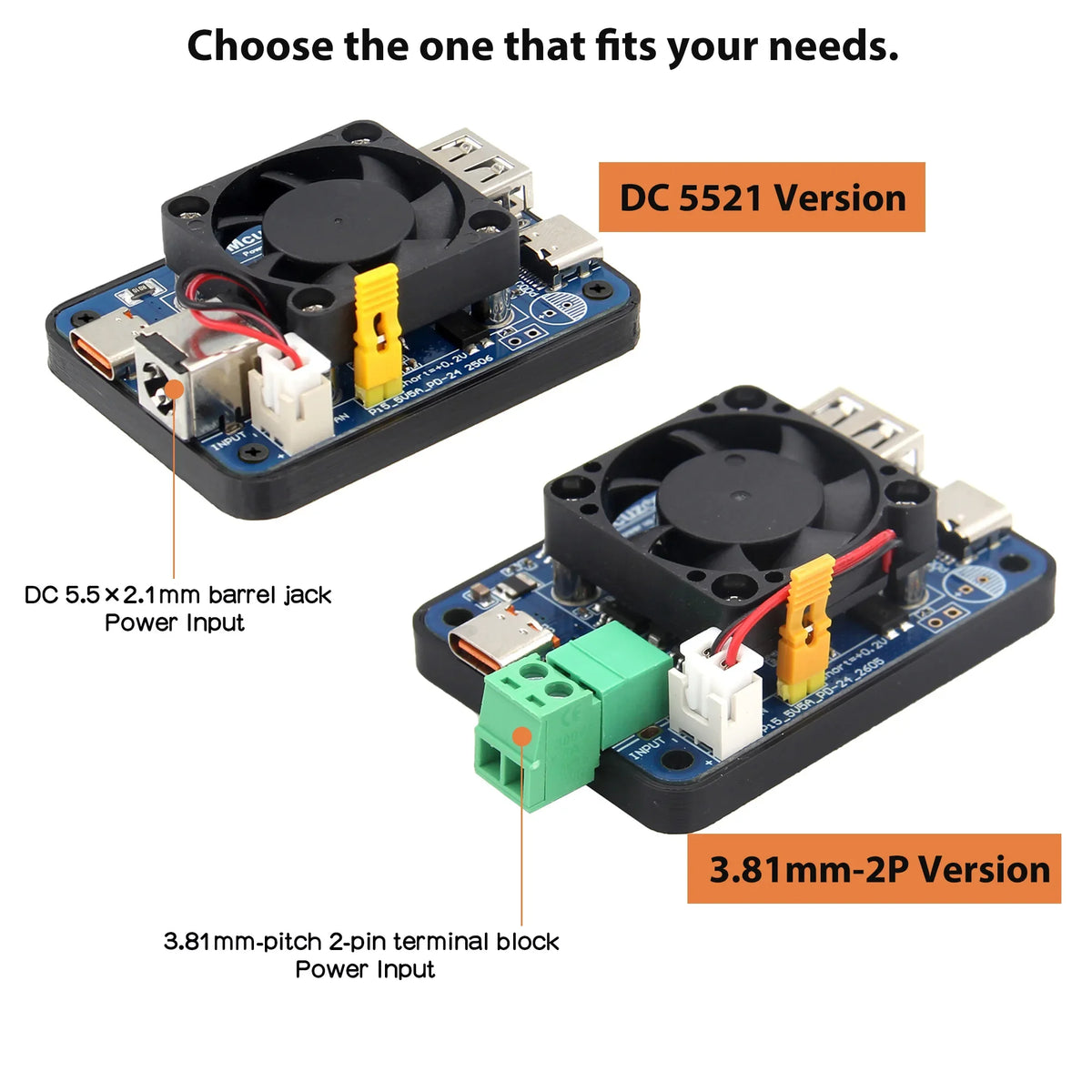

Bundle1
1x Power PD Activation Module --

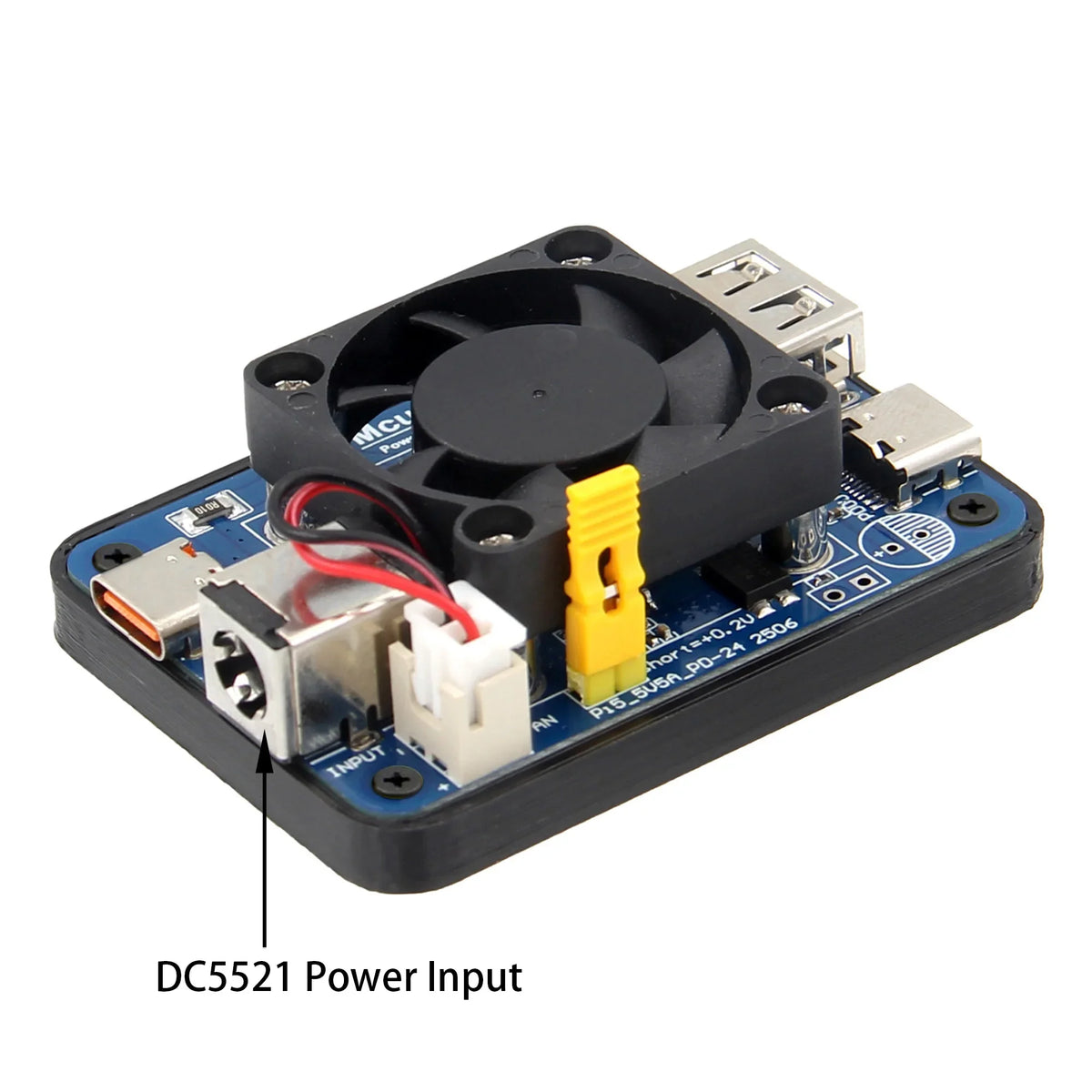

DC5521 Power Input
Bundle2
1x Power PD Activation Module --

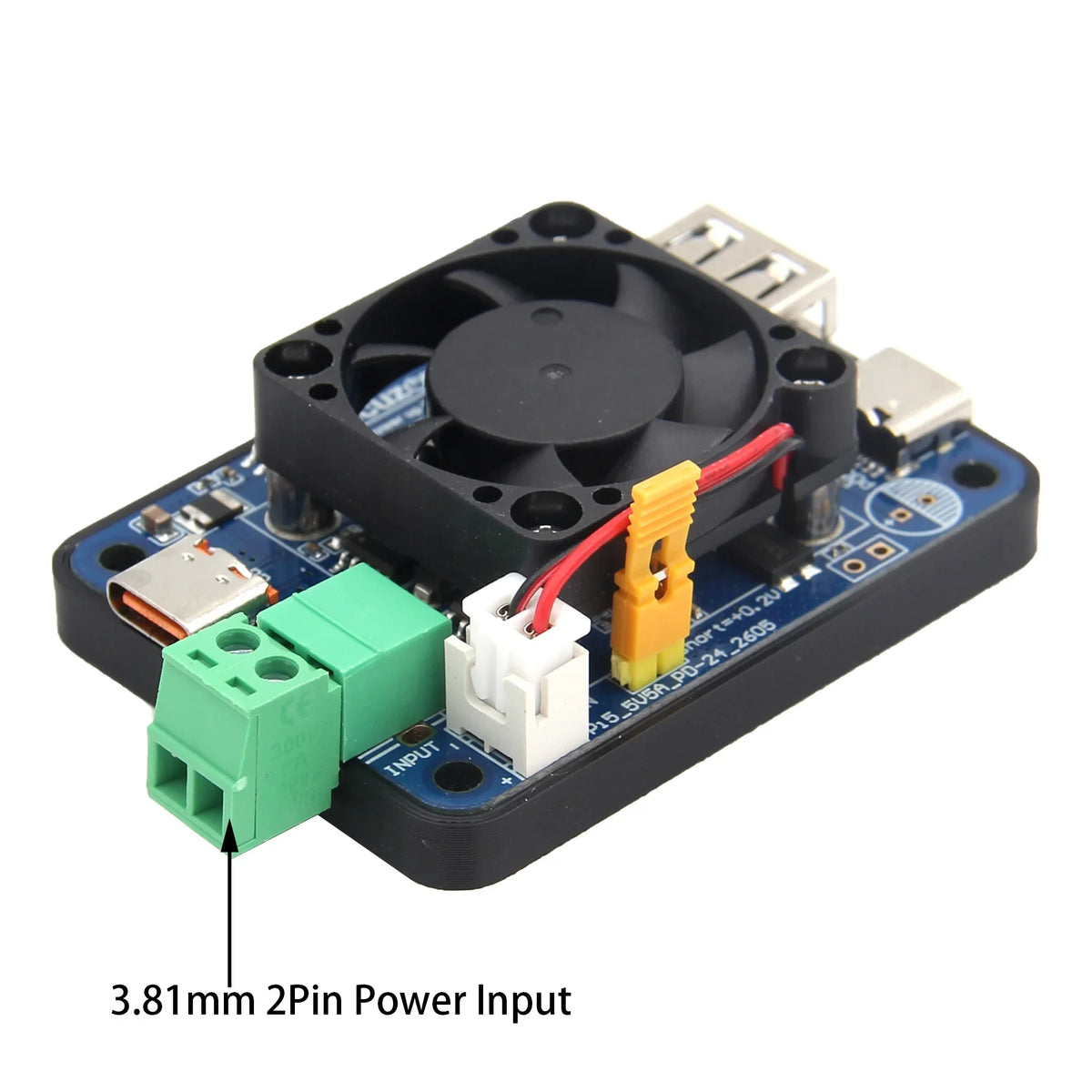

3.81mm 2Pin Power Input
