Custom DIY AC/ DC7- 32V garage door switch WiFi Automation for access control system wifi switch module Electronic Component Manufacturer

AC / DC7- 32V wifi switch wireless Relay module Smart home Automation for access control systemr Inching/Self-Locking







   Note: This link module does not have 433MHZ features.









Overview

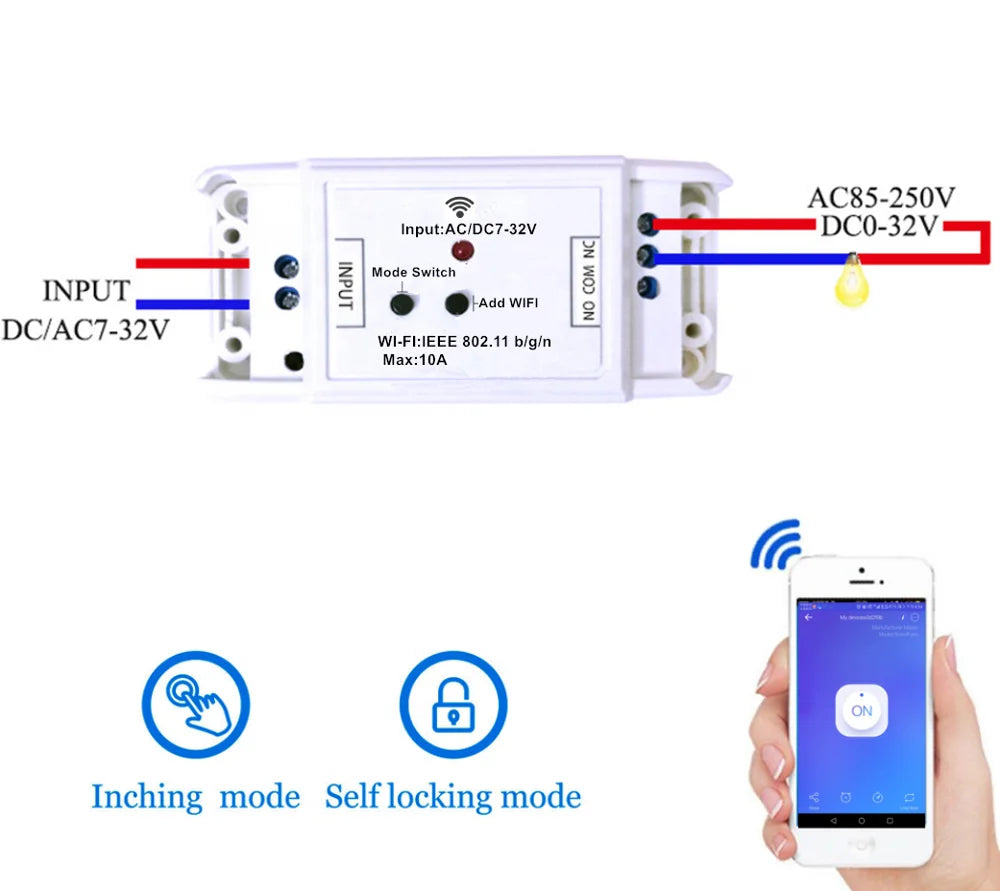

This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on.
The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:

• Supports WiFi network.
• Supports status tracking: device status timely provided to the EWeLink.
• Supports remotely turn on or off connected appliance/light.
• Supports max 8 enabled scheduled/countdown/loop timers for each device.
• Supports numerous WiFi smart switches on one smart phone.

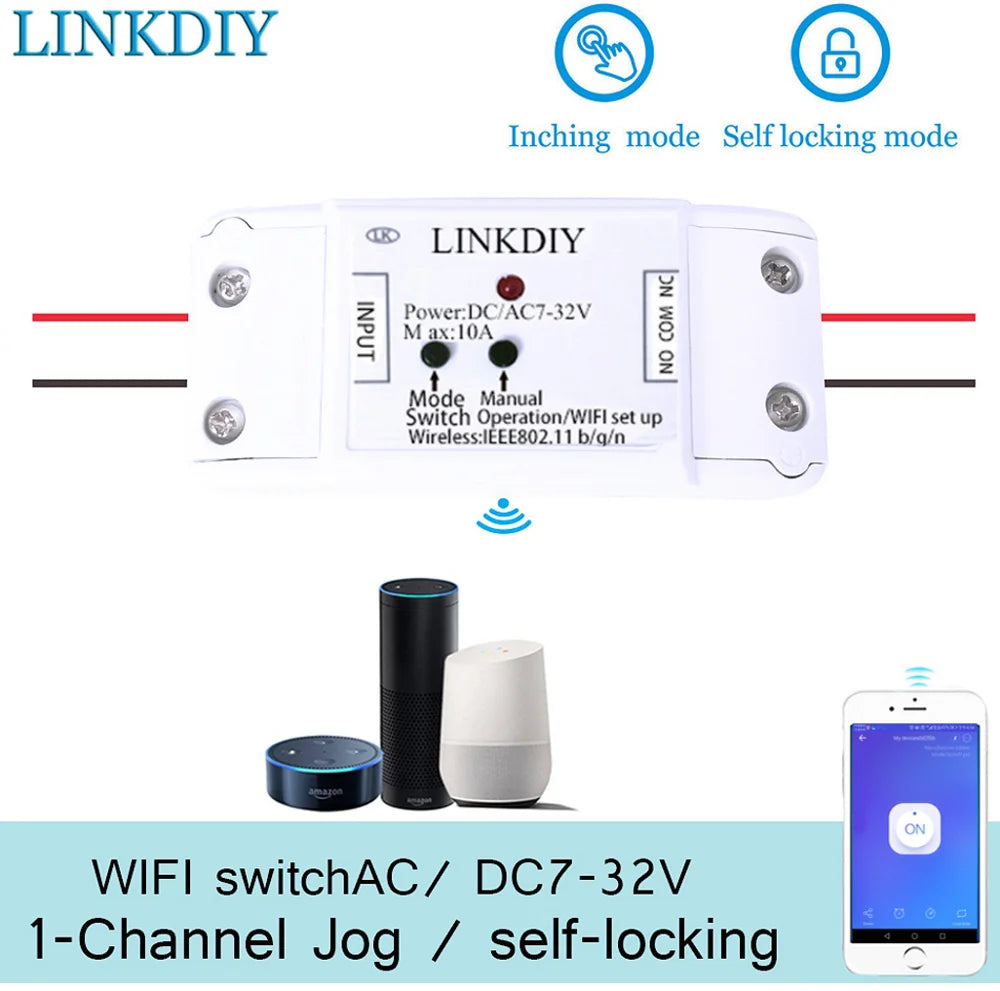

• Works with Amazon Echo, Echo Dot, Amazon Tap
• Works with Google Home
• Works with Google Nest



















Specification:



Dimensions:88mm*38mm*23mm

Operating current: 7-32V DC
Two input interfaces
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Supports to control different voltage ranges
Relay lifespan: more than one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Application

The switch can be applied to access control, turn on PC, garage door, etc.

Computer application

Remote control computer boot
O port power supply more convenient
Fully in line with the principle of mobile phone boot



 Welcome Customize Order!
