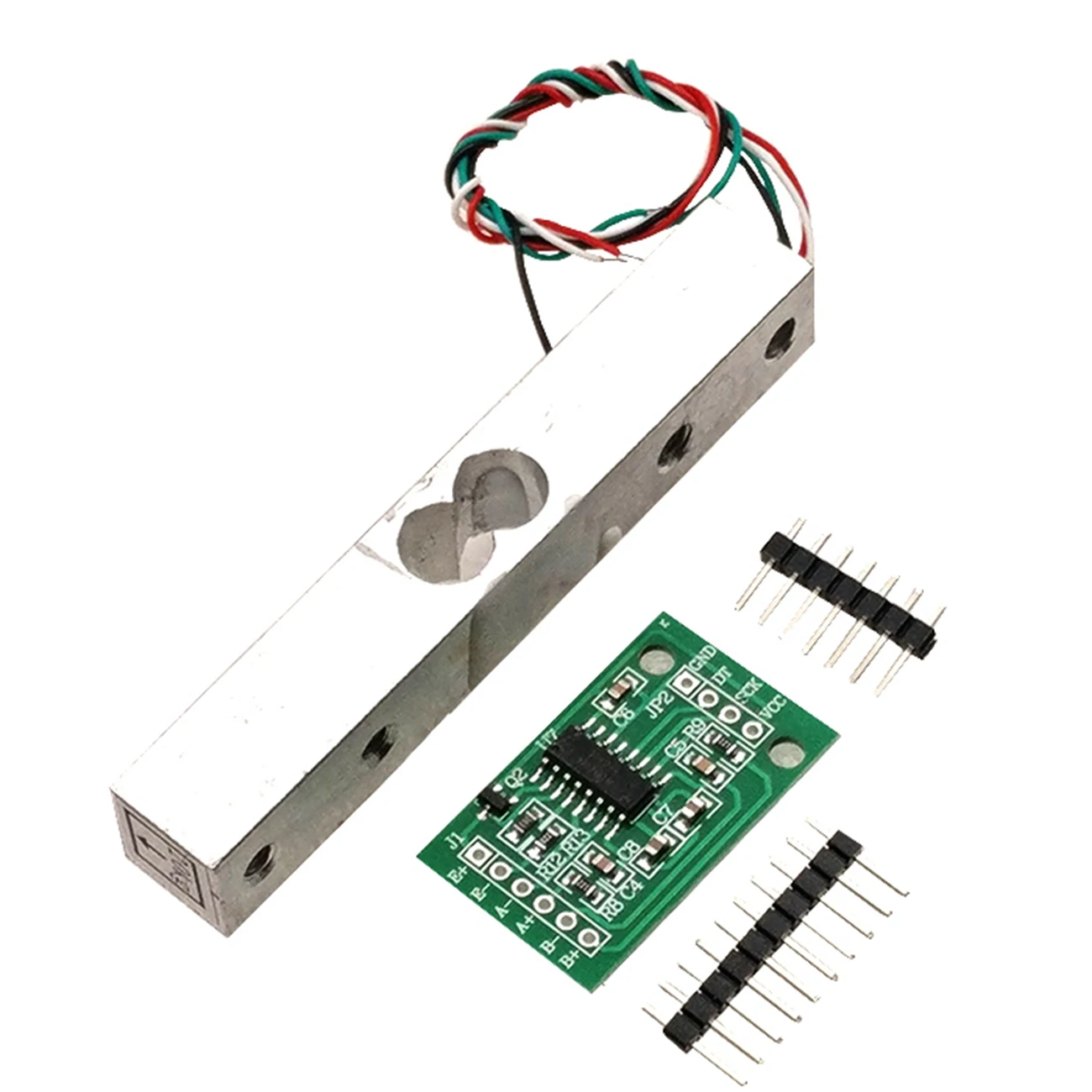

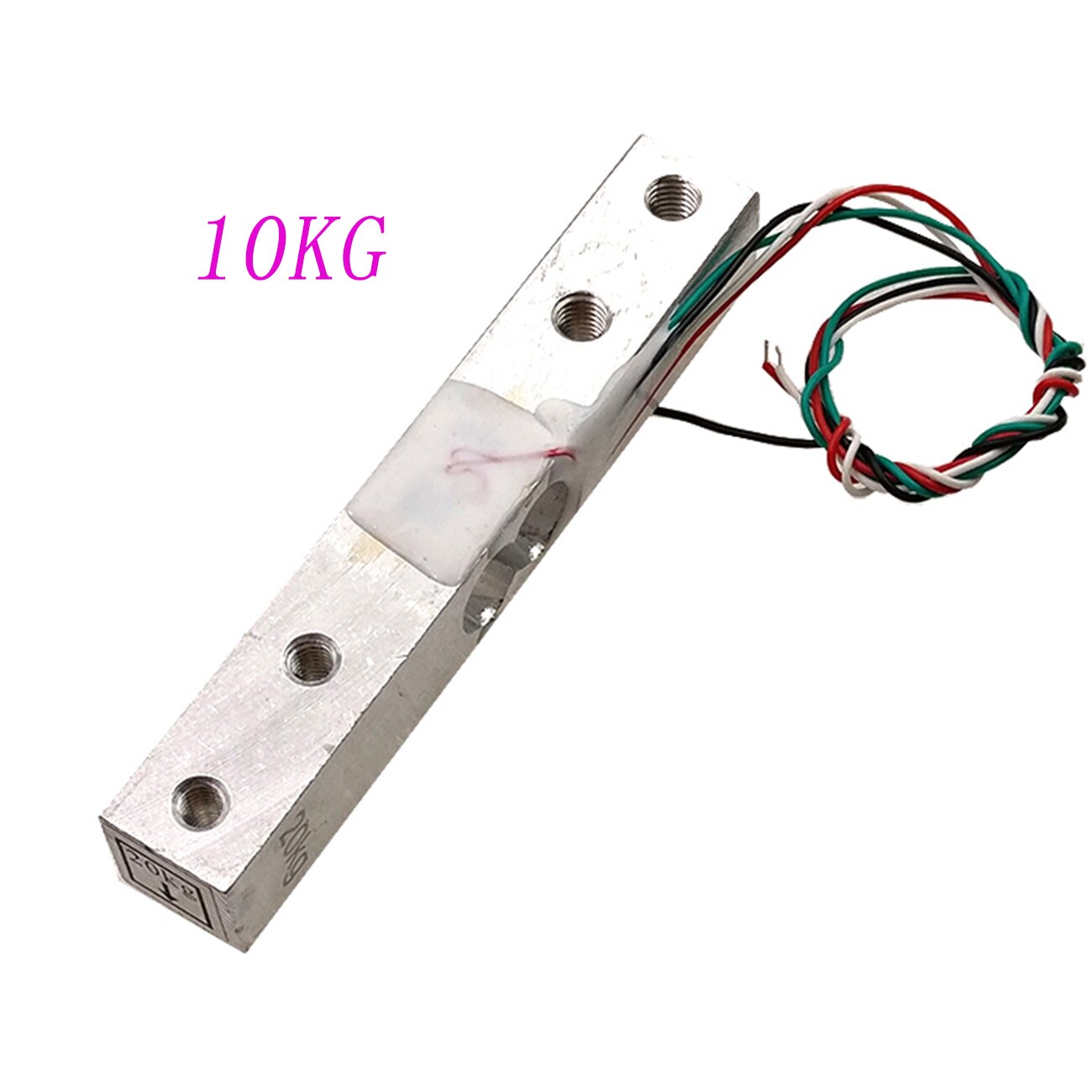

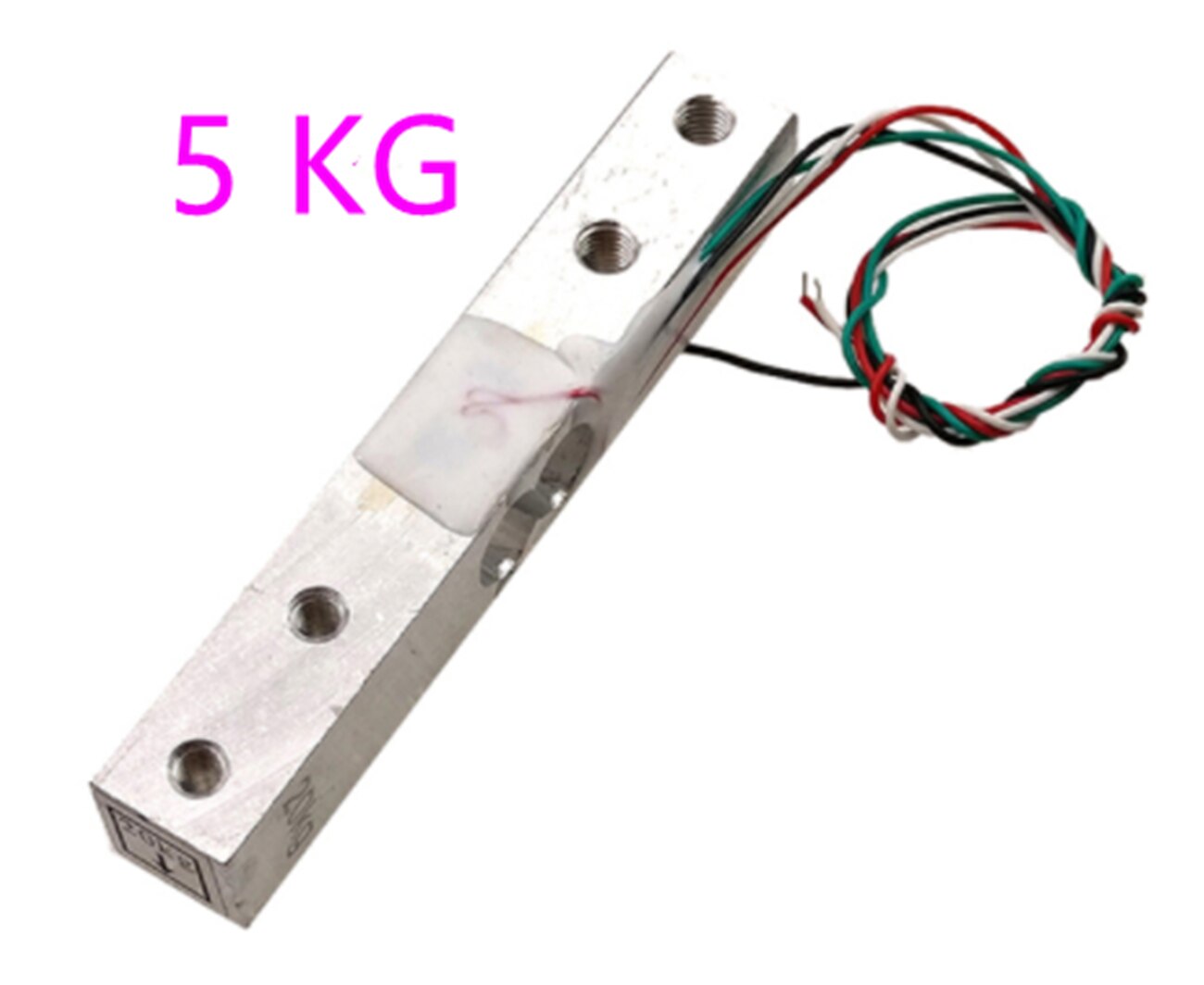

customized 1Pcs weighing sensor 1KG 5KG 10KG 20KG HX711AD module weight sensor electronic aluminum alloy weighing sensor
customized 1Pcs weighing sensor 1KG 5KG 10KG 20KG HX711AD module weight sensor electronic aluminum alloy weighing sensor
Regular price
$1.68 USD
Regular price
$3.68 USD
Sale price
$1.68 USD
Unit price
per
Couldn't load pickup availability
We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.
Description:
Note: The color of the item may vary slightly due to the photo and your own computer
Description:
Note: The color of the item may vary slightly due to the photo and your own computer
Feature:
Four lead wires, easy to use, in addition to driving 5-10 V voltage, force changes in the output voltage signal directly.
Installation: Sensor end through the fixed screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted special attention should not directly push into the white plastic cap part of the sensor in order to avoid damage.
Specification:

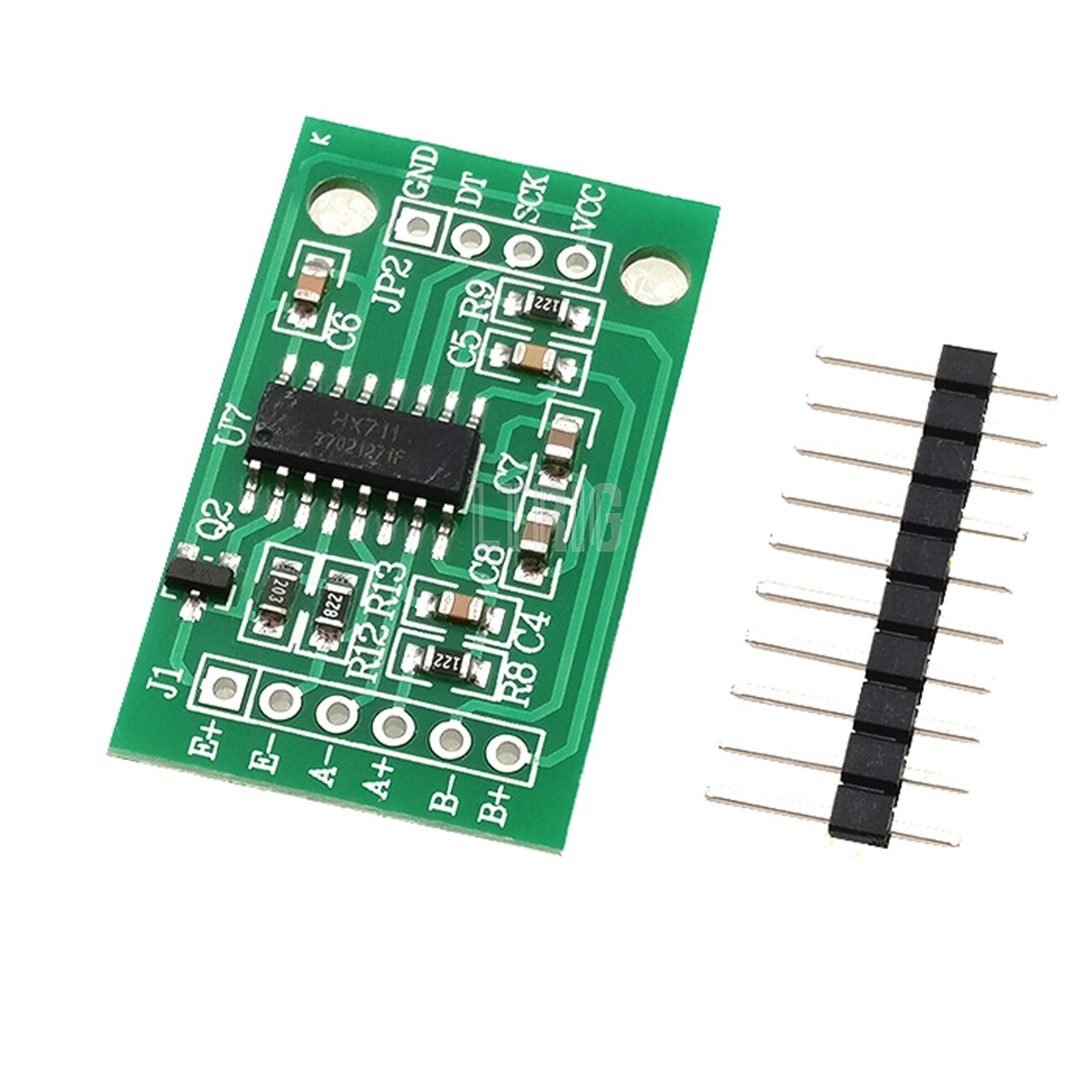

Model: HX711AD
Dimensions: 60x12x12mm / 2.36x0.51x0.51 "(W x H x H)
Rated load: 2 (kg)
Rated output: 1.0 ± 0.15mV / V
Nonlinear: 0.03% F.S
Hysteresis: 0.03% F.S
Repeatability: 0.03% F.S
Creep (5 minutes): 0.05% F.S
Effect of temperature on output: 0.003% F.S / ° C
Effect of temperature on Zero: 0.02% F.S / ° C
Zero Balance: ± 0.1000 mV / V
Input impedance: 1066 ± 20% Ω
Output Impedance: 1000 ± 10% Ω
Insulation resistance: 2000 MOHMS
Operating temperature range: -20 ~ 65 ° C
Recommended Operating Voltage: 5 VDC
Maximum operating voltage: 10 VDC
Material: Aluminum
Protection: IP65
Cable: & phi; 0.8 × 135 cm
Size of the table: 160 × 160mm
Weight: 23g
