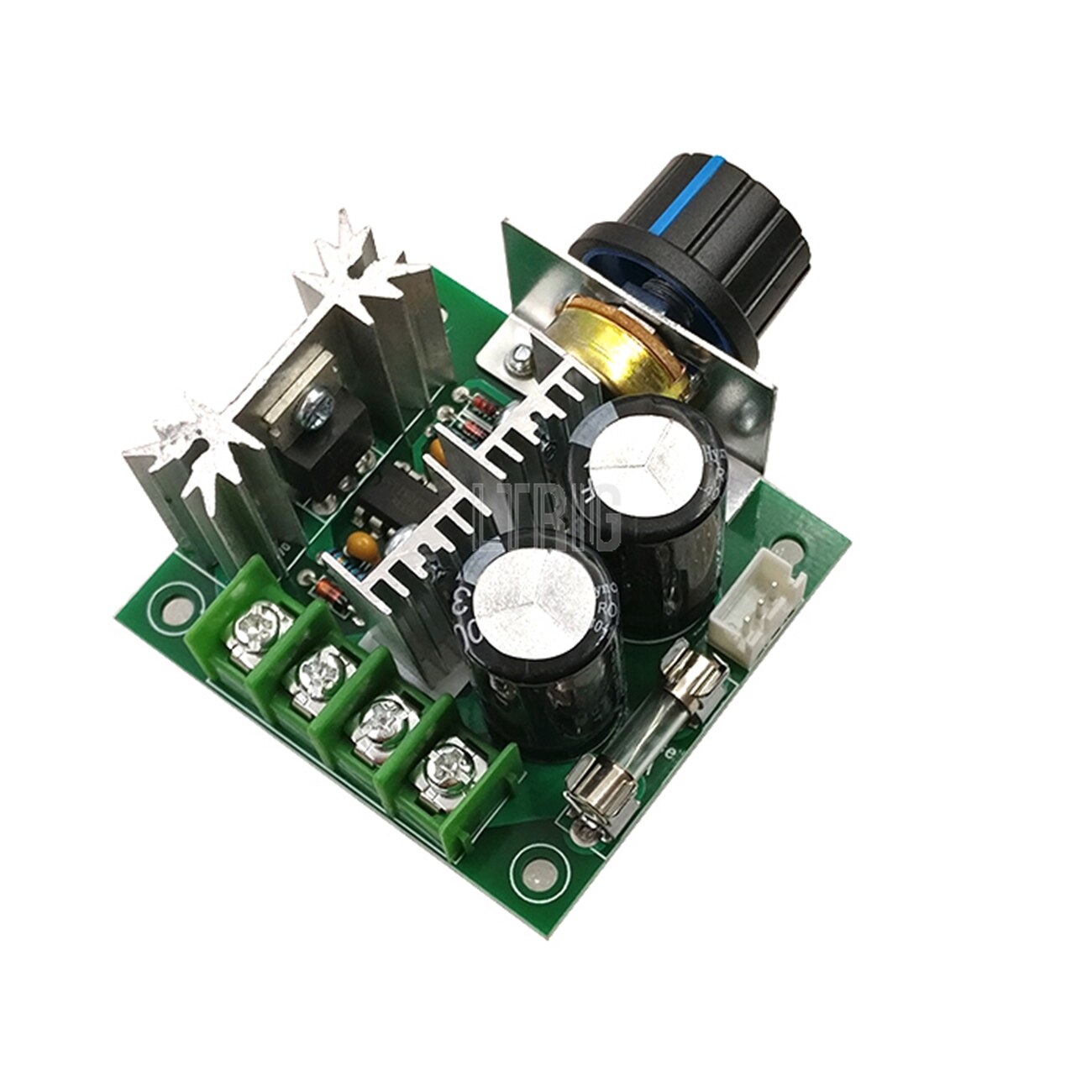

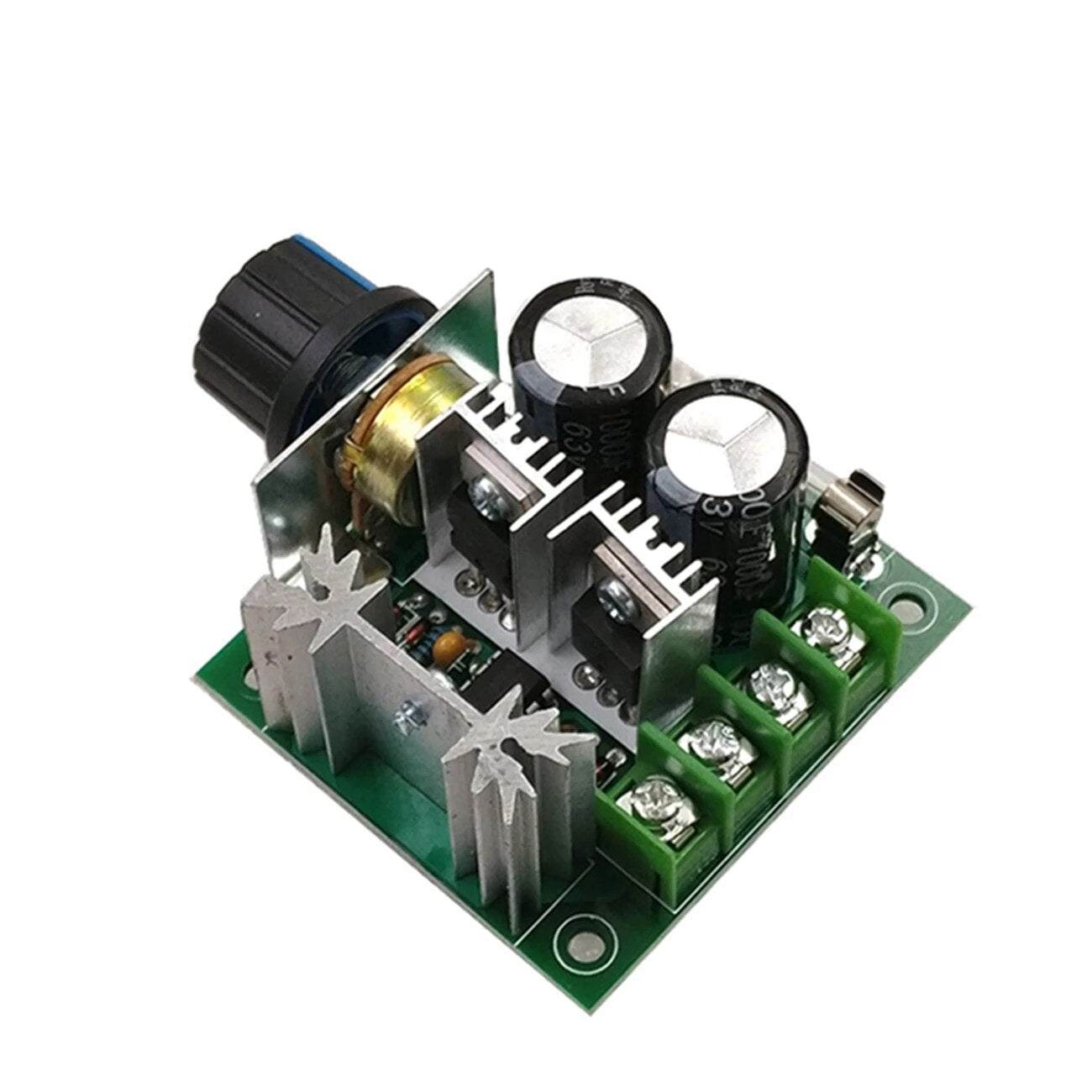

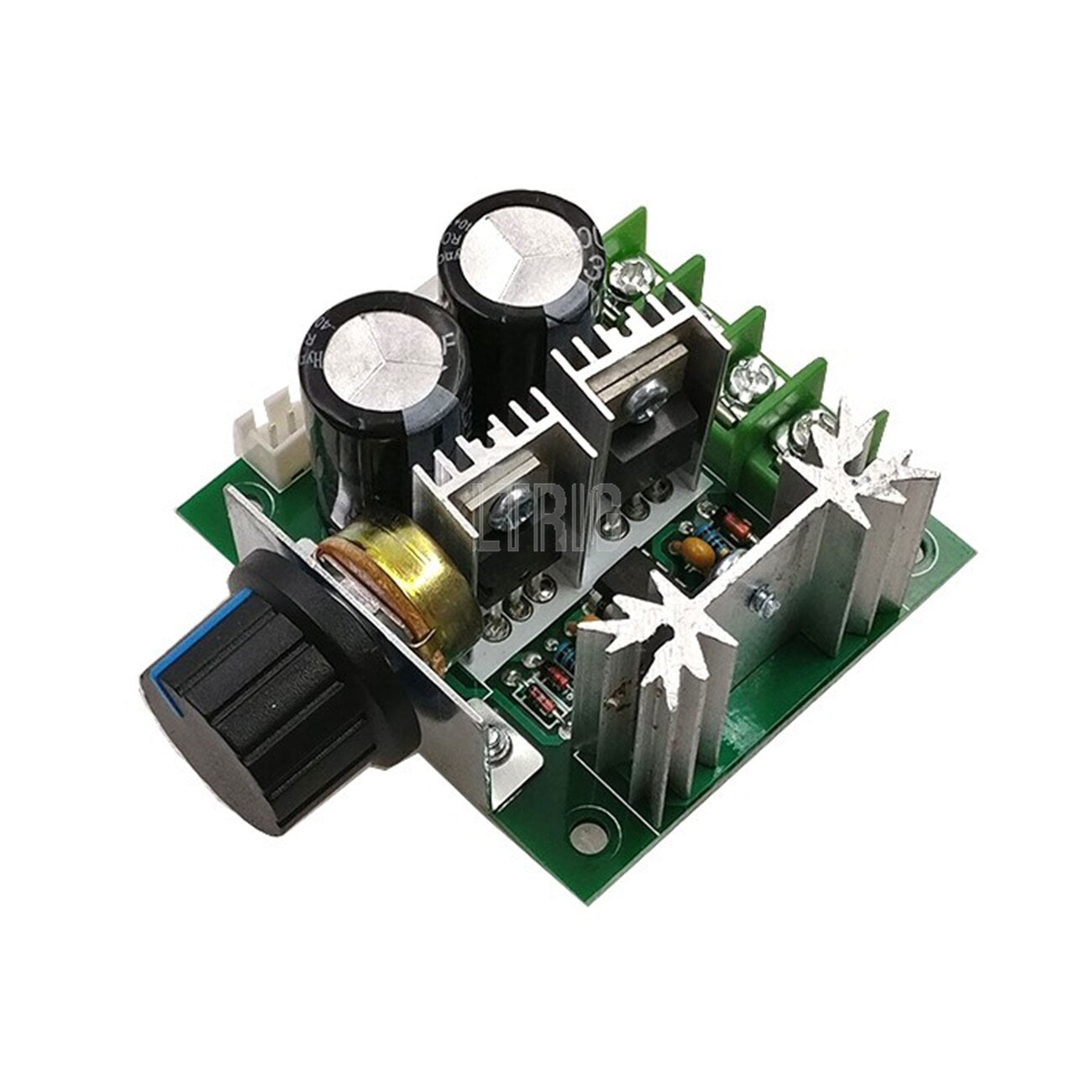

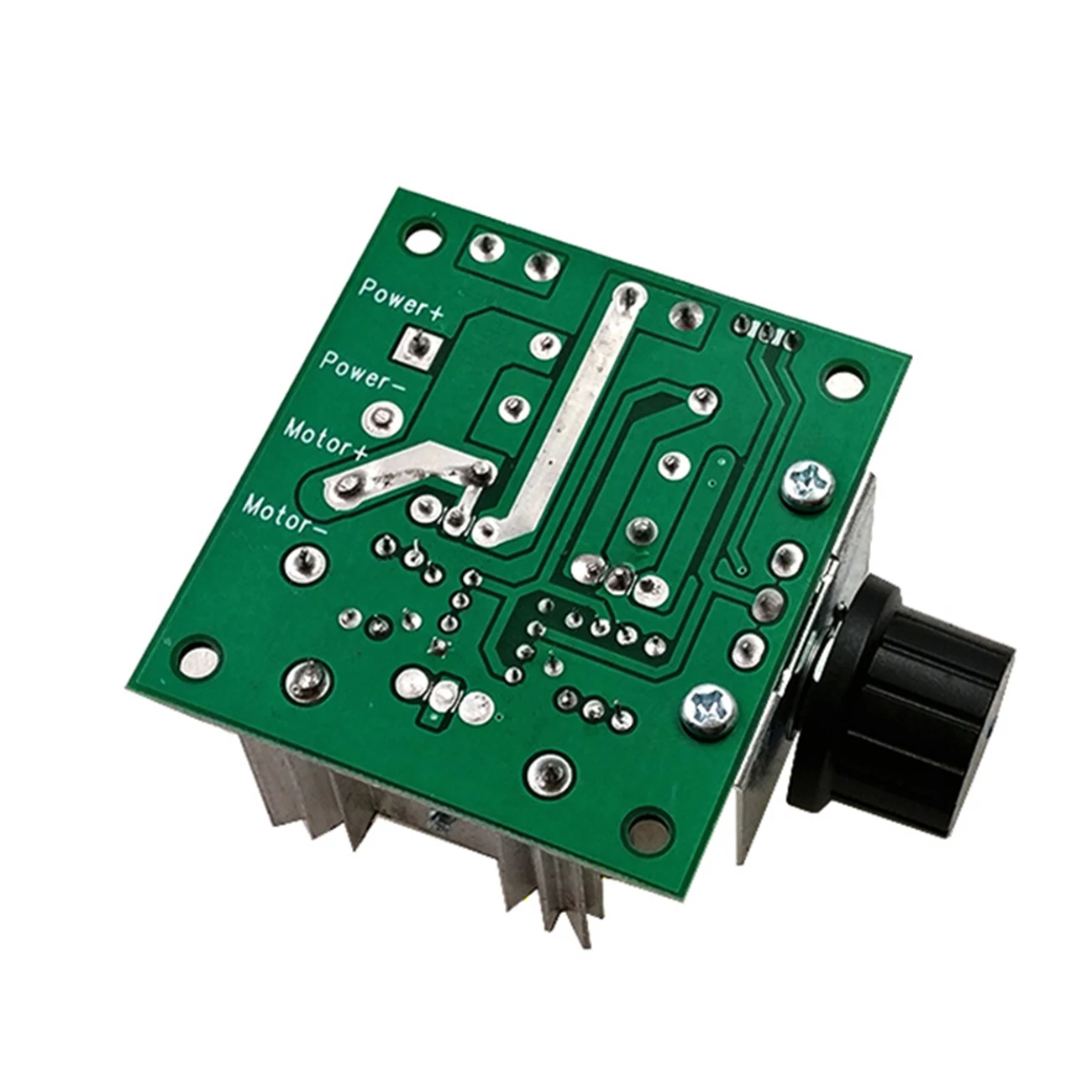

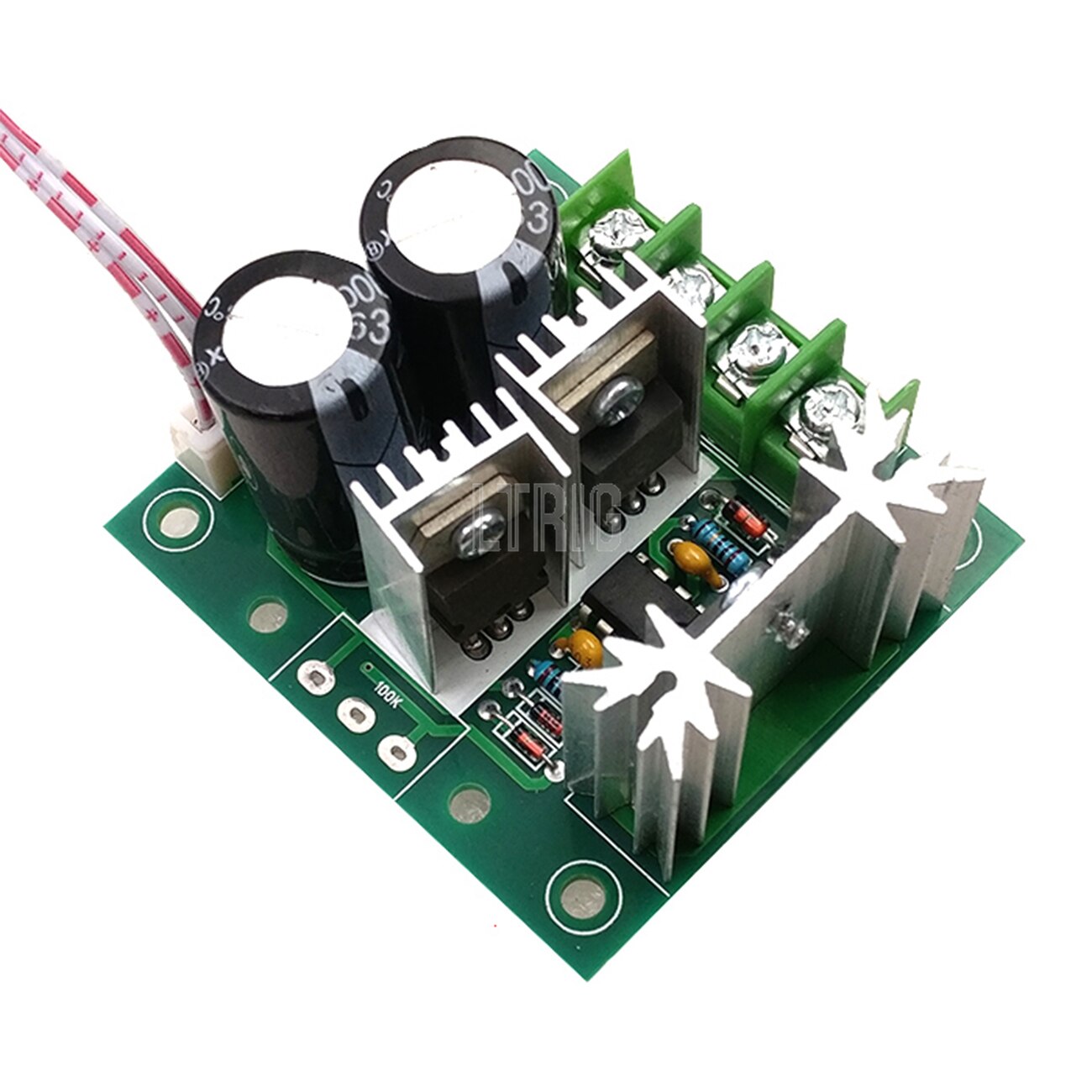

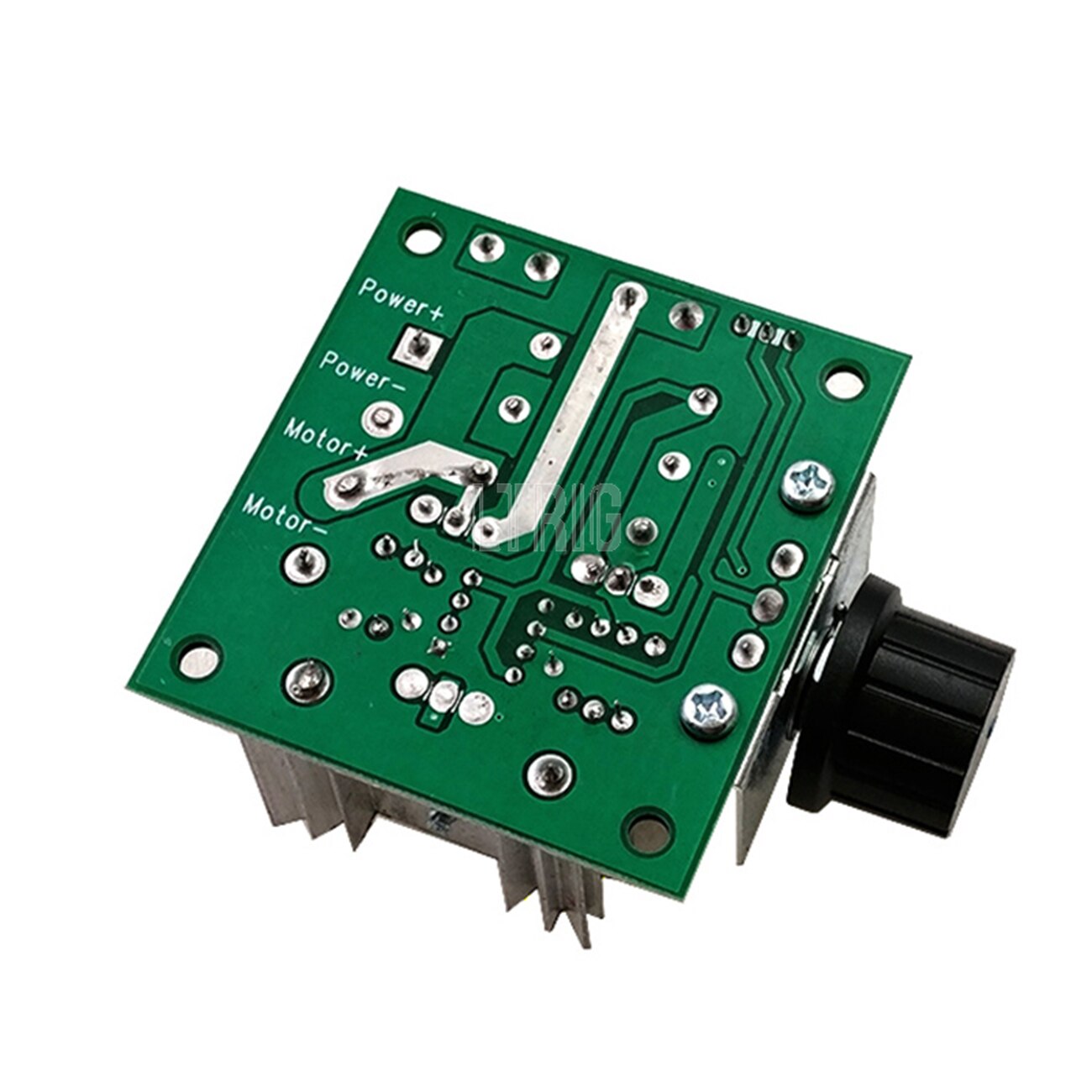

customized 1Pcs DC 12V-40V 10A PWM DC speed control switch control module dimmer 13khz frequency plastic and metal DIY

We are a manufacturer of electronic components, electronic modules for a large number of products.We are the factory!With more than 10 years of PCB development experience, the product quality is good, the price is excellent.A large number of wholesale sales of global buyers, welcome to purchase.


Features:

The board uses military grade plates!
All chips are imported, not domestically produced, disassembled, and refurbished.
Import 50V1000uF large capacitor. Compared with other types of governor 100-220uF, the capacitance value is obvious.
The power tube uses the IRF3205, so you don't have to drive your motor. (Parameter drain current Id max: 82A; voltage Vds max: 75V; on-state resistance, Rds(on): 0.013 ohm).
The terminal uses 8500 high current terminal, label 300V20A!

Technical Parameters:
Input voltage: DC 12V-40V
Power: 0.01-400W
Current: rated current 8A, maximum passing current 10A, quiescent current 0.02A (standby state)
Frequency: 13khz
PWM pulse width speed range: 10%-100%

With 10A fuse, with power reverse connection, control voltage overvoltage protection
With high-quality potentiometer (all Taobao similar products, such high-quality potentiometers are only used by the store)
If you need the forward and reverse function, you can connect the front and back switch yourself.

Product specifications:
Dimensions: 60*55*28mm, four positioning holes are 5mm from the edge of the board, and the positioning hole diameter is 3.2mm.
Onboard 10A fuse, fuse is 5*20mm standard size
