Custom ZS.D3663LA.A8 DVB-T2 DVB-T DVB-C digital TV LCD/LED driver board V56 V59 10-42" Universal LCD TV Controller Driver Board 3663 Manufacturer

Product Description:

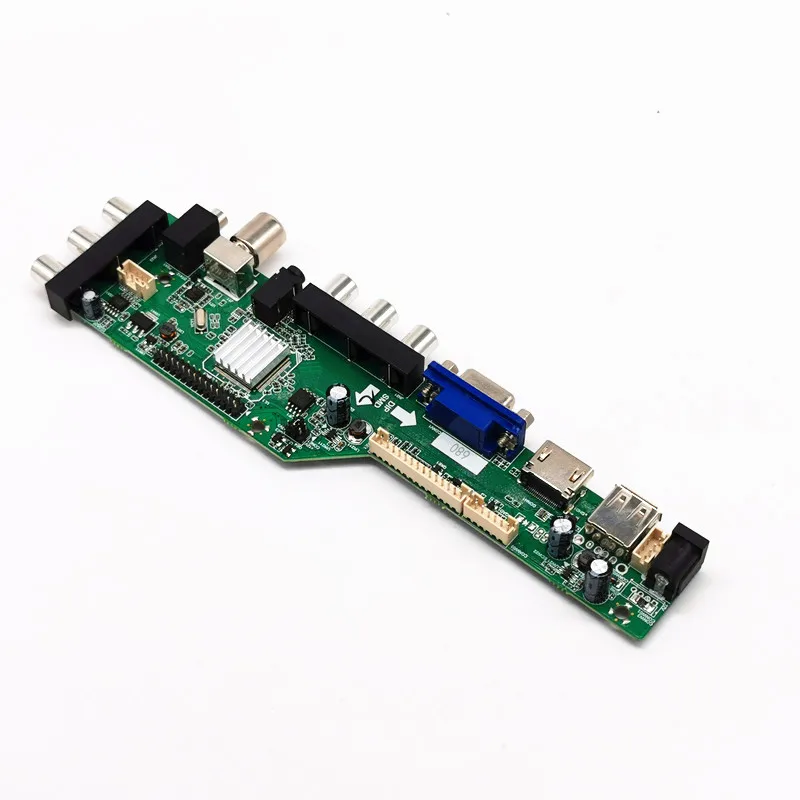

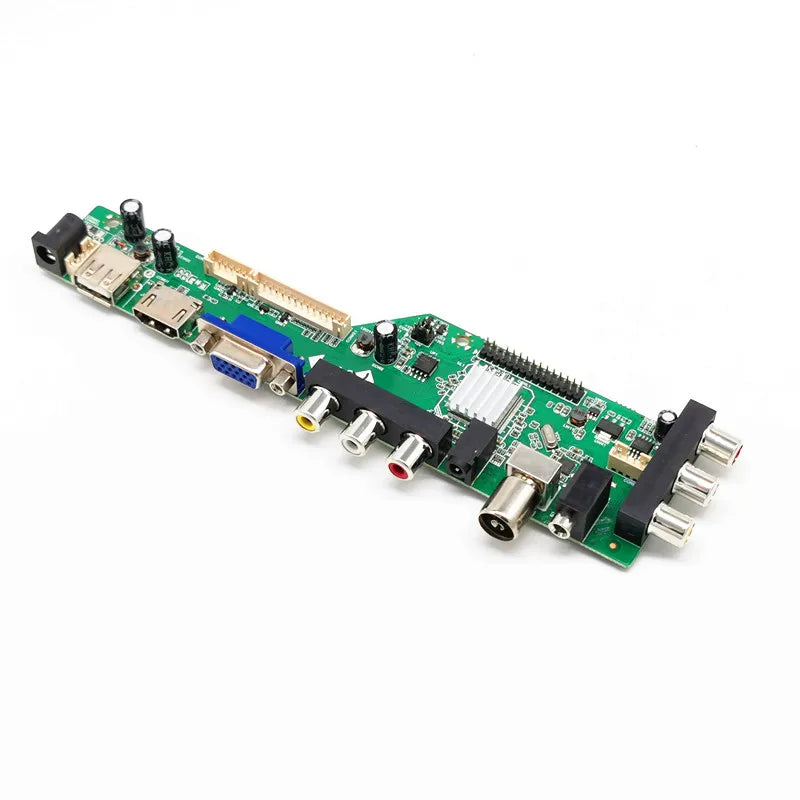

This model is universal Controller 3663 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor.

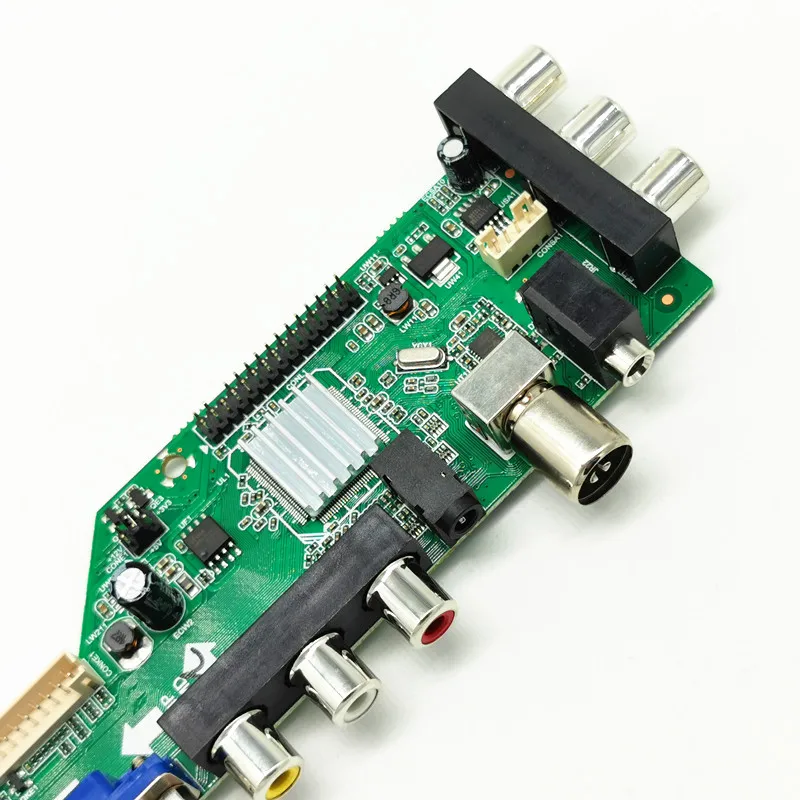

Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip.

Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.

How to check the board support your panel !

first you should open this web: panelook.com

and search the panel number!

panel size:10-42inch------you can find your firmware----LVDS interface-----voltage: 3.3/5/12V

Use:

firmware :
or leave your email adress in the order page.then we will sent firmware to u!
Install program:

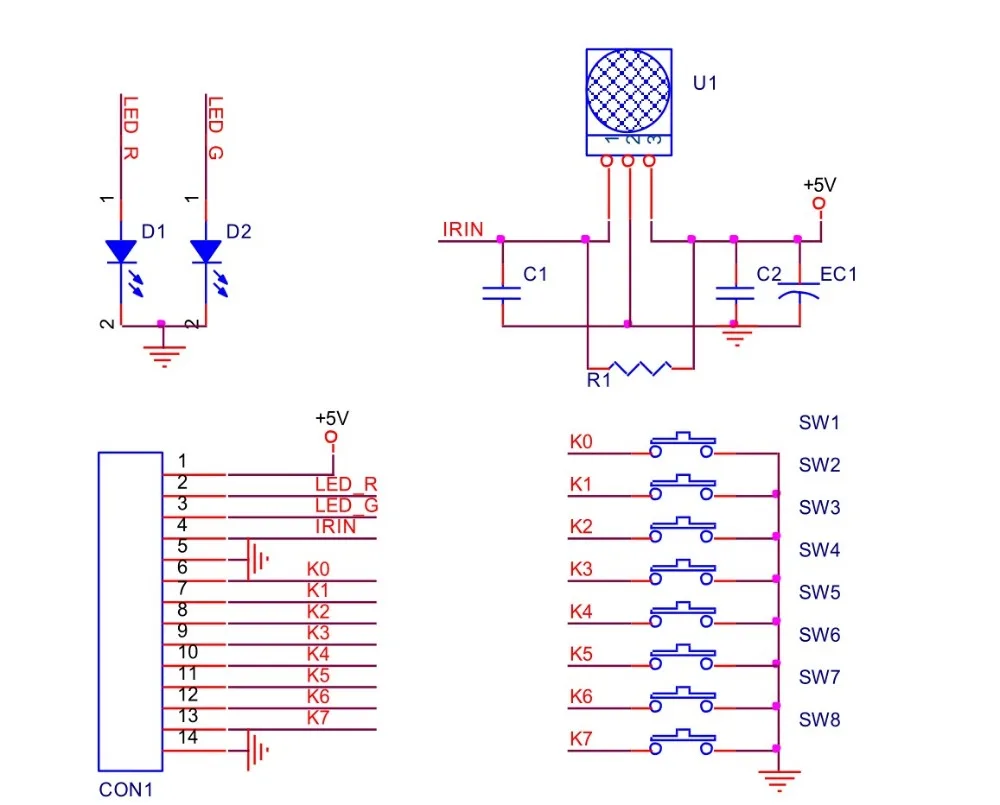

1.Put the firmware "LUA63A82.bin" in USB disk-------then insert the USB disk------------ plug 7KEY-Button to the board-------------After turn on the power ,the light of the 7key button will be Red then flash red and blue-------------after the light stop flashing ,it means upgrade has finished.
install program don't connect LVDS cable
(Note:!!! write programs do not power outages, crashing won't be able to use)

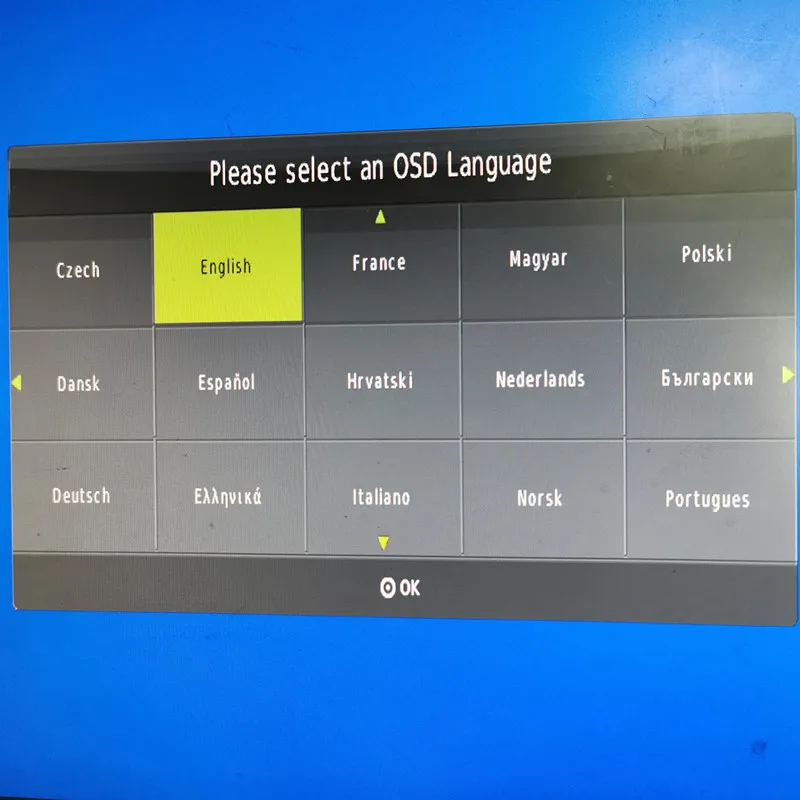

then power off-------connected all the cables indeed and correctly----------and power on again----choose the country

power supply is connected to the LVDS

1. Power requirements for 12V4A

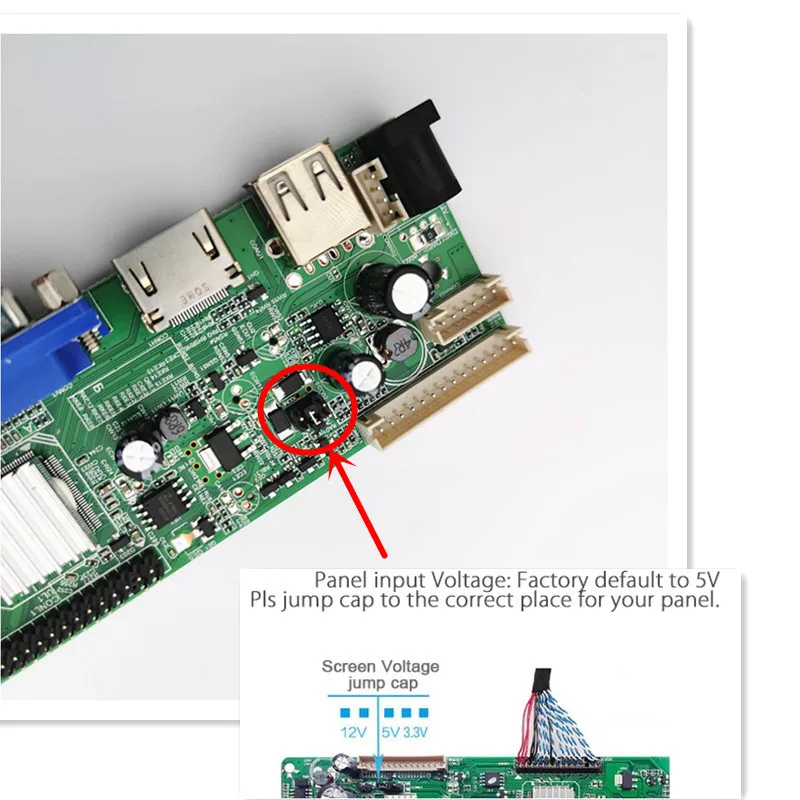

2. The operating voltage of the LCD screen jumps to the corresponding position
3. Suitable for LVDS cable LCD
4. LVDS cable cannot be reversed and misplaced

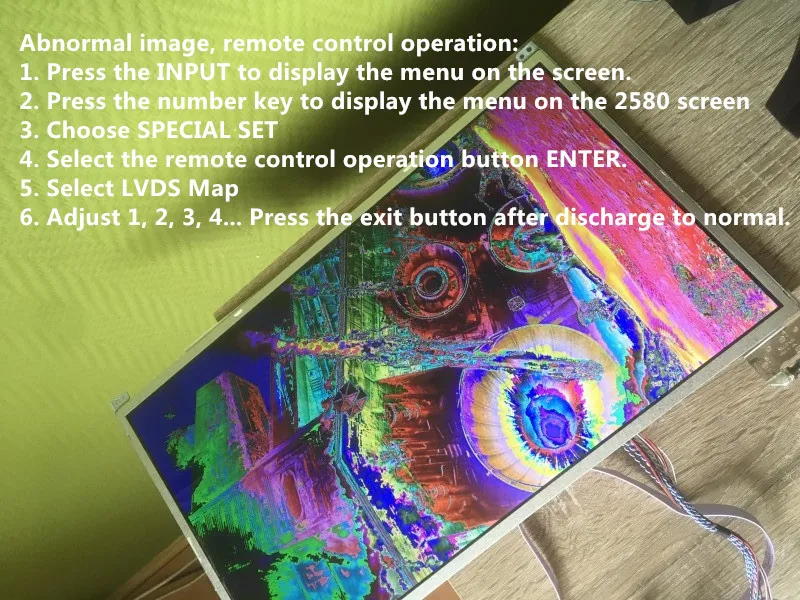

How to into Factory setting?

Press"Input" button then press"2 5 8 0"

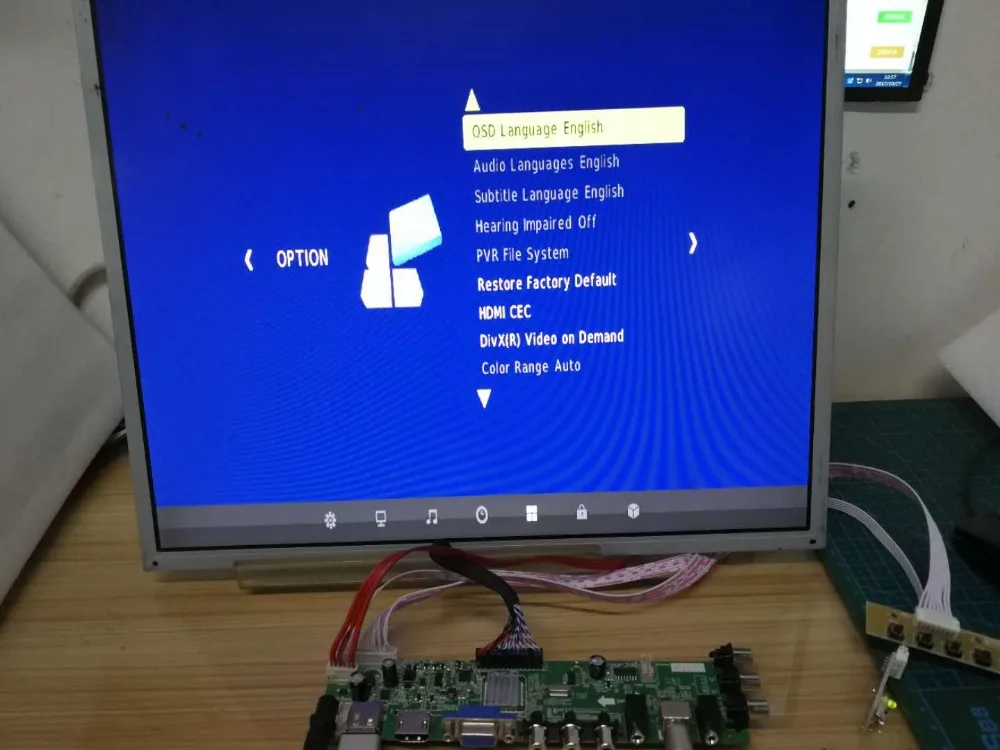

You can set a boot logo and mirror display.

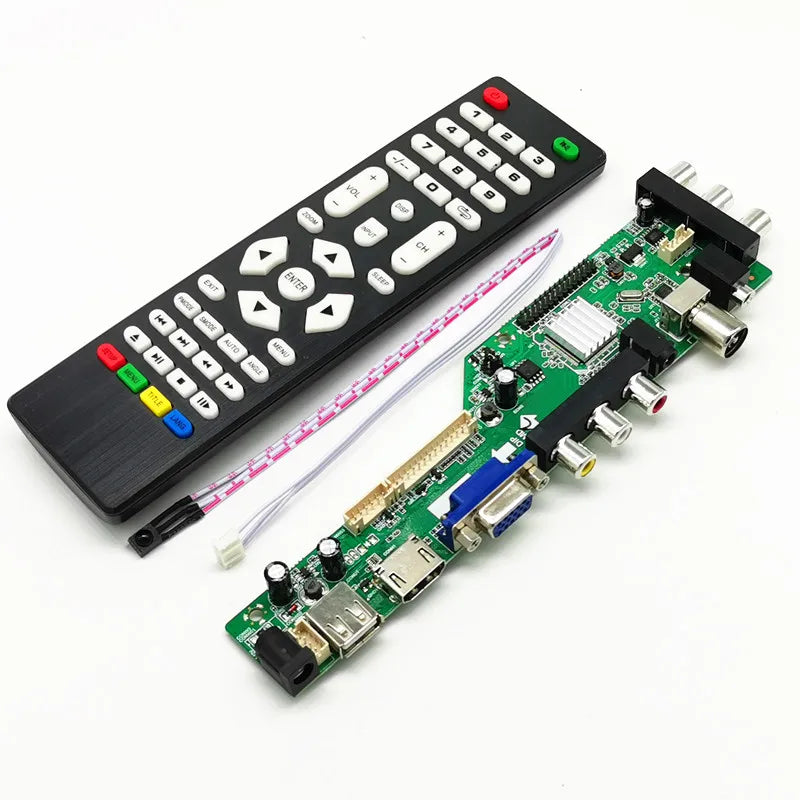

Package included:

1 x DS.D3663LUA.A81 Controller Board
1 x eglish remote control
1 x Ir receiver
