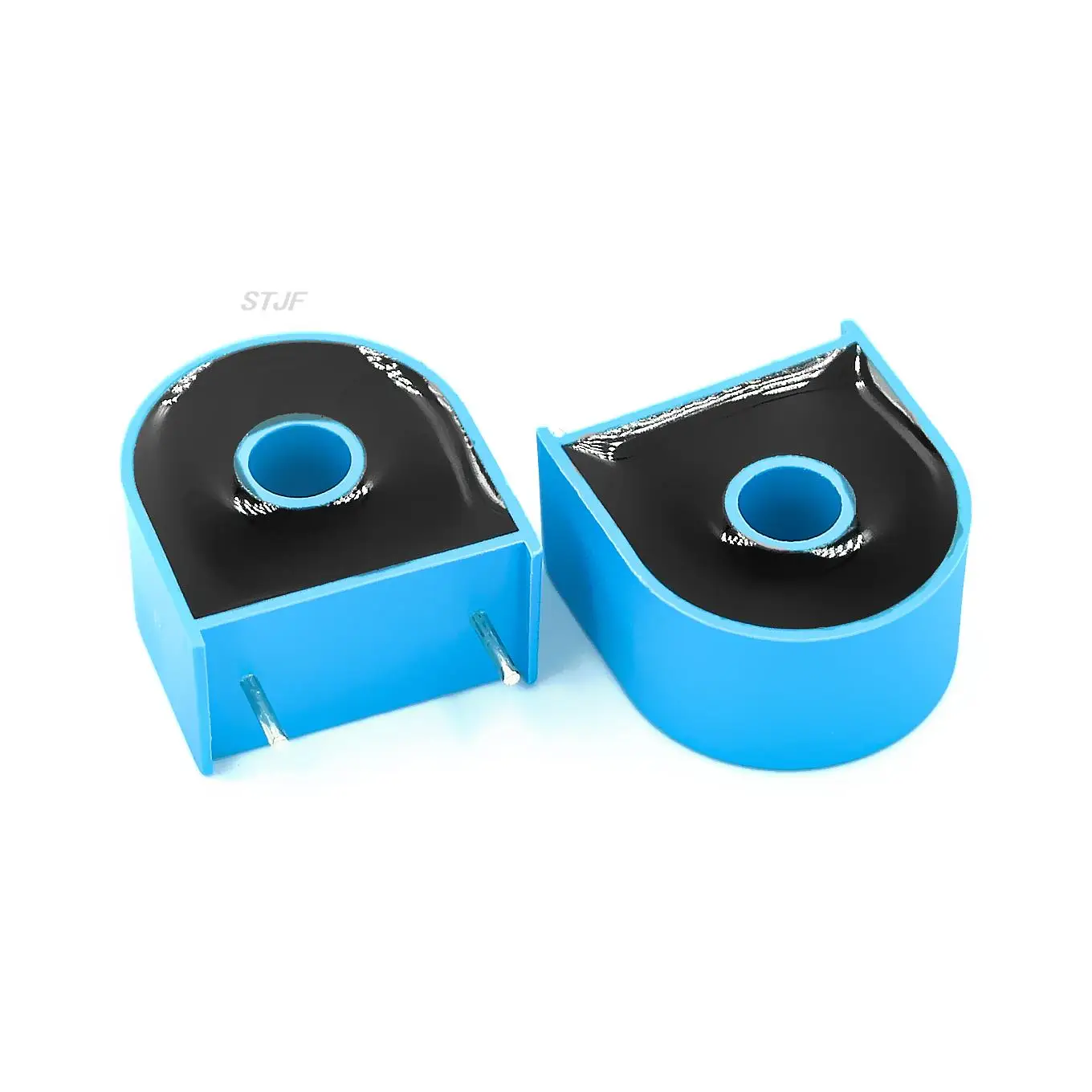

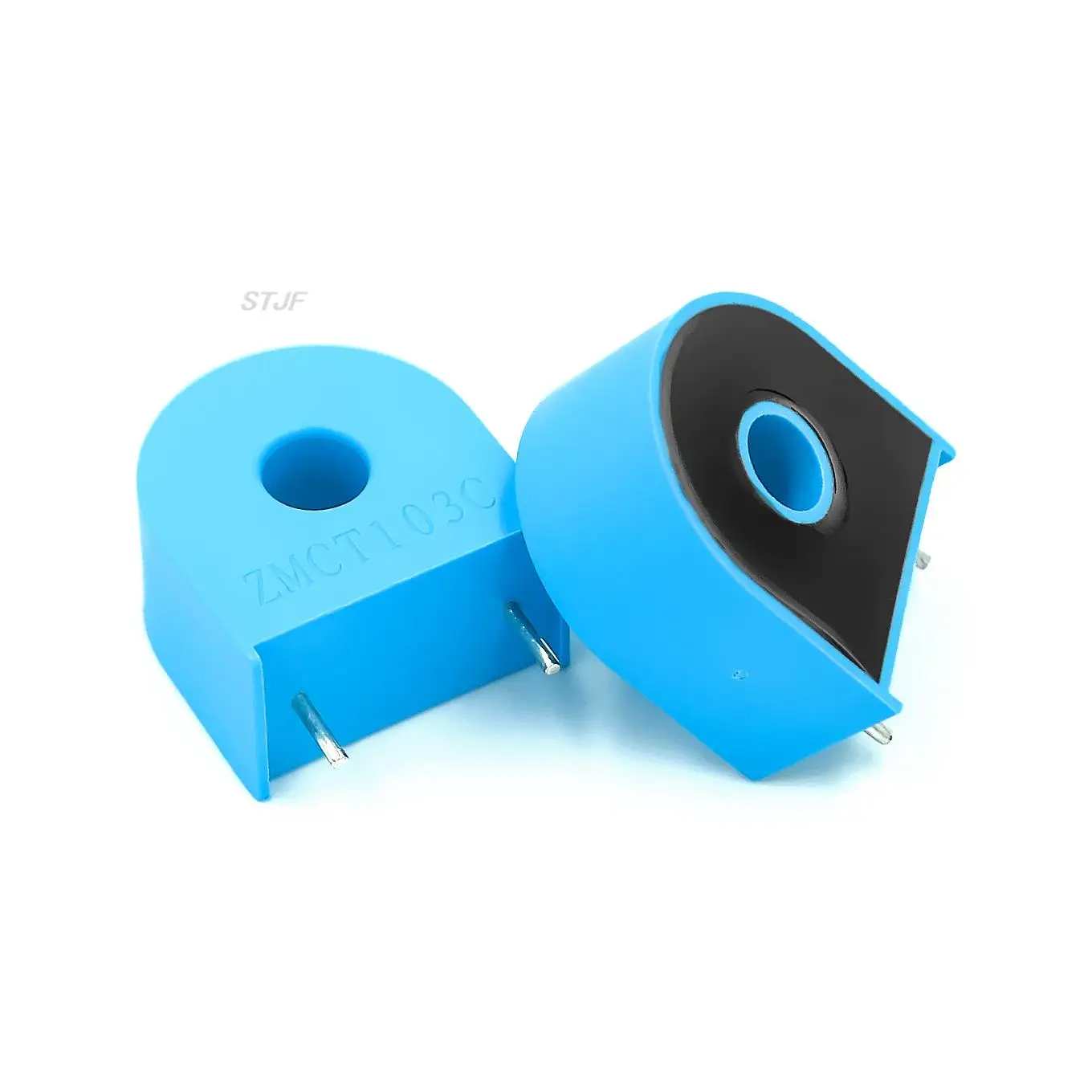

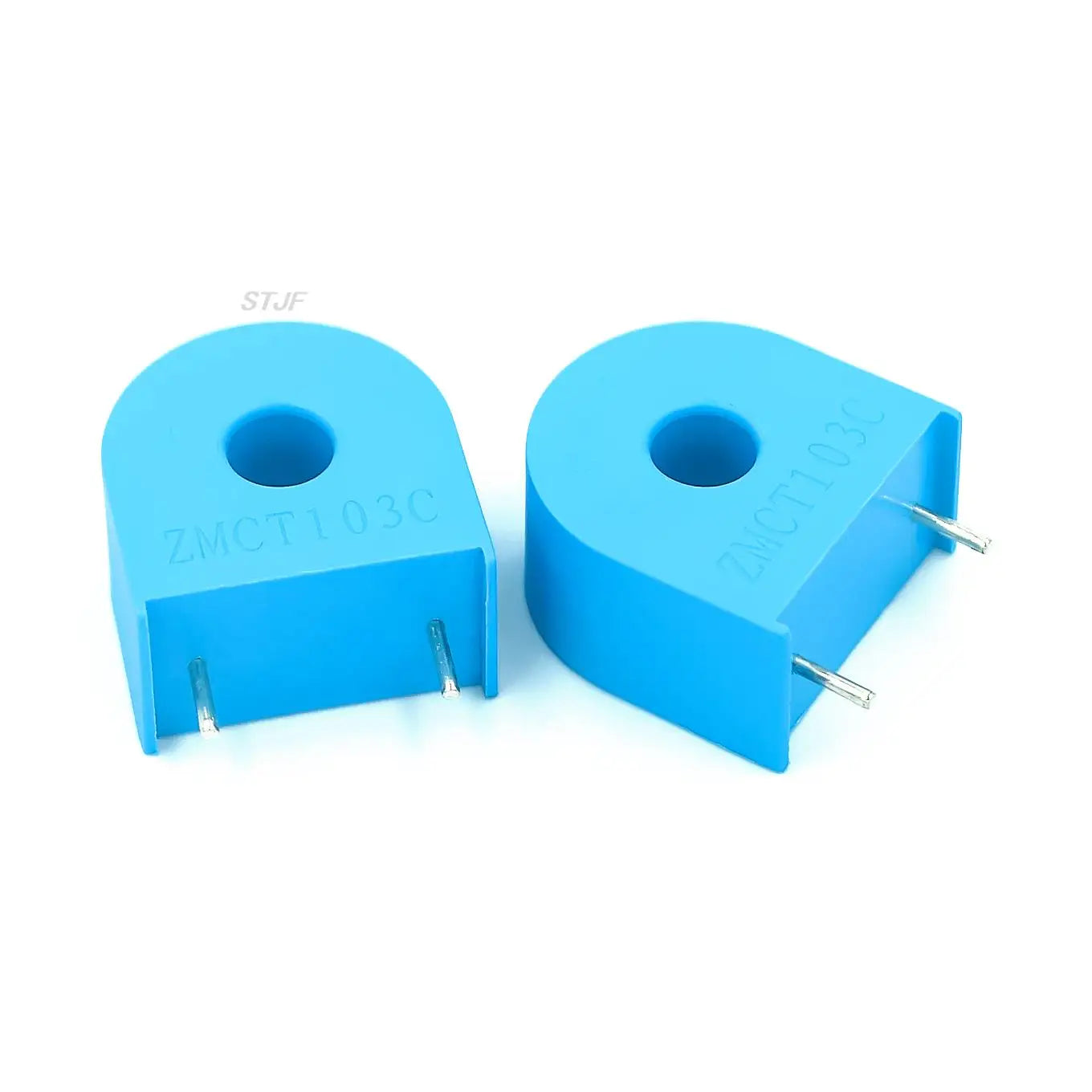

Custom ZMCT103C Micro precision current transformer current transformer 5A/5mA sensor

Custom ZMCT103C Micro precision current transformer current transformer 5A/5mA sensor

Regular price $0.71 USD
Regular price $2.71 USD Sale price $0.71 USD
Sale Sold out
Warm prompt:
Due to Ali shipping rules
when using differen logistics methods to purchase products,some shipping fee will be  charged multiple times.
Please place order first and contact us to change the price.then we will inform you make the payment.Thank you!!
Dear buyer, Cainiao Super Economy Global  is free but it could not be tracked since the parcel left China.( without a valid tracking number) ,please choose Standard category logistics if you want a full tracking info.
Feature:
  • Product model: ZMCT103C
  • Rated Input Current: 5A
  • Rated output current: 5mA
  • Ratio: 1000:1
  • Phase (when the rated input) : <= 15(100 ohm)
  • The linear range: 0-15A(100 ohm)
  • Linearity :0.2%
  • Isolation voltage: 4500V
  • Uses: For  Current and power measurement
  • Sealing material: epoxy resin
  • Installation method: printed board installation
  • Working temperature: -40 to +85 degrees
  • Shell material: ABS
