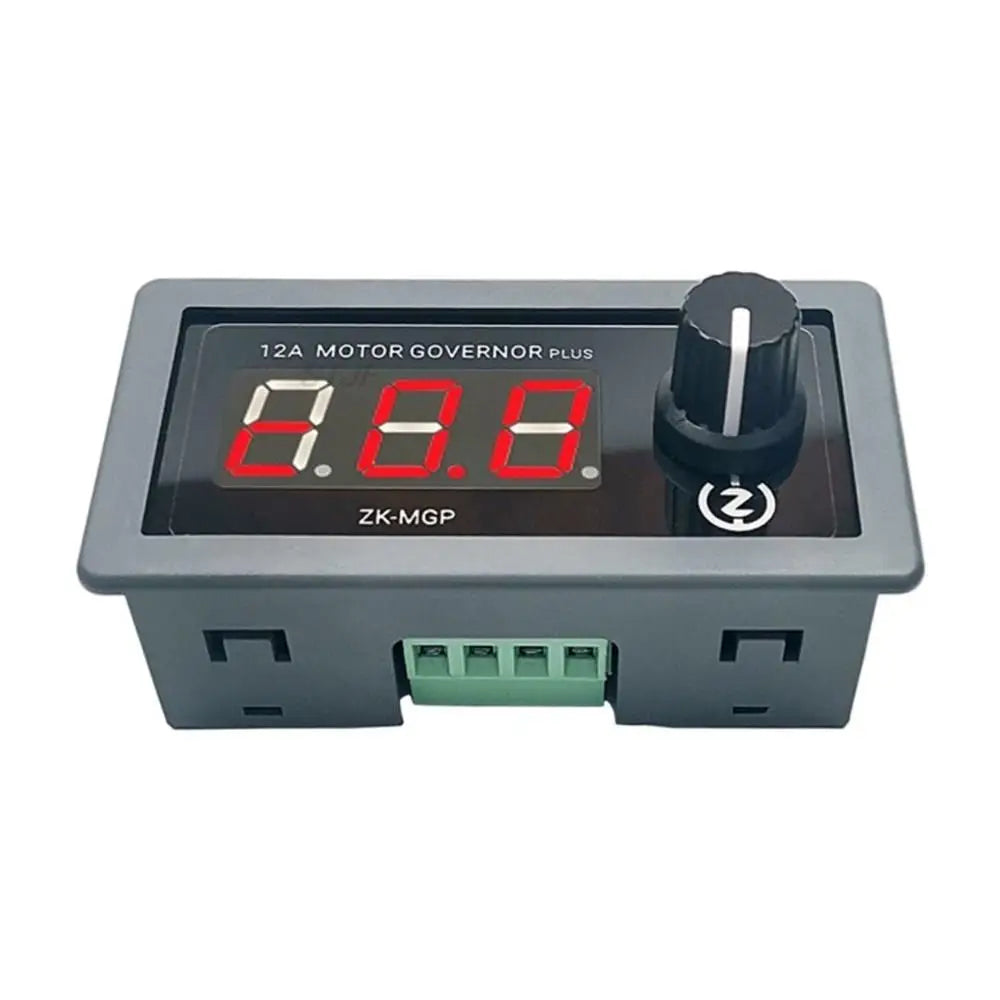

Custom ZK-MGP PWM DC Motor Speed Controller 1KHz-99KHz Frequency Adjustable Motor Governor LED Dimming DC 5-30V 12A Dual MOS Driver
Custom ZK-MGP PWM DC Motor Speed Controller 1KHz-99KHz Frequency Adjustable Motor Governor LED Dimming DC 5-30V 12A Dual MOS Driver
Regular price
$4.70 USD
Regular price
$4.70 USD
Sale price
$4.70 USD
Unit price
per
Couldn't load pickup availability

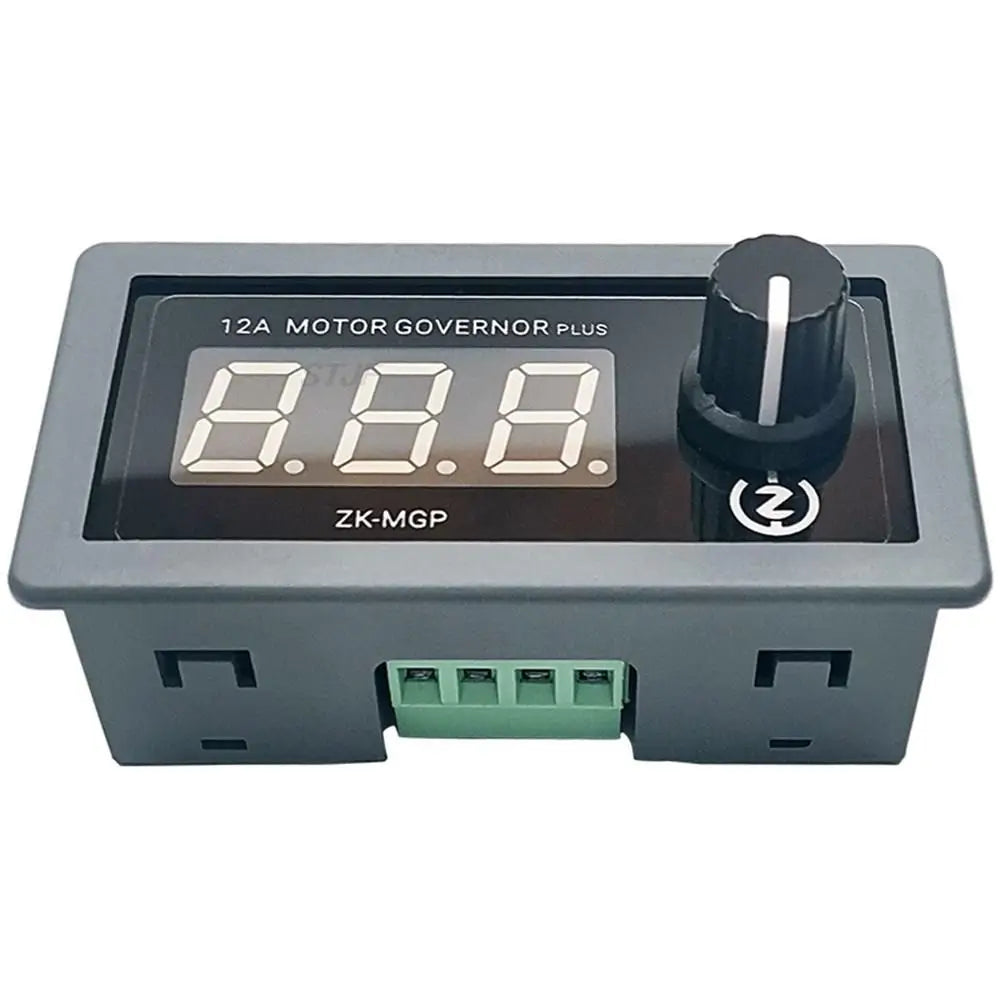

ZK-MGP PWM DC Motor Speed Controller 1KHz-99KHz Frequency Adjustable Motor Governor LED Dimming DC 5-30V 12A Dual MOS Driver

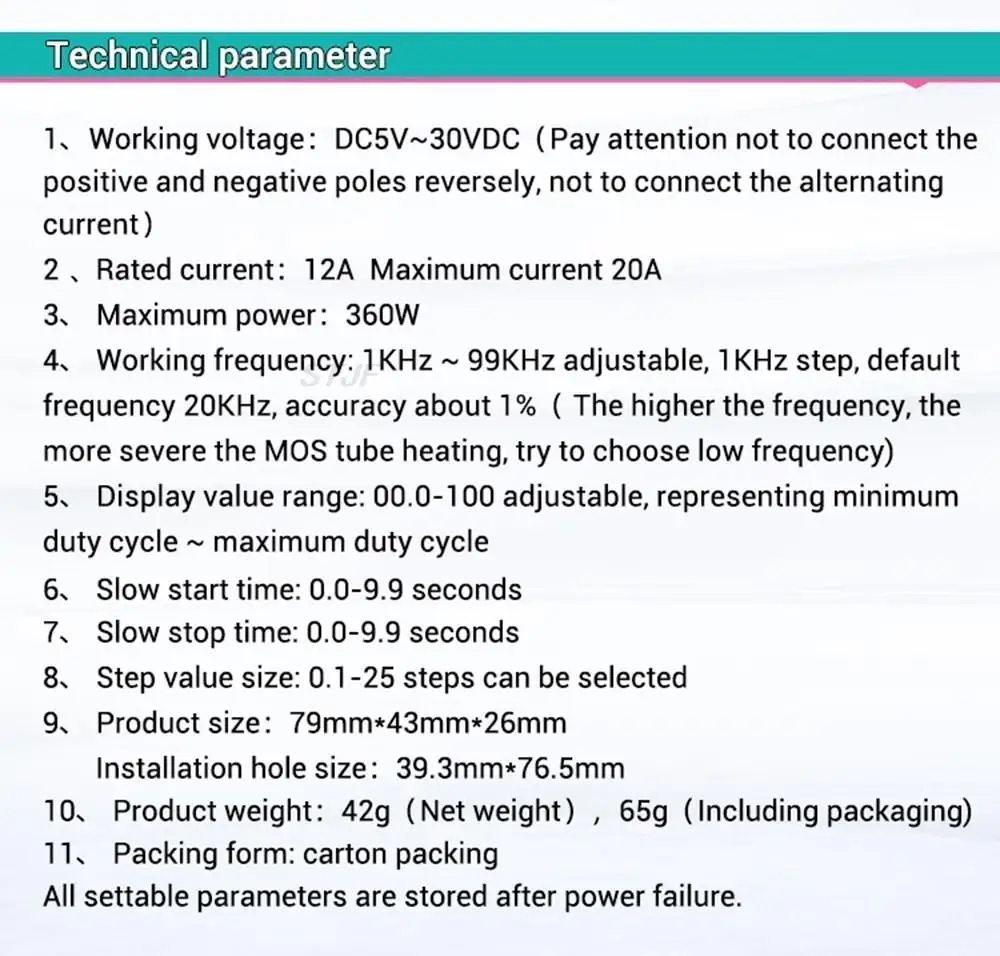

Parameter
1. Working voltage: DC5V~30VDC (note that the positive and negative poles are not reversed, and do not connect to AC)
2. Rated current: 12A, maximum current 20A
3. Maximum power: 360W

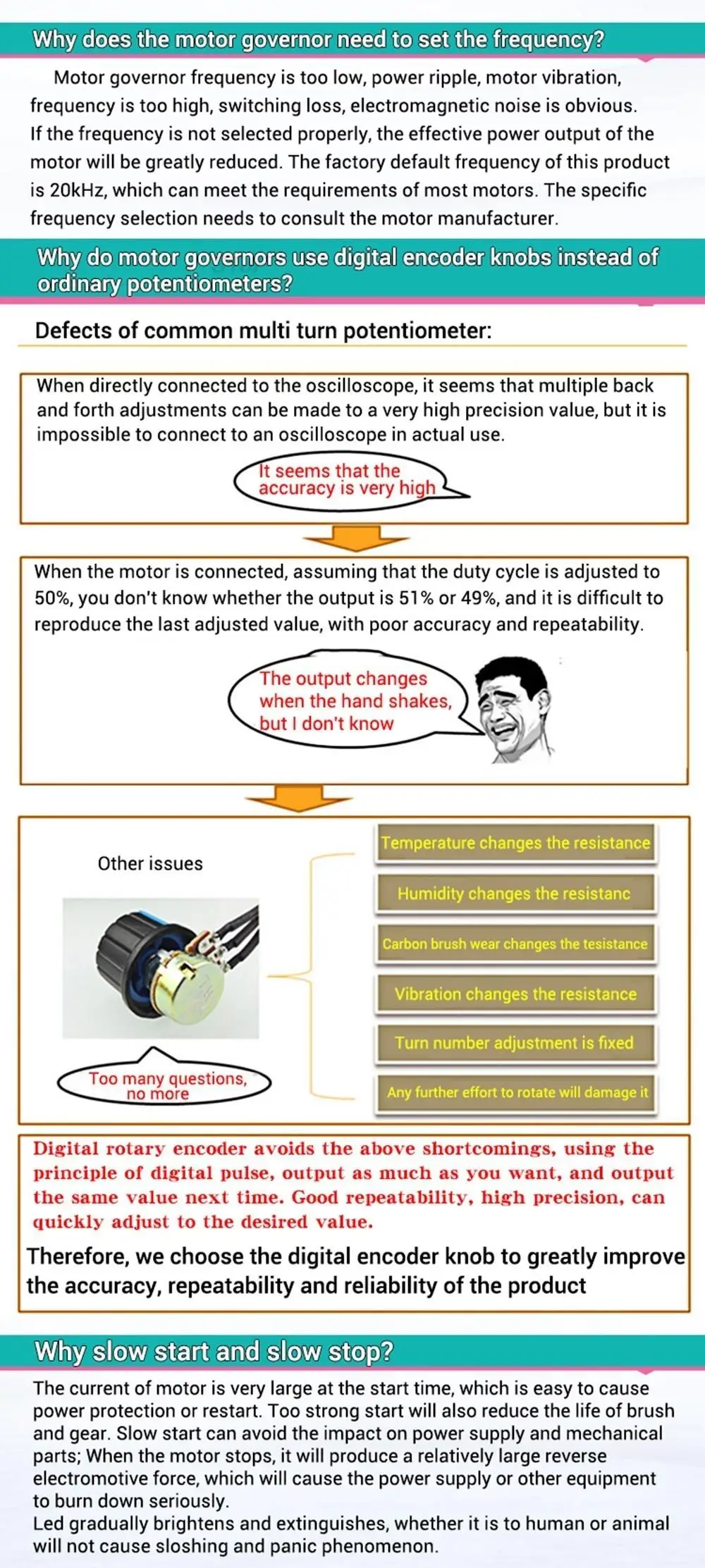

4. Working frequency: 1KHz~99KHz adjustable, 1KHz stepping, the default frequency is 20KHz, and the accuracy is about 1%; (the higher the frequency, the more MOS tube heats up, try to choose a low frequency)

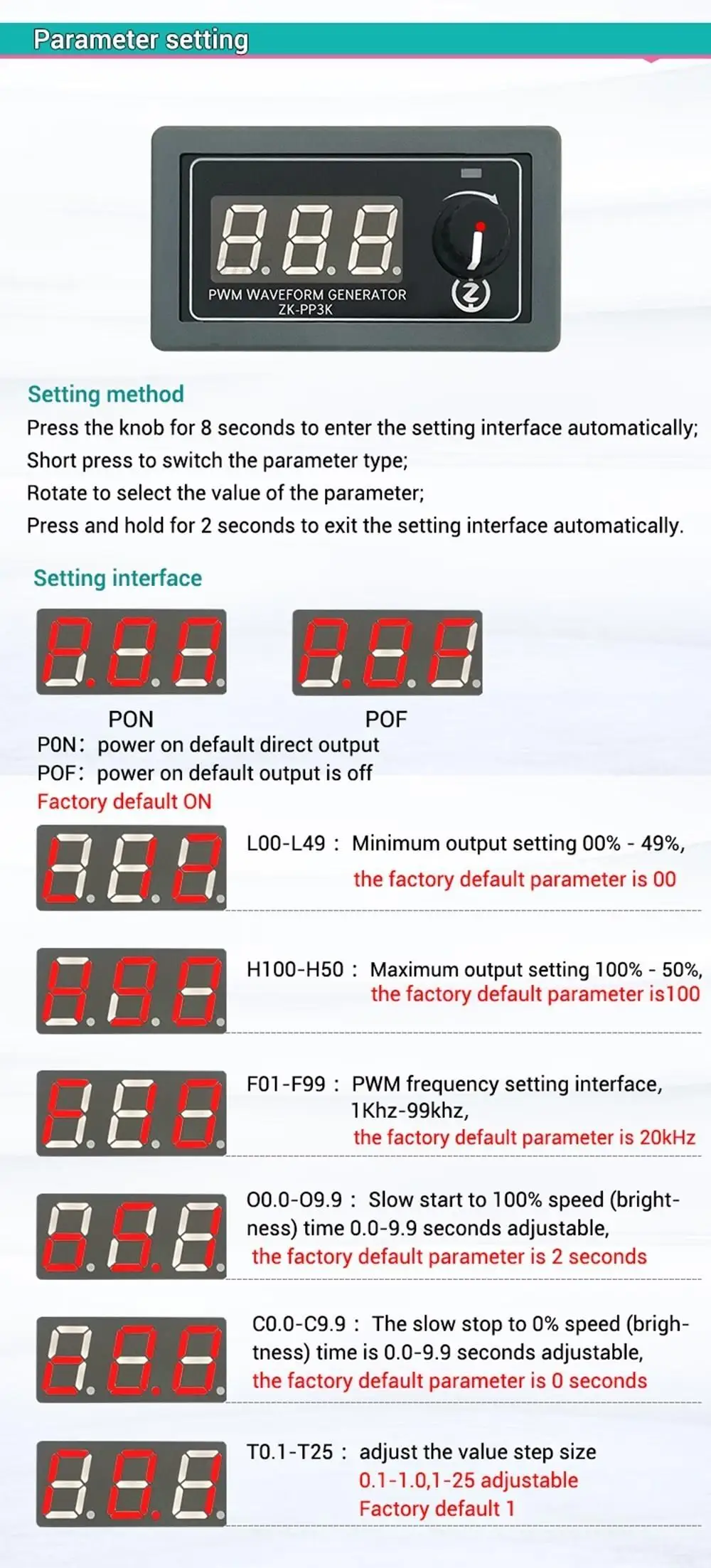

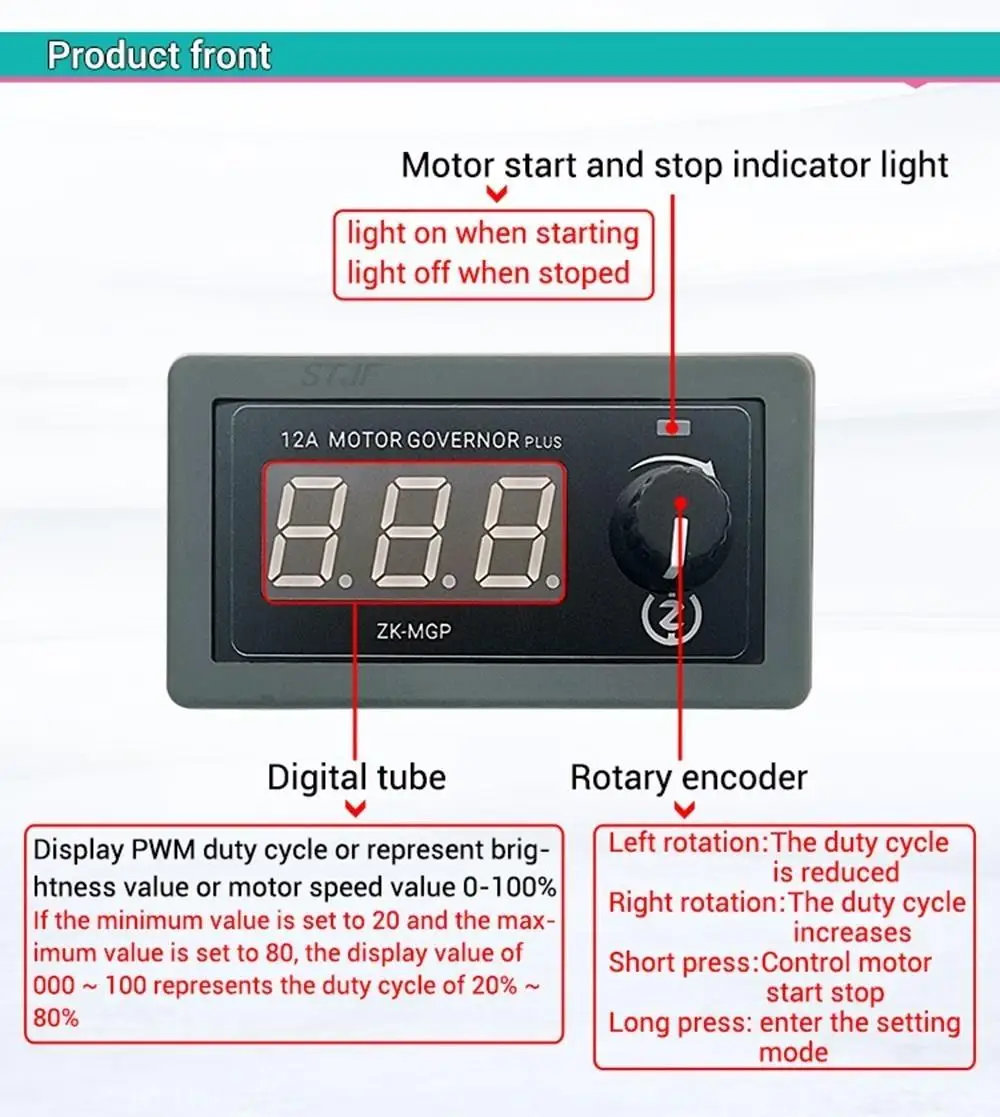

5. Display value range: 00.0-100 adjustable, representing the minimum duty cycle ~ the maximum duty cycle

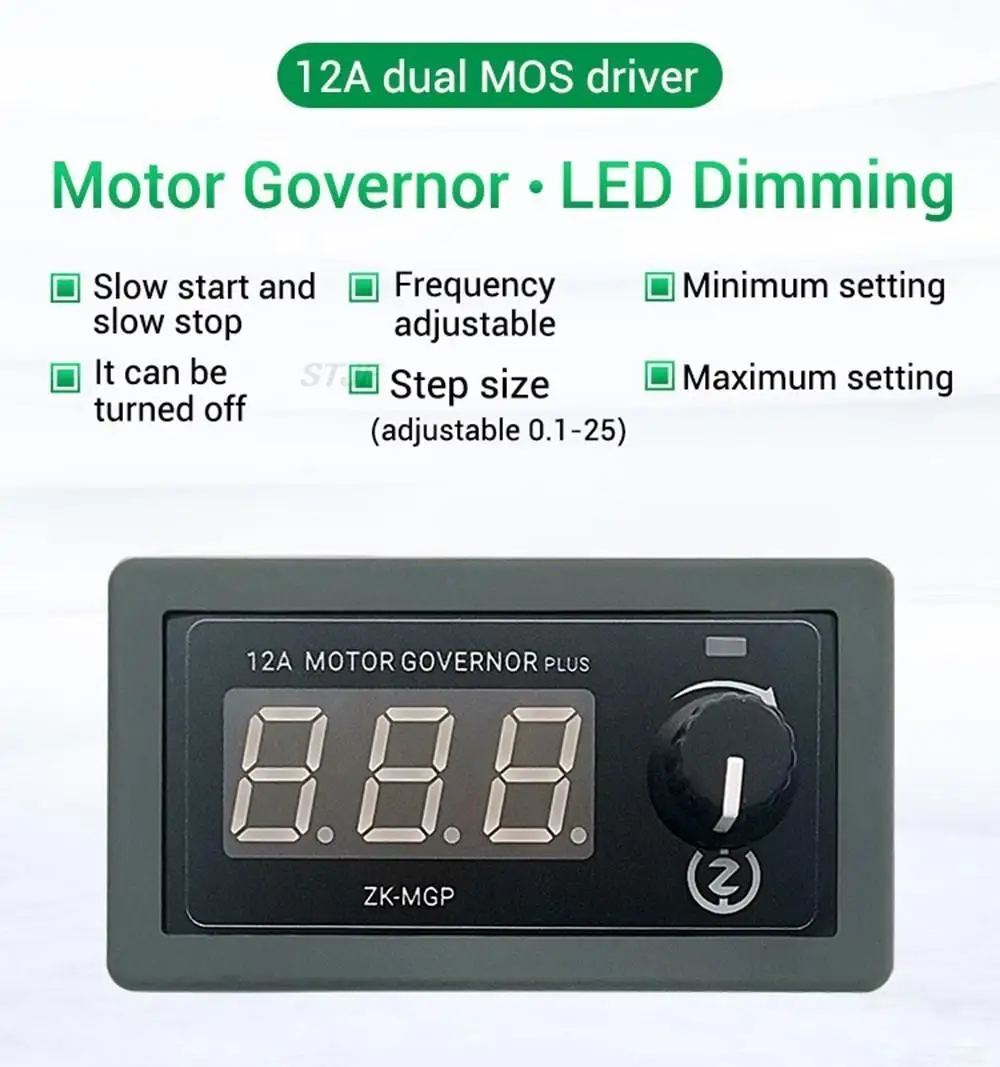

6. Slow start time: 0.0-9.9 seconds
7. Slow stop time: 0.0-9.9 seconds
8. Step size: 0.1-25 step can be selected

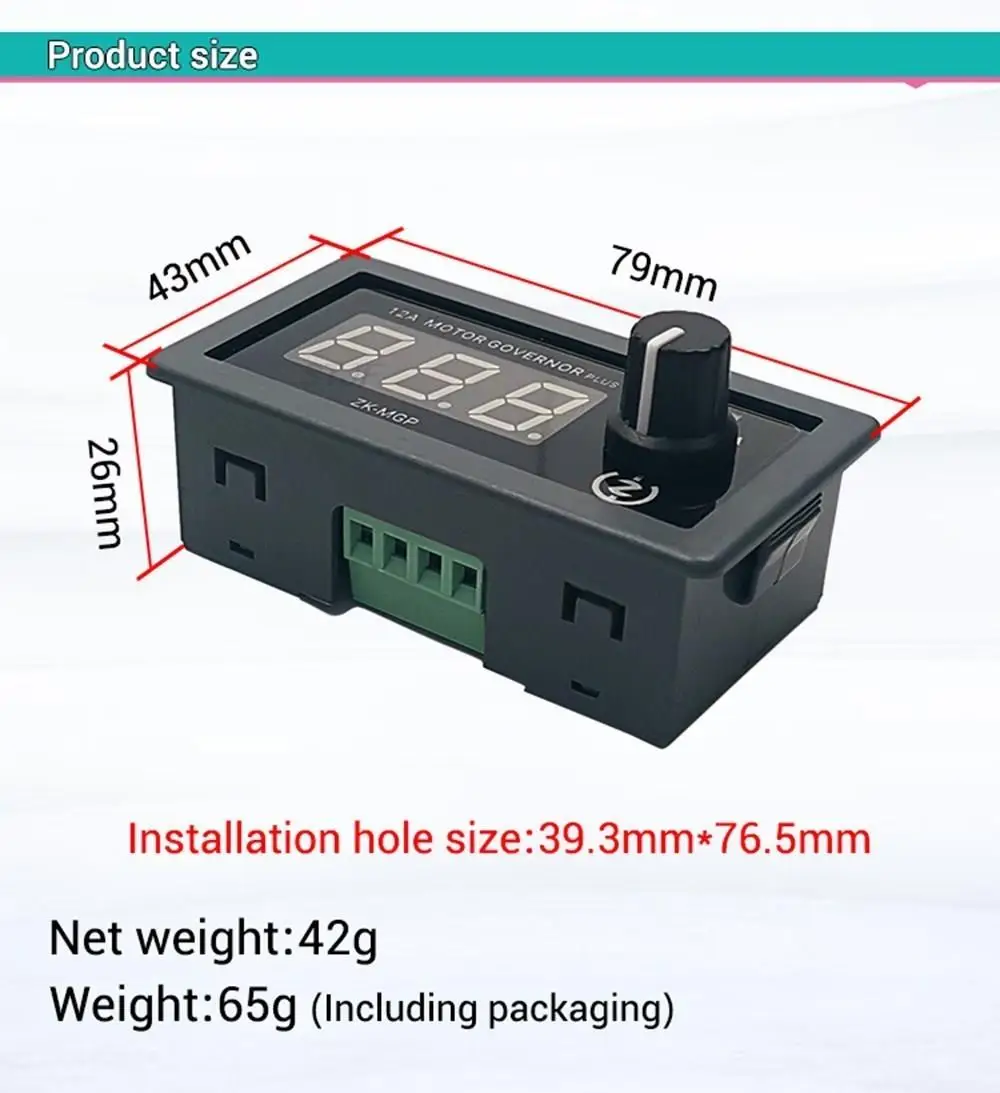

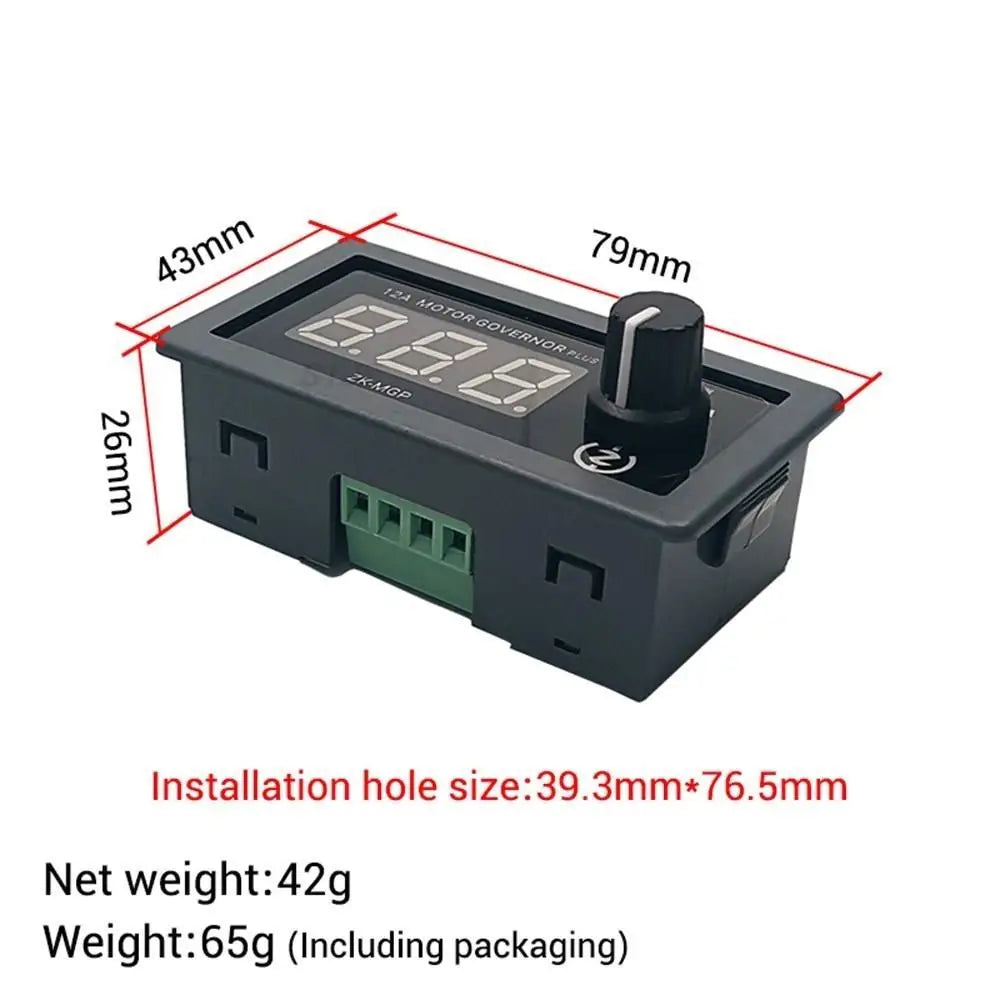

9. Product size: 79mm*43mm*26mm Installation opening size: 39.3mm*76.5mm
10. Product weight: 42g (net weight), 65g (including packaging)
Package included:
1 x ZK-MGP PWM DC Motor Speed Controller 1KHz-99KHz Frequency Adjustable Motor Governor LED Dimming DC 5-30V 12A Dual MOS Driver
