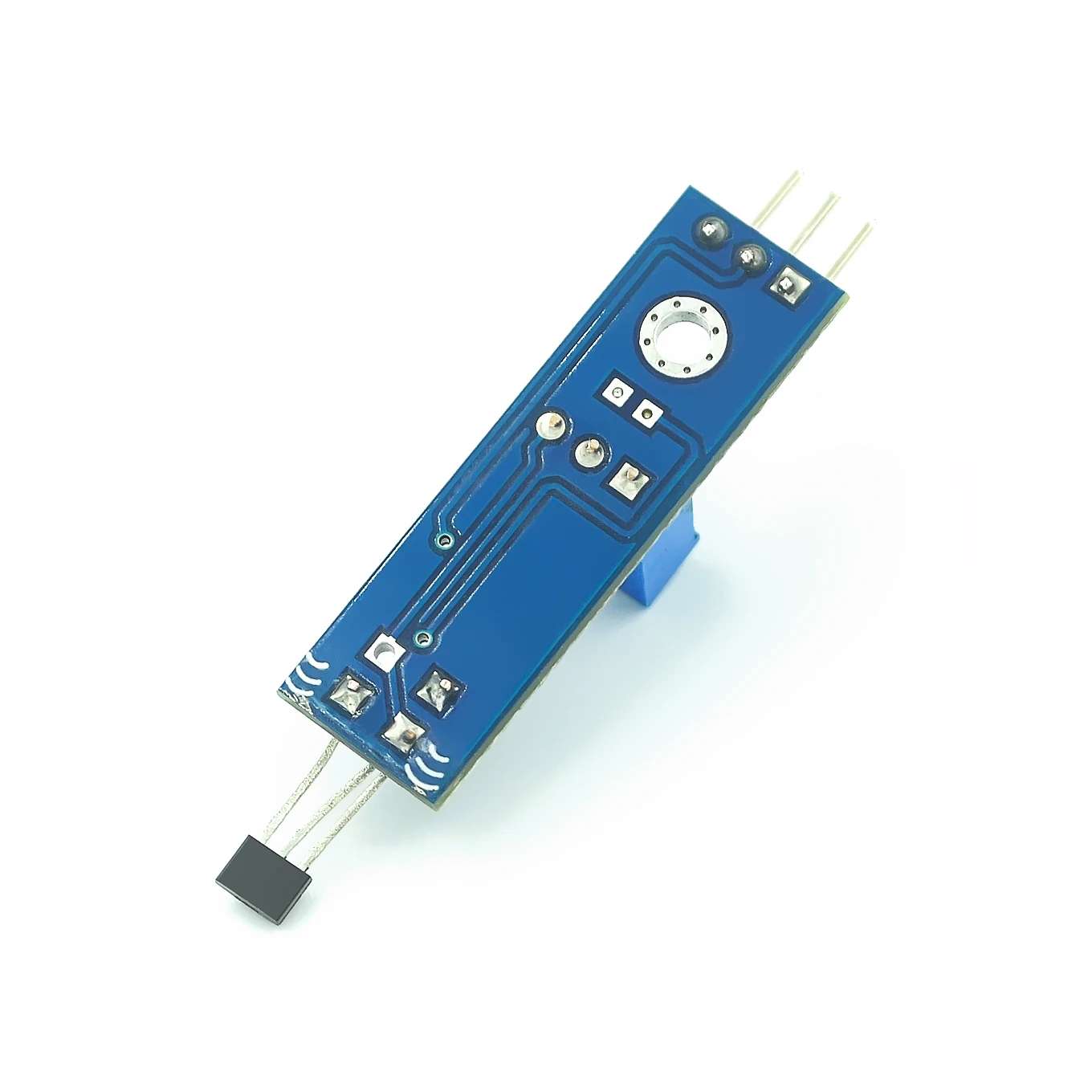

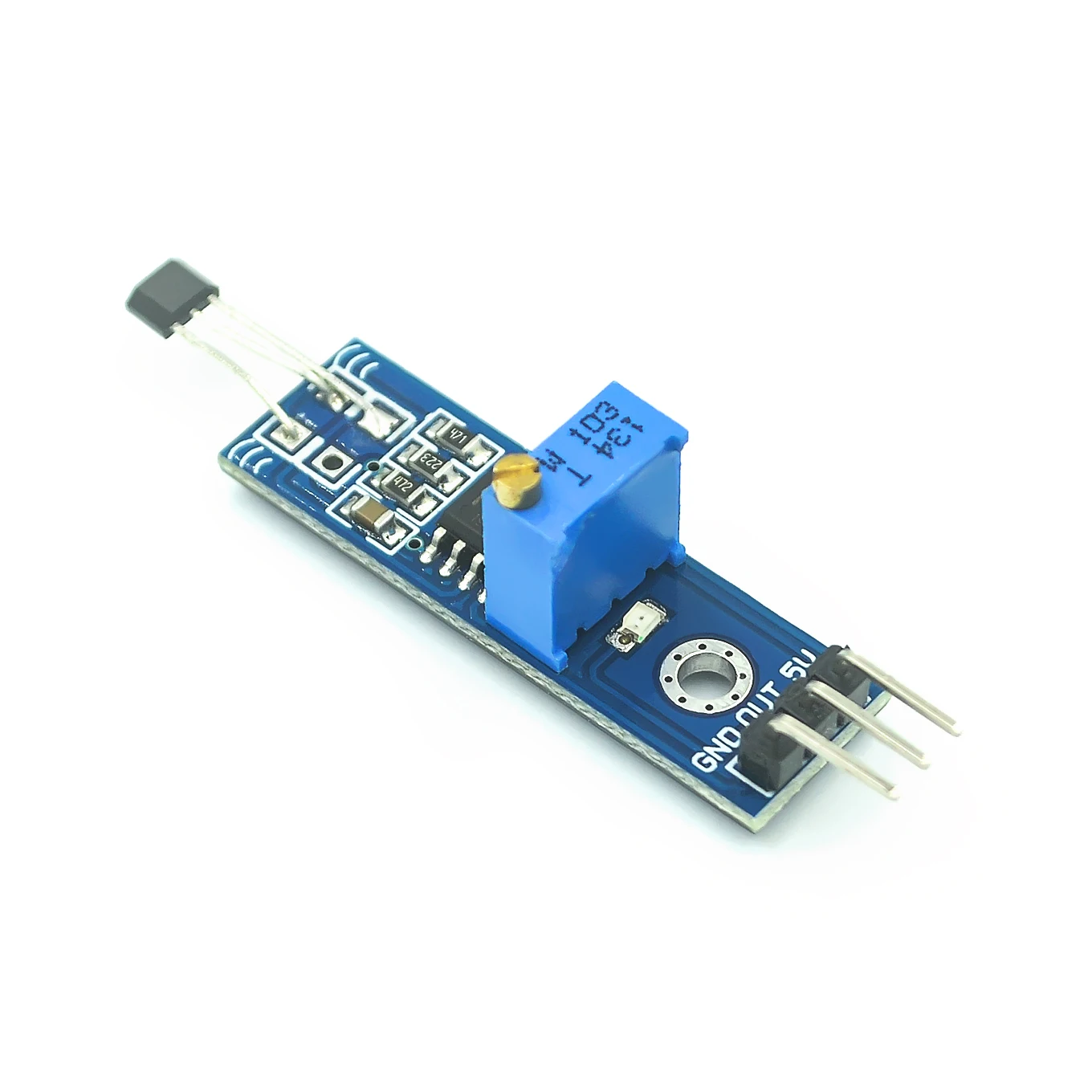

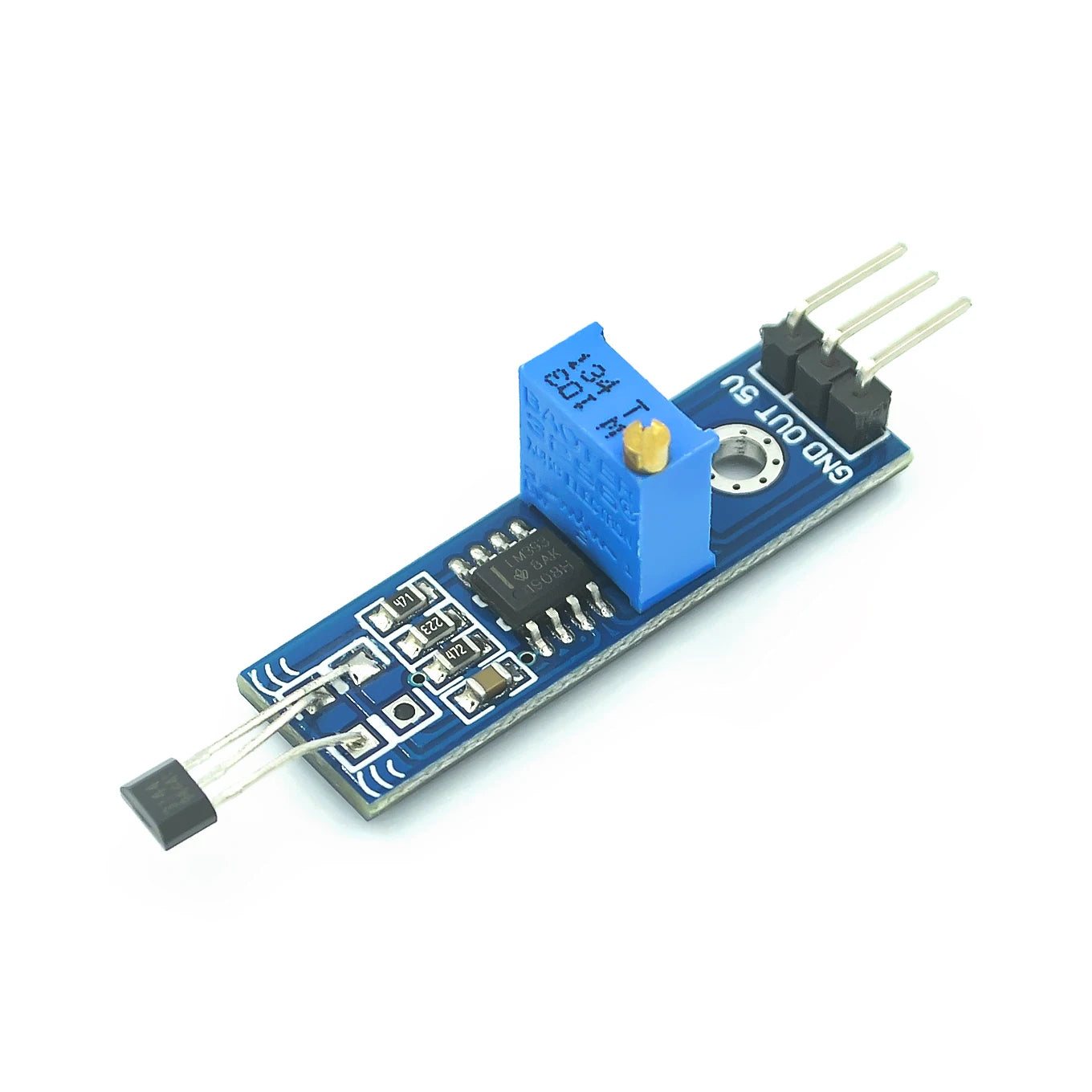

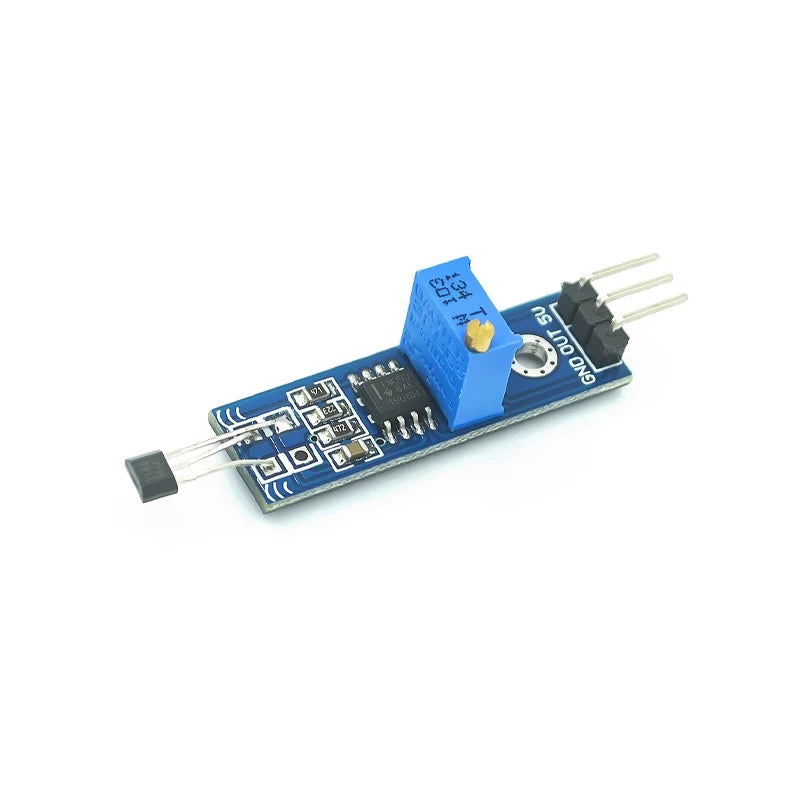

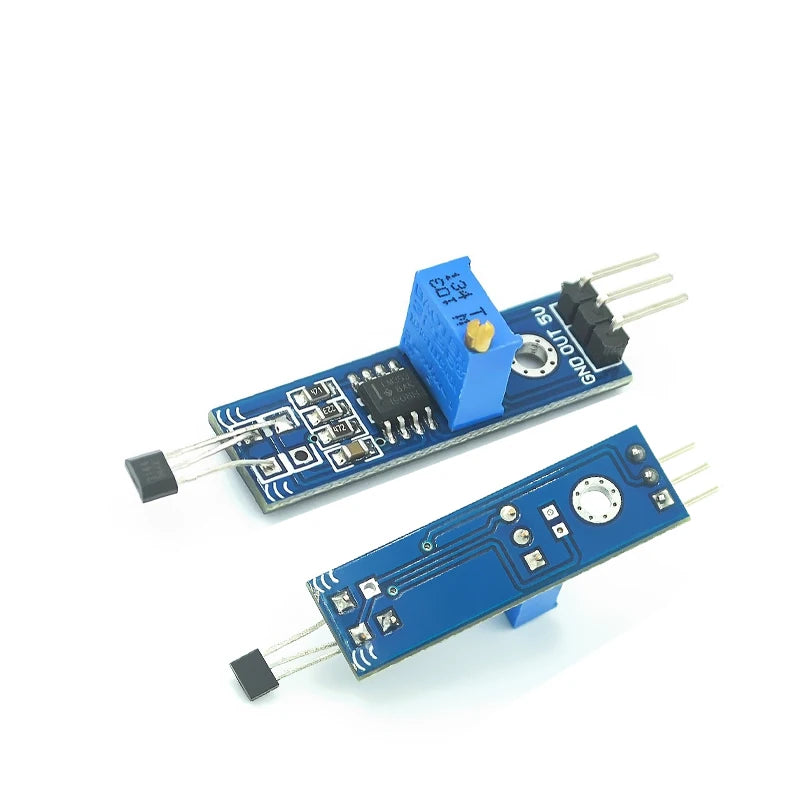

Custom Ys-27 Hall sensor module Hall revolution count detects sensor module switch

Link: https://pan.baidu.com/s/1-pXqF38TyZBcu4tXFe15Sg
Extraction code: 6AZV

Product features

Brief description:

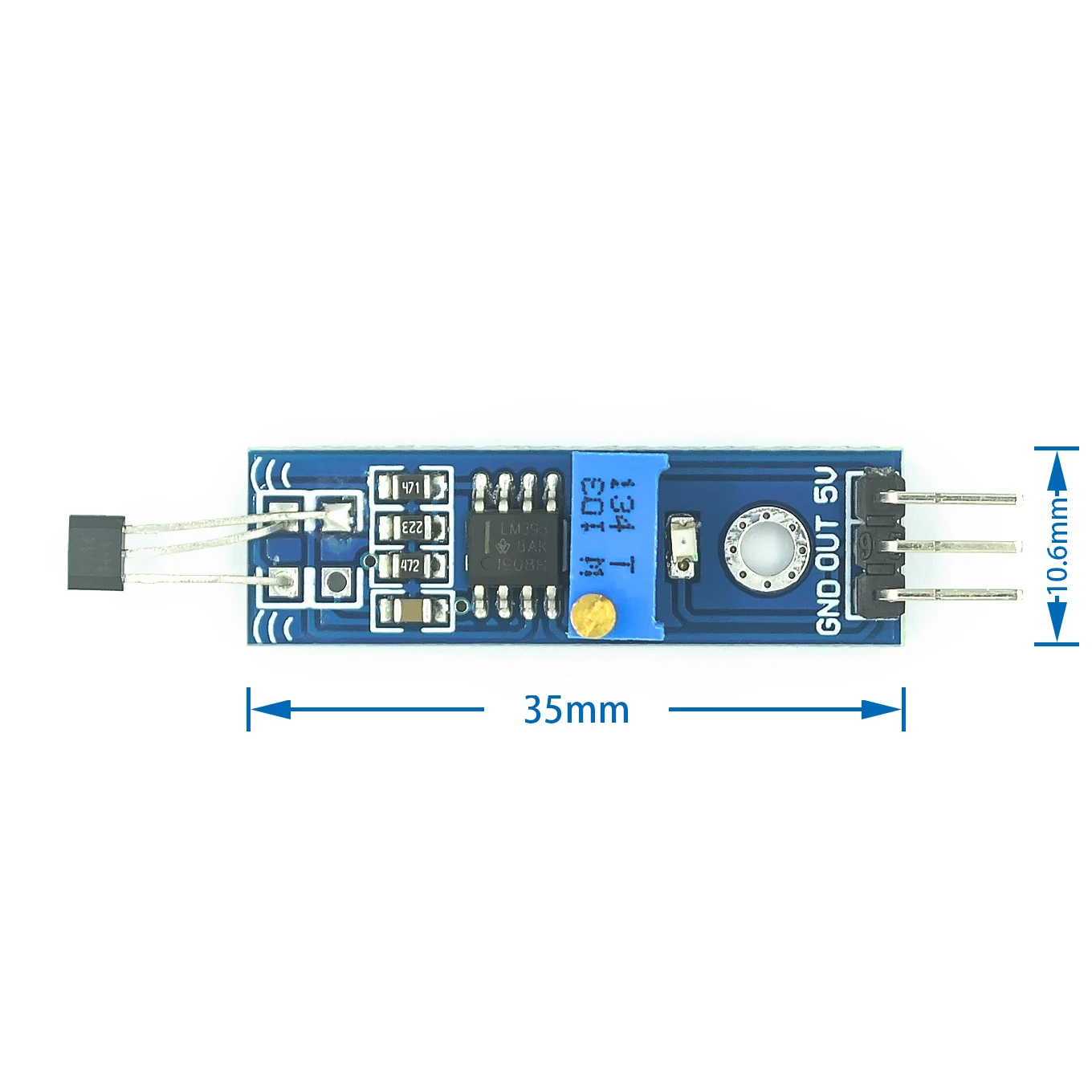

I. Dimensions: length 32mmX width 11mmX height 20mm
Ii. Main chip: LM393, 3144 Hall sensor magnetic induction probe
Iii. Working voltage: dc 5 Volts
Iv. Features:

1. Signal output indicator;

2. With mounting hole, convenient for fixed installation;
3. The output effective signal is low;
4. Adjustable sensitivity (fine adjustment);
5, magnetic field induction detection sensitivity is extremely high;
6. Output switch of circuit board can be directly connected to IO port of MCU;
7. It can be used for motor speed measurement, position detection and other occasions.
