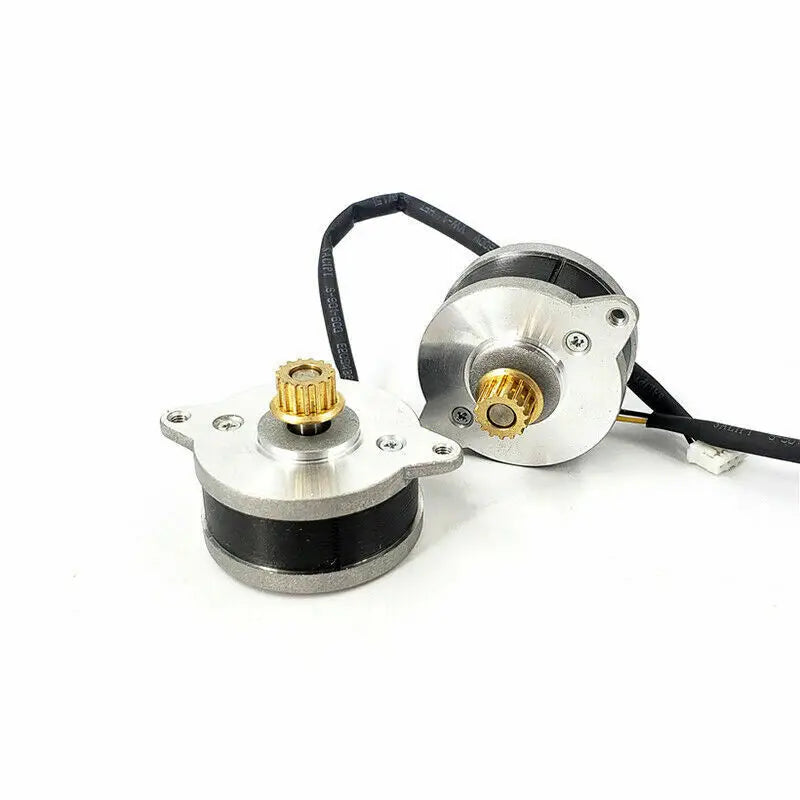

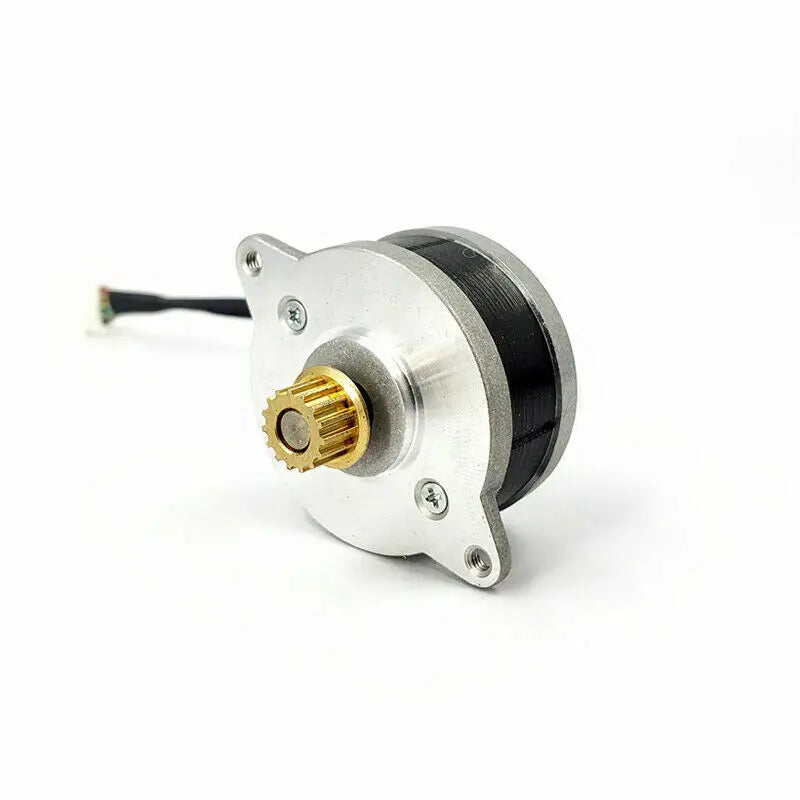

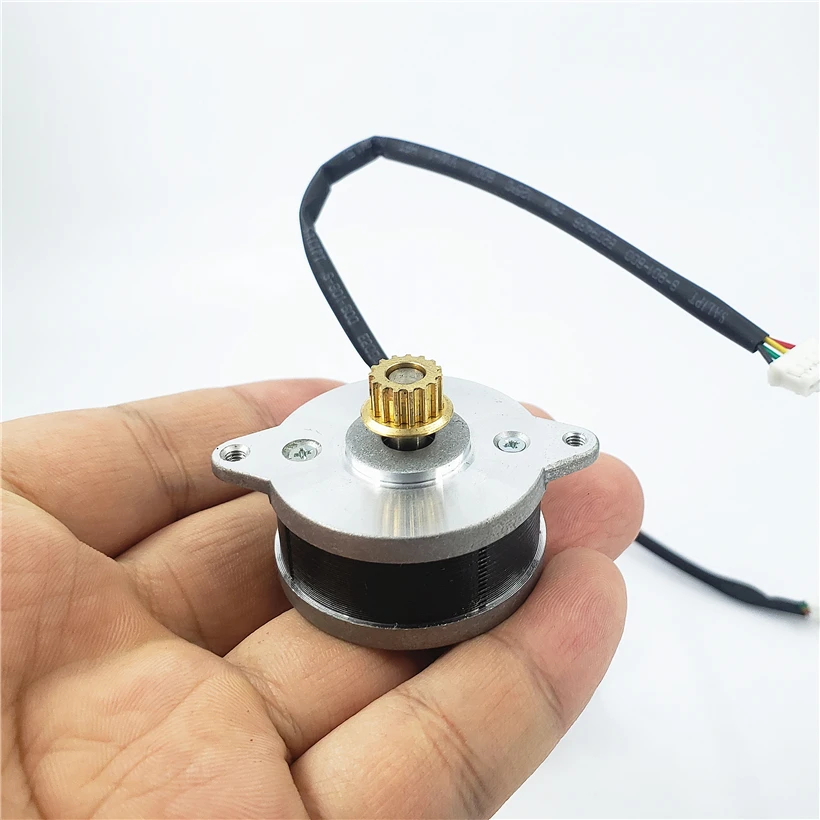

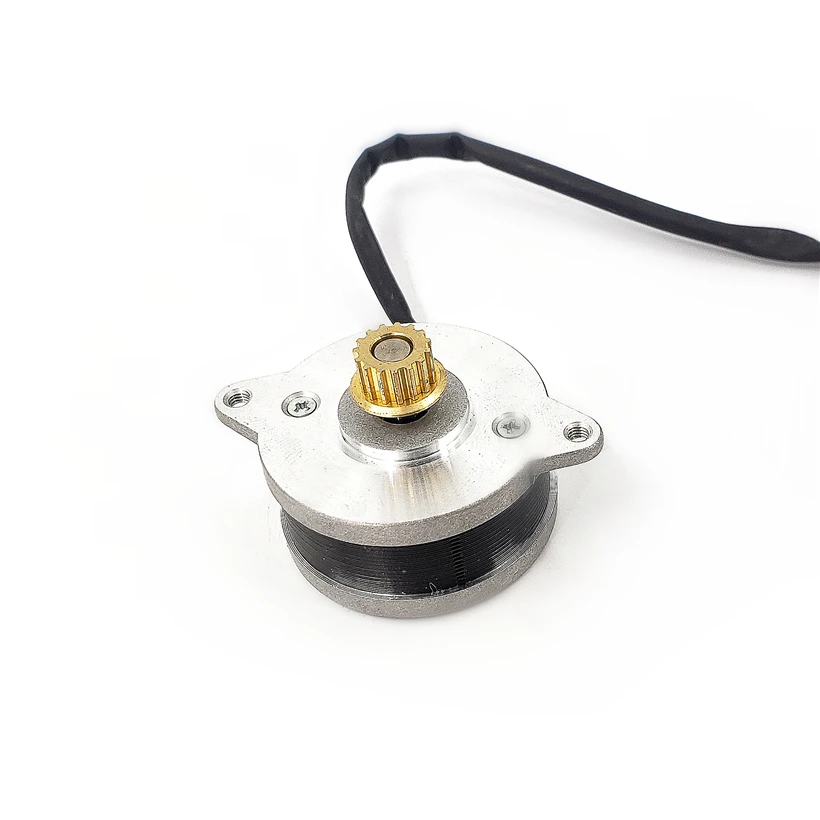

Custom YK36H17HM Micro 36MM Round Stepper Motor 2-Phase 4-Wire 0.9 Degree Stepping Motor with Brass Gear Pulley for Monitoring Pan Tilt Manufacturer

Specification:

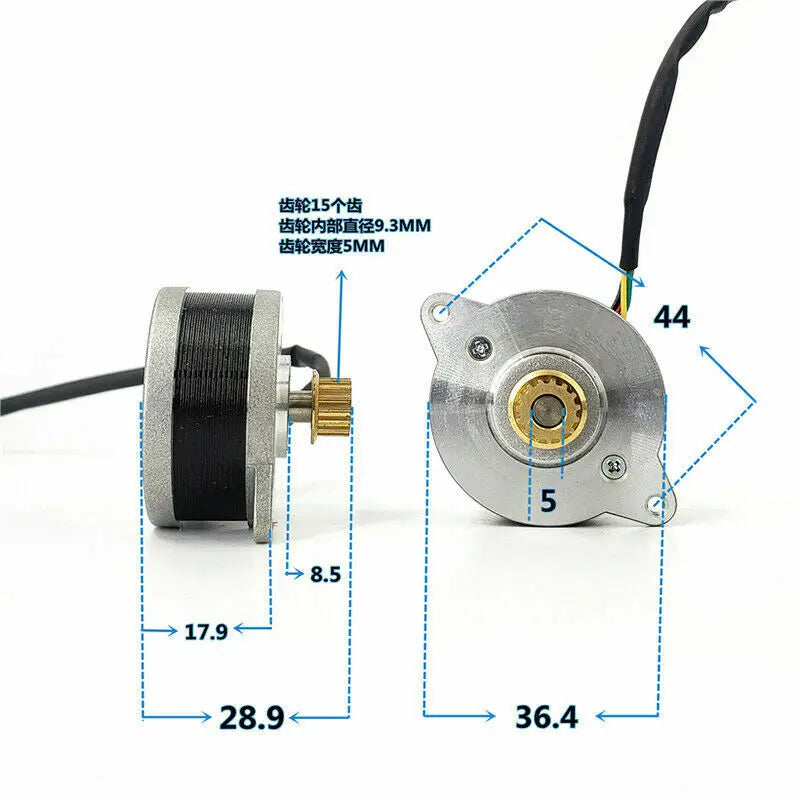

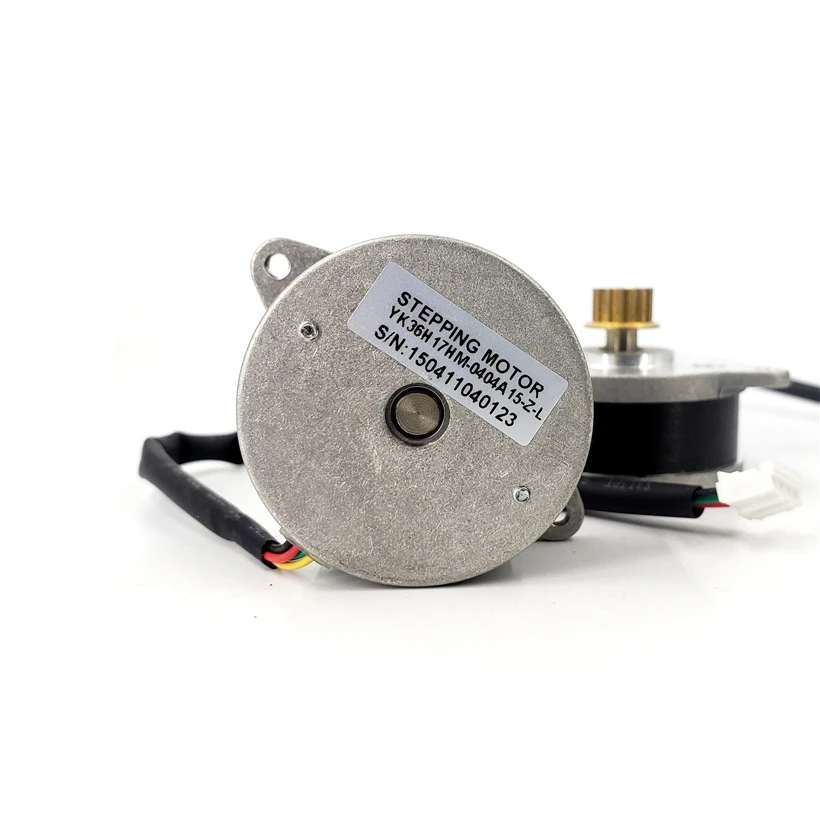

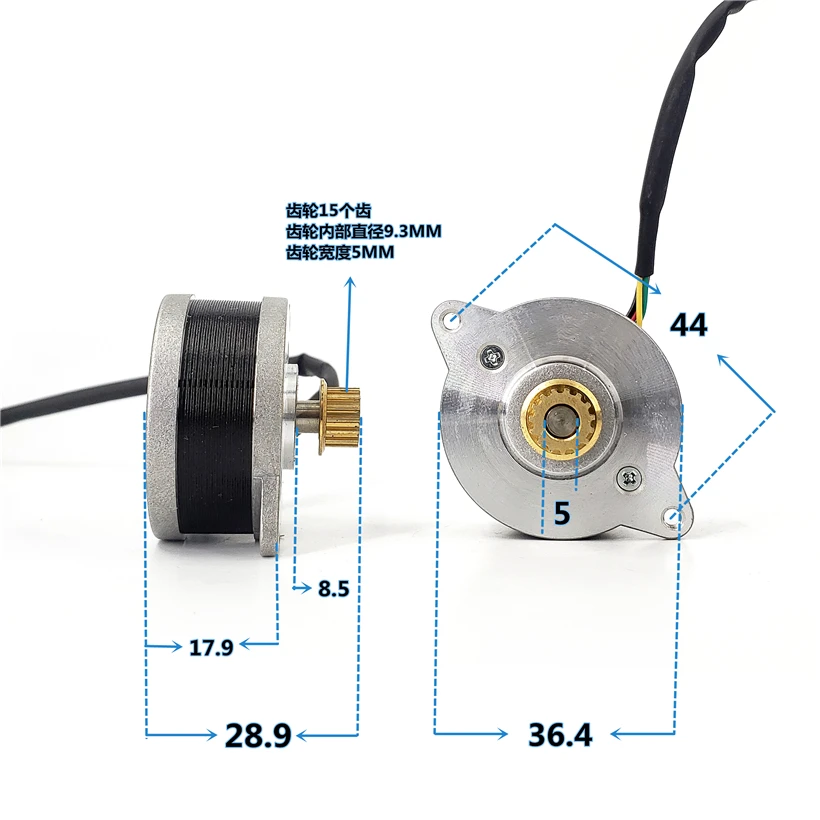

1.Model: YK36H Stepping Motor

2.Motor diameter: 36.4mm

3.Motor height: 17.9mm

4.Output shaft diameter: 5mm

5.Output shaft length: 8.5mm

6.Metal gear: 15 teeth,9.3mm diameter,5mm thickness

7.Step angle: 0.9 degree

8.Phase resistance: 9 ohms

9.Type: 2-phase 4-wire(red line & yellow line:A phase; green line & black line:B phase)

10.@6V short circuit current: 0.54A

11.Weight: 83g







Package Include:



Stepper Motor  x 1pcs

 Welcome Customize Order!
