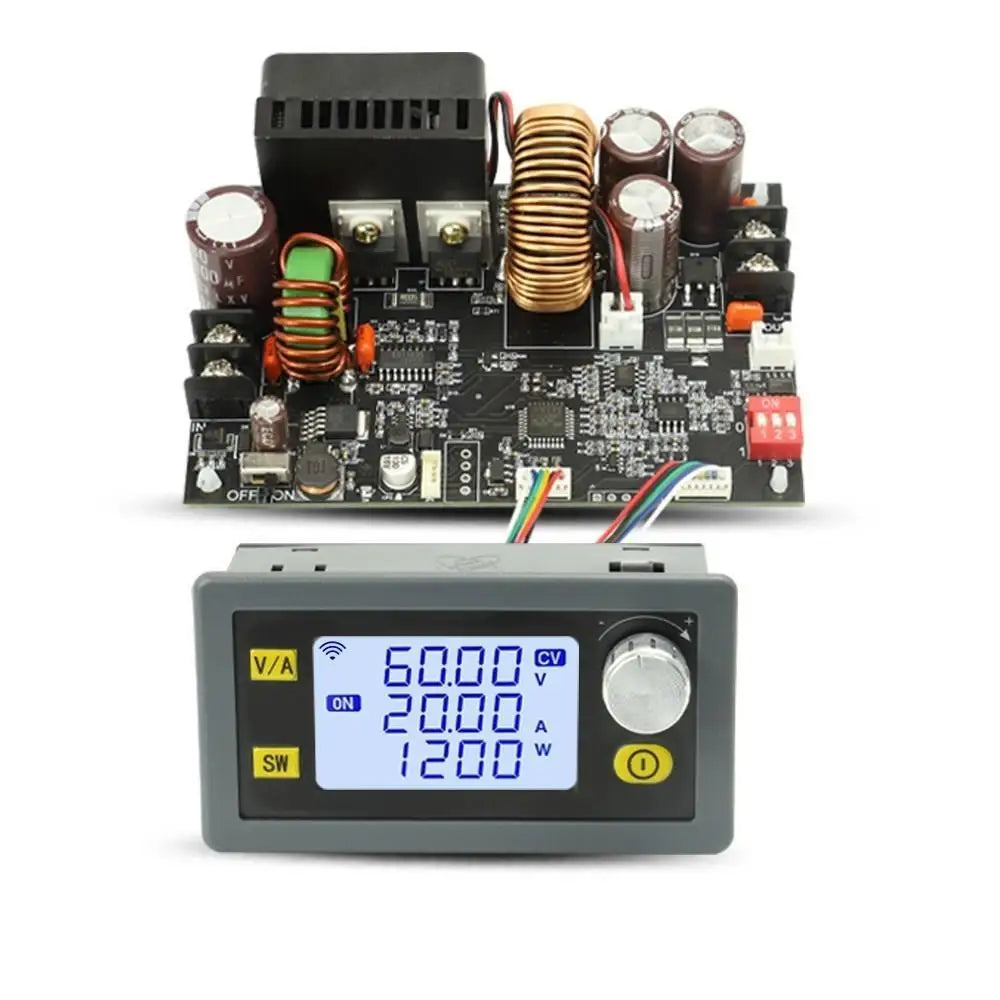

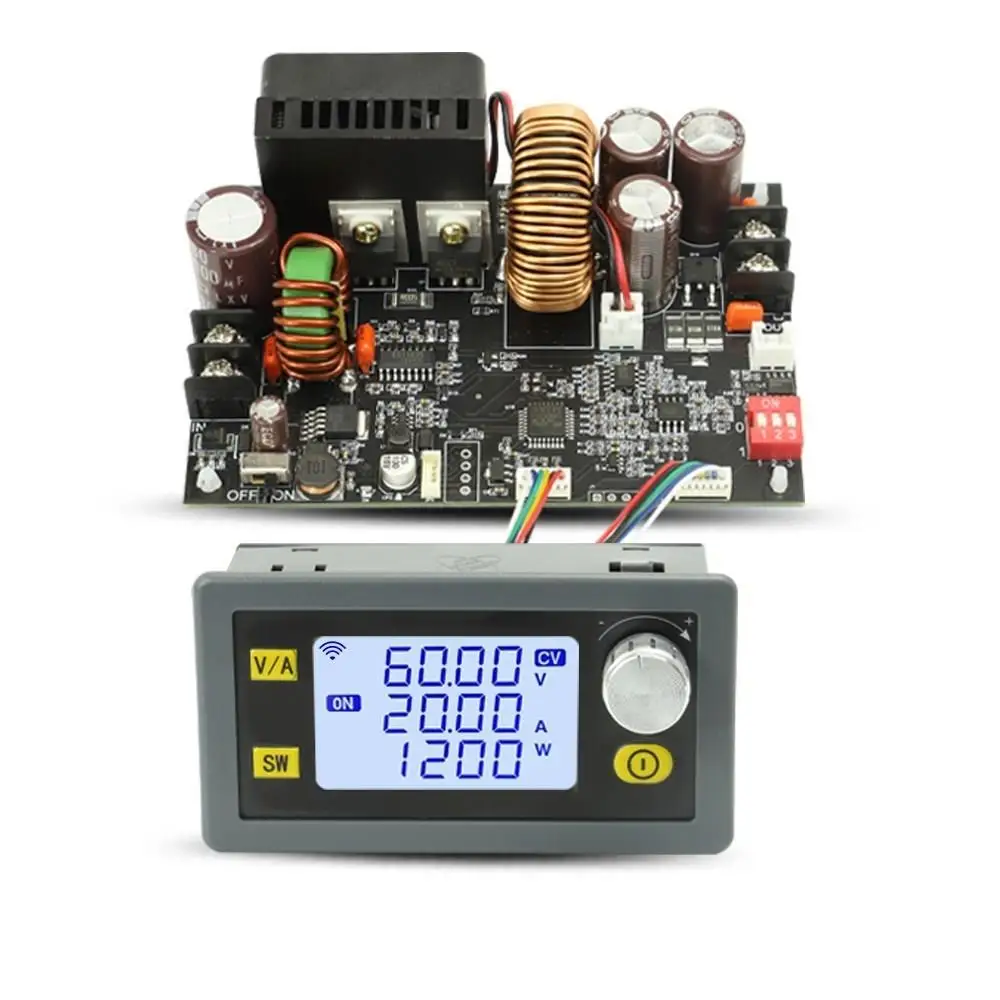

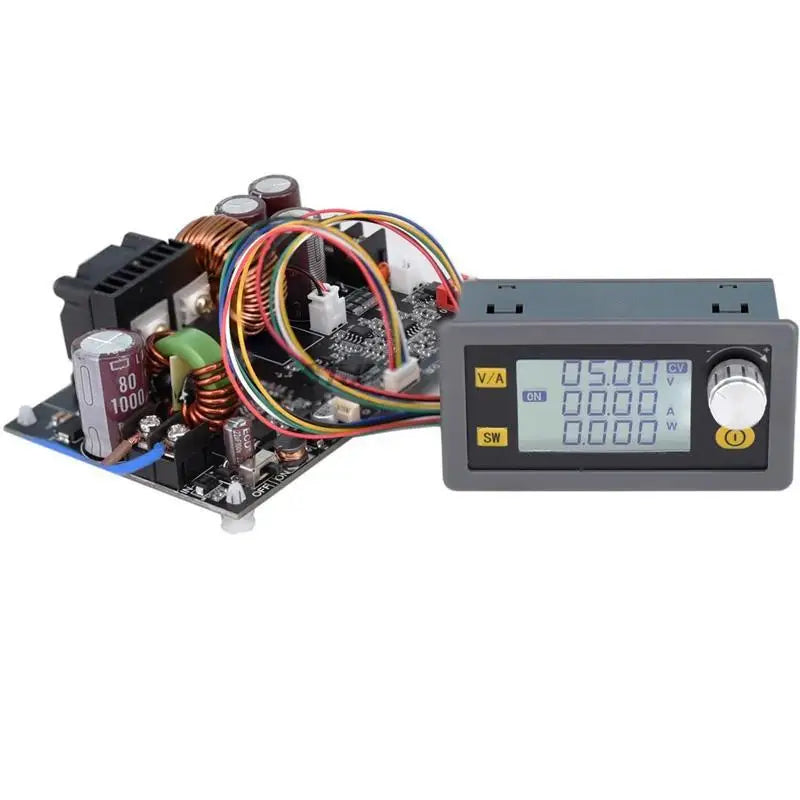

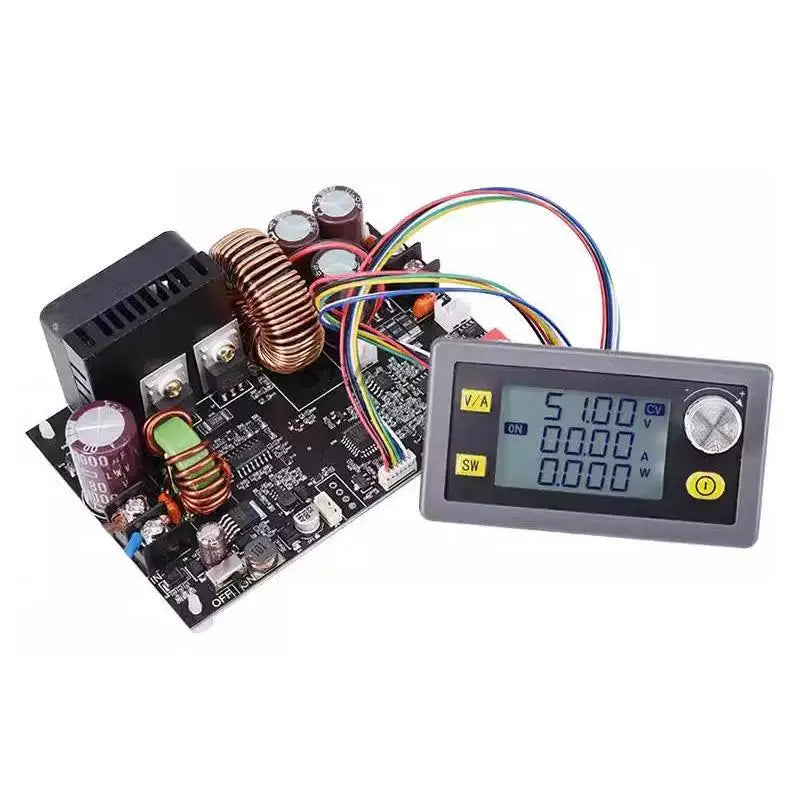

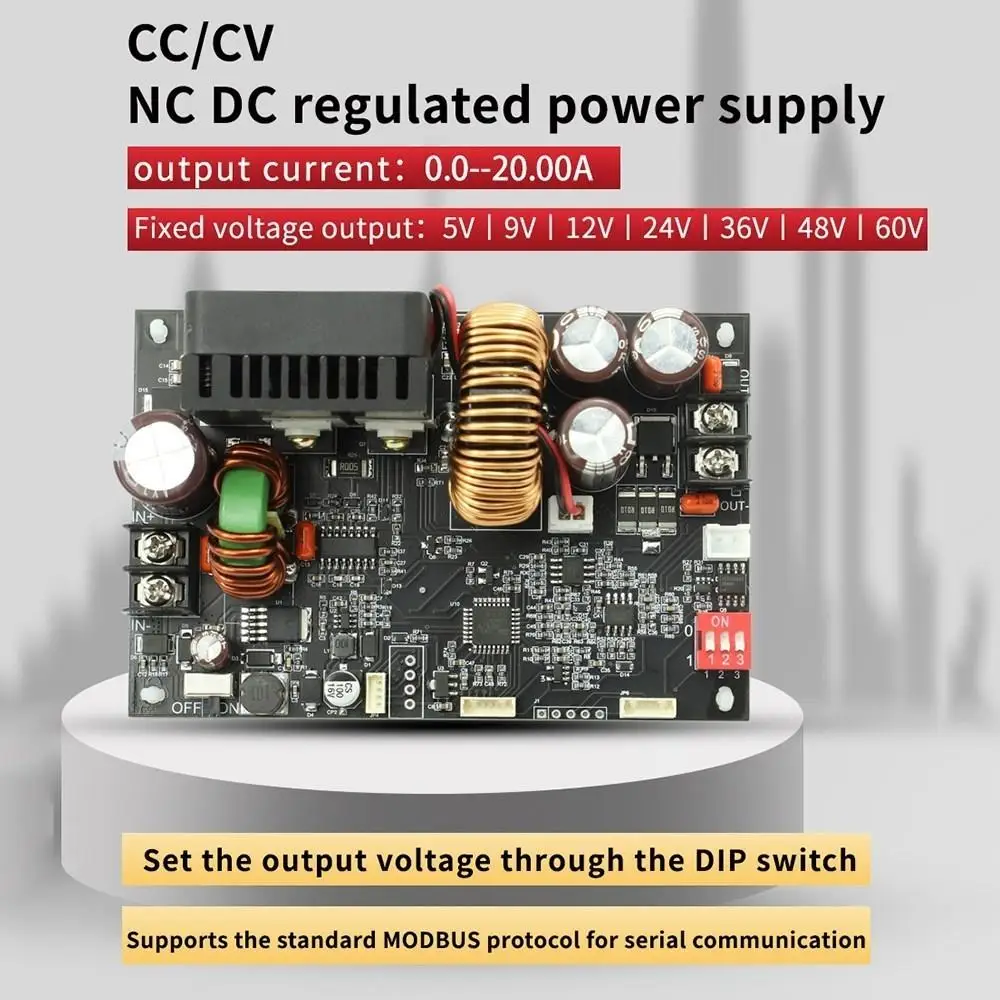

Custom XY6020L 1200W CNC Voltage Regulator Power Supply DC Adjustable Stabilized 20A Constant Voltage Constant Current Step-Down Module

Product features:

1. Use of high-quality materials, durable

2. Constant voltage and constant current CNC DC voltage stabilization power supply

3. Large screen display, full-view dedicated power LCD

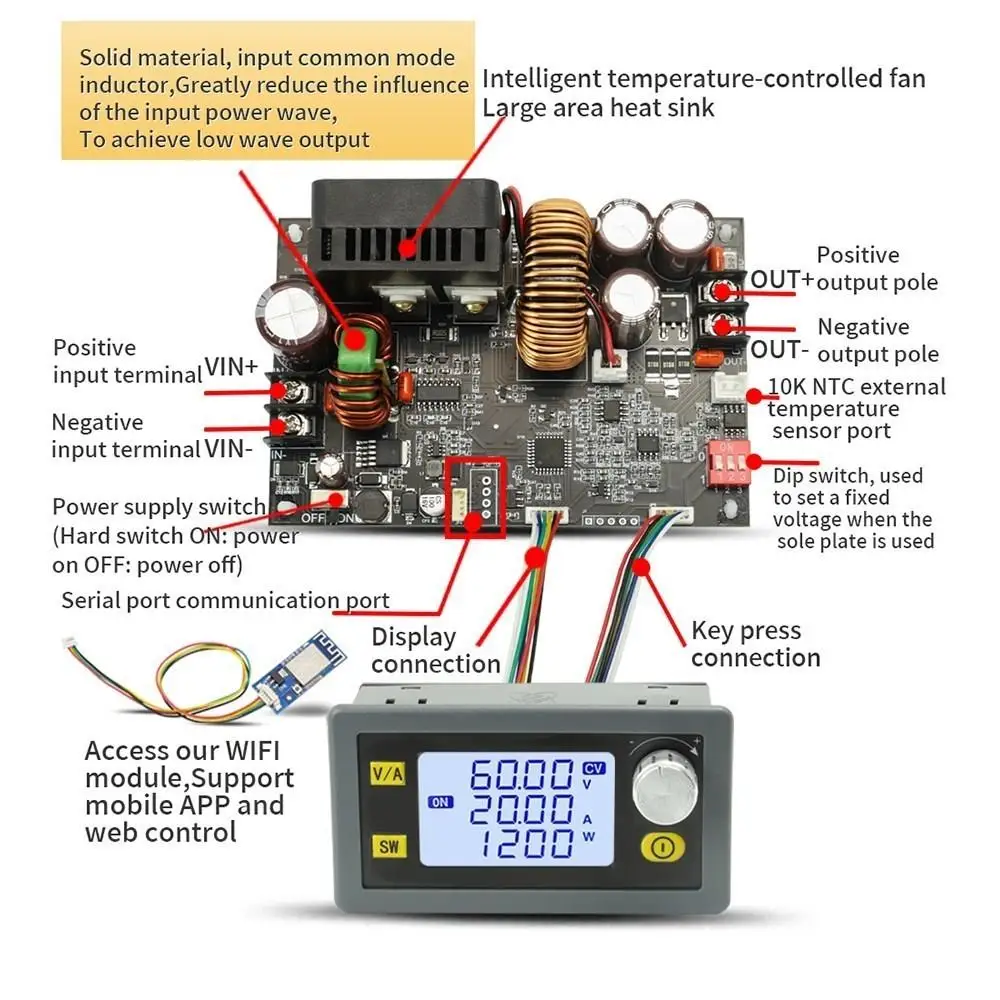

4. Solid materials, input common-mode inductor, significantly reduce the impact of the input power supply wavenumber, to

achieve low wavenumber output

5. Complete display, simple operation, stable performance

Parameters:

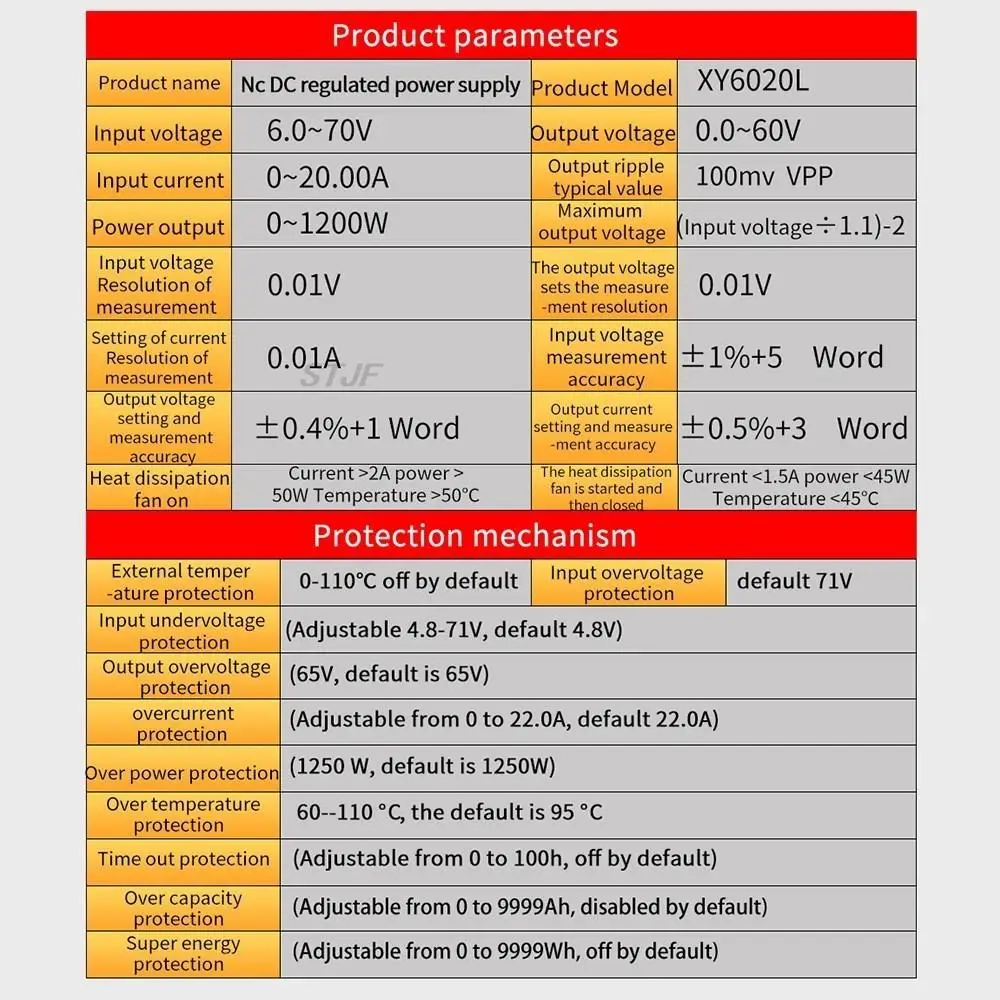

Product parameters.

Input voltage: 6.0~70V

Output voltage: 0.0~60V

Output current: 0~20.00A

Output ripple typical value: 100mv VPP

Output power: 0~1200W

Maximum output voltage: (input voltage + 1.1)-2

Input voltage measurement resolution: 0.01V

Output voltage setting measurement resolution: 0.01V

Current setting measurement resolution: 0.01A

Input voltage measurement accuracy: ±1% + 5 words

Output voltage setting and measurement accuracy: ±0.4% + 1 word

Output current setting and measurement accuracy: ±0.5% + 3 words

Cooling fan on: current> 2A power>50W temperature>50℃

Cooling fan on and off: current <1.5A power <45W temperature <45°C

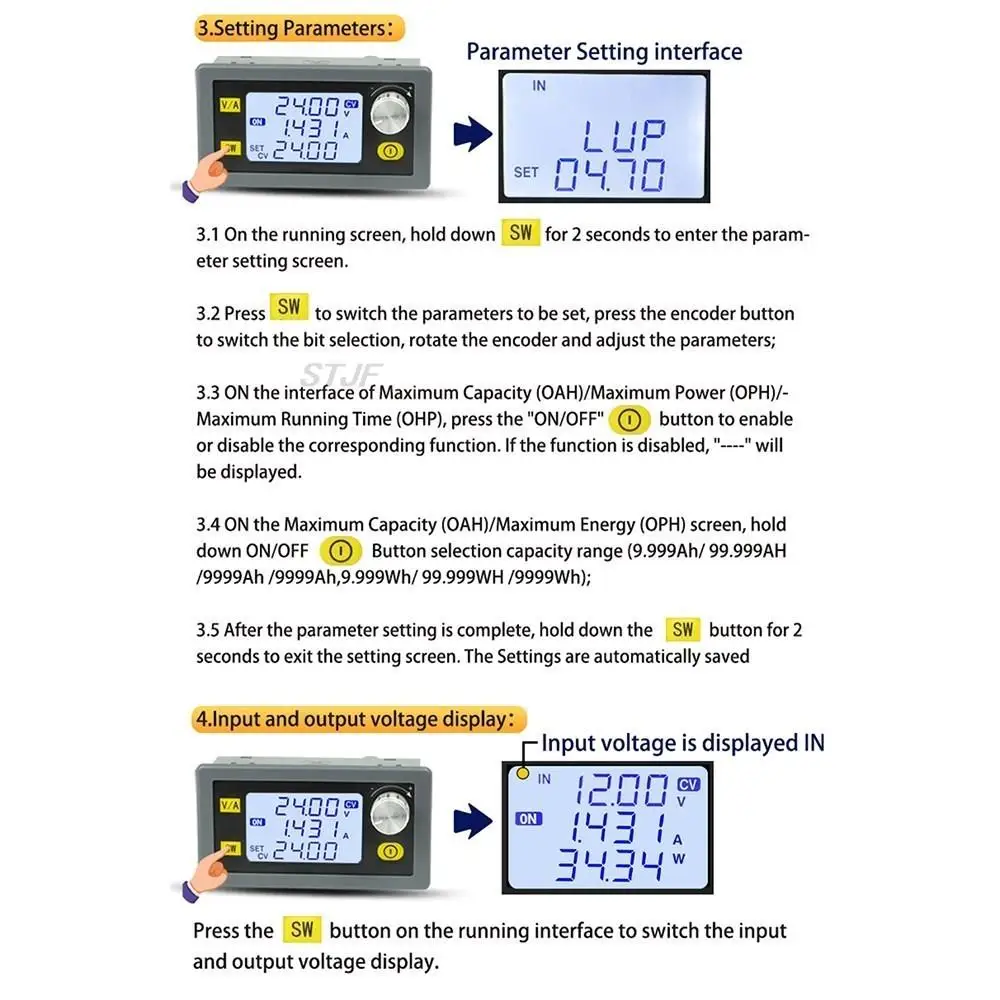

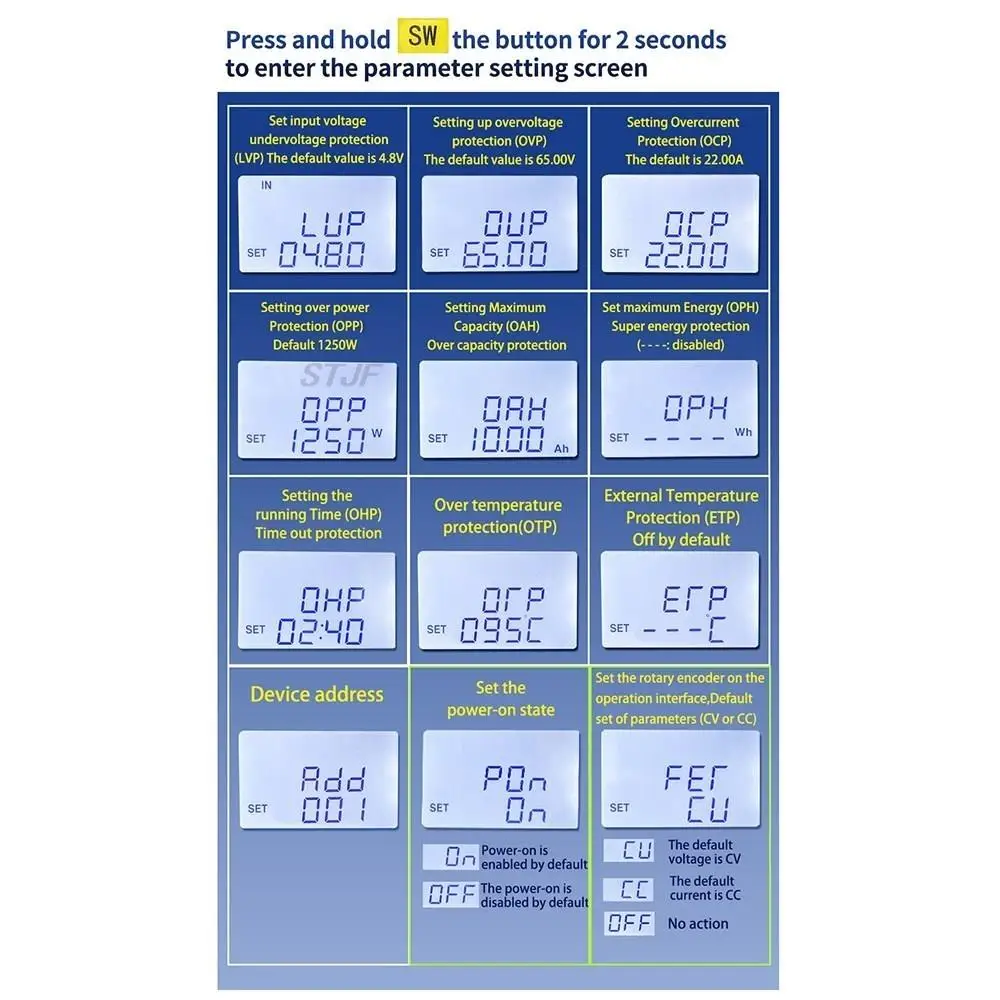

Protection mechanism.

External temperature protection: 0 - 110°C default off

Input overvoltage protection: 71V default

Input undervoltage protection: 4.8-71V adjustable default 4.8V

Output over-voltage protection: 0-65V default 65V

Output overcurrent protection: 0-16A default 16A

Output over power protection: 0-950W default 950W

Over temperature protection: 60 - 110°C Default 95°C

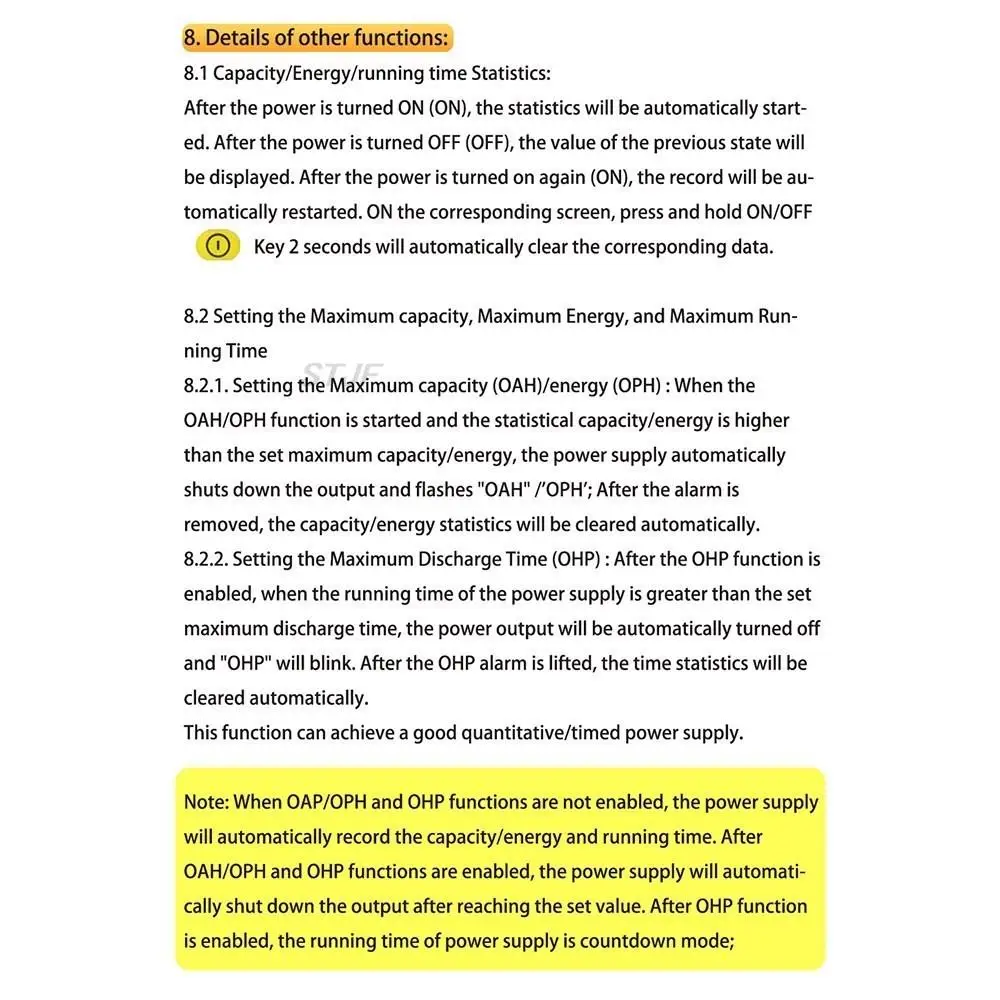

Timeout protection: 0 -100H adjustable Default off

Over capacity protection: 0~9999AH adjustable Default off

Super energy protection: 0~9999WH adjustable Default off

Package List:(A and B optional)

Type A:

Meter head *1

Base plate *1

Cable*2

Type B:
