Custom XS3868 backplane adapter plate master chip stereo audio Shield module OVC3860 PCBA Manufacturer
Custom XS3868 backplane adapter plate master chip stereo audio Shield module OVC3860 PCBA Manufacturer
Regular price
$5.00 USD
Regular price
$5.00 USD
Sale price
$5.00 USD
Unit price
per
Couldn't load pickup availability

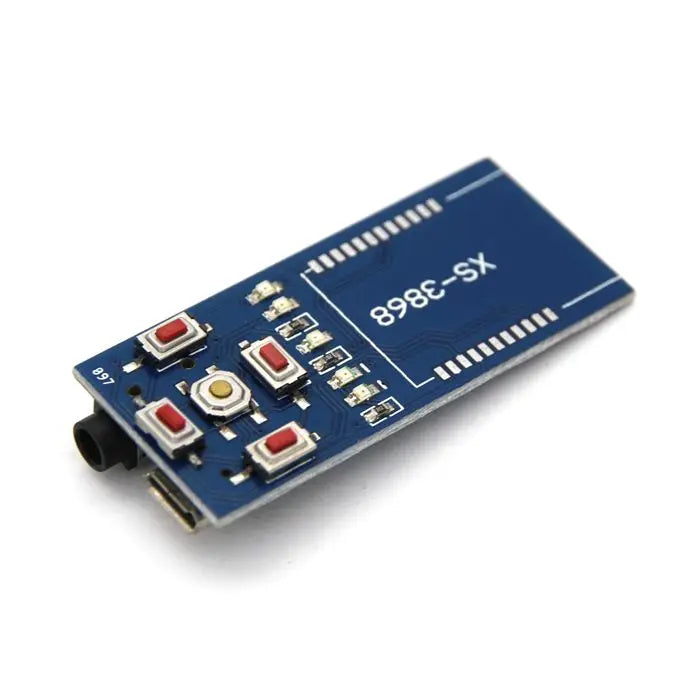

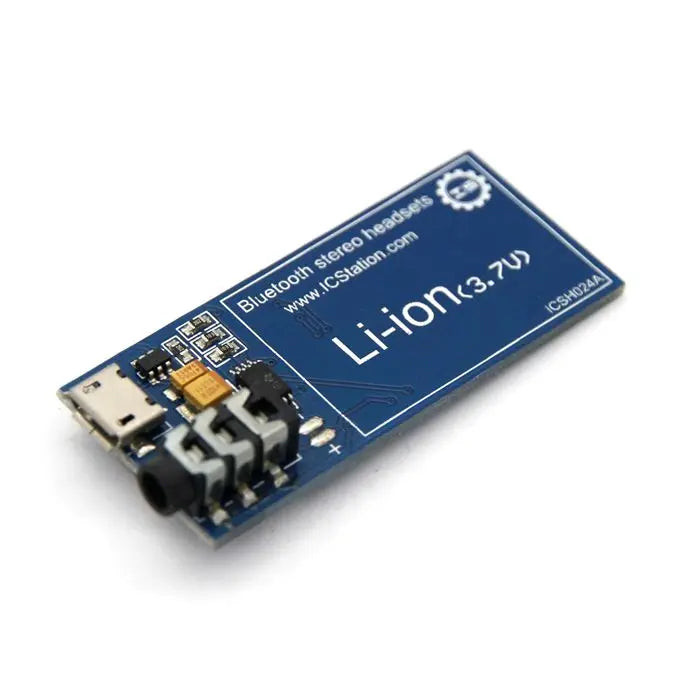

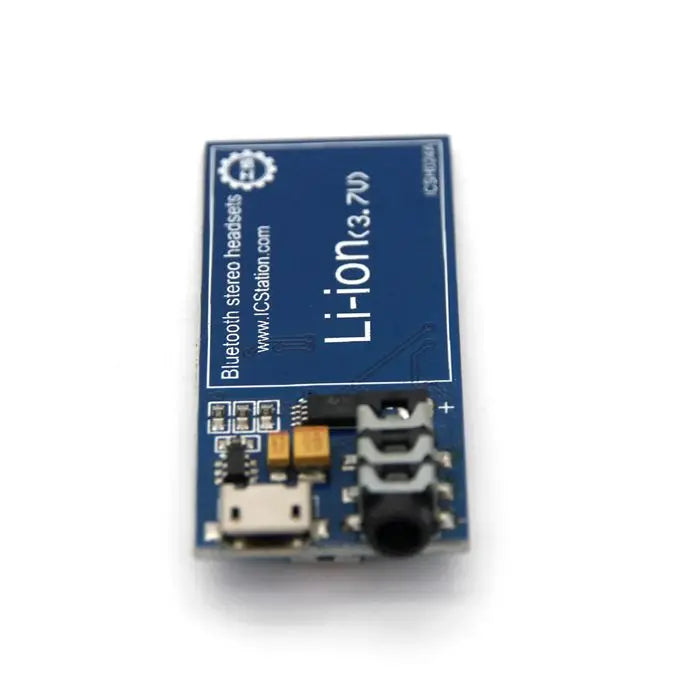

XS-3868 stereo module
1. Features
1) high integration, low cost, low power consumption
2) comply with 2.0 specification
3) Support A2DP V1.2, AVRCP V1.4 profiles
4) Integrated EEPROM, can be configured to work mode and parameters
5) stereo audio output can directly drive 40mW 32Ω speaker
6) Low voltage detection
2. Scope
1) stereo headphones
2) stereo
3. Parameter
1) .USB charging voltage: 4.2V ~ 9V
2) .USB charge current: 400ma
3) .XS-3868 power supply voltage: 3.6V ~ 4.2V
4) Play Music Current:. 80MA (MAX)
5) With machine current: less than 1MA
6) Module size:. 49 * 22mm (without welding XS-3868), 54.5 * 22mm (welding XS-3868)
4. Instructions
Meaning LED lights
