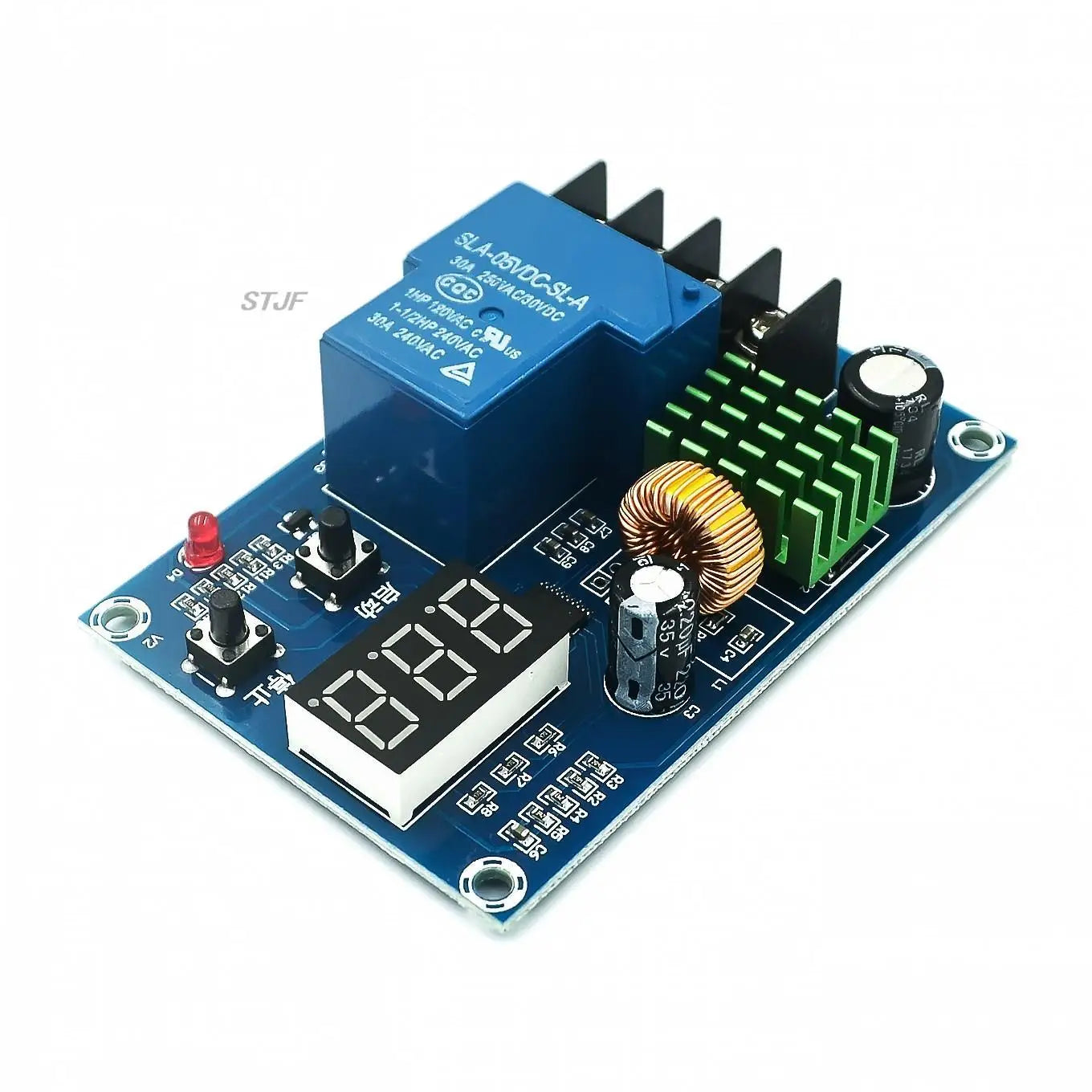

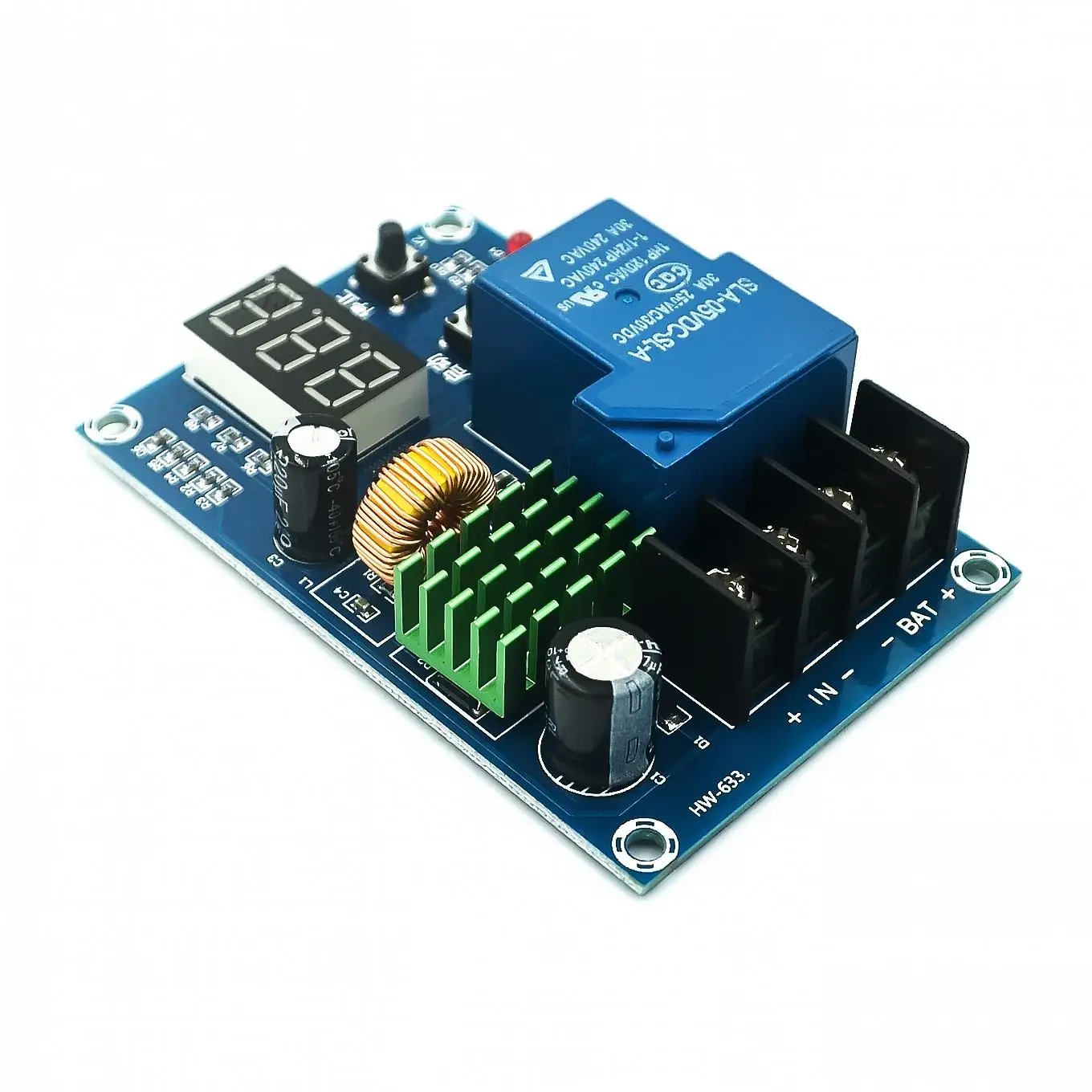

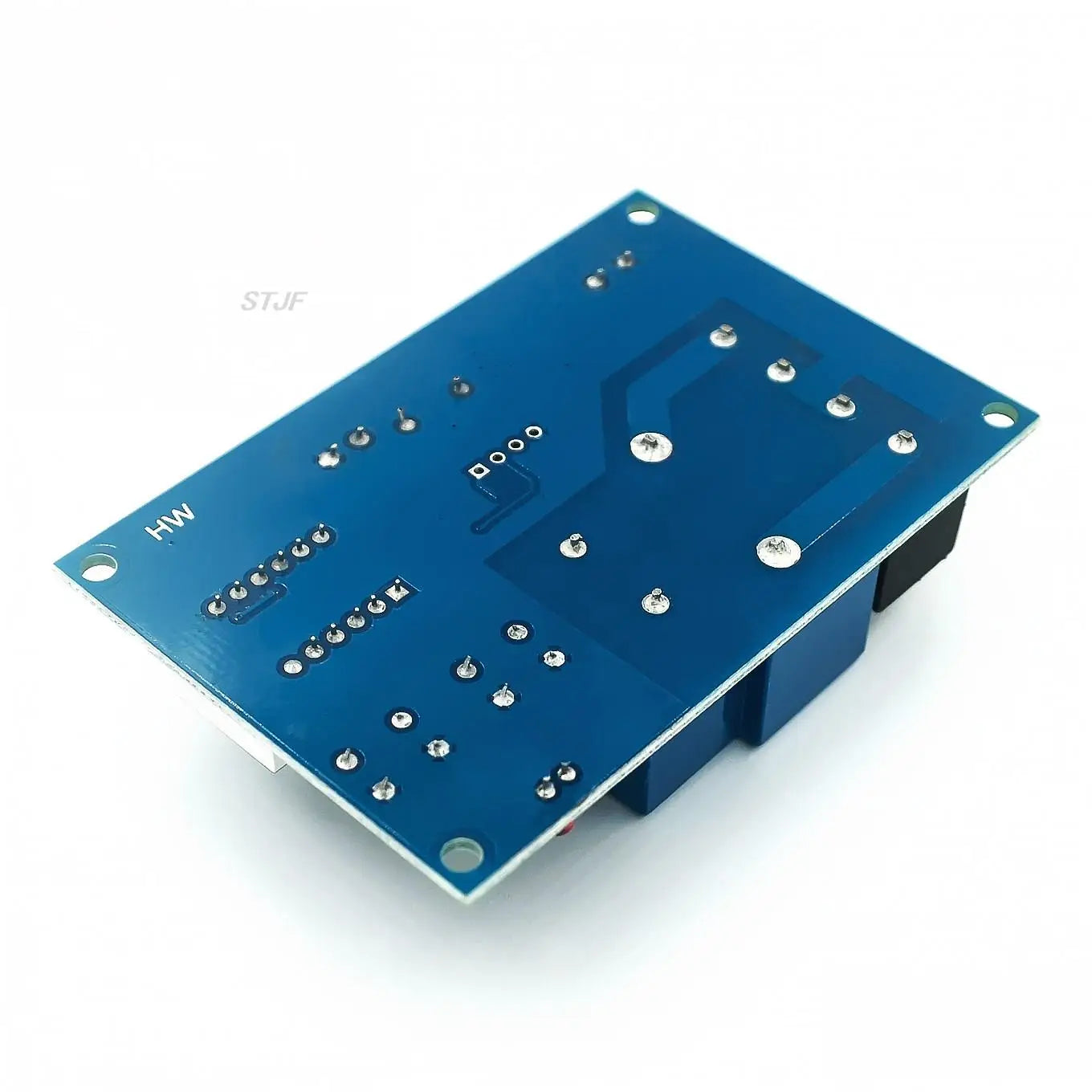

Custom XH-M604 Battery Charger Control Module DC 6-60V Storage Lithium Battery Charging Control Switch Protection Board

Description



Input Voltage:DC 6-60V

Display Accuracy:0.1V

Control Accuracy:0.1V

Output Type:direct output

Voltage Tolerance:±0.1V

Apply For:6-60V MAX 80V battery

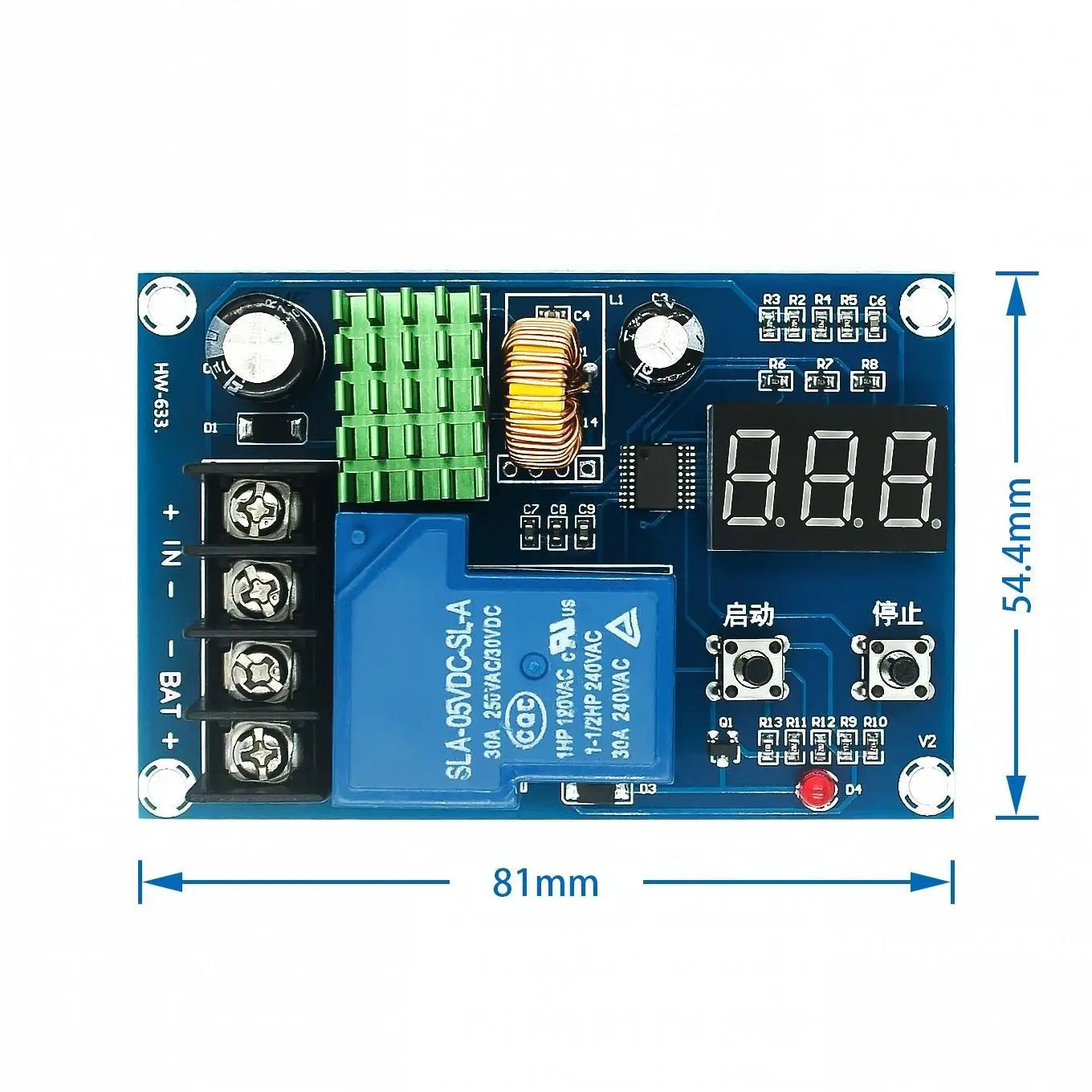

Dimension:81*54*18mm

Use: In the setting voltage value, start button play button raised, about stop button role to down key



1. Set the start voltage:

Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.



2. Set Stop voltage:

Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.



3. Setting Error:

Energized state while holding down the start / stop button, digital display 888, which is the factory setting.
