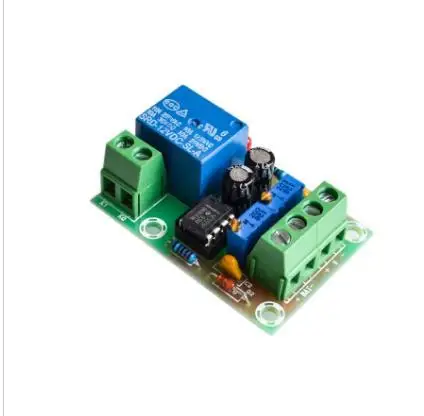

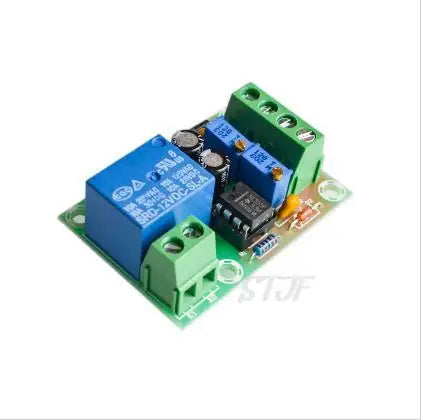

• Model: XH-M601
• Power Supply: 13.8V-14.8V
• Relay closing voltage: 12.4V
• Relay off voltage: 14.8V
• Voltage error:±0.1V
• Voltage detection: DC voltmeter
• Charging type: 12V battery
• Potentiometer adjustment: RP1 RP2 (carefully adjusted)
• PCB Board Size: 65mm x 52mm x 30mm / 2.56" x 2.05" x 1.18" (L x W x H)
• Note:
• 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
• 2. Please allow 0.5-1cm measuring deviation due to manual measurement.
• 1 cm = 0.3937 "
• RP1 regulates the battery start charging voltage (low voltage setting: clockwise high, counterclockwise low) factory setting is 12.4V
  RP2 regulates battery disconnect charge voltage (low voltage setting: clockwise high, counterclockwise low) factory set to 14.8V
