Custom X1300-A2 I2S Audio Accessory Auxiliary Board for Pi & X1300 / X630

Custom X1300-A2 I2S Audio Accessory Auxiliary Board for Pi & X1300 / X630

$12.00 USD
$20.50 USD $12.00 USD
Sale Sold out
color

[Overview]

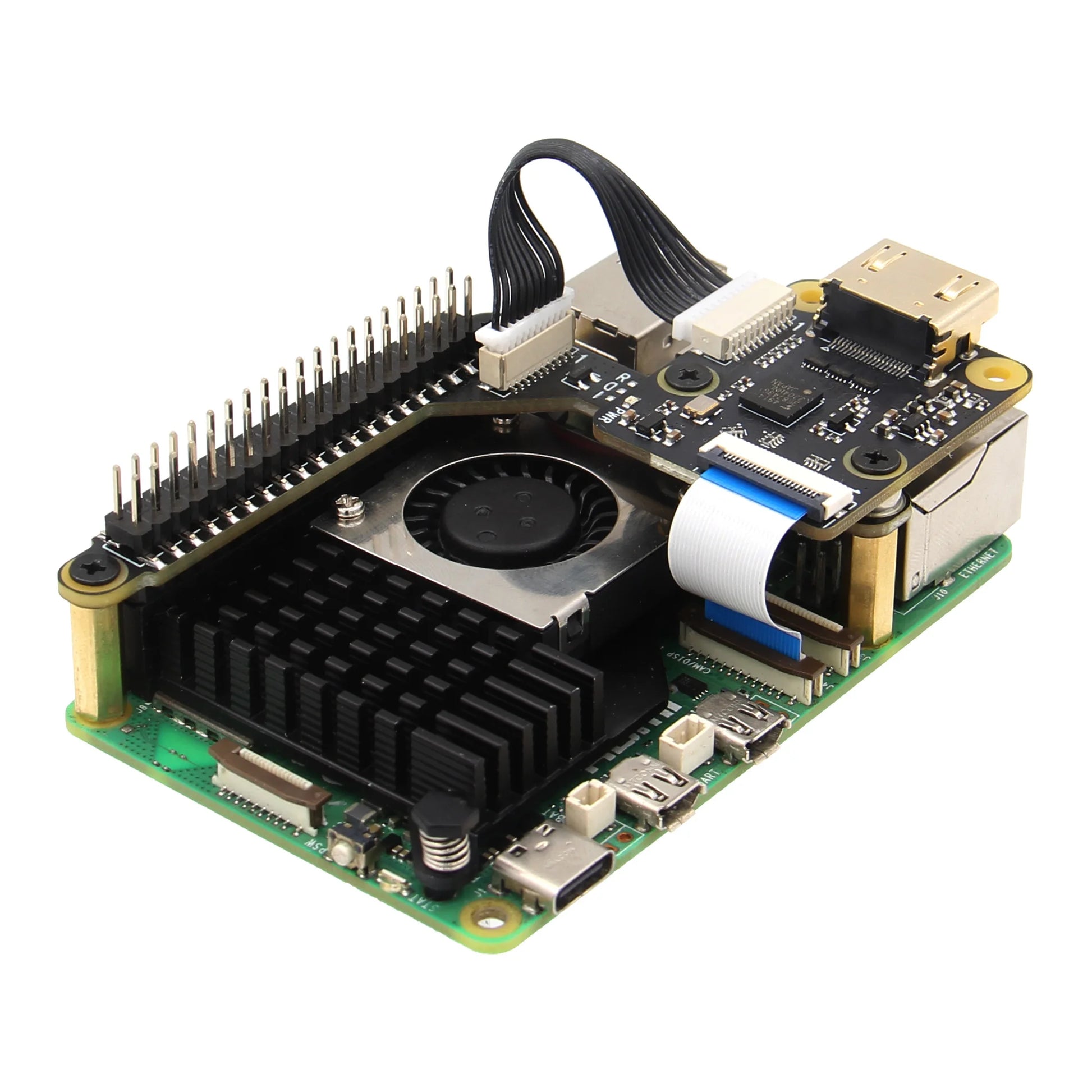

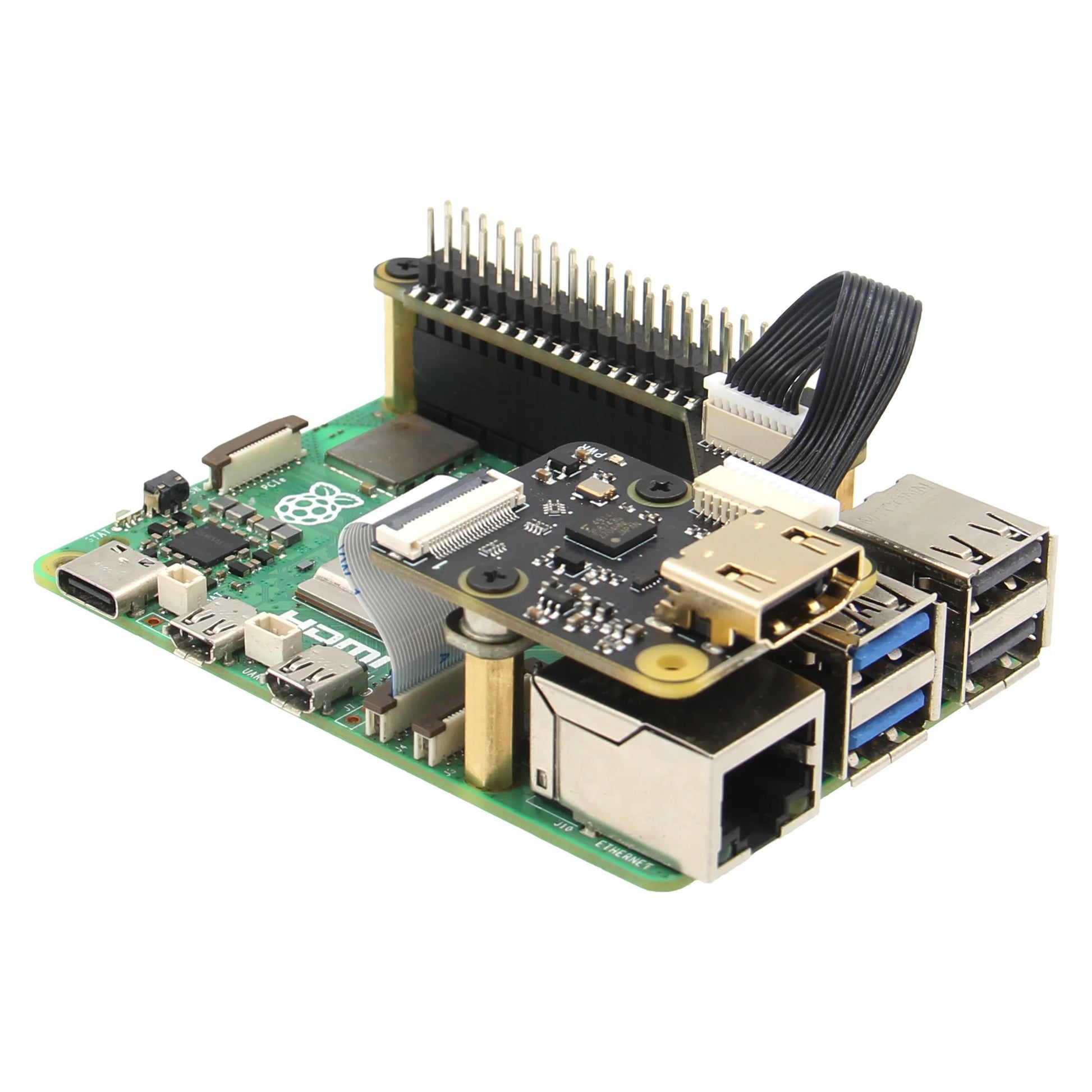

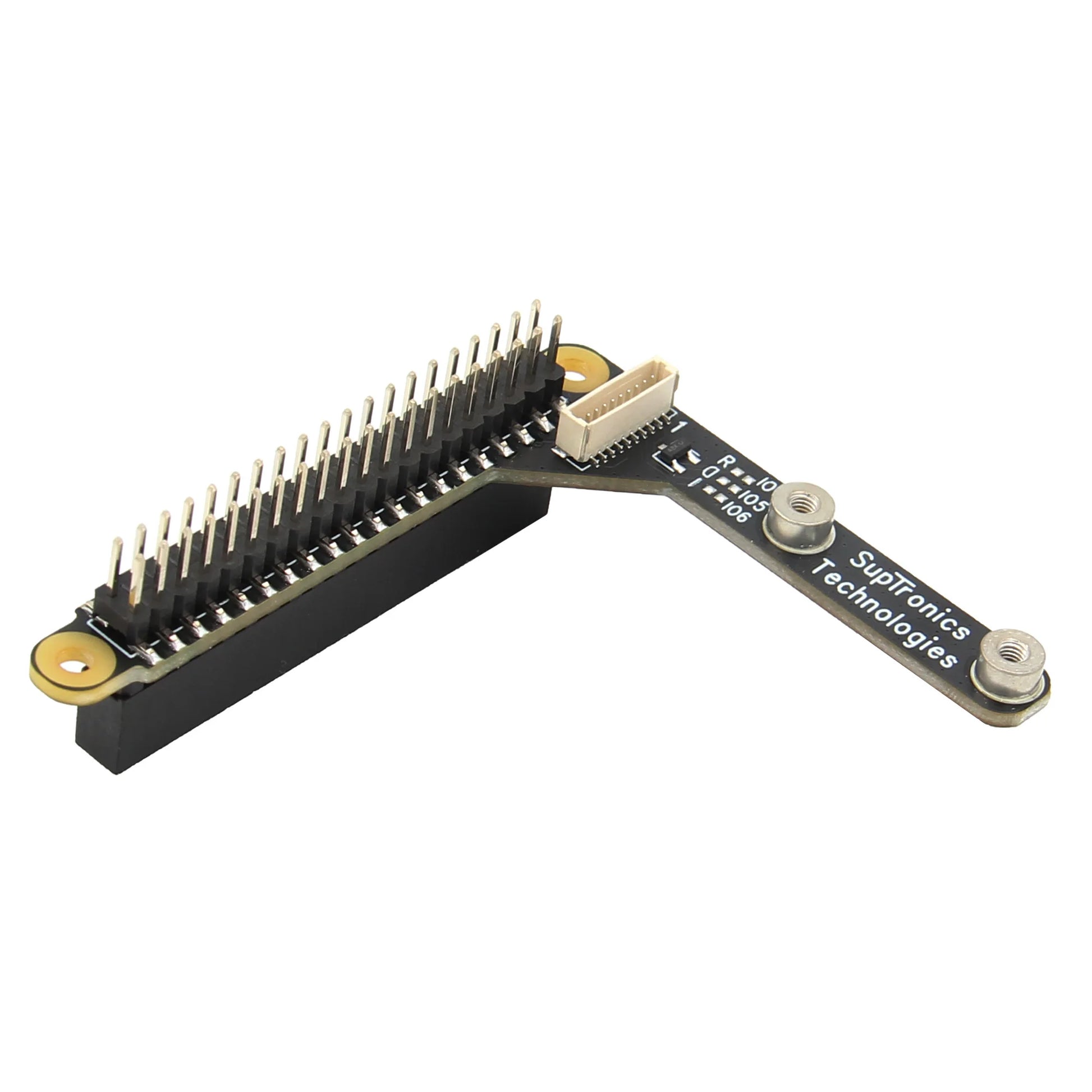

  • The X1300-A2 is an I2S audio accessory board designed for the X1300 and X630 shield, enabling HDMI audio capture through the I2S interface. It is specifically designed to be placed on top of the Raspberry Pi, similar to a traditional HAT, and it provides a 40-pin header for easy access to the GPIO.

[Features]

  • X1300HDMI to CSI-2 for Raspberry Pi 5B, CM4 IO board

  • X630HDMI to CSI-2 for Raspberry Pi 4B, 3B+ and 3B

  • Enables HDMI audio capture through the I2S interface

  • Offers additional functions, including HDMI cable detection, bridge chip reset, and interrupt capabilities

  • No soldering or complicated wiring needed

  • Ultra-compact design that includes reserved space for installing a CPU heatsink

  • Stackable design allows for attachment on bottom of other HATs

  • Easily mountable on the Raspberry Pi, allowing you to customize your perfect case

  • Technical Specification

[Ports & Connectors:]

  • GPIO header x1 - 40pin pitch2.54mm

  • 10-pin functional connector x1 - 10-pin 1.0pitch

  • 10-pin I2S cable length: 50mm

  • PCB Size: 65mm x 57mm

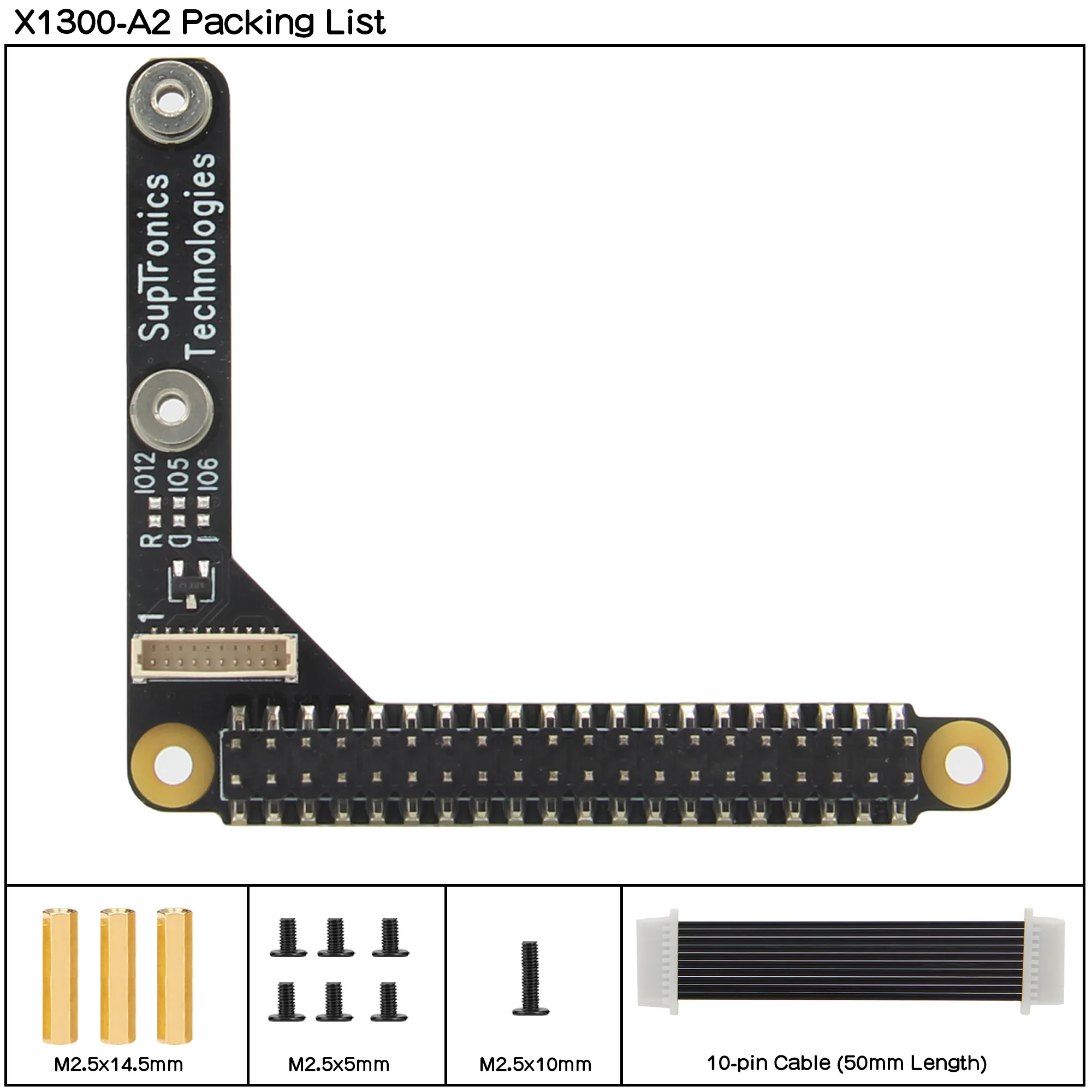

[Packing List]

  • 1 x X1300-A2 V1.0 accessory board

  • 1 x 10-pin I2S cable

  • 3 x M2.5* 14.5 F/F Spacers

  • 6 x M2.5* 5 Screws

  • 1 x M2.5* 10 Screw
