[NOTE]

• NOT include Raspberry Pi 5 and Case and 18650 batteries!!!

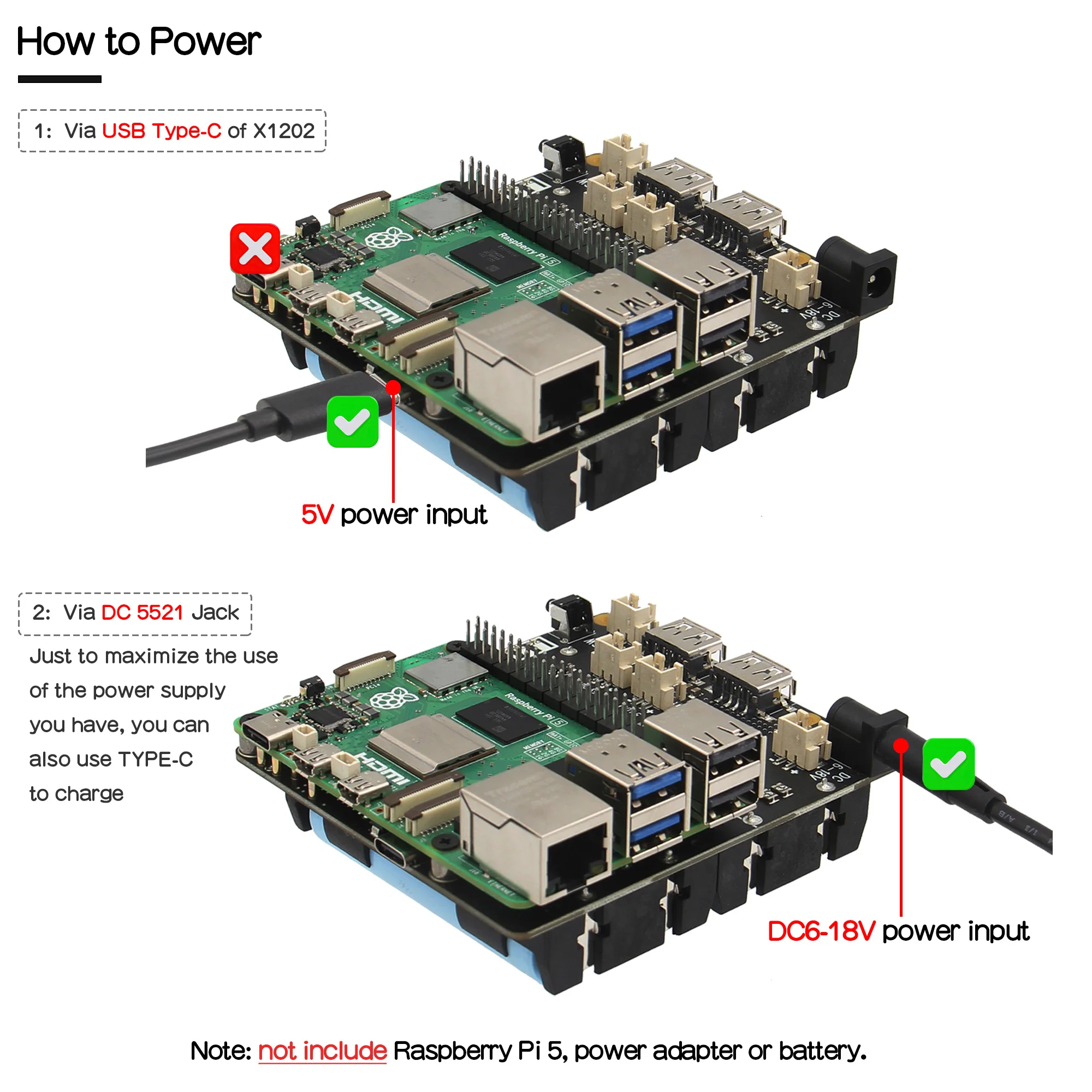

• Do not apply power to your Raspberry Pi 5 via the Type-C USB socket.

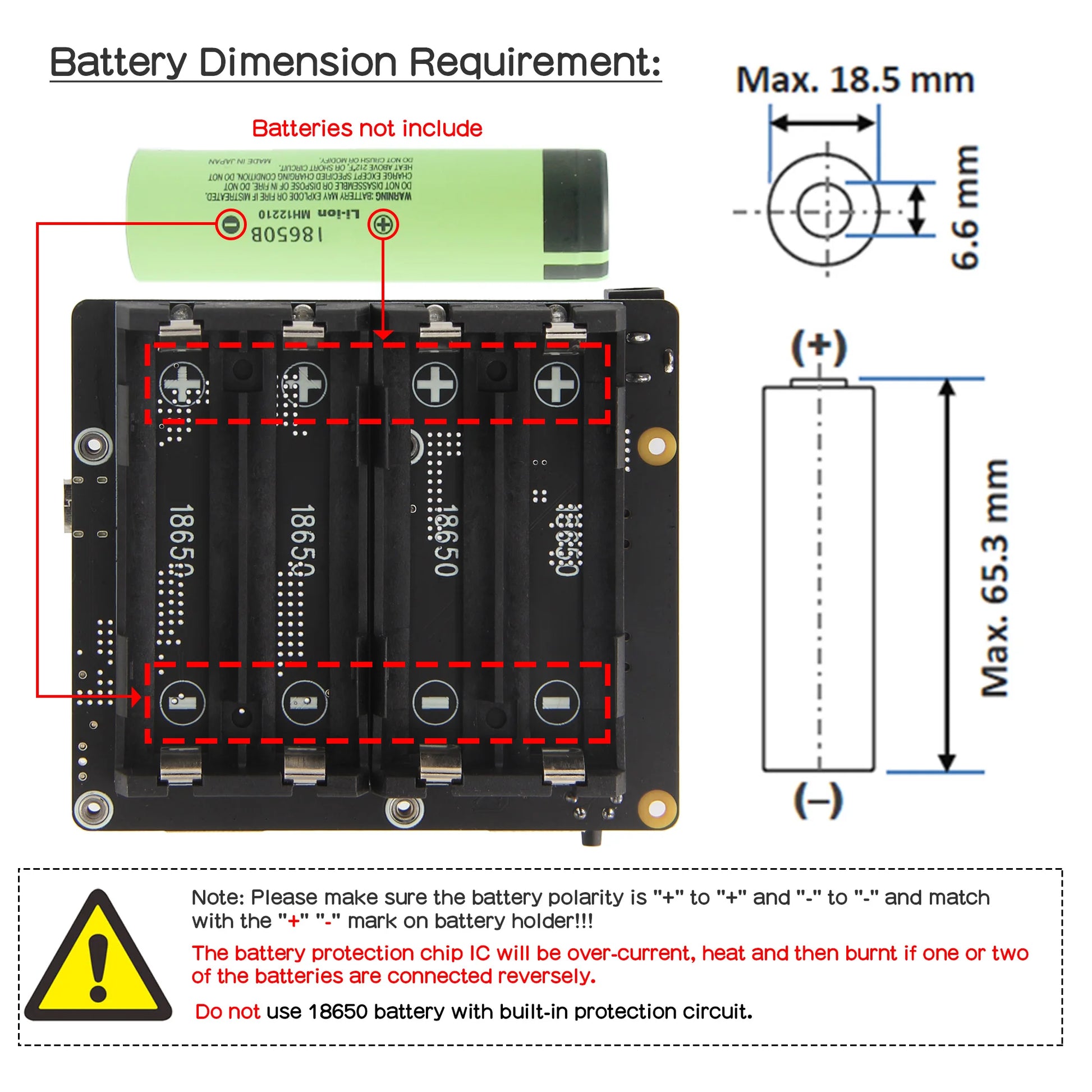

• Do not use 18650 battery with built-in protection circuit.

[Manual]

https://wiki.geekworm.com/X1202

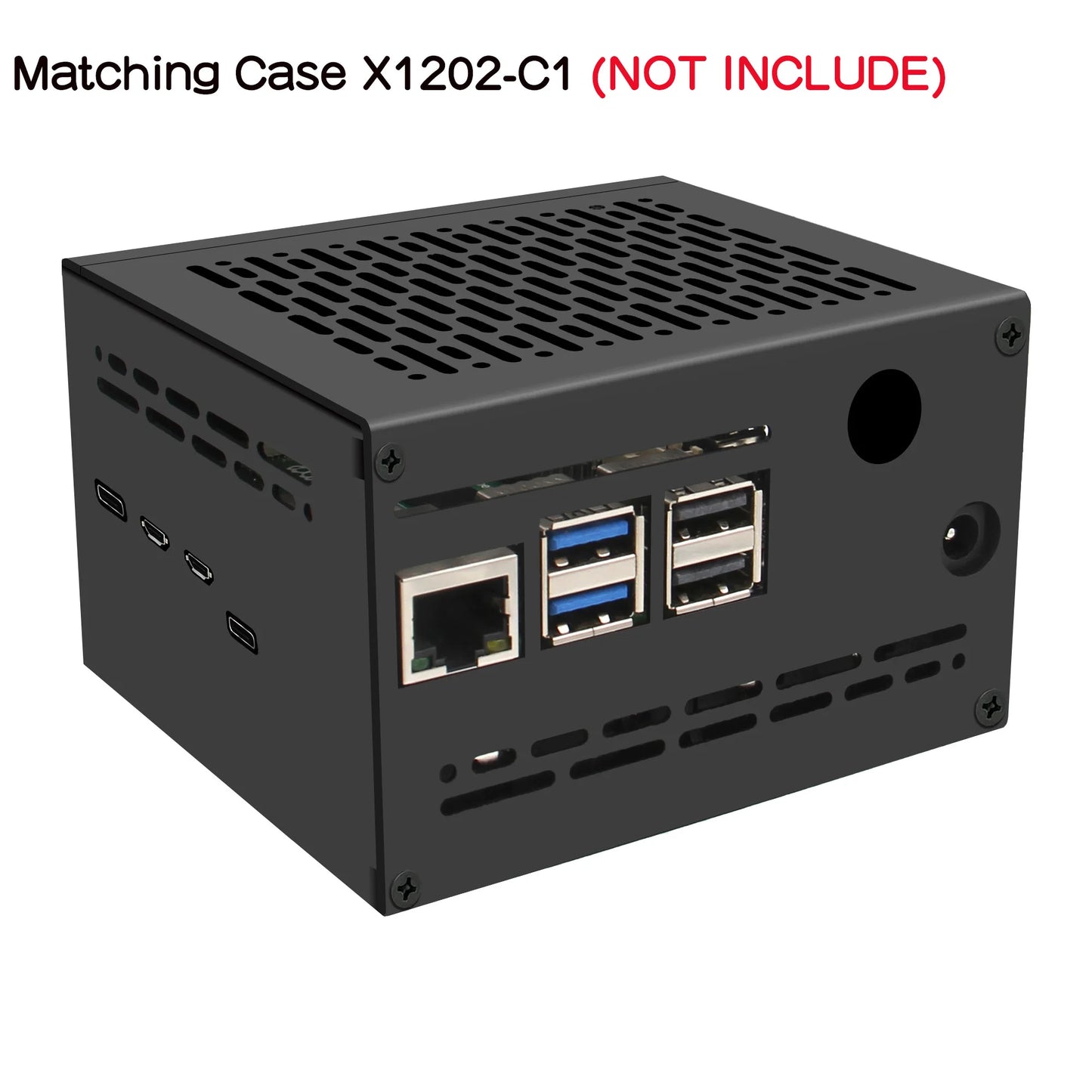

[Matching Case X1202-C1]

https://www.aliexpress.com/item/1005007054596043.html

[Overview]

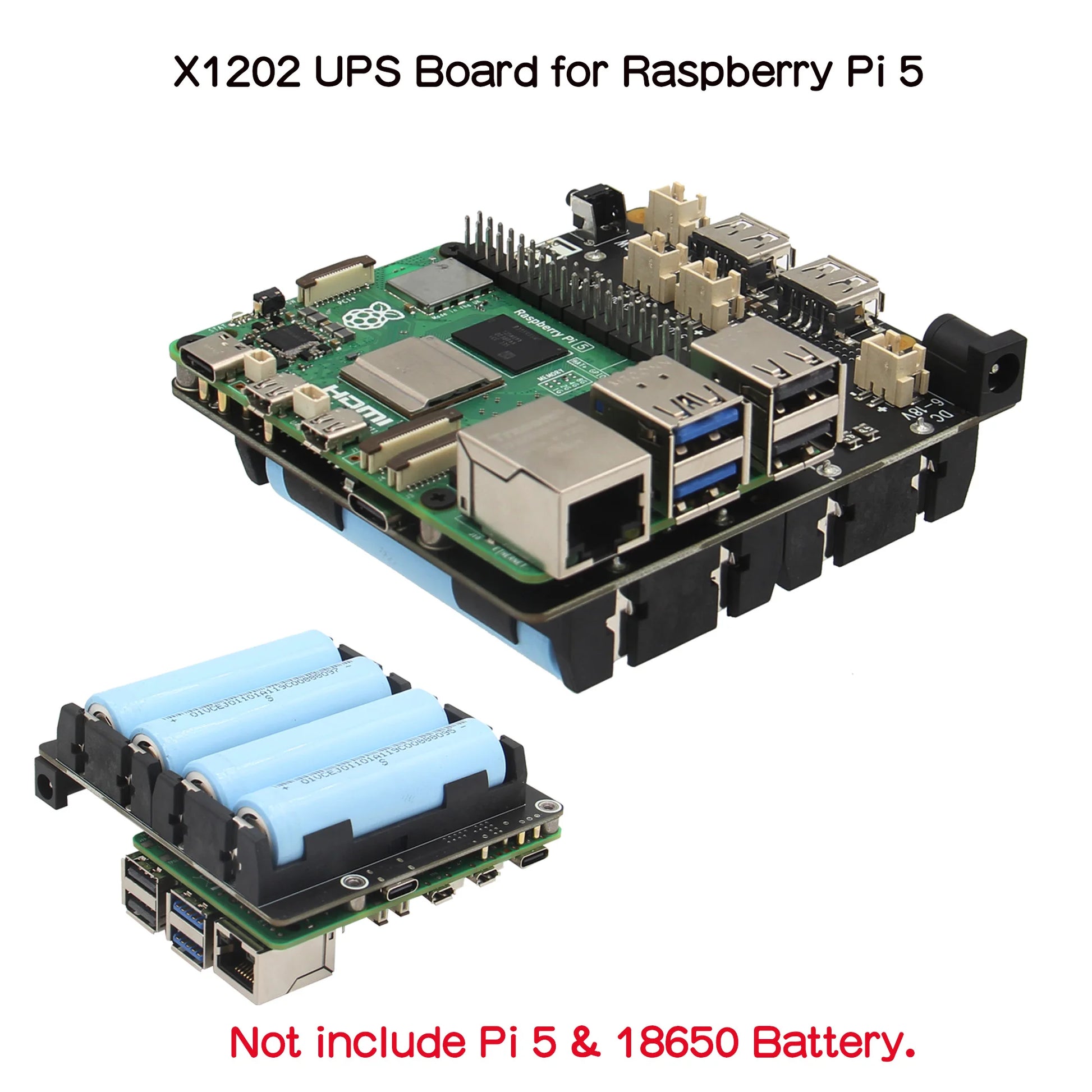

This X1202 is an ultra-compact advanced uninterruptible power supply expansion board designed specifically for the Raspberry Pi 5.With its advanced features and robust power backup capabilities, the X1202 is perfect for even the most demanding Raspberry Pi setups.

Reliable Power Backup: The X1202 provides a stable 5.1V 5000mA power backup, ensuring uninterrupted operation of your Raspberry Pi. Whether you are running resource-intensive applications or powering multiple peripherals, the X1202 delivers reliable and consistent power supply.

Enhanced Power Management: One of the standout features of the X1202 is its enhanced power management system. It intelligently monitors the power status of the Raspberry Pi and automatically cuts off power when the Pi is shut down. This helps optimize battery life by entering an ultra-low standby power consumption mode. It ensures efficient operation and maximizes the lifespan of the UPS battery.

Seamless Power Switching: Equipped with AC power loss and power adapter failure detection, the X1202 seamlessly switches to backup power in the event of a power outage or power adapter failure. This feature guarantees that your Raspberry Pi remains operational and protected from unexpected power disruptions.

Convenient Features: The X1202 offers convenient features such as auto power-on, enabling your Raspberry Pi to automatically boot up when power is restored. It also supports full power-off from software, allowing you to safely shut down your Raspberry Pi without manual intervention.

Fast Charging: With fast charging capabilities of up to 3000mA, the X1202 ensures quick recharging of the UPS, making it ready to provide backup power whenever needed.

Versatile Design: The X1202 is designed to be attached on bottom and don't use the 40-pin header, enabling easy stacking with other Raspberry Pi accessory boards. This versatility allows you to expand the functionality of your Raspberry Pi and create enhanced applications tailored to your specific needs.

Seamless Data Backup: The X1202 is compatible with our range of storage products, providing seamless integration for safe and reliable data backup. Your valuable data remains protected, even in the event of a power failure.

Enhance the reliability and performance of your Raspberry Pi 5B with the X1202 UPS expansion board. Experience peace of mind with its advanced features and robust power backup capabilities. Trust the X1202 to ensure uninterrupted operation and safeguard your valuable data.

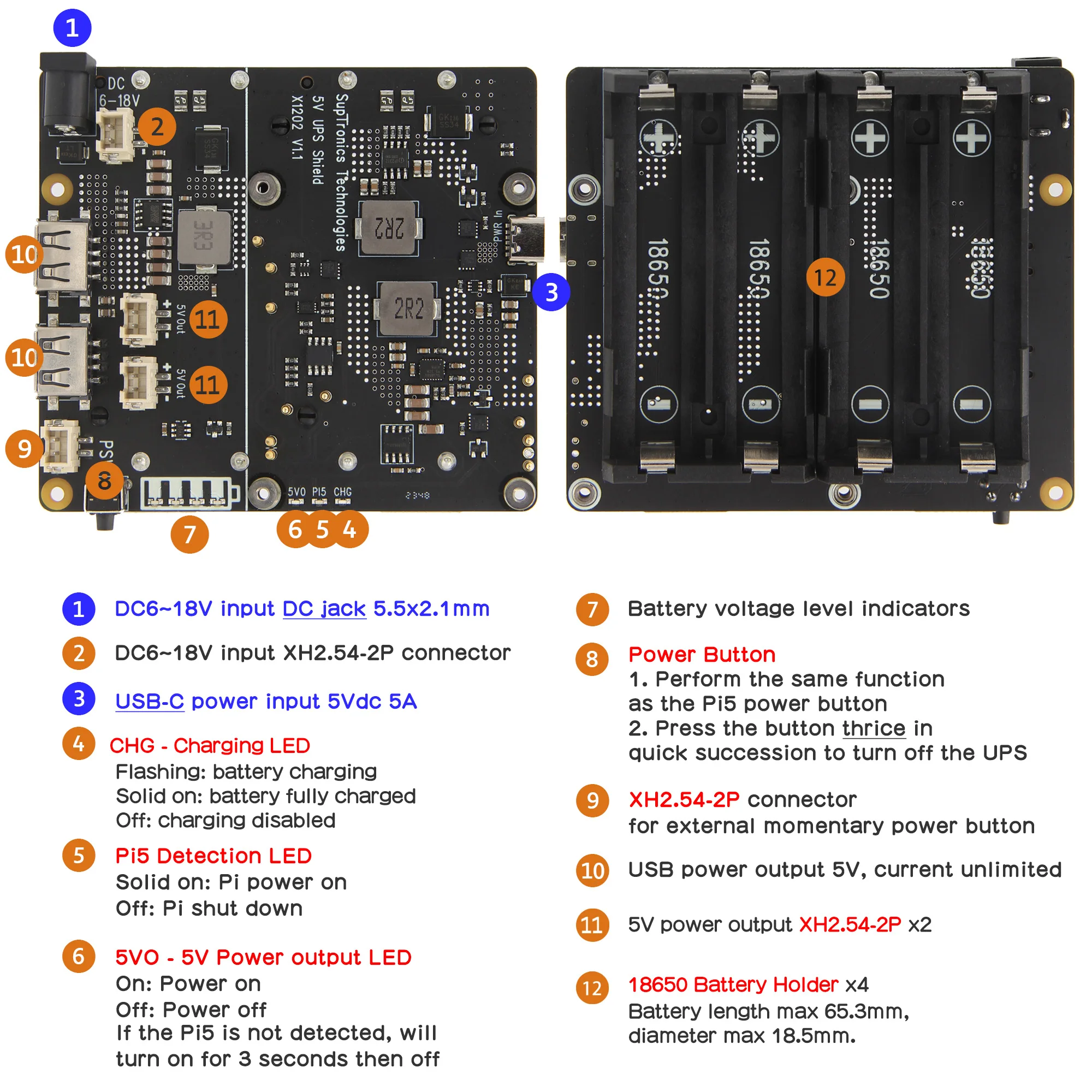

[Features]

UPS Output

Provides continuous operation for up to 10 hours (duration depends on battery type and applications)

Supports a maximum current output of 5.1V 5000mA, suitable for most Raspberry Pi applications

Integrated Advanced Power MOSFET with an equivalent of 7mΩ RDS(ON) to minimize power loss

Convenient pogo pin connection for powering the Pi, eliminating the need for cabling and soldering

Equipped with XH2.54 connectors and two USB sockets for 5V power output

Battery Charging

Supports fast battery charging with a capacity of 3000mA

Battery charging control can be managed via GPIO

Provides protection against battery overcurrent and overvoltage

Built-in protection against reverse connection of battery cells

Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over i2c

On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%

Features a 4-cell 18650 battery holder

Power Input

Integrated high-efficiency step-down DC-DC converter

Wide operating input range of 6V to 18V

Up to 95% efficiency for optimal power conversion

Provides up to 5.5A output current, enabling 3A fast charging while powering the system

Allows power input from various sources such as a car, solder panel, and more

Common power input jack size of 5.5x2.1mm

Compatible with Raspberry Pi USB-C Power Supply

Power Management

Seamless power switching between backup power and power adapter

On-board push button performs the same actions as the Pi's power button

Automatically cuts off power when the Pi is shut down

On-board LED indicates power status and Pi detection

AC power loss and power adapter failure detection via GPIO

Auto power-on when power is applied or restored

Automatic safe shutdown when battery voltage is low (programmable)

Ultra-low standby power consumption to maximize battery life

Advanced system power-path management to minimize frequent charging and discharging of batteries

Misc

Connects to the Pi via convenient pogo pins, eliminating the need for additional cabling

Designed to be attached on the bottom, allowing the use of favorite HATs alongside it

XH2.54 connector available for adding your own power button

[Packing List]

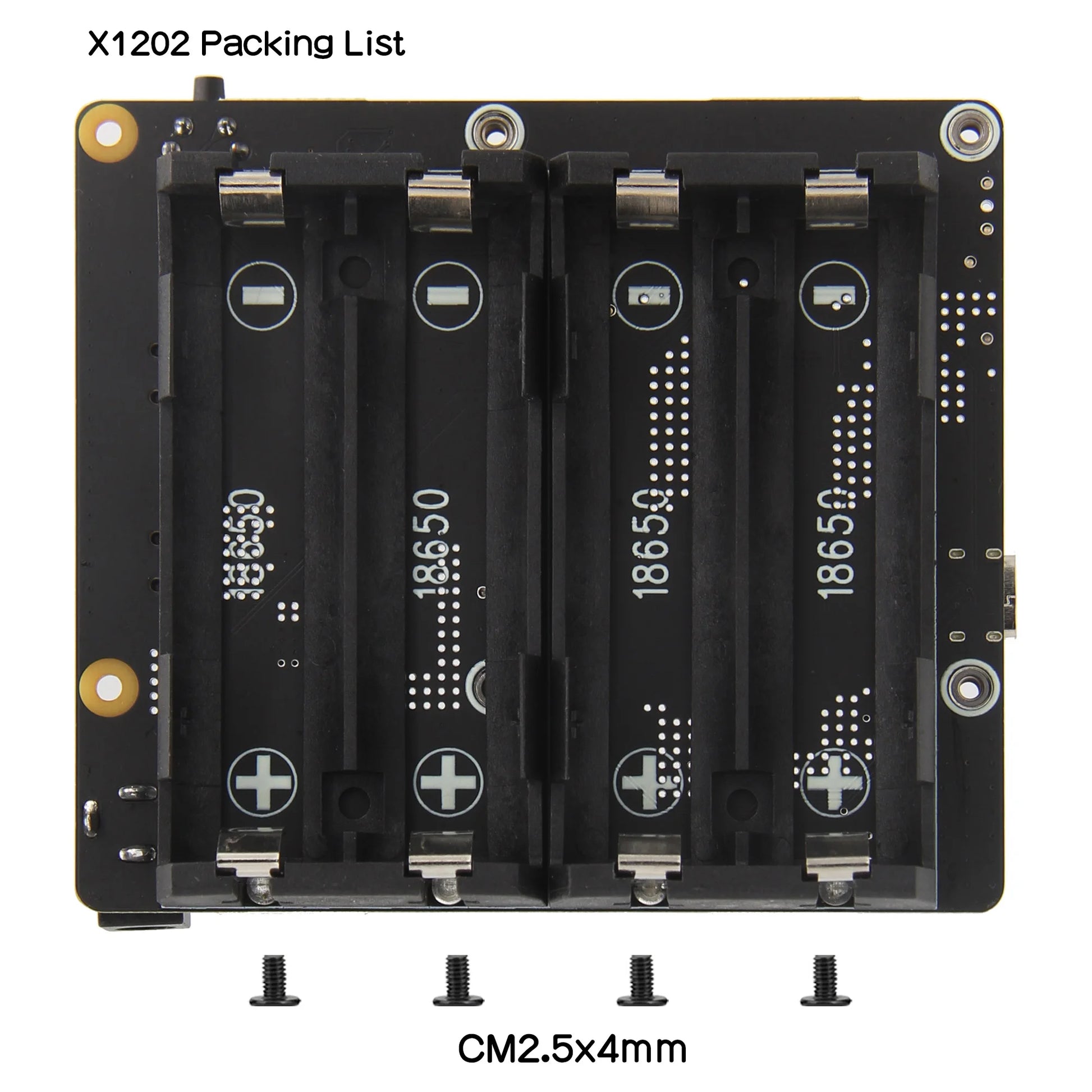

• 1 x X1202 UPS Shield
