Custom X1202-C1 Metal Case for Raspberry Pi 5 & X1202 UPS Board

[Note]

1. Raspberry Pi 5, battery, X1202 UPS, X1000, X1001, X1003, X1004, M901 are all NOT included in the packing list.

2. Do not support other UPS hat.

3. The WiFi or BT signal will be affected if use the metal case, we advice that you use ethernet network or 5.8G wifi AP to replace the 2.4G wifi to test.

[Overview]

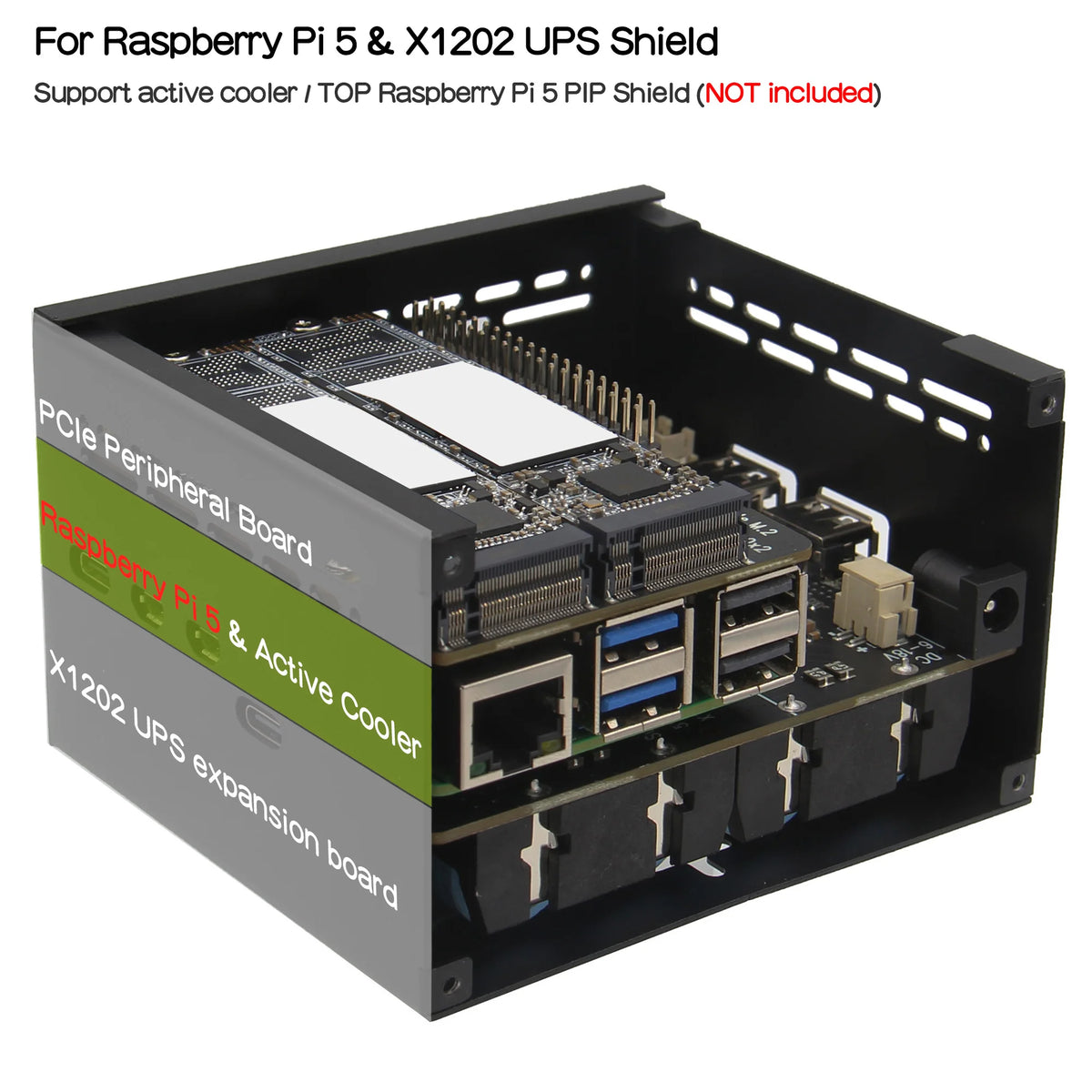

X1202-C1 is a metal case only. It is special designed for Raspberry Pi 5 with X1202 ups, also compatible with official active cooler/X1000/X1001/X1003/X1004/M901.

[Features]

• High quality metal material with surface galvanized process;

• Exhaust holes surface can reach good heat dissipation

• Easy to insert and remove SD card - No need to open the case

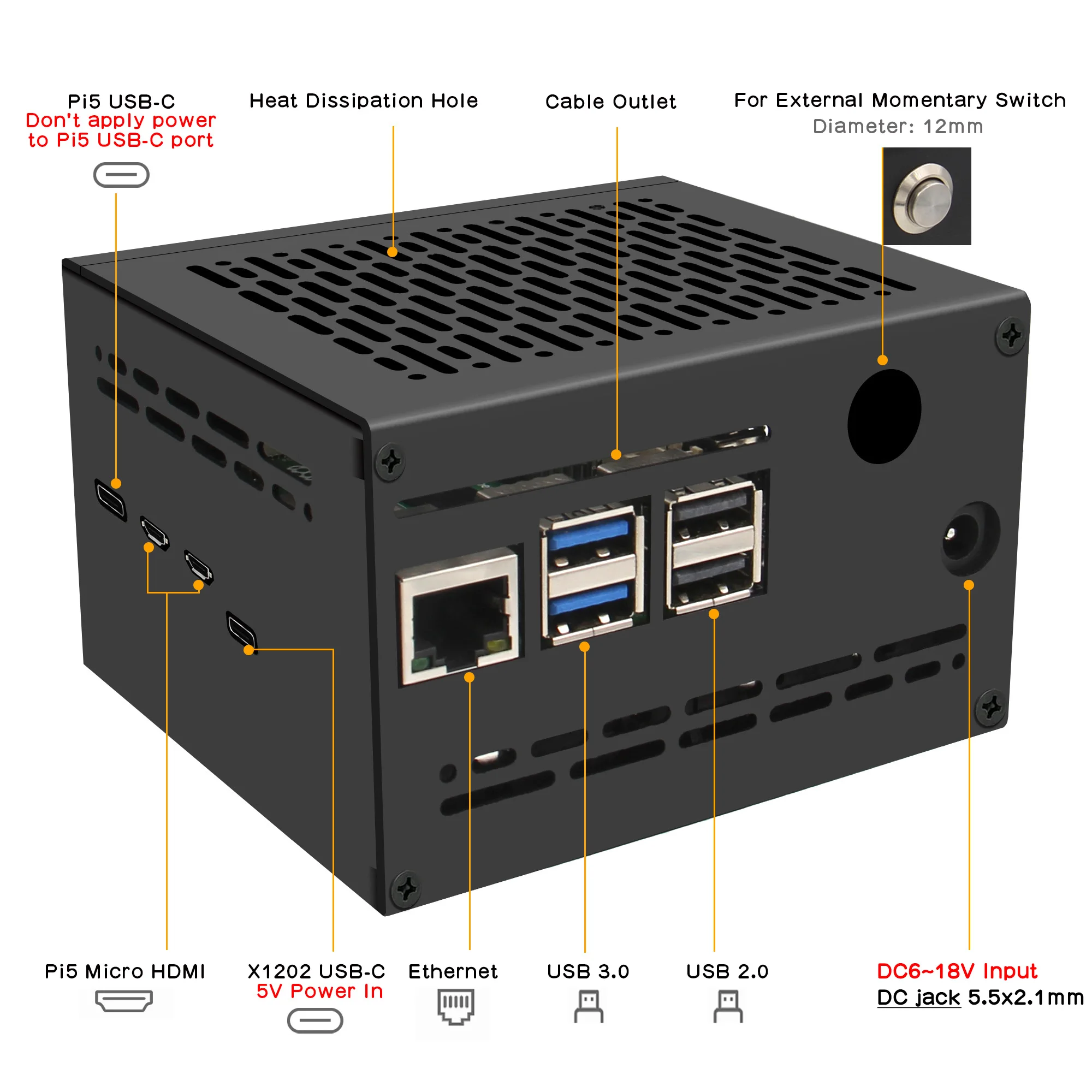

• Reserved power switch hole for Raspberry Pi 5

• Reserved external switch hole - supports installation of 2pin momentary switch (not included)

• Reserved GPIO cable hole

• With VESA mounting hole, you can hang it on the wall or somewhere you want.

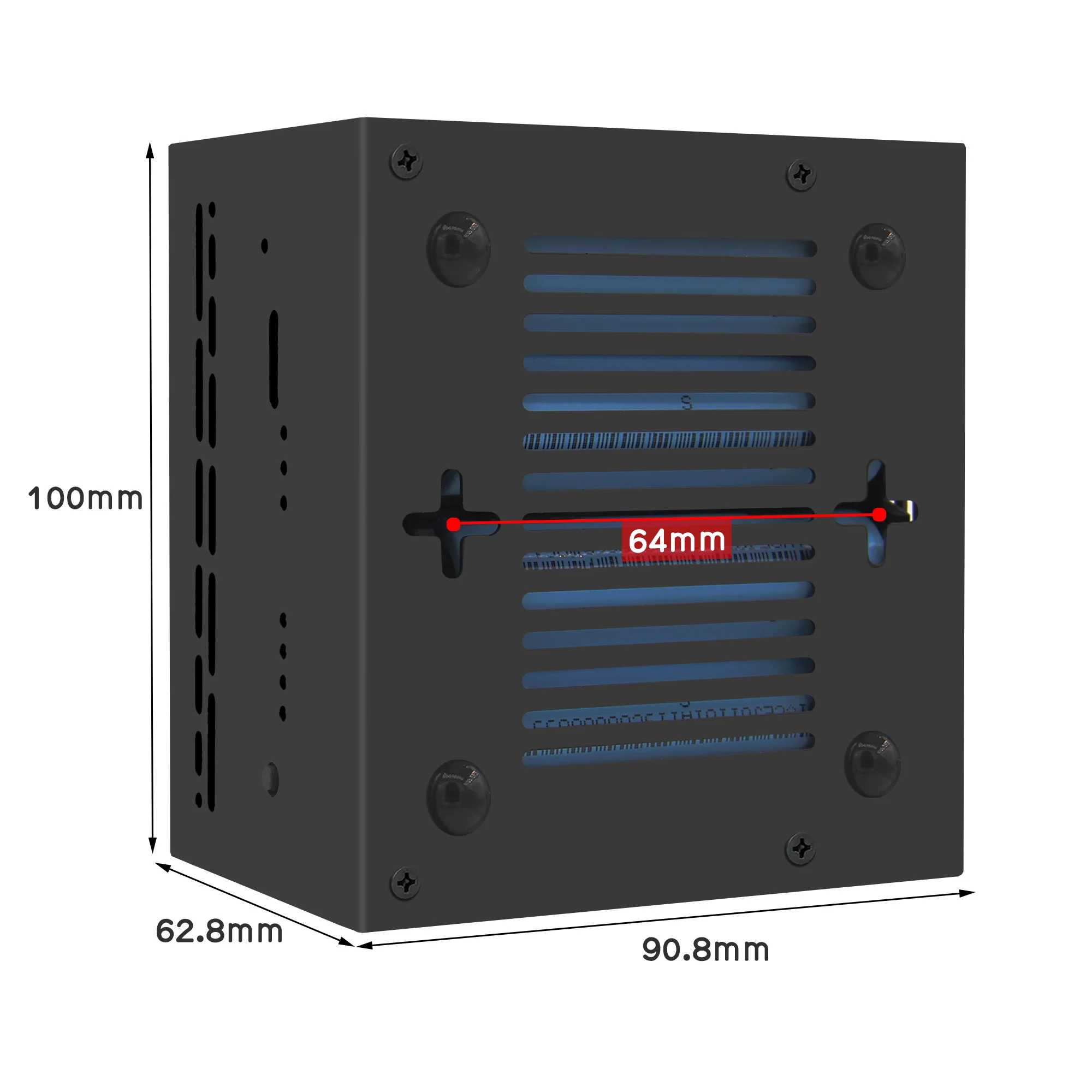

• Case Dimensions: 100 x 90.8 x 62.8 mm

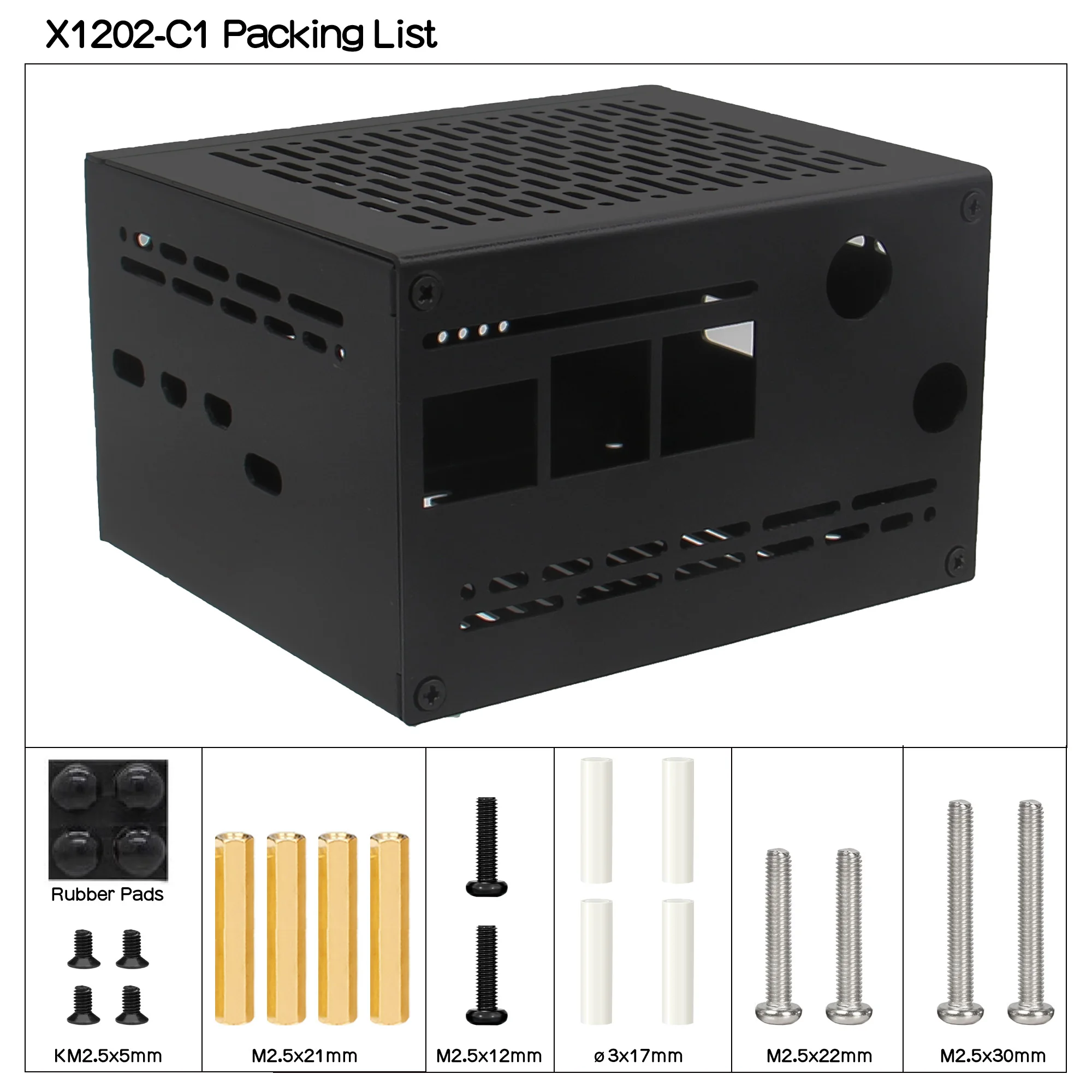

[Packing List]

• 1 x X1202-C1 Metal Case

• 1 x Screws Pack
