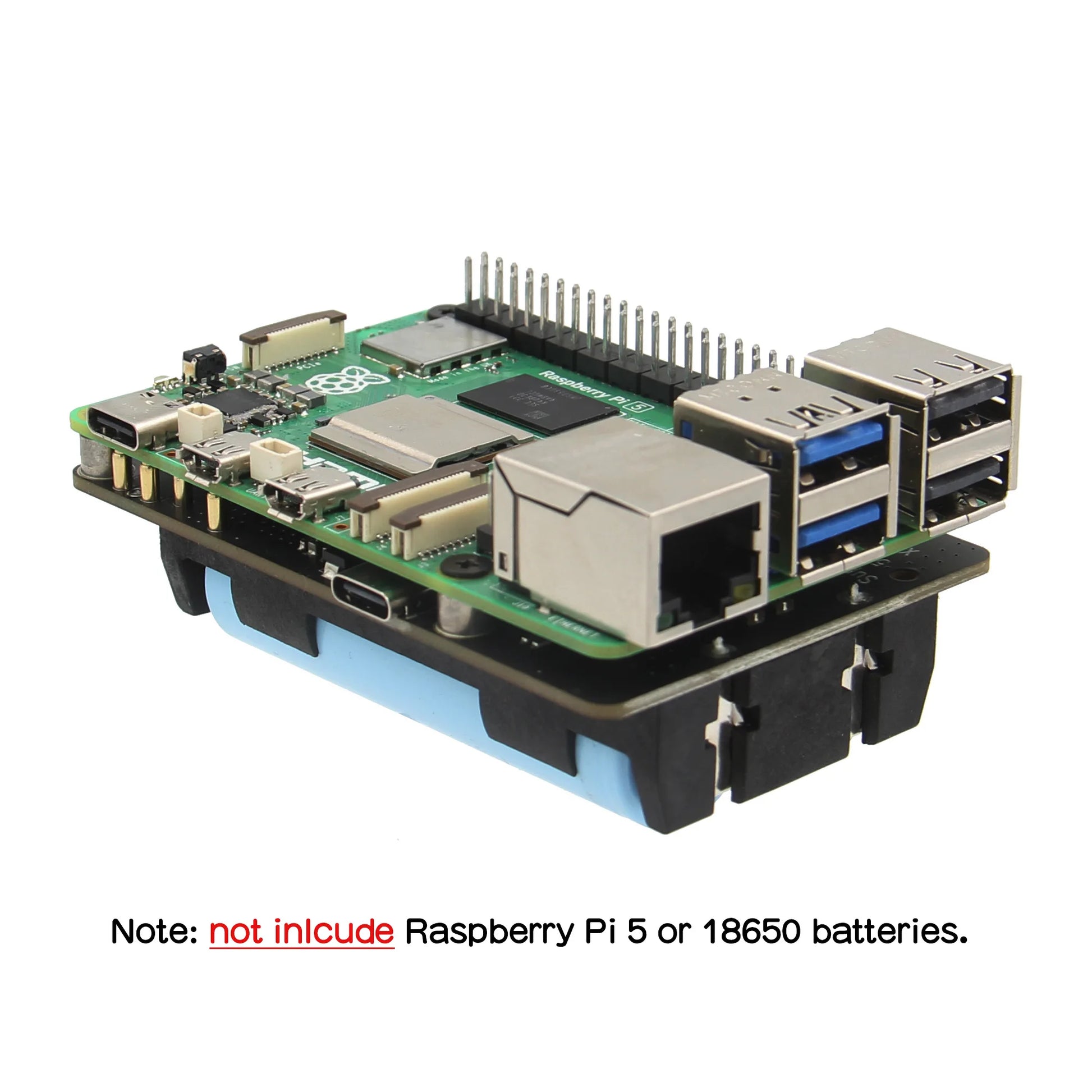

NOTE: NOT include Raspberry Pi 5 & 18650 Batteries & Metal Case!!!

[Manual]

https://wiki.geekworm.com/X1200

[Matching Case X1200-C1]

https://es.aliexpress.com/item/1005007053365826.html

[Overview]

• X1200 is an innovative uninterruptible power supply (UPS) expansion board designed specifically for the Raspberry Pi 5. It is designed to be attached on bottom and don't use the 40-pin header, enabling easy stacking with other Raspberry Pi accessory boards.

• Reliable Power Backup: The X1200 provides a stable 5.1V 5000mA power backup, ensuring uninterrupted operation of your Raspberry Pi. Whether you are running resource-intensive applications or powering multiple peripherals, the X1200 delivers reliable and consistent power supply.

• Enhanced Power Management: One of the standout features of the X1200 is its enhanced power management system. It intelligently monitors the power status of the Raspberry Pi and automatically cuts off power when the Pi is shut down. This helps optimize battery life by entering an ultra-low standby power consumption mode. It ensures efficient operation and maximizes the lifespan of the UPS battery.

• Seamless Power Switching: Equipped with AC power loss and power adapter failure detection, the X1200 seamlessly switches to backup power in the event of a power outage or power adapter failure. This feature guarantees that your Raspberry Pi remains operational and protected from unexpected power disruptions.

• Convenient Features: The X1200 offers convenient features such as auto power-on, enabling your Raspberry Pi to automatically boot up when power is restored. It also supports full power-off from software, allowing you to safely shut down your Raspberry Pi without manual intervention.

• Fast Charging: With fast charging capabilities of up to 3000mA, the X1200 ensures quick recharging of the UPS, making it ready to provide backup power whenever needed.


[Features]

• Supports fast battery charging with a capacity of 3000mA

• Battery charging control can be managed via GPIO

• Provides protection against battery overcurrent and overvoltage

• Built-in protection against reverse connection of battery cells

• Integrated Maxim's fuel-gauge systems for reading battery voltage and percentage over i2c

• On-board LEDs indicate battery charging and discharging levels of 25%, 50%, 75%, and 100%

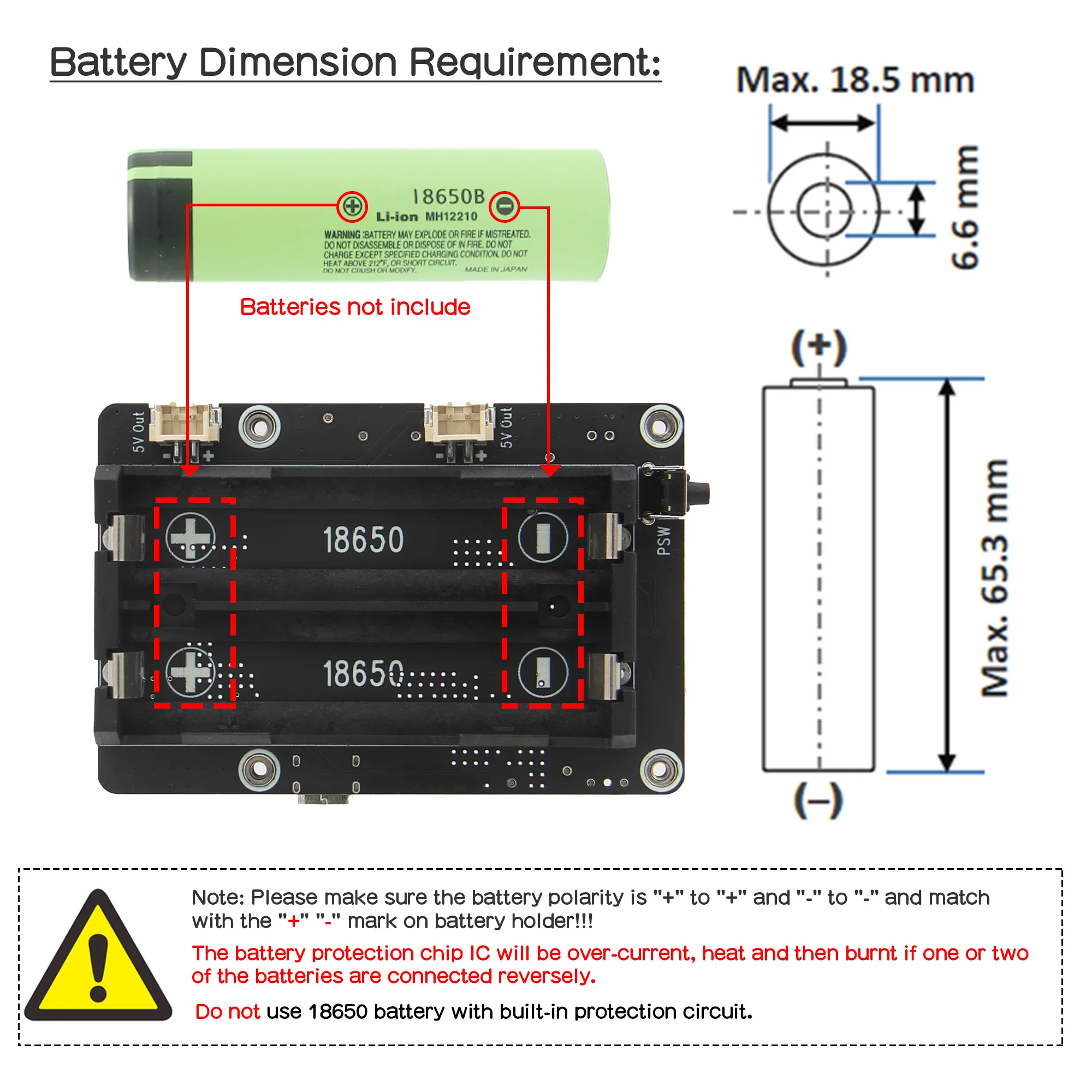

• Features a 2-cell 18650 battery holder

• Automatically cuts off power when the Pi is shut down

• On-board LED indicates power status and Pi detection

• AC power loss and power adapter failure detection via GPIO

• Auto power-on when power is applied or restored

• Automatic safe shutdown when battery voltage is low (programmable)

• Ultra-low standby power consumption to maximize battery life

• Advanced system power-path management to minimize frequent charging and discharging of batteries


[Parameter]

• Power input: 5Vdc 5A via USB Type-C

• UPS output: 5.1V ±5% Max 5A

• Battery charging current: Max 2.3-3.2A

• Terminal Battery Voltage: 4.23V

• Battery Recharge Threshold: 4.1V

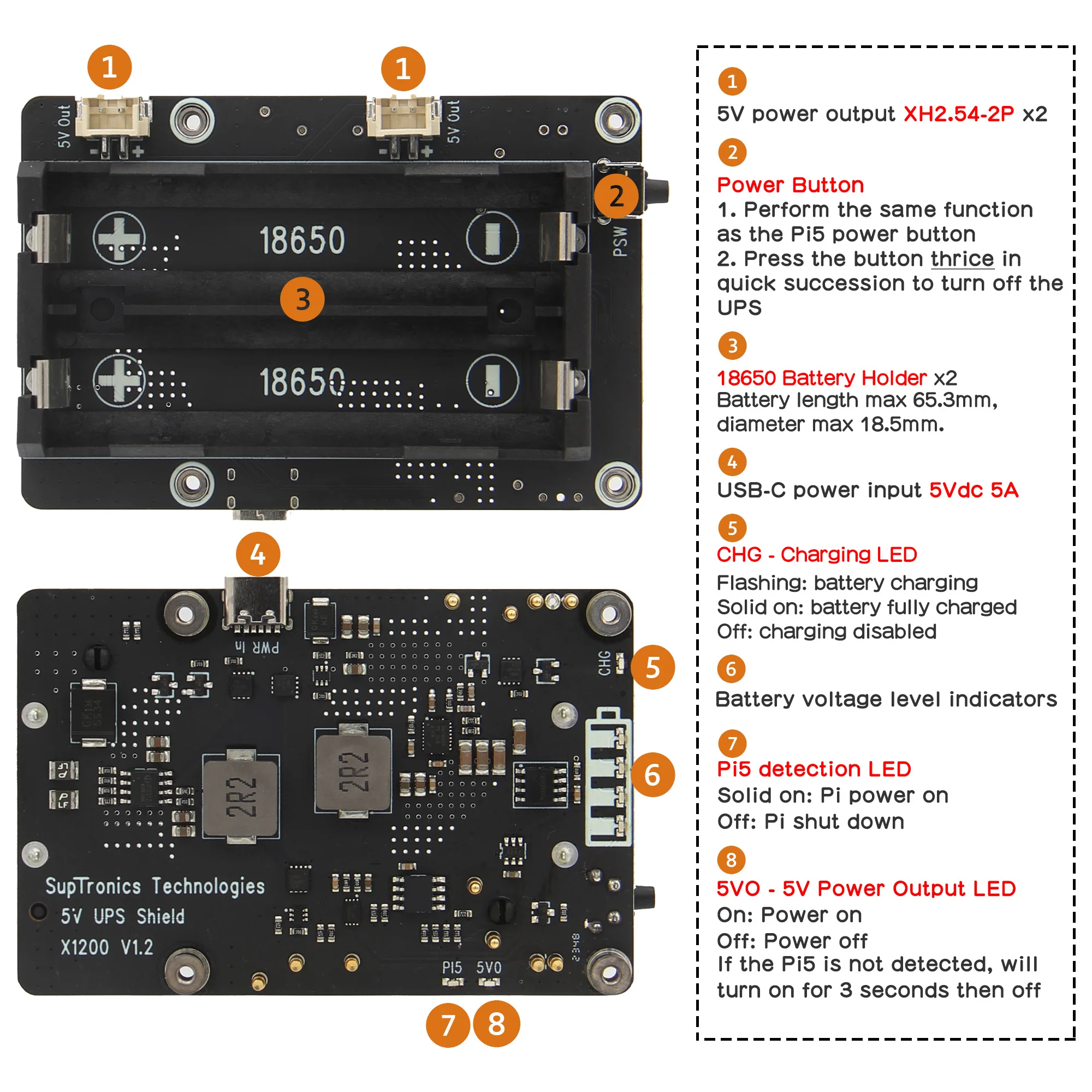

• Ports & Connectors:

• USB Type-C socket x1

• 18650 battery socket x2

• 5V Power output connector x2 - XH2.54 2-pin

• PCB Size: 85mm x 56mm

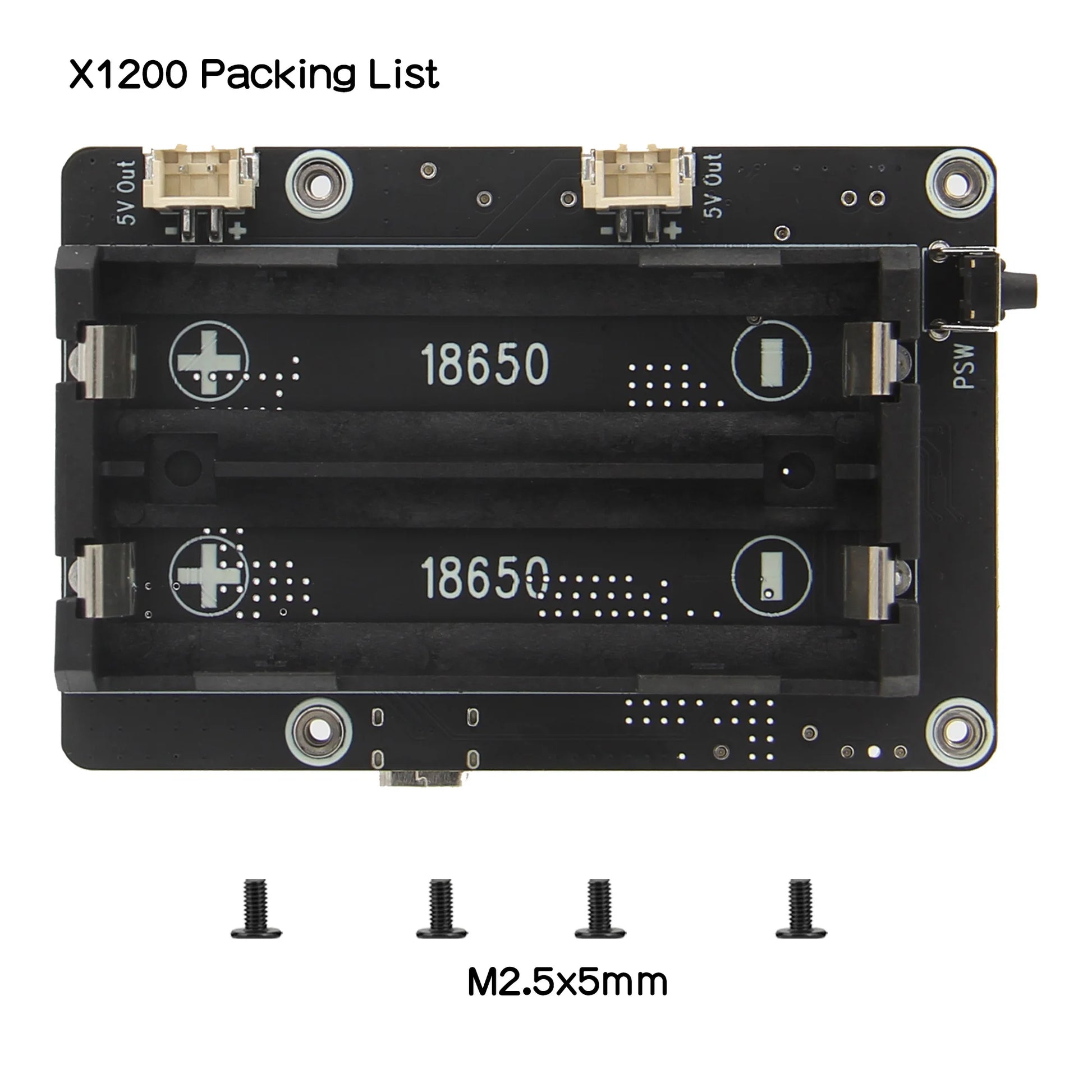

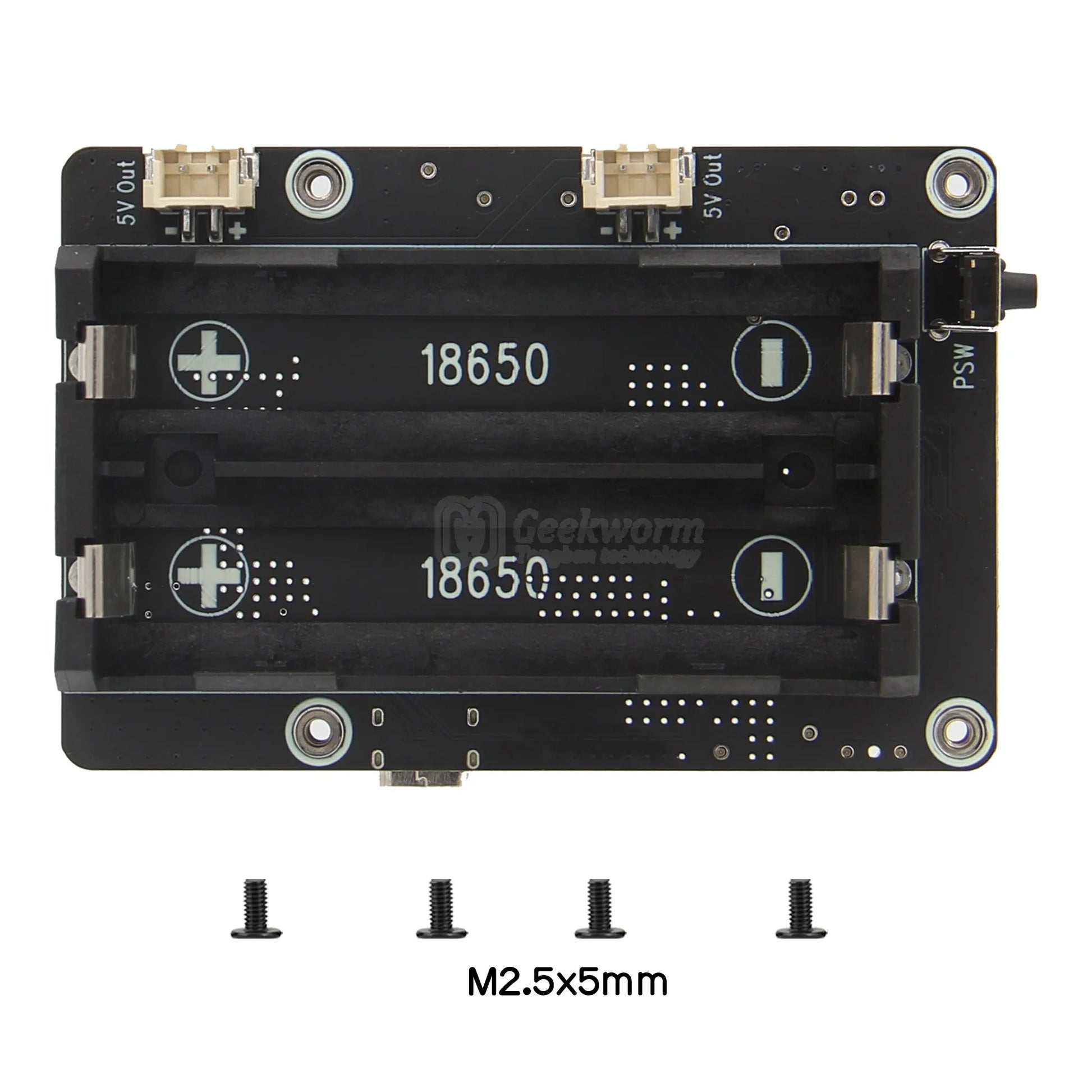

[Packing List]

• 1 x X1200 UPS shield

• 1 x M2.5 x 5 screws

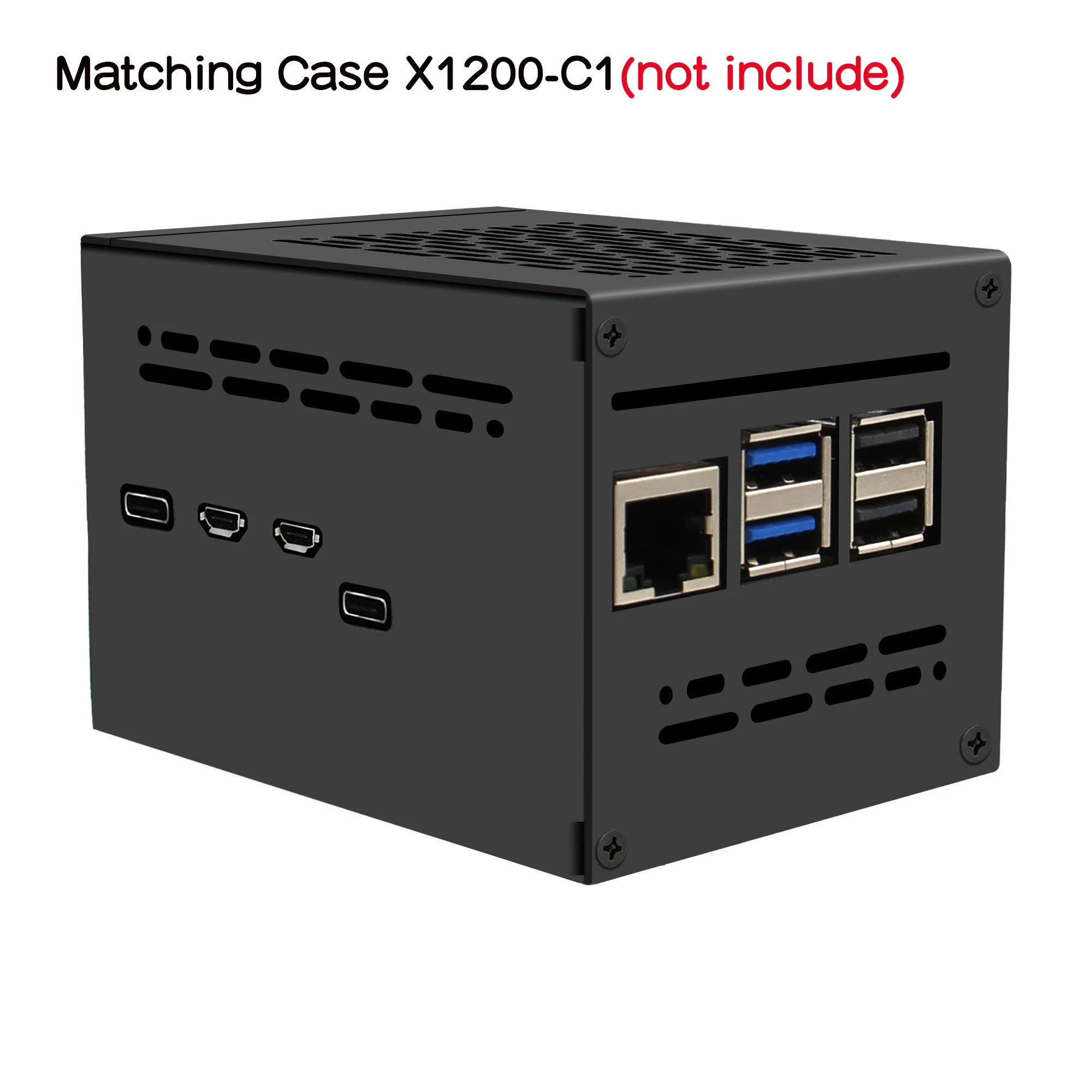

[Matching Case X1200-C1(not include)]

please refer to:  https://es.aliexpress.com/item/1005007053365826.html
