Custom X1015 PCIe to M.2 Key-M NVMe SSD for Raspberry Pi 5

[Overview]

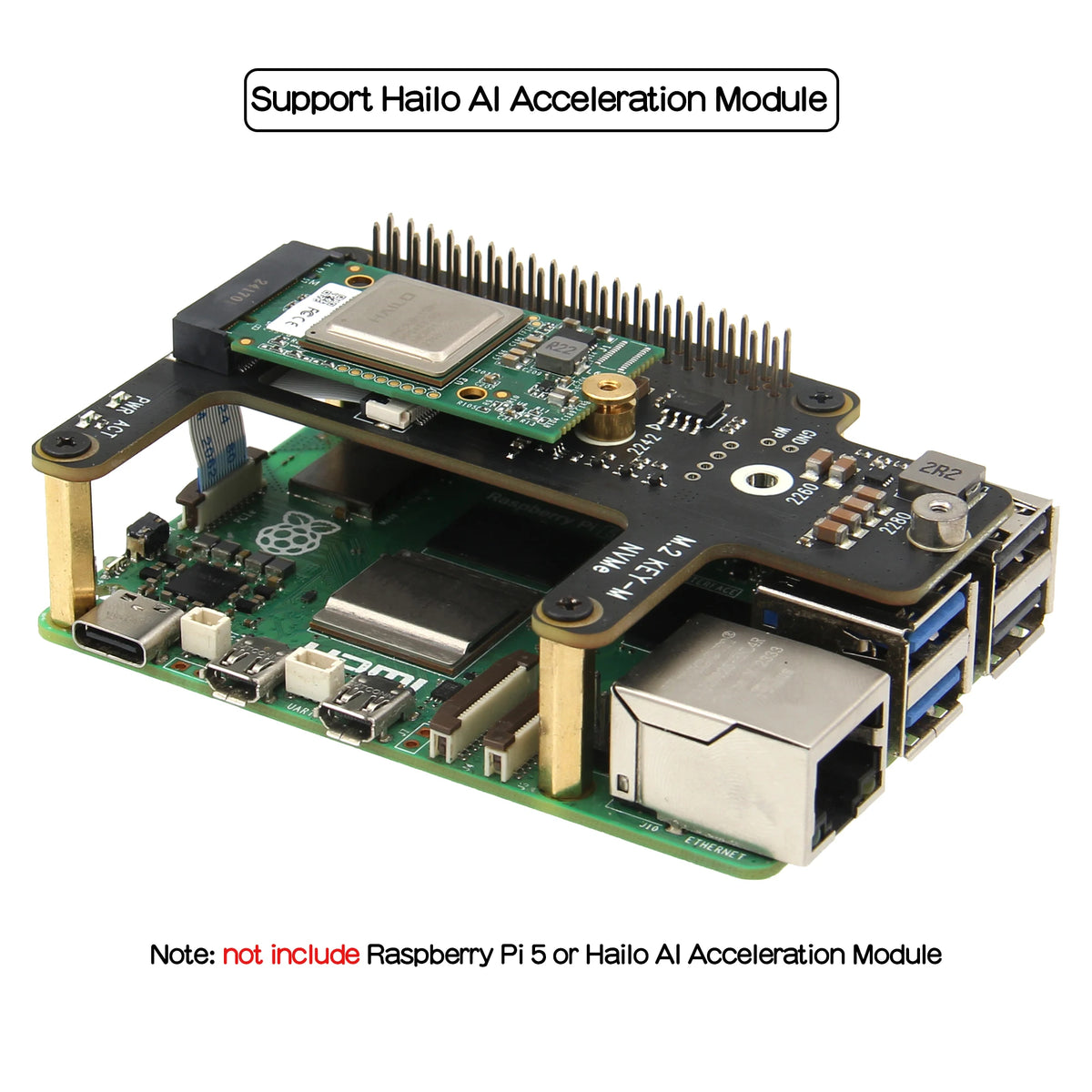

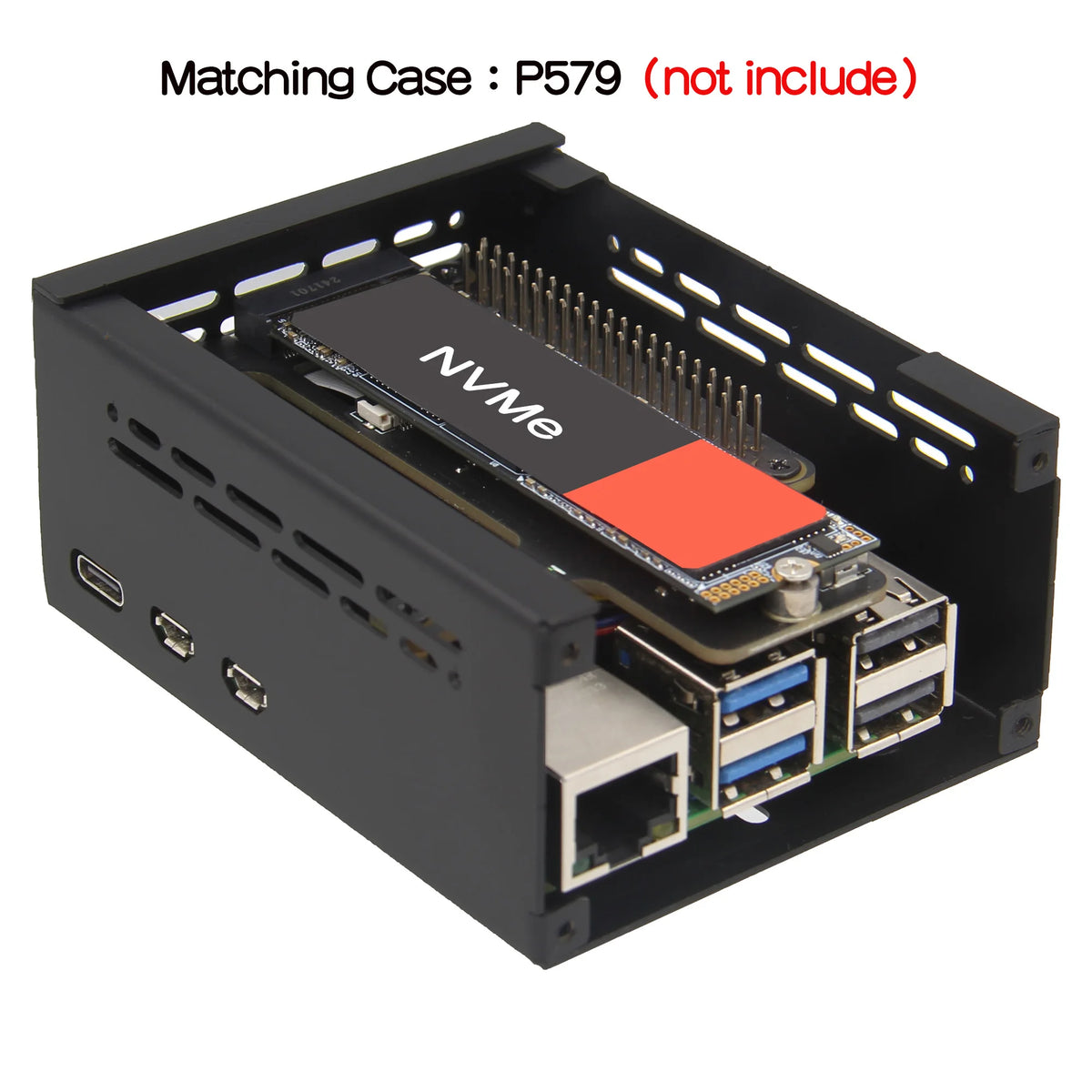

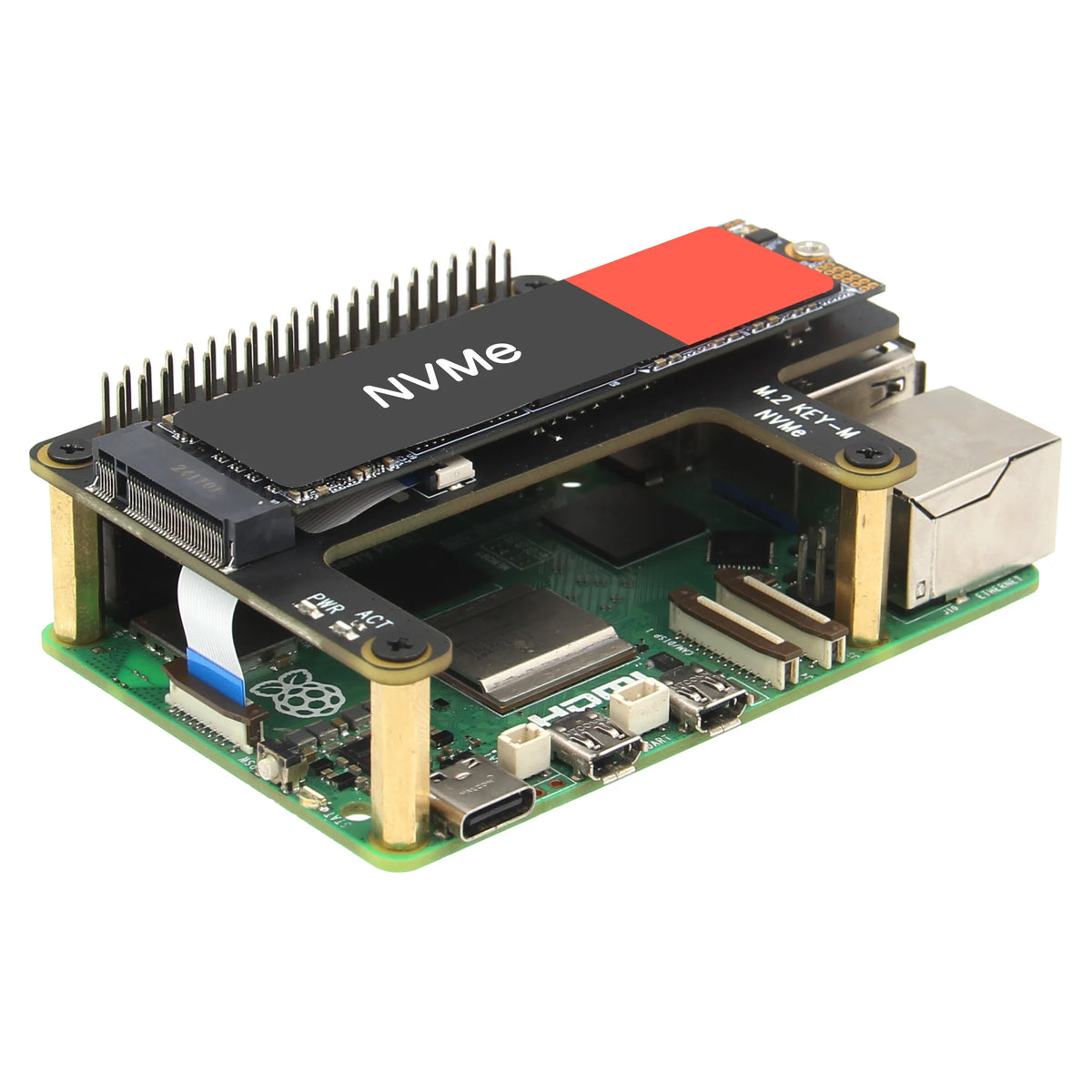

• The X1015 is a PCIe extension board designed for the Raspberry Pi 5. It adheres to the official Raspberry Pi reference schematic and has the same features as theofficial M.2 HAT+, so x1015 supports also Hailo AI acceleration module built around the Hailo-8L chip from Raspberry Pi AI Kit, guaranteeing ease of use and long-term support through updates to the Raspberry Pi OS. With its sleek and compact design, this shield allows for easy attachment of various M.2 SSD lengths (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 5.

• Equipped with a PCIe 2.0/3.0 interface, the X1015 offers lightning-fast data transfer speeds of up to 8Gbps, enabling you to transfer large amounts of data within seconds. Its compatibility with the Raspberry Pi official passive cooler ensures optimal heat dissipation without compromising performance. The inclusion of mounting holes and standoffs provides added protection for your solid-disk drives while effectively dissipating heat.

• With the X1015, you no longer need to guess the reading or writing status of your SSD, as it features a built-in LED light that indicates the current activity. This makes it easier for you to monitor your SSD's performance.

• Whether you're looking to create a home media center or build a Network-attached storage (NAS) system for storing and streaming your own videos, music, and photos, the X1015 can serve as the perfect storage solution. Furthermore, it supports operating system booting from your SSD, resulting in faster application launches, web serving, and file copying.

[Features]

Optimal storage solution designed specifically for Raspberry Pi 5 - M.2 NVMe SSD Shield

Adheres to the official Raspberry Pi reference schematic

Utilized the same key components as the Raspberry Pi official M.2 HAT+

Has the same features as the Raspberry Pi official M.2 HAT+

Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)

Supports devices that use the M.2 key-M edge connector

Supports devices with the 2230 or 2242 form factor

Capable of supplying up to 3A to connected M.2 devices

Includes power and activity LEDs

Supports high-capacity M.2 NVMe solid-state drives up to 4TB

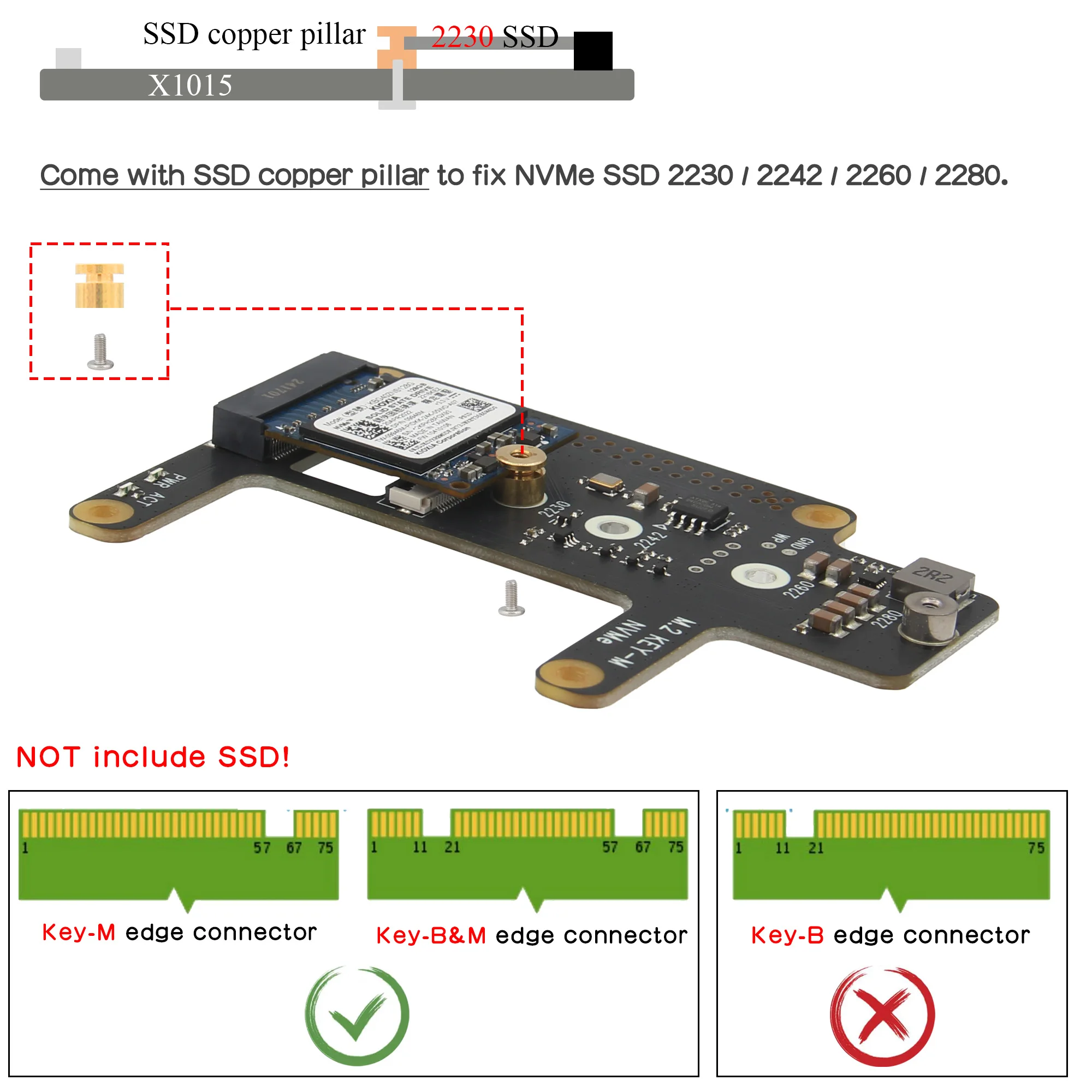

Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230

Offers fast data transfer speeds with PCIe 2.0 5Gbps / PCIe 3.0 8Gbps

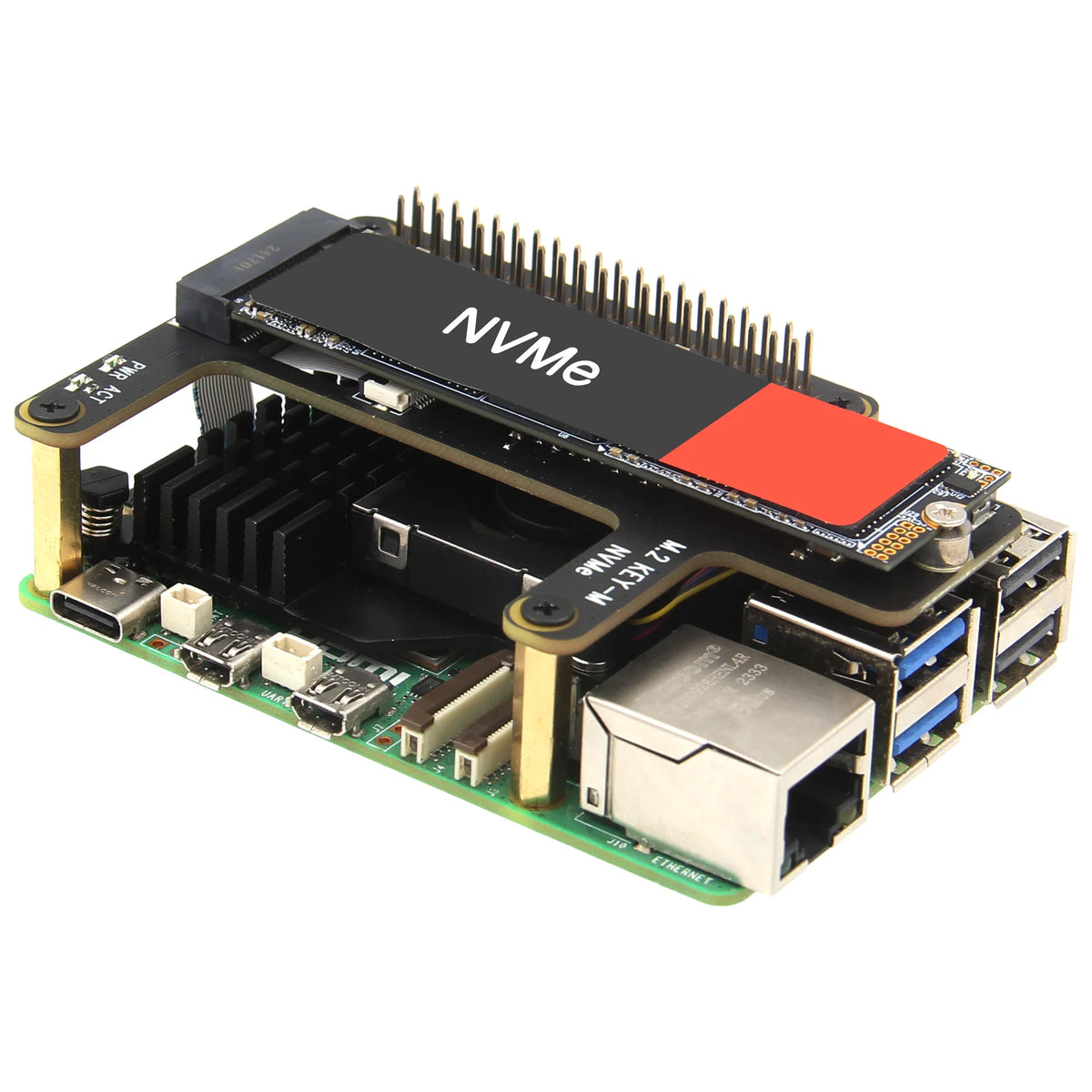

Does not compromise cooling performance and is fully compatible with the official active cooler

Powering via both GPIO pin header and FFC, ensuring sufficient power supply without any worries

Stackable design allows for attachment on bottom of other HATs

[Technical Specification]

Power supply: 5Vdc +/-5% power via GPIO pin header and FFC, converted to 3.3V max 3A to power the SSD

[Ports & Connectors:]

PCIe connector - 16-pin pitch0.5mm

SSD connector - M.2 KEY-M 67P

PCIe cable length:40mm

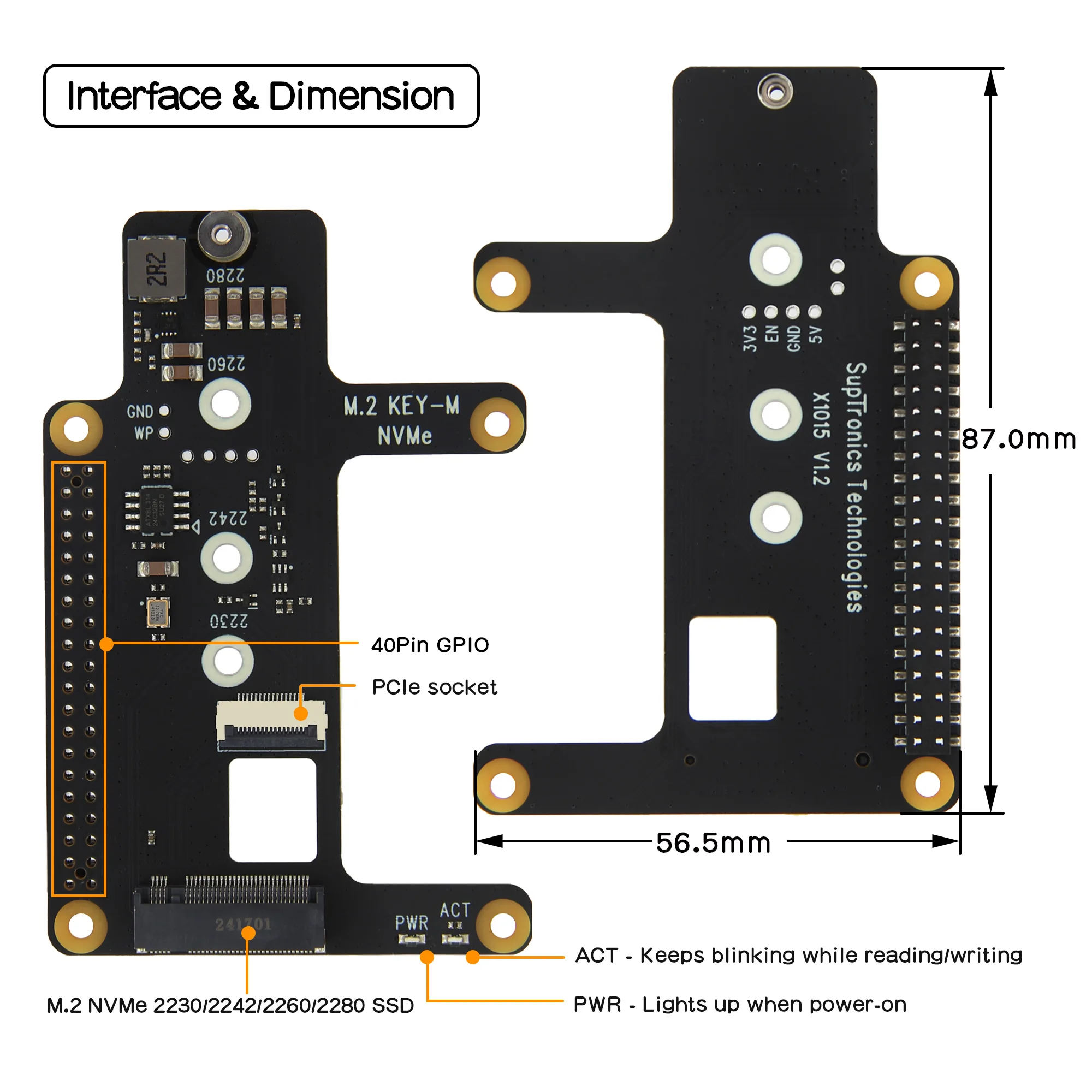

PCB Size: 87mm x 56.5mm

[Packing List]

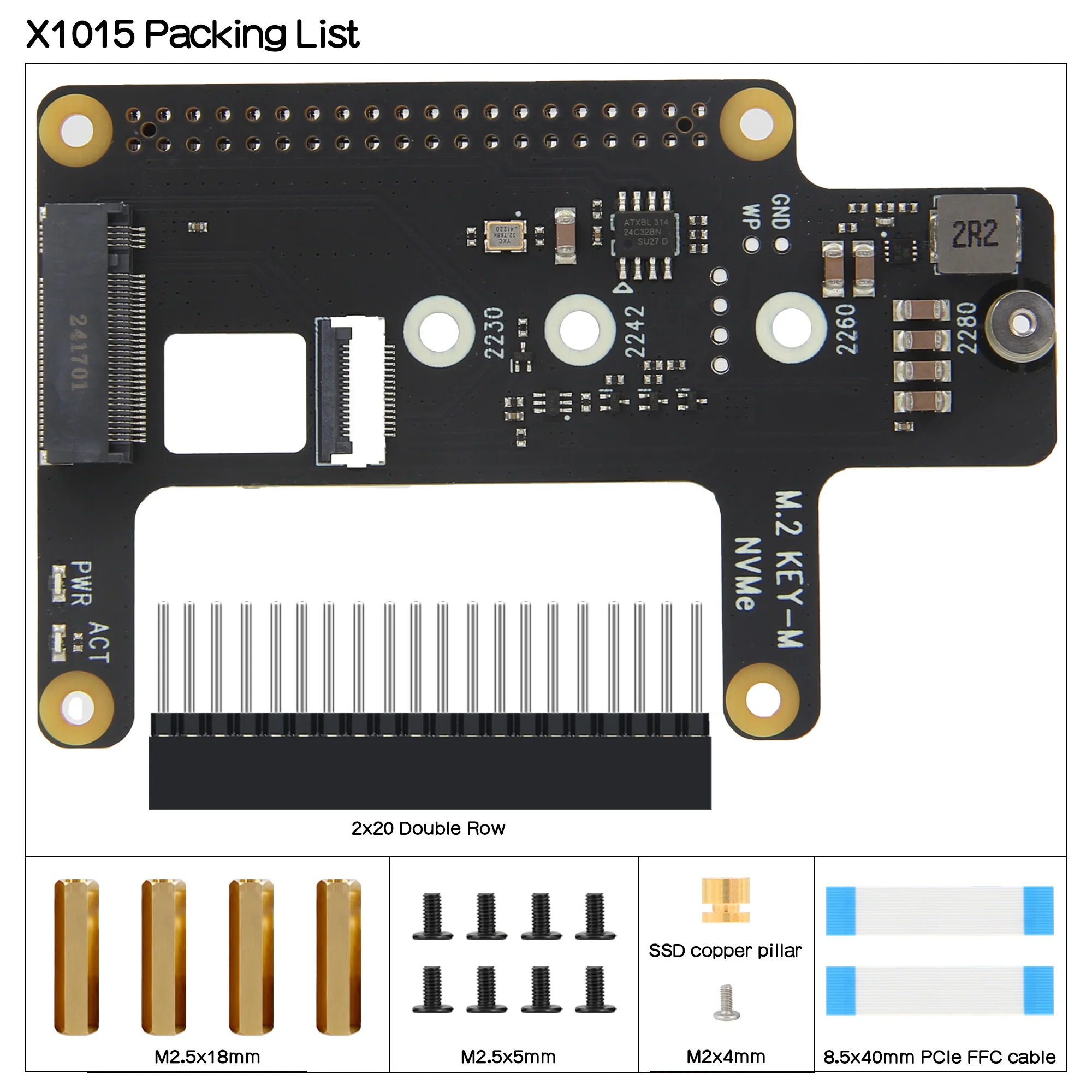

1 x X1005 V1.0 NVMe shield

1 x Screw pack
