Custom X1011-C1 Metal Case for Pi 5 & X1011 Board

[Note]

1. Raspberry Pi 5, X1011board,Active Cooler are all NOT included in the packing list.

2. The WiFi or Bluetooth signal will be affected if use the metal case, we advice that you use ethernet network or 5.8G wifi AP to replace the 2.4G wifi to test.



[Overview]

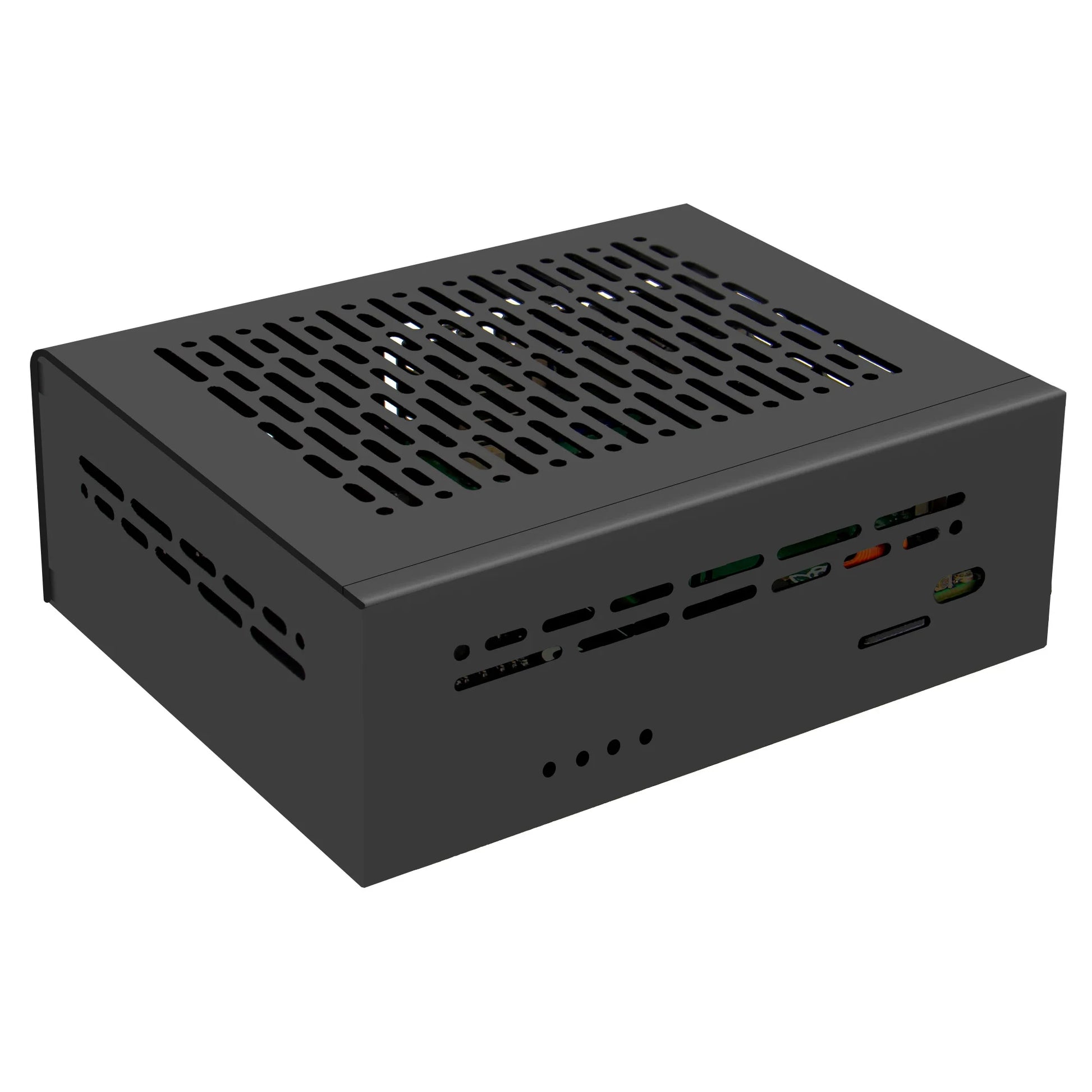

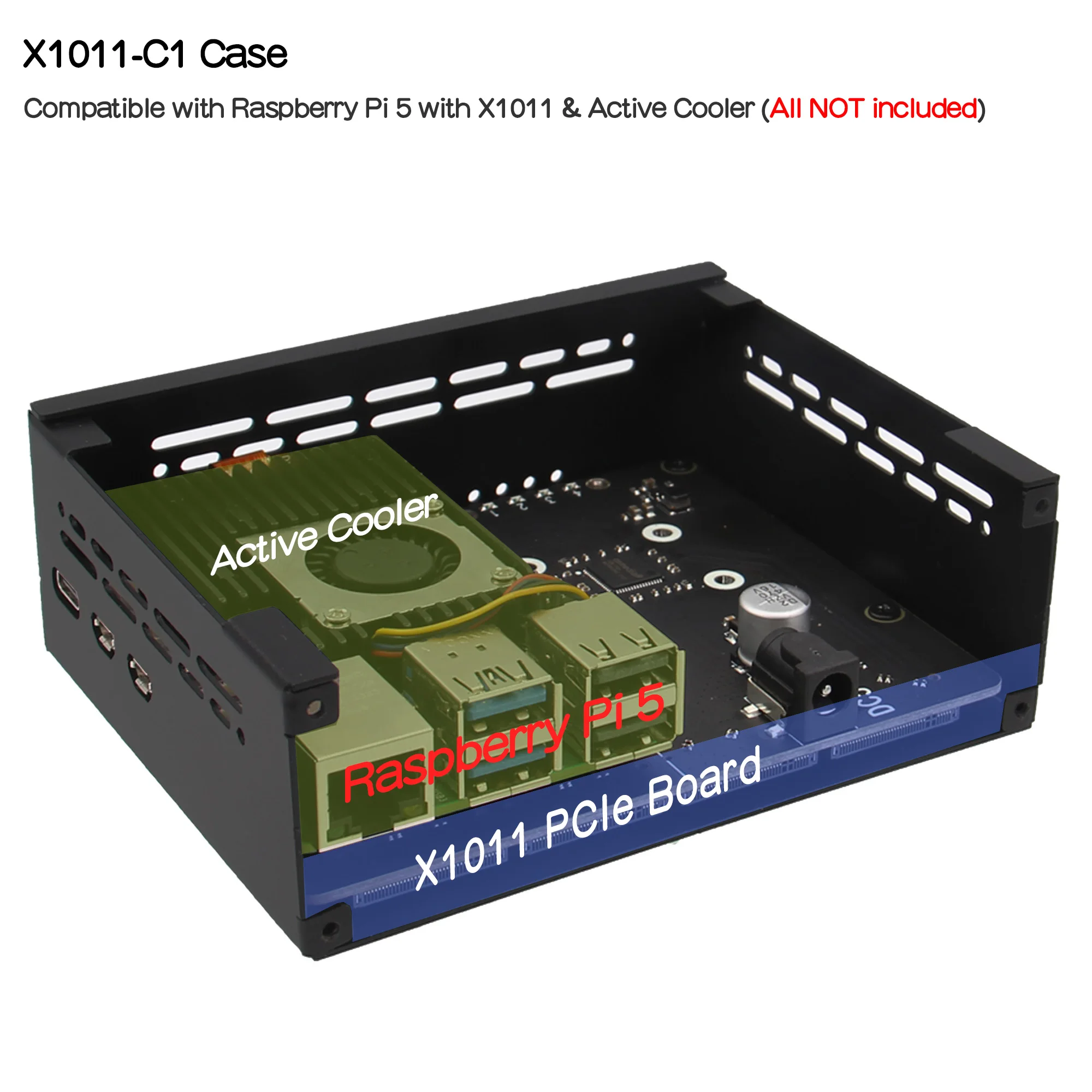

X1011-C1 is a metal case only. It is special designed for Raspberry Pi 5 with X1011 board, also compatible with official active cooler and Third-party active cooler.

[Features]

• High quality metal material with surface galvanized process;

• Exhaust holes surface can reach good heat dissipation

• Easy to insert and remove SD card - No need to open the case

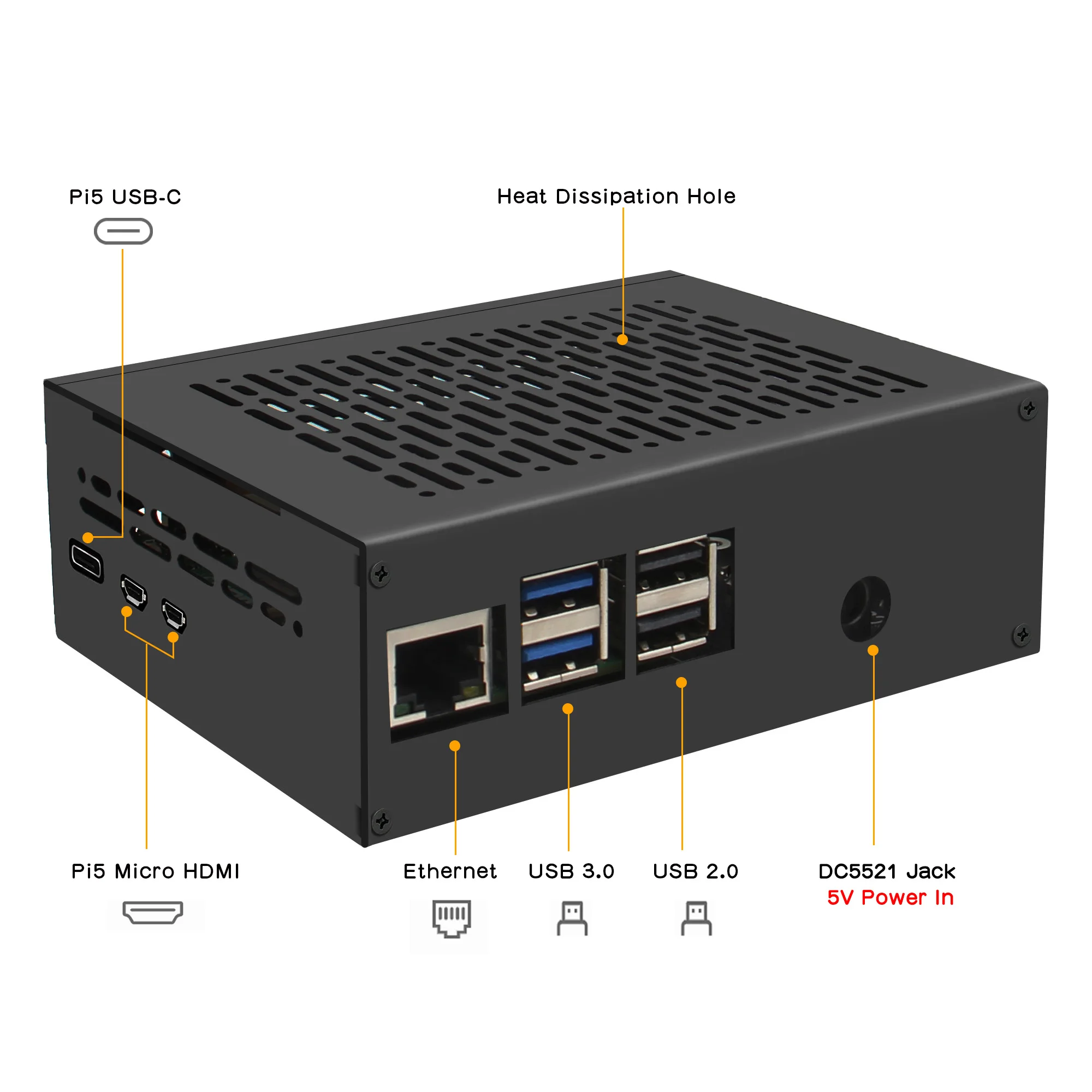

• Reserved power switch hole for Raspberry Pi 5

• Reserved GPIO cable hole

• With VESA mounting hole, you can hang it on the wall or somewhere you want.

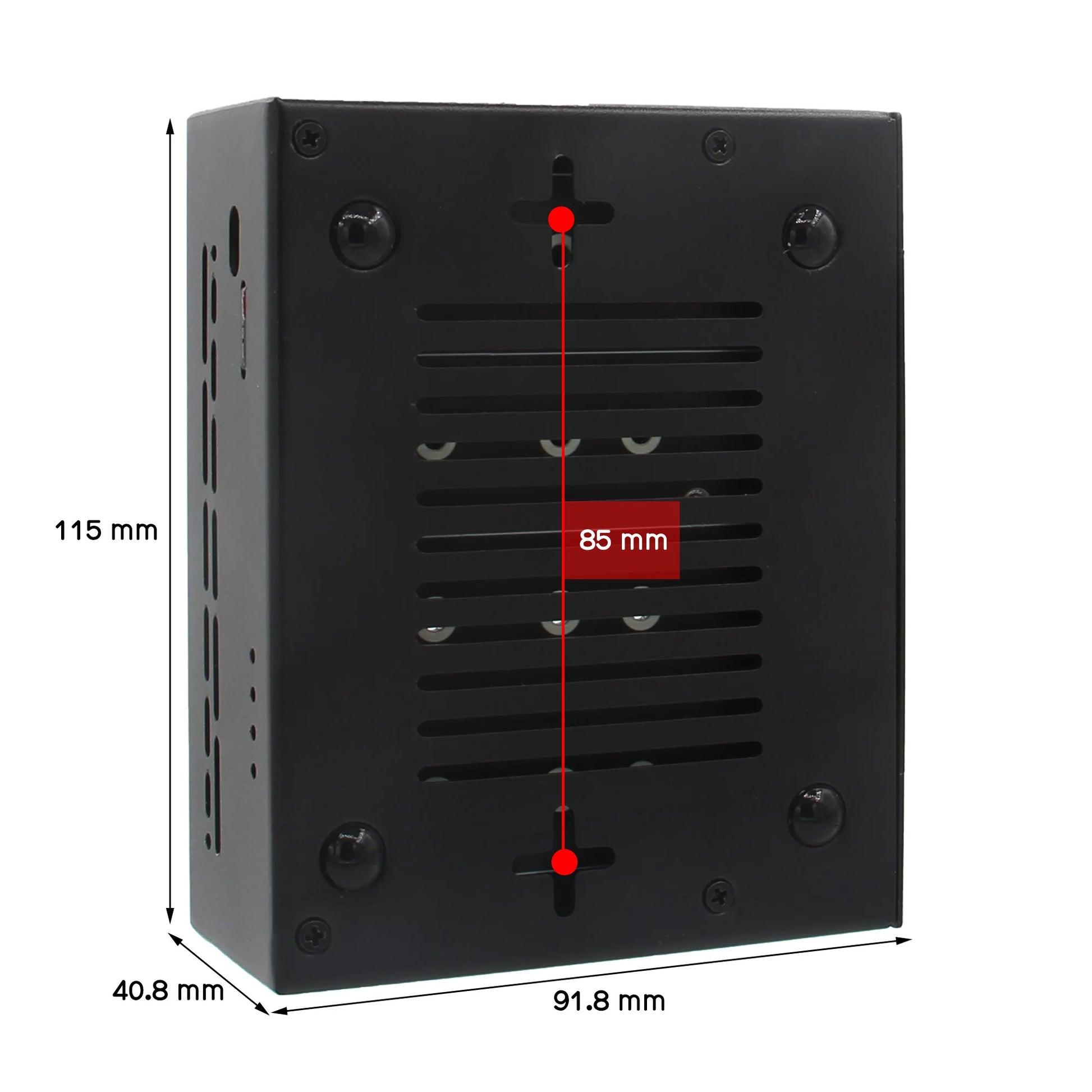

• Case Dimensions: 115*91.8*40.8 mm

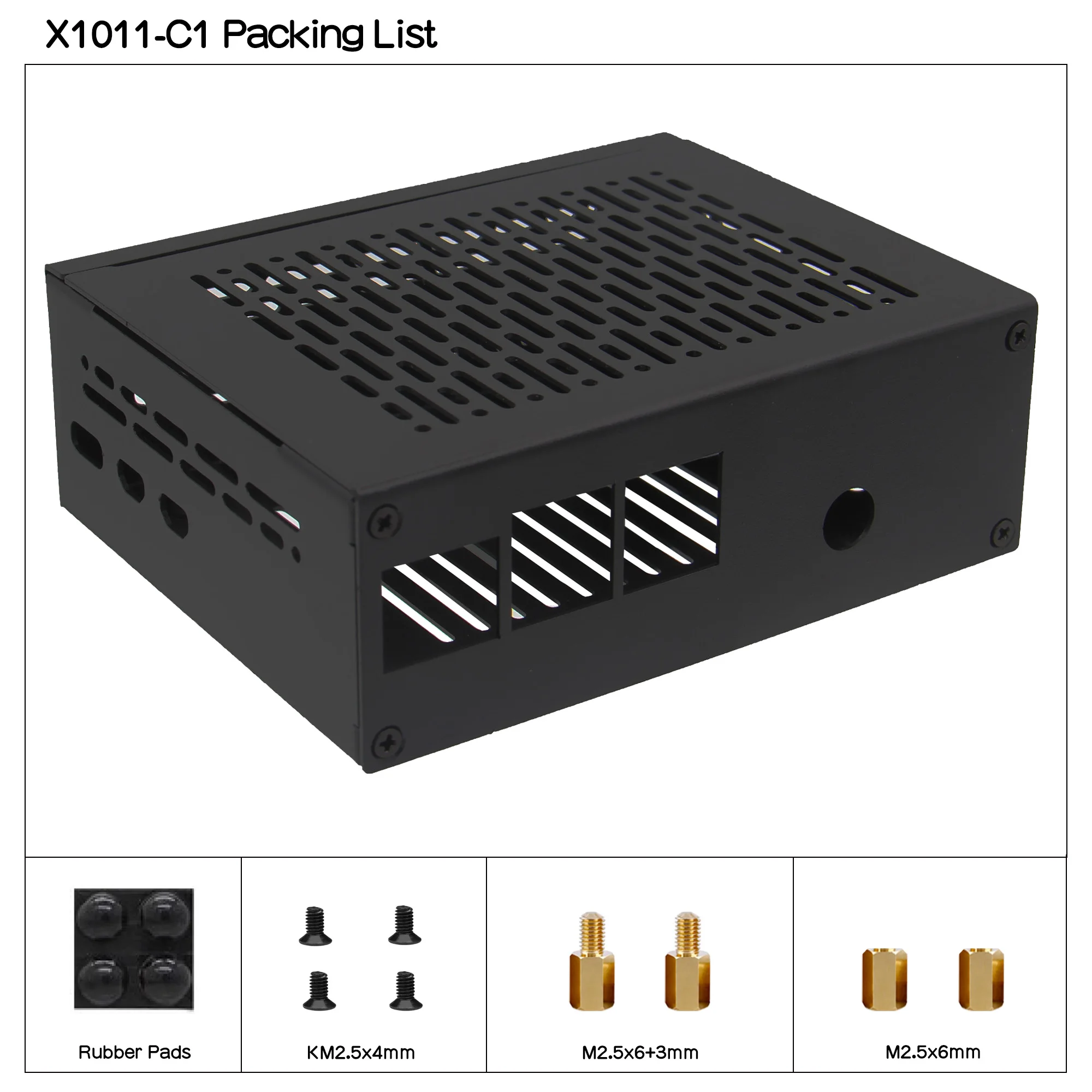

[Packing List]

• 1 x X1011-C1 Metal Case

• 2 x M2.5*6+3 Female/Male Spacers

• 2 x M2.5*6 Female/Female Spacers

• 4 x KM2.5*4 Screws

• 4 x pads

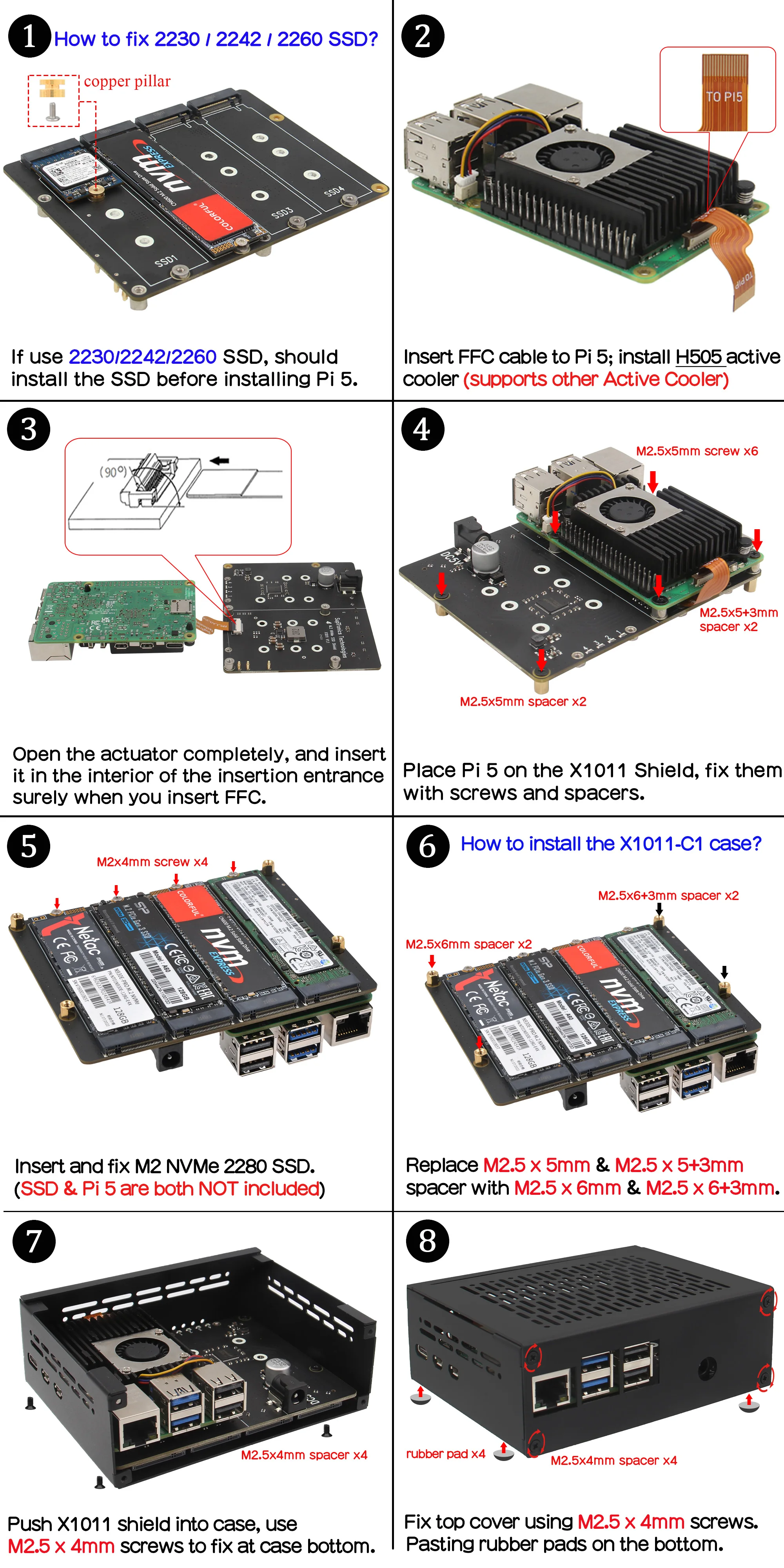

[Installation Instructions]
