Custom X1010 V1.1 PCIe FFC Connector to Standard PCIe x4 slot Expansion Board for Raspberry Pi 5

Custom X1010 V1.1 PCIe FFC Connector to Standard PCIe x4 slot Expansion Board for Raspberry Pi 5

$27.80 USD
$27.80 USD $27.80 USD
Sale Sold out

[NOTE]

Not include Raspberry Pi 5 & PCIe Card & Active Cooler!!!



[Overview]

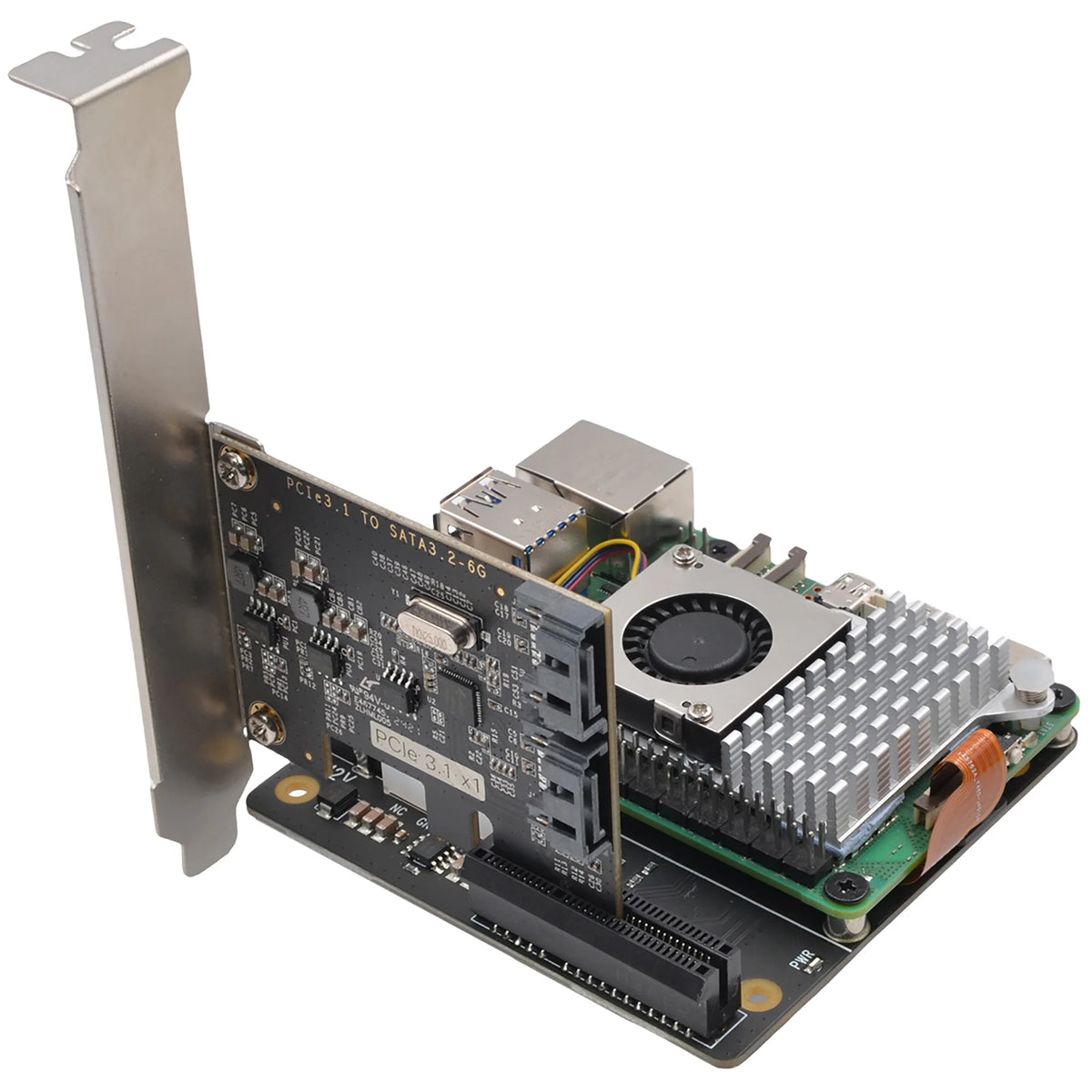

  1. The X1010 PCIe FFC connector to standard PCIe x4 slot expansion board, designed for effortless integration of various PCIe add-on cards such as Graphics cards (GPUs), RAID cards, USB expansion cards, High-speed ethernet cards, Wi-Fi cards, and SSDs to enhance the capabilities of your Raspberry Pi5.

  2. The X1010 features versatile power options, supporting 12V input via a common DC jack or ATX 4-pin peripheral power connector. Equipped with high-efficiency DC/DC step-down converters, it delivers a maximum of 5.5A to power your Raspberry Pi5 and provides 3.3V at 5.5A for your PCIe device.

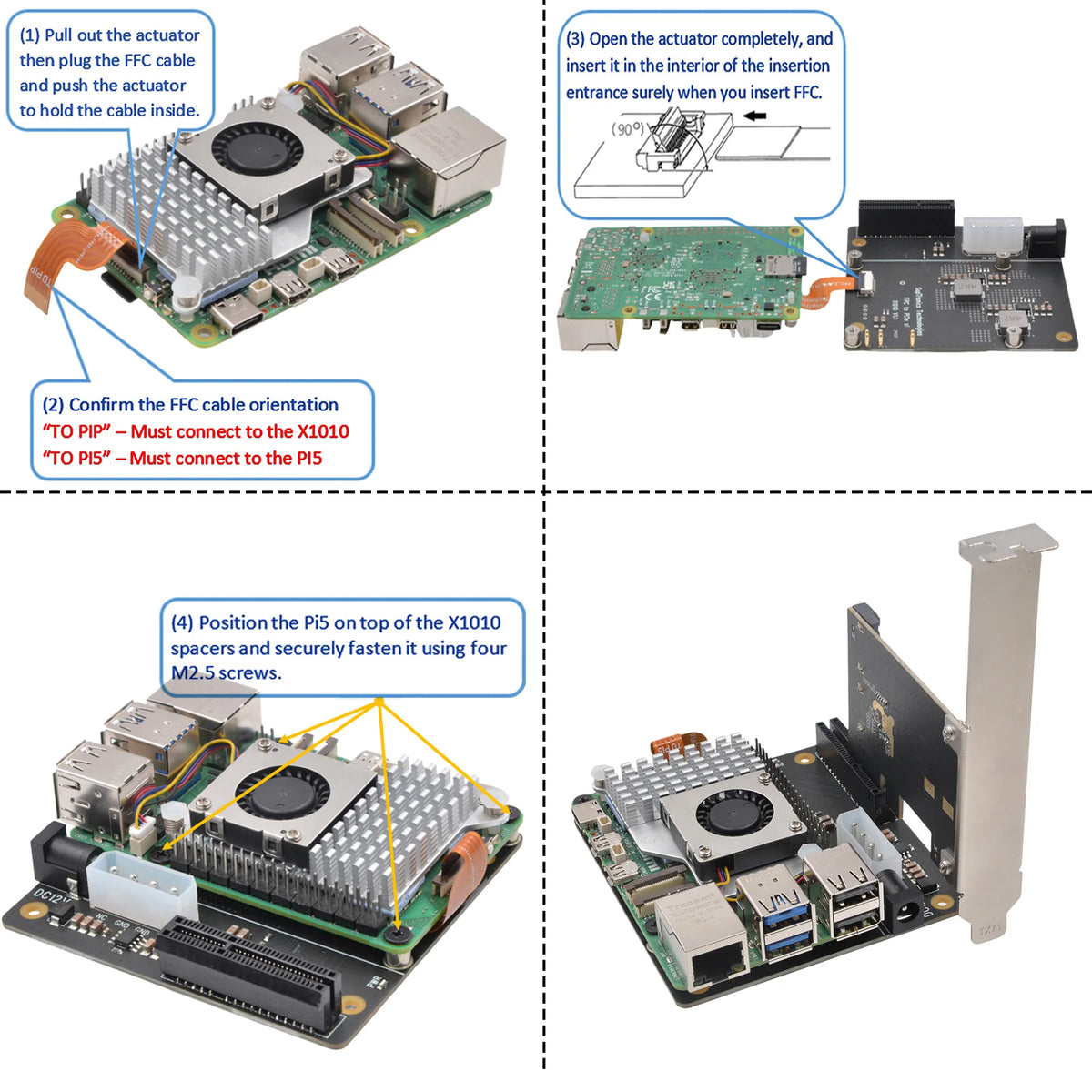

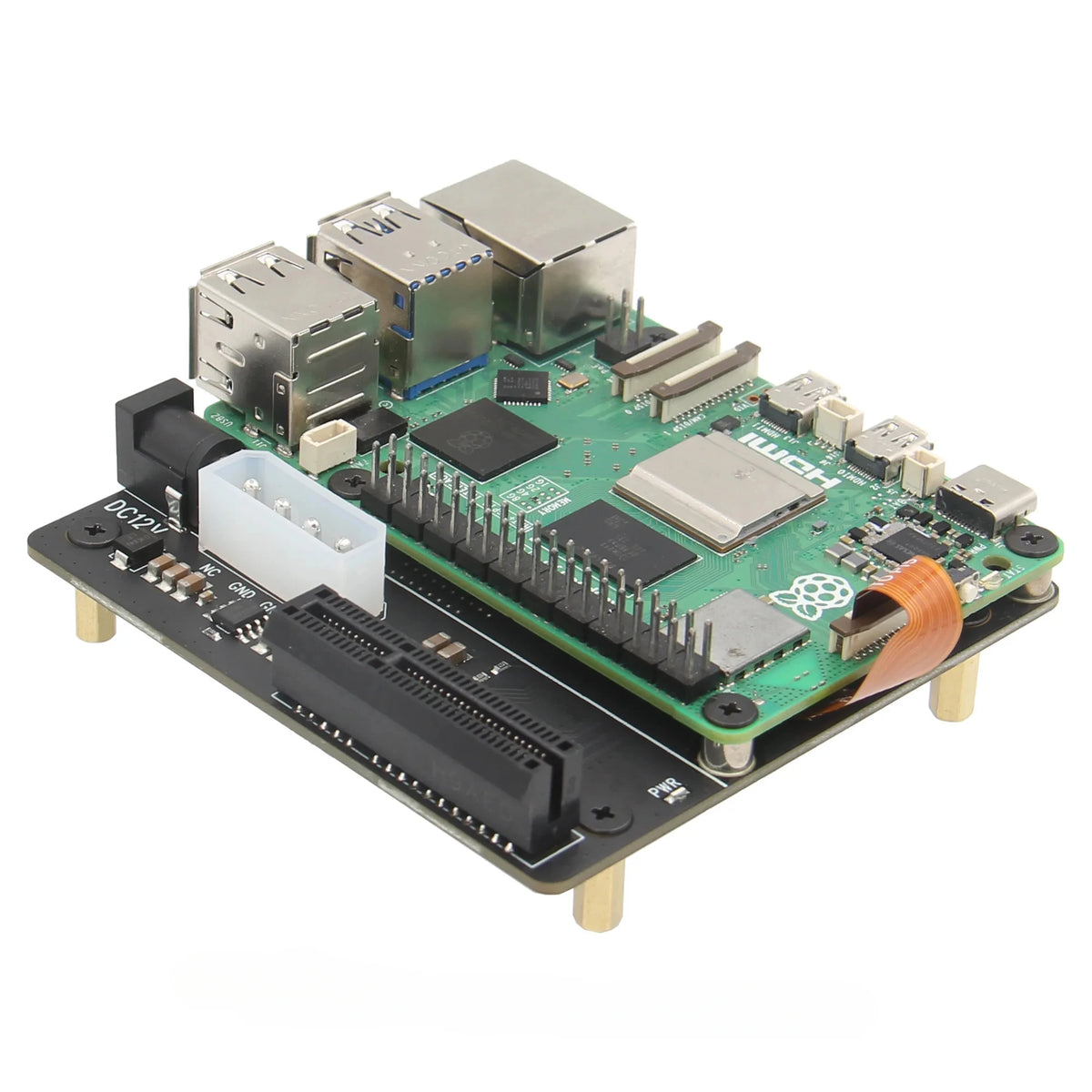

  3. By connecting to the underside of the Raspberry Pi 5, the X1010 eliminates the need for a GPIO passthrough, allowing you to seamlessly use your preferred HATs while maximizing the functionality of the expansion board.



[Features]



  • Compatible With Raspberry Pi 5B

  • PCIe 2.0x1 FFC connector to standard PCIe x4 slot, enabling compatibility with a wide range of PCIe expansion cards

  • PCIE_DET_WAKE pin pulled high and automatically probe the PCIe bus at boot time

  • Flexible powering options via a common DC jack or ATX 4-pin peripheral power connector

  • Efficient power delivery to the Raspberry Pi5 via pogo pin, streamlining the power supply to a single source

  • Equipped with a high-efficiency DC/DC step-down converter, providing a maximum of 5.5A to power your Raspberry Pi5

  • Compatible with the HAT+ STANDBY power state, automatically powering off the PCIe device when the Pi 5 is shut down.

  • PCB Size: 85mm x 82mm

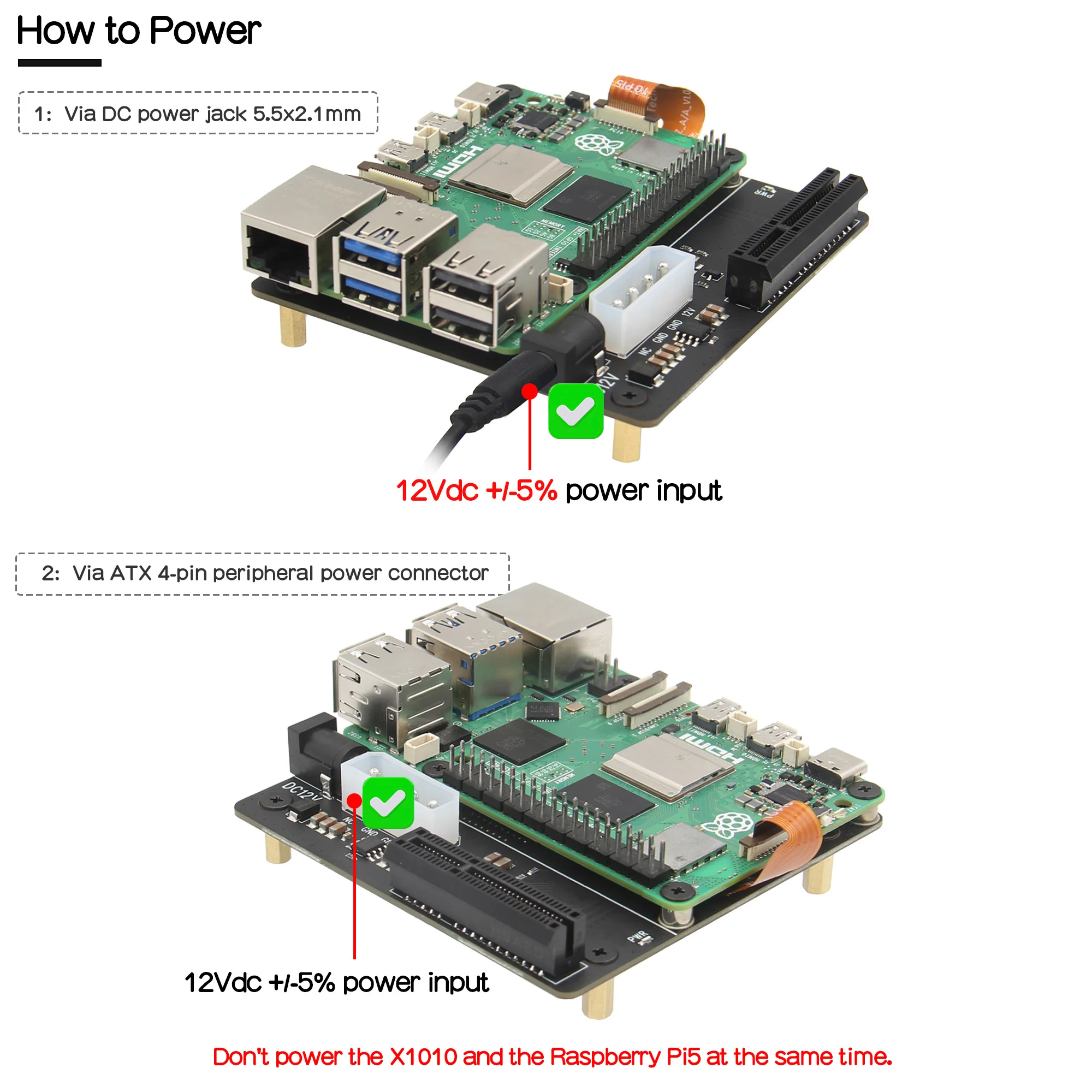

[How to Power]



  • 12Vdc +/-5% power via DC power jack 5.5x2.1mm or 12Vdc +/-5% power via ATX 4-pin peripheral power connector

  • Don't power the X1010 and the Raspberry Pi5 at the same time.

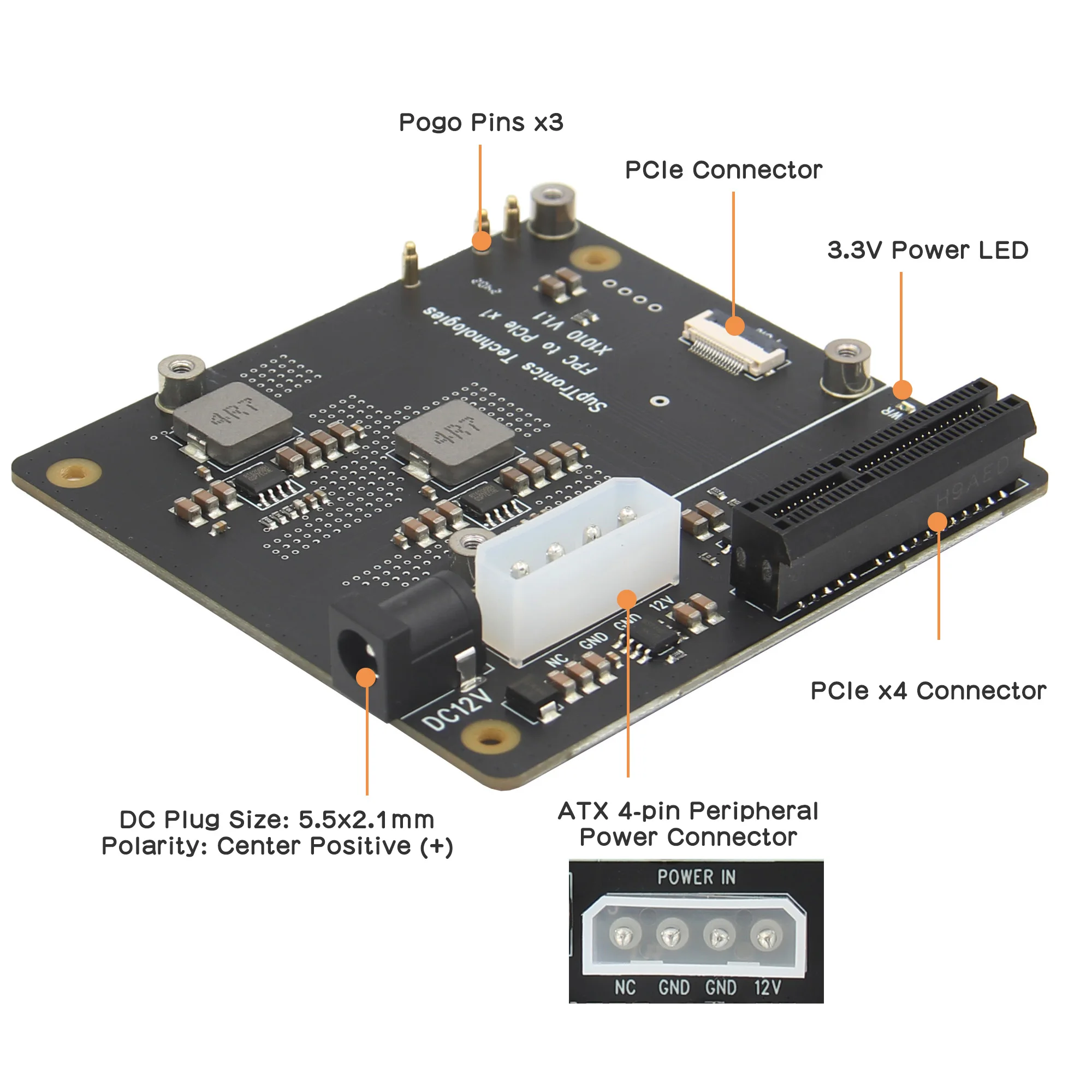

[Ports & Connectors]



  • DC power jack: 5.5x2.1mm, polarity: center positive (+)

  • ATX peripheral power connector - 4P, pitch5.08mm

  • PCIe connector x1 - 16-pin pitch0.5mm

  • PCIe x4 connector x1 - 64P

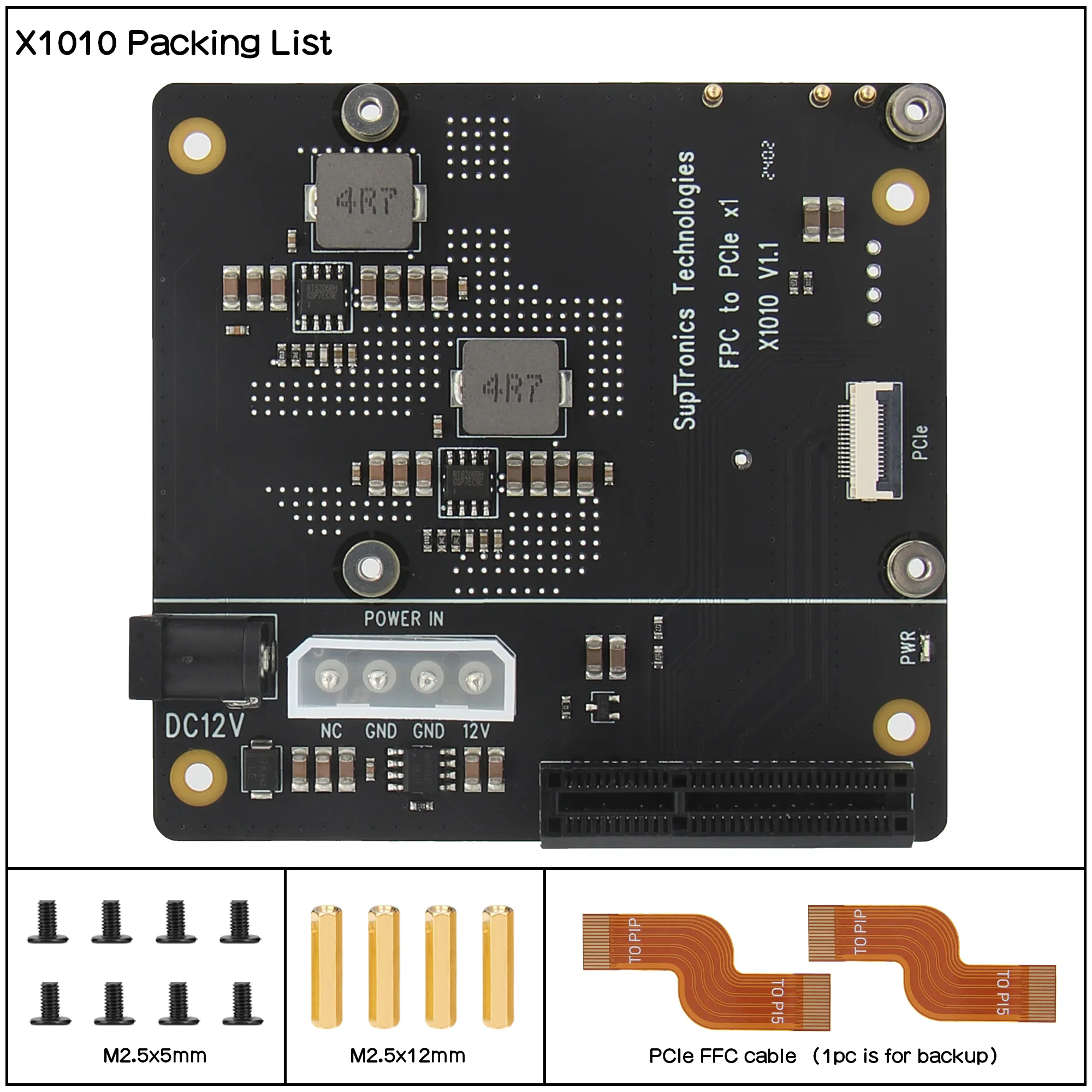

[Packing List]

  • 1 x X1010 V1.1 Shield

  • 2 x 37mm FFC cable (1pc is for backup)

  • 4 x M2.5*12 Female/Female Spacer

  • 8 x M2.5*5 Screw
