Custom X1009 PCIe to 5-Port SATA Shield for Pi 5 (NOT Support Boot from HDD/SSD)

[Important Notes]

1. NOT include Raspberry Pi 5 & SSDs/HDDs.

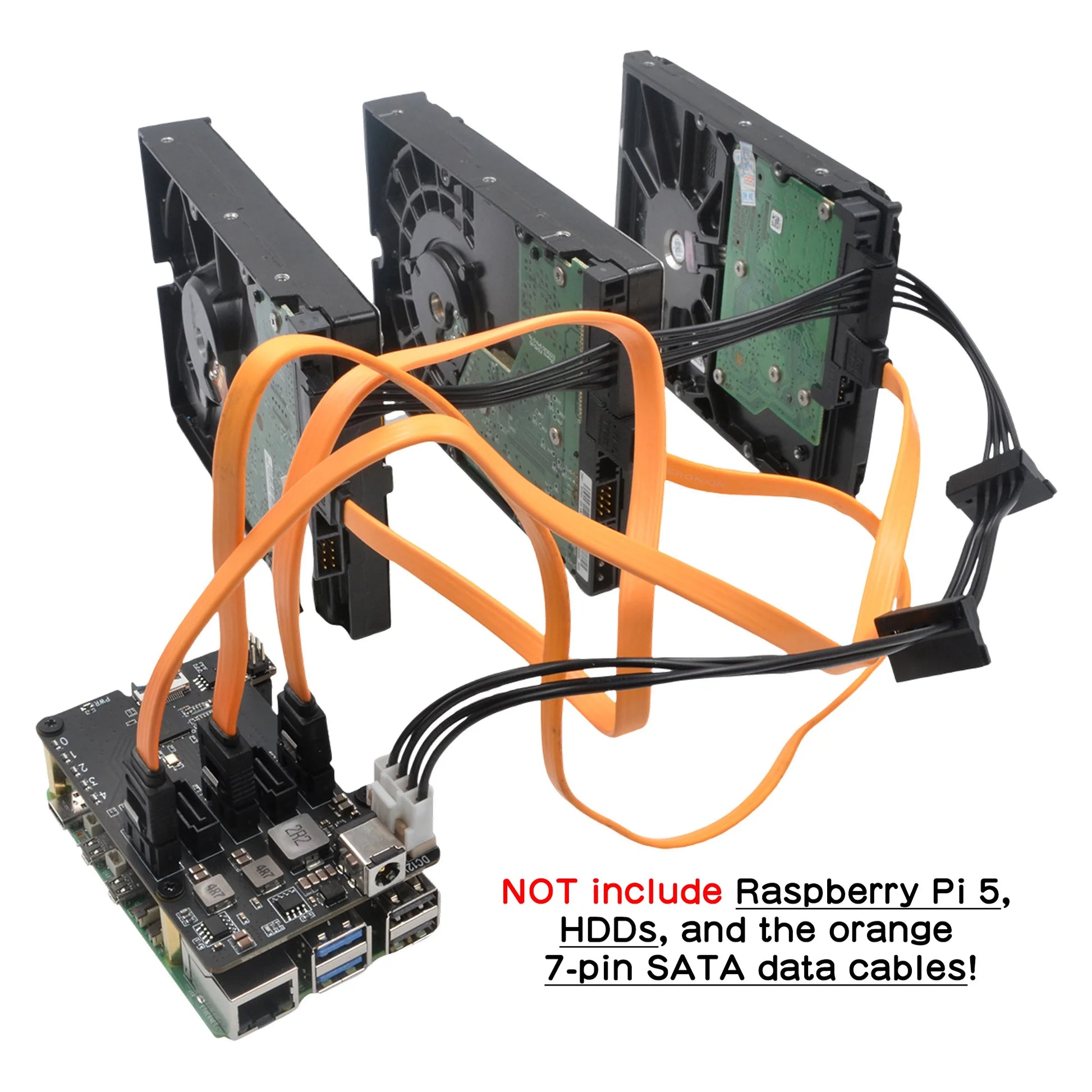

2. NOT include 7-pin SATA data cables, please prepare it yourself

3. The X1009 is designed for data storage purposes and DOES NOT currently support booting from HDD/SSD with the existing firmware.

4. DON'T power the X1009 via DC powe jack and the Raspberry Pi5 via USB-C at the same time.

5. Older SATA drives with less efficient flash media may not perform as well as newer drives

6. New SATA HDDs/SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

[Overview]

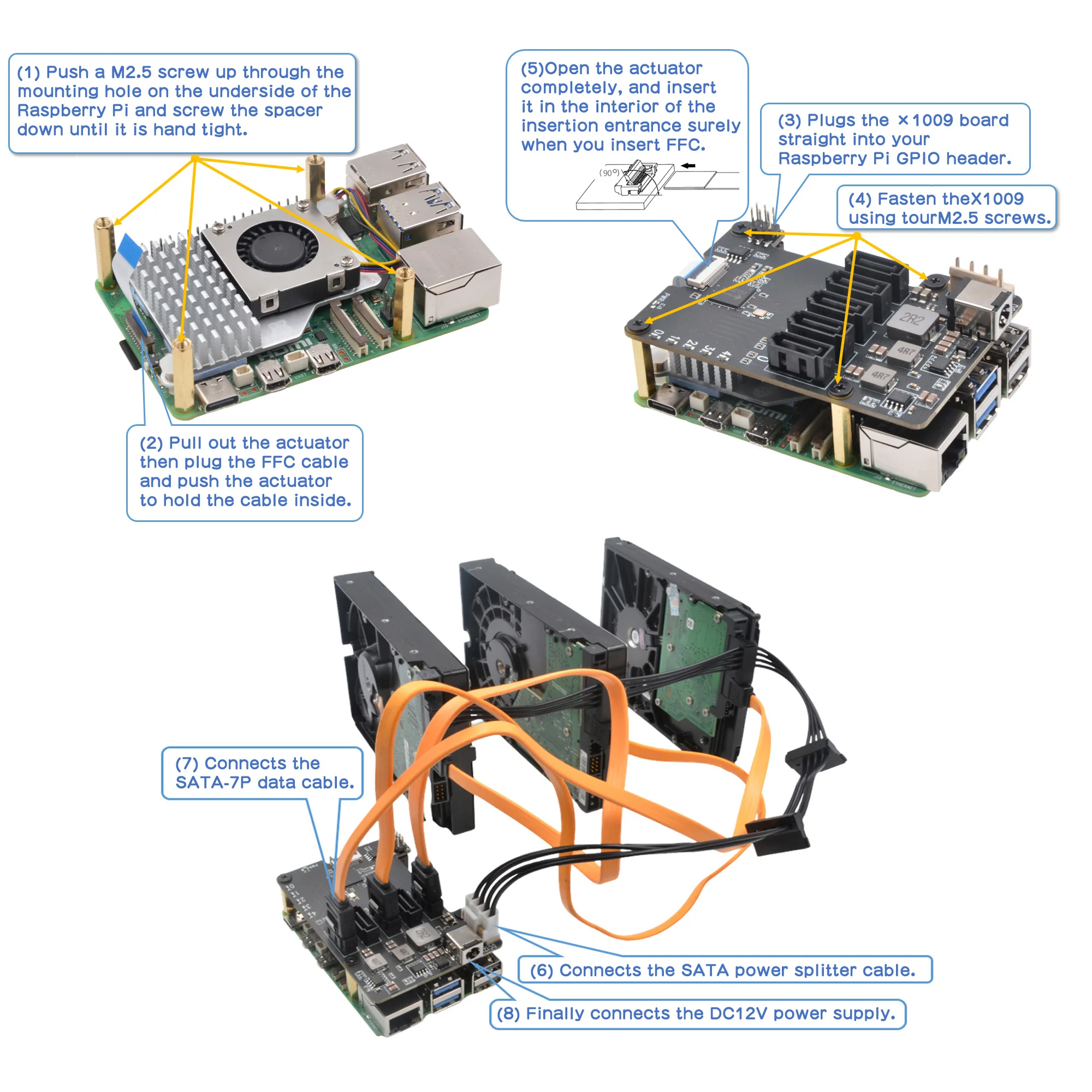

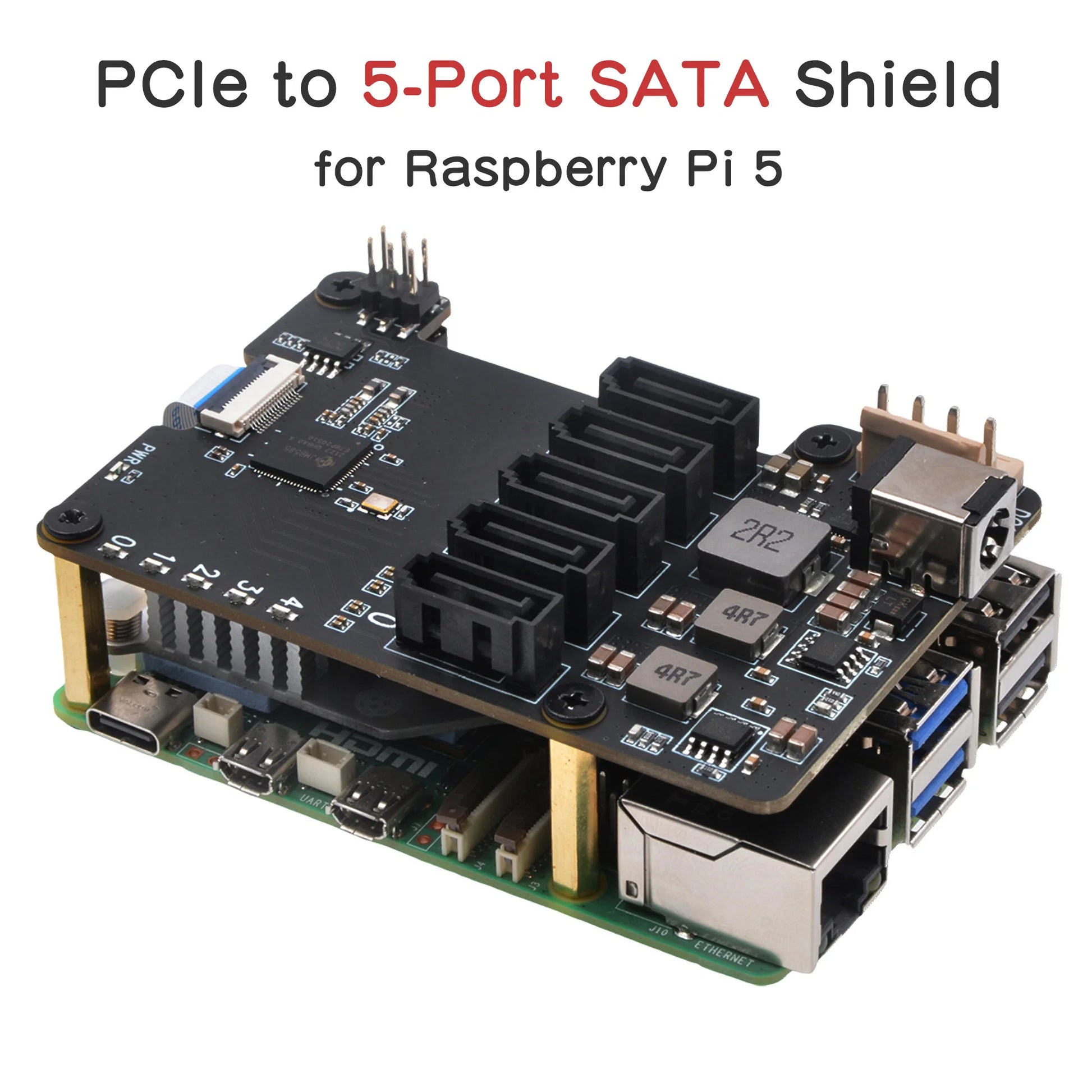

• The X1009 PCIe to 5-port SATA expansion board is designed to offer a high-capacity and high-speed storage solution for your Raspberry Pi 5. This board supports the simultaneous connection of 5pcs large-capacity SATA storage devices, with the SATA 3.0 interface reaching speeds of up to 5Gbps.

• The X1009 features a 12V input via a standard DC jack and is equipped with high-efficiency DC/DC step-down converters to power both your Raspberry Pi 5 and PCIe devices concurrently, simplifying the power supply to a single source.

• Ideal for creating a home media center or setting up a network-attached storage (NAS) system, the X1009 allows you to store and stream your videos, music, and digital photos within your home or even remotely around the world.

[Manual]

https://wiki.geekworm.com/X1009

[Features]

• Compatible with Raspberry Pi 5B

• Supports the connection of five SATA 3.0 devices to your Raspberry Pi 5 simultaneously

• Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0

• Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0

• Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s

• Compatible with SATA 6G, 3G, and 1.5G hard drives

• Features plug-and-play installation for ease of setup

• Blue LED indicators display power and drive status

• Equipped with a high-efficiency DC/DC step-down converter to power both your Raspberry Pi 5 and SATA devices simultaneously

• Efficient power delivery to the Raspberry Pi 5 via a pin header, consolidating power sources

• Compatible with the official active cooler without compromising cooling performance

• Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down

• Includes a power SATA splitter cable for connecting up to 5 Serial ATA devices

• PCB Size: 85mm x 57.2mm

[How to Power]

• 12Vdc +/-5% ≥3A for one 3.5" HDD or one 2.5" HDD,

• 12Vdc +/-5% ≥5A for two 3.5" HDDs, ≥7A for three 3.5" HDDs, ≥9A for four 3.5" HDDs, ≥11A for five 3.5" HDDs

• 12Vdc +/-5% ≥4A for two 2.5" HDDs, ≥5A for three 2.5" HDDs, ≥6A for four 2.5" HDDs, ≥7A for five 2.5" HDDs

• Your SATA drives can also be powered from a separate PSU.

• According to our actual test, the Geekworm 12V/5A power supply can load 3-5 2.5" sata SSDs, and final power requirements depend on the requirements of the SSD/HDD you are using


[Ports & Connectors]

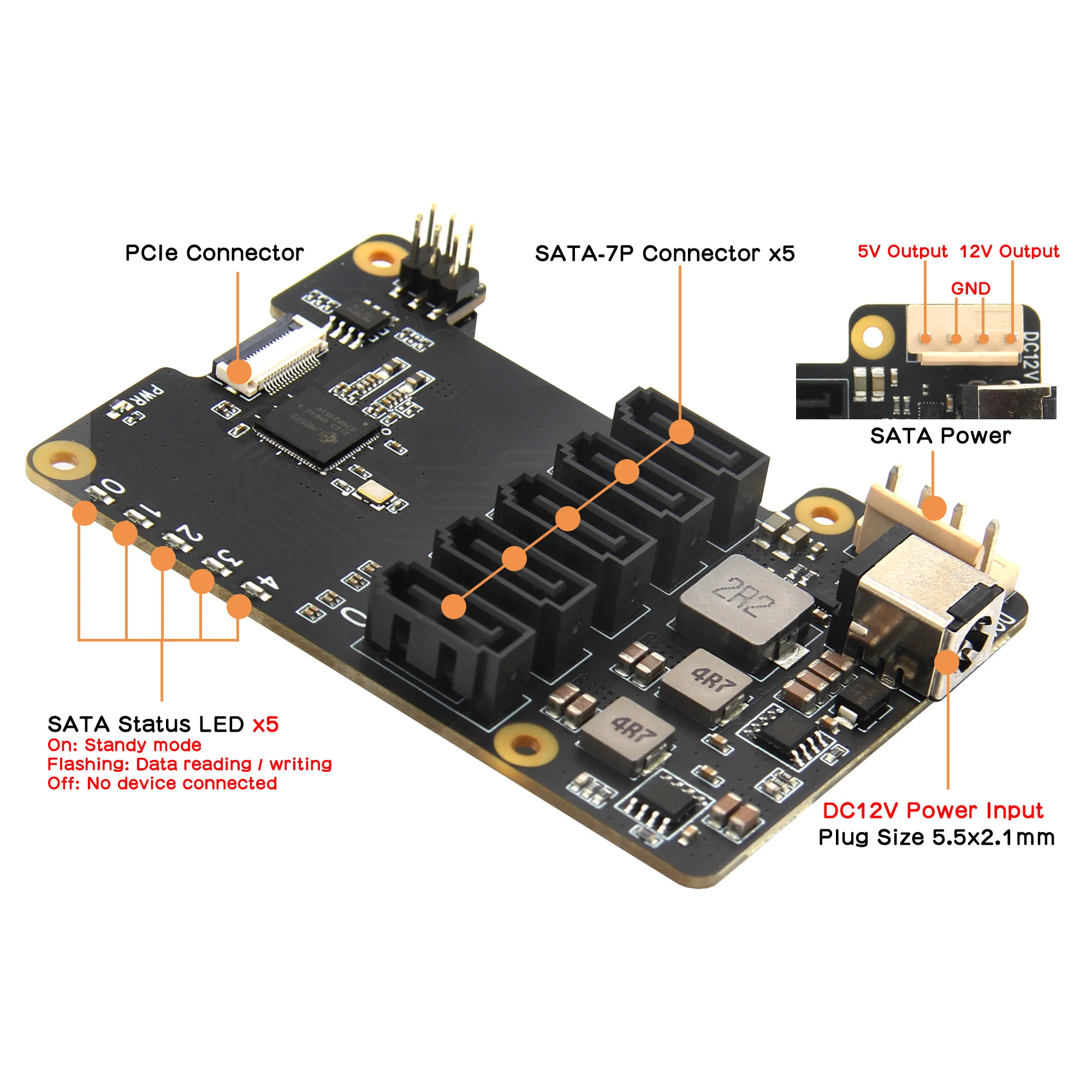

• DC power jack x1 - 5.5x2.1mm

• PCIe connector x1 - 16-pin pitch0.5mm

• SATA connectors x5 - 7P

[Packing List]

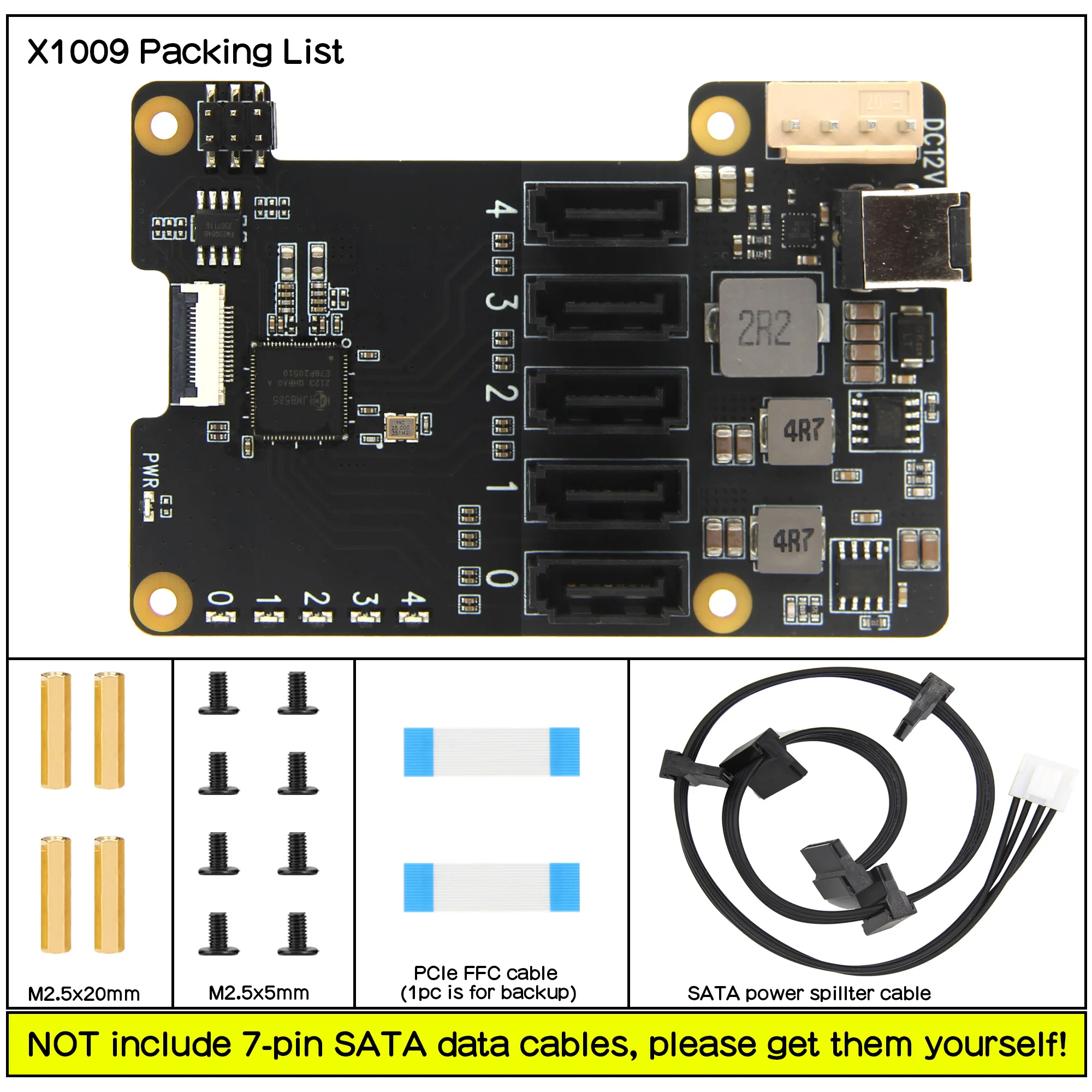

• 1 x X1009 V1.1 PCIe to SATA shield

• 1 x SATA power spillter cable

• 1 x PCIe FFC 30mm

• 1 x Screw pack

NOT include 7-pin SATA data cables, please prepare it yourself
