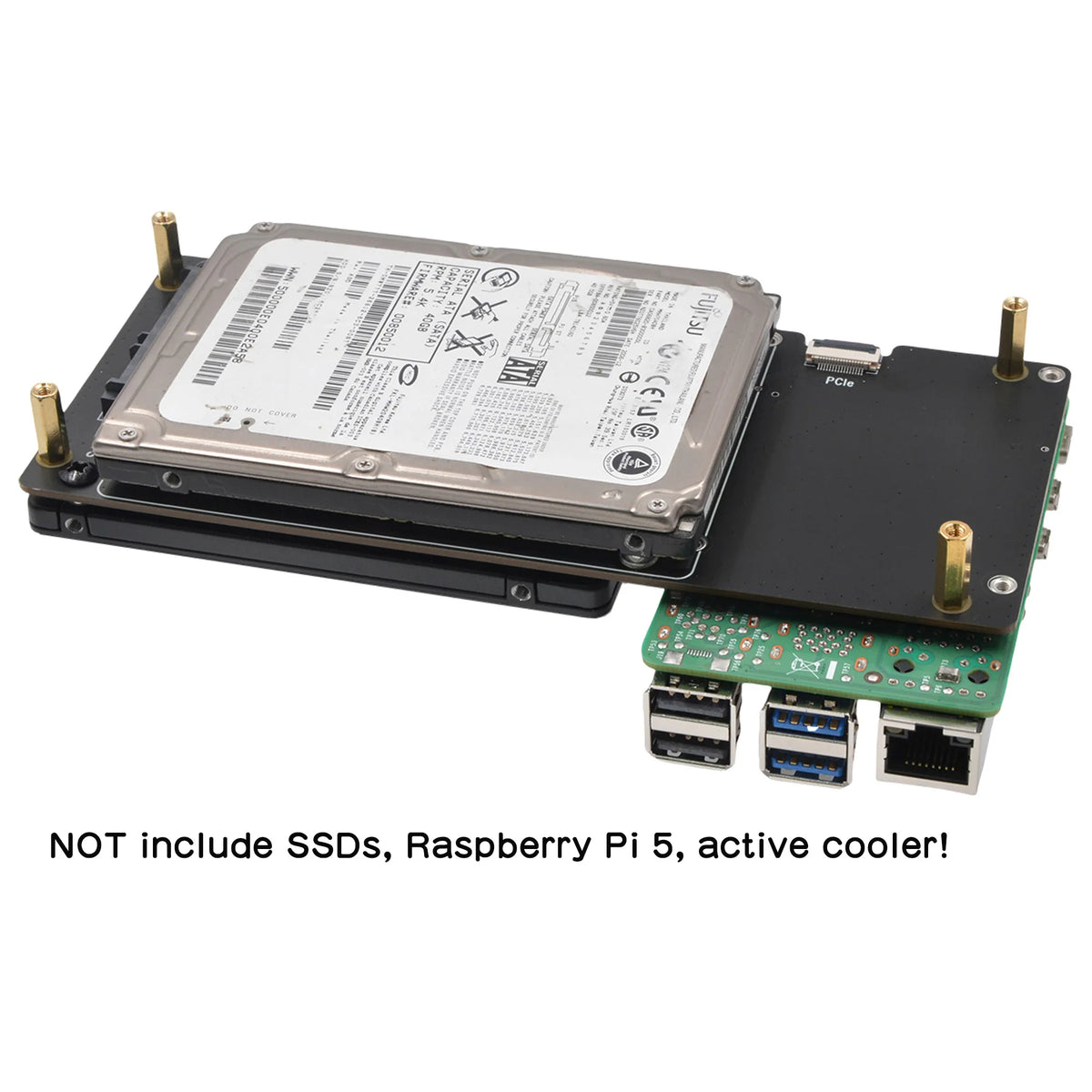

Custom X1007 PCIe to Dual 2.5" SATA HDD/SSD Shield for Raspberry Pi 5 (NOT Support Boot from SSD)

[Important Notes]

1. The X1007 is designed for data storage purposes and does not currently support booting from HDD/SSD with the existing firmware.

2. Older SATA drives with less efficient flash media may not perform as well as newer drives

3. New SATA HDDs/SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the Raspberry Pi before they will be accessed in the Explorer.

[Overview]

• X1007 PCIe to 2 ports SATA HDD/SSD expansion board, designed to provide a mass-capacity storage and high-speed storage solution for your Raspberry Pi 5. This board facilitates the simultaneous connection of two 2.5-inch HDDs/SSDs, unleashing the full potential of your storage capabilities, with SATA 3.0 interface speeds reaching up to 5Gbps.

• The X1007 connects to the underside of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favorite HATs while also utilizing this expansion board. Additionally, the X1007 and your HDDs can be powered from Raspberry Pi5 via pogo pins, streamlining the power supply to a single source.

• The X1007 serves as the perfect storage solution for establishing a home media center or constructing a network-attached storage (NAS) system. It empowers you to store and stream your personal collection of videos, music, and digital photos within the confines of your home or remotely from anywhere around the globe.

[Features]

• Compatible With Raspberry Pi 5B

• Supports the connection of two 2.5-inch HDD/SSD to your Raspberry Pi 5 simultaneously

• Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0

• Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0

• Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s

• Compatible with SATA 6G, 3G, and 1.5G hard drives

• Features plug-and-play installation for ease of setup

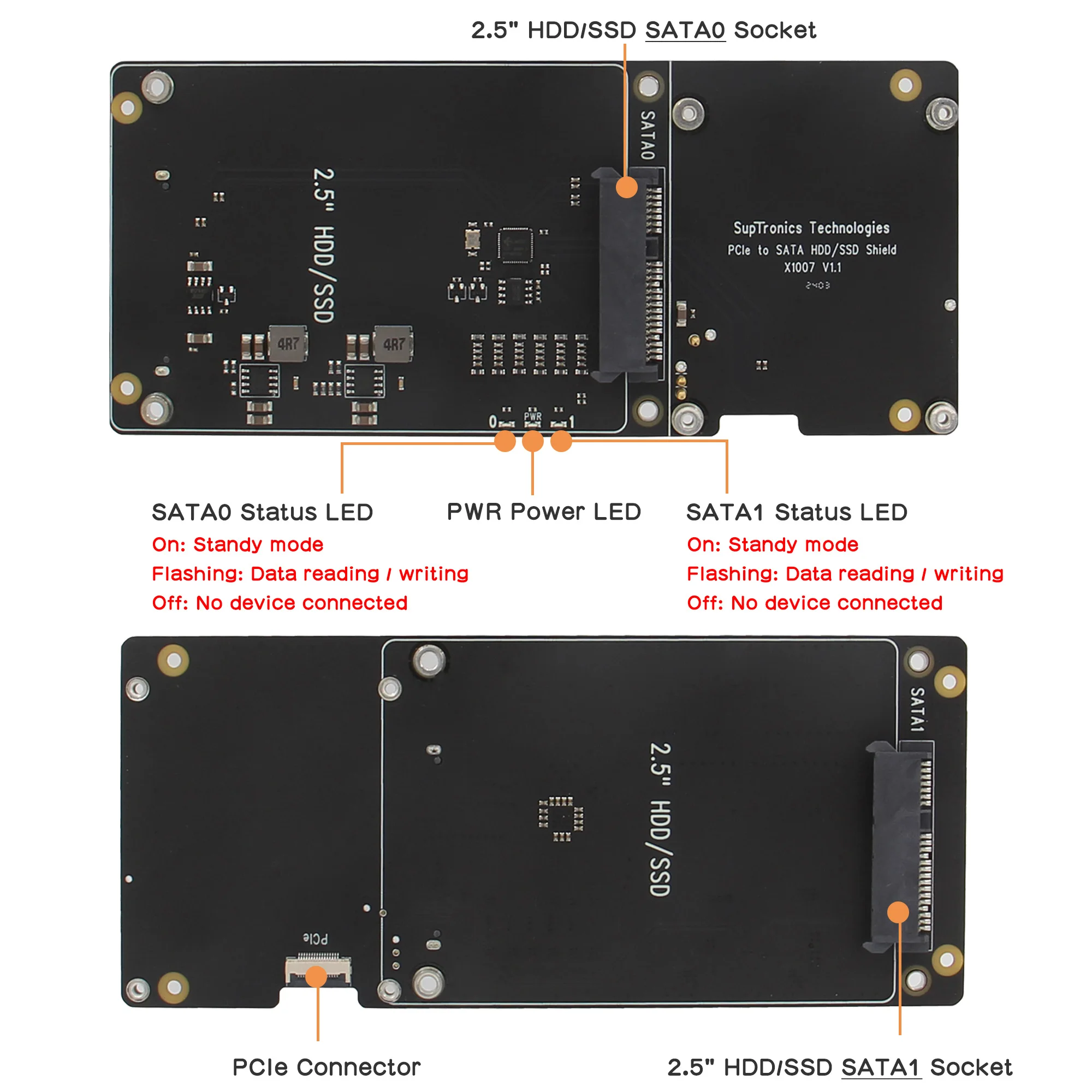

• LED indicators display power and drive status

• Powered from Raspberry Pi5 via pogo pins, streamlining the power supply to a single source

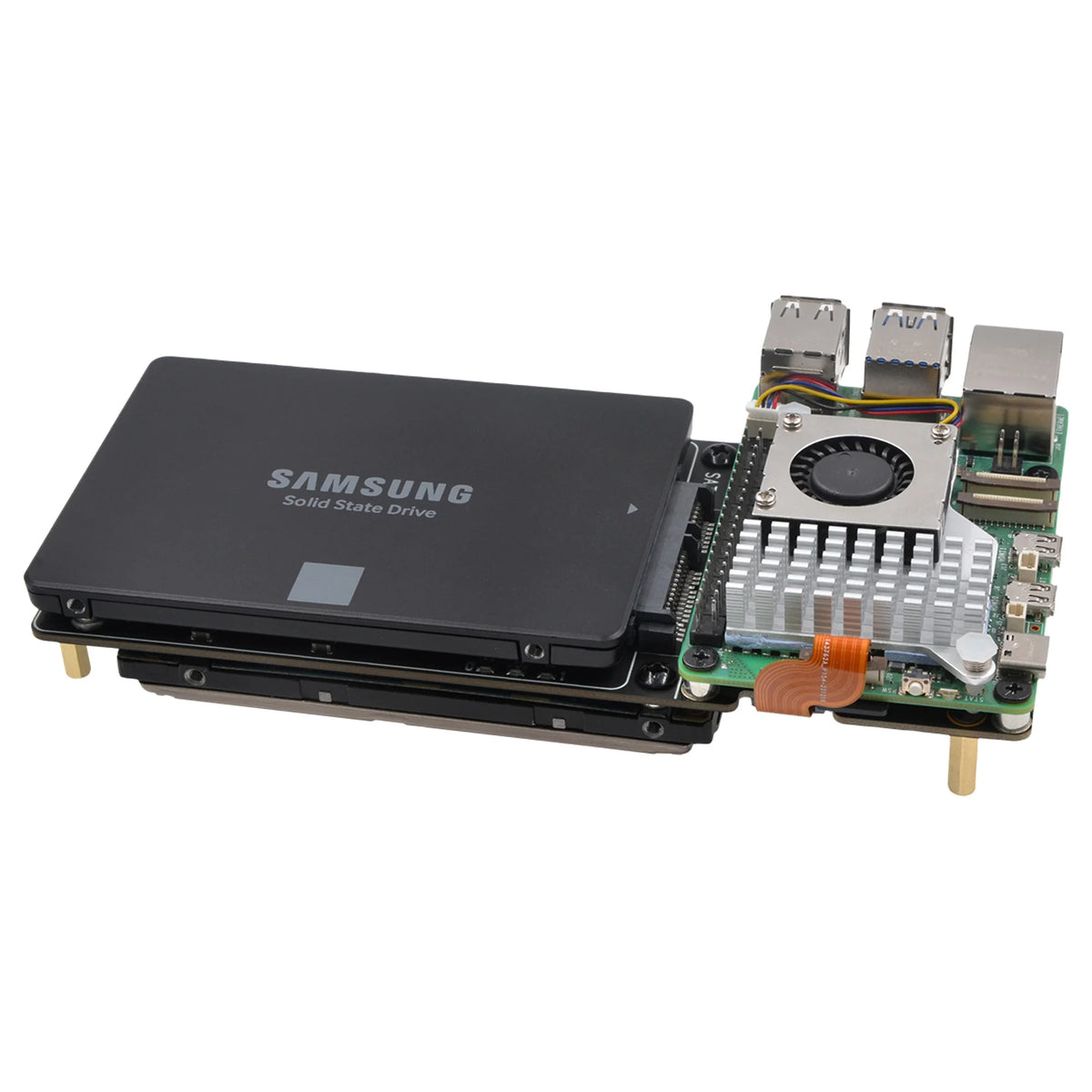

• Compatible with the official active cooler without compromising cooling performance

• Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down

• PCB Size: 164.5mm x 71.85mm

[How to Power]

• Power supply: 5dc +/-5% ≥3A via FFC & pogo pins

[Ports & Connectors]

• PCIe connector x1 - 16-pin pitch0.5mm

• SATA connectors x2 - 7+15P

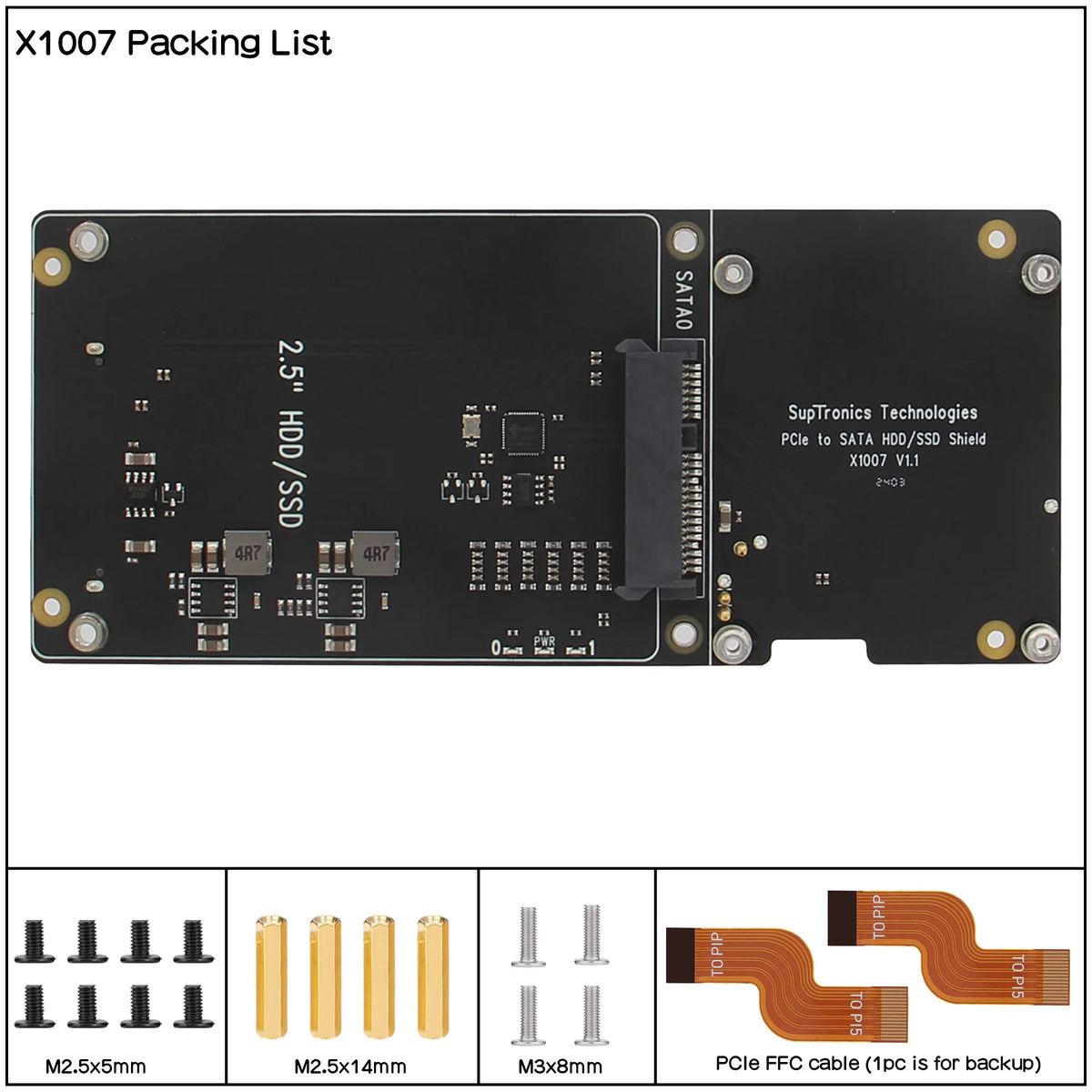

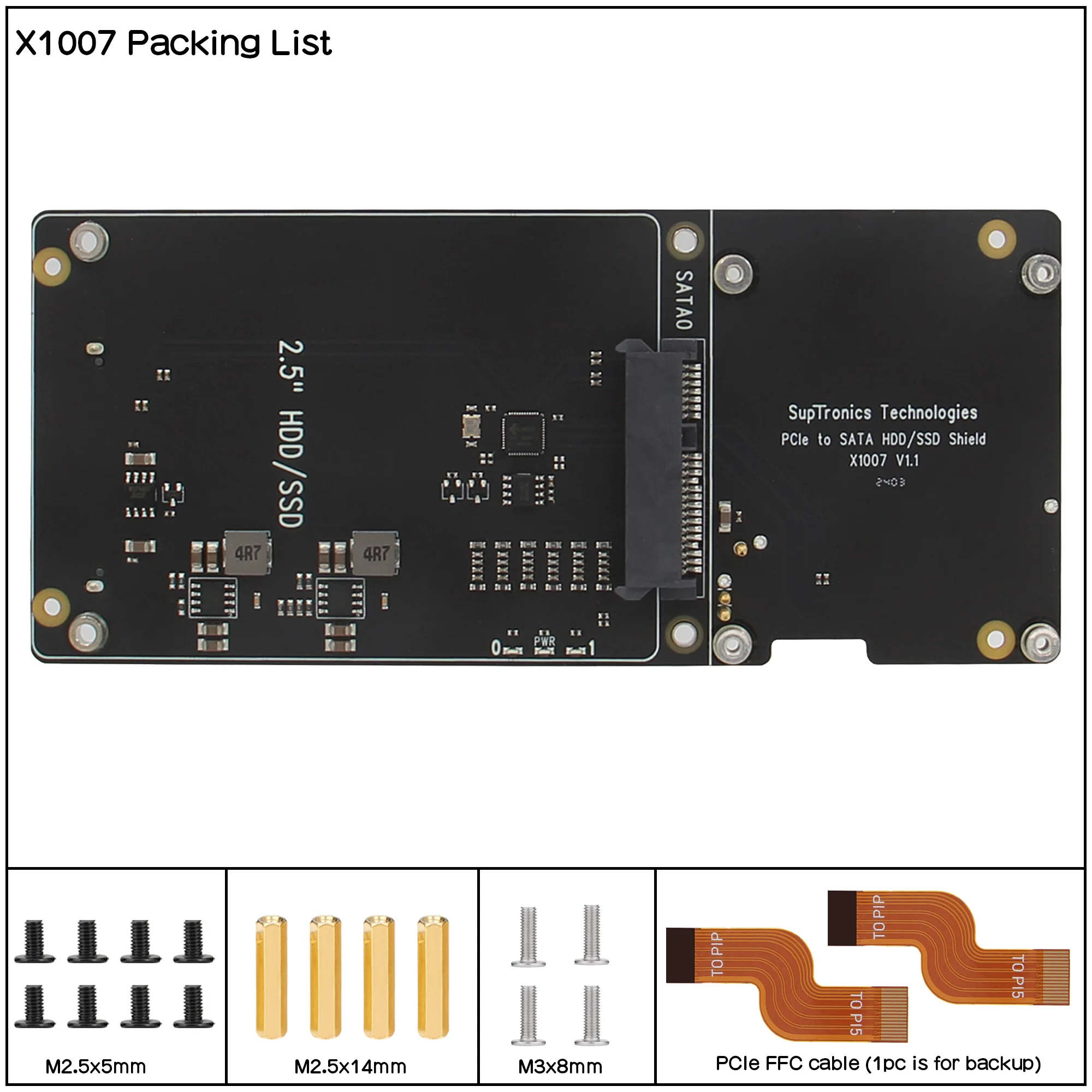

[Packing List]

Not include Pi 5 & Cooler & SSD/HDD

• 1 x X1007 V1.1 PCIe to dual 2.5" SATA HDD shield

• 1 x PCIe FFC Cable 37mm

• 1 x Screw pack
