[Note]

• Compatible with Raspberry Pi 5 and Dual NVMe M2 2230/2242/2260/2280 SSD (Not include Pi 5 & SSDs !!!)

• Not supportPCIe Gen 3 speed.

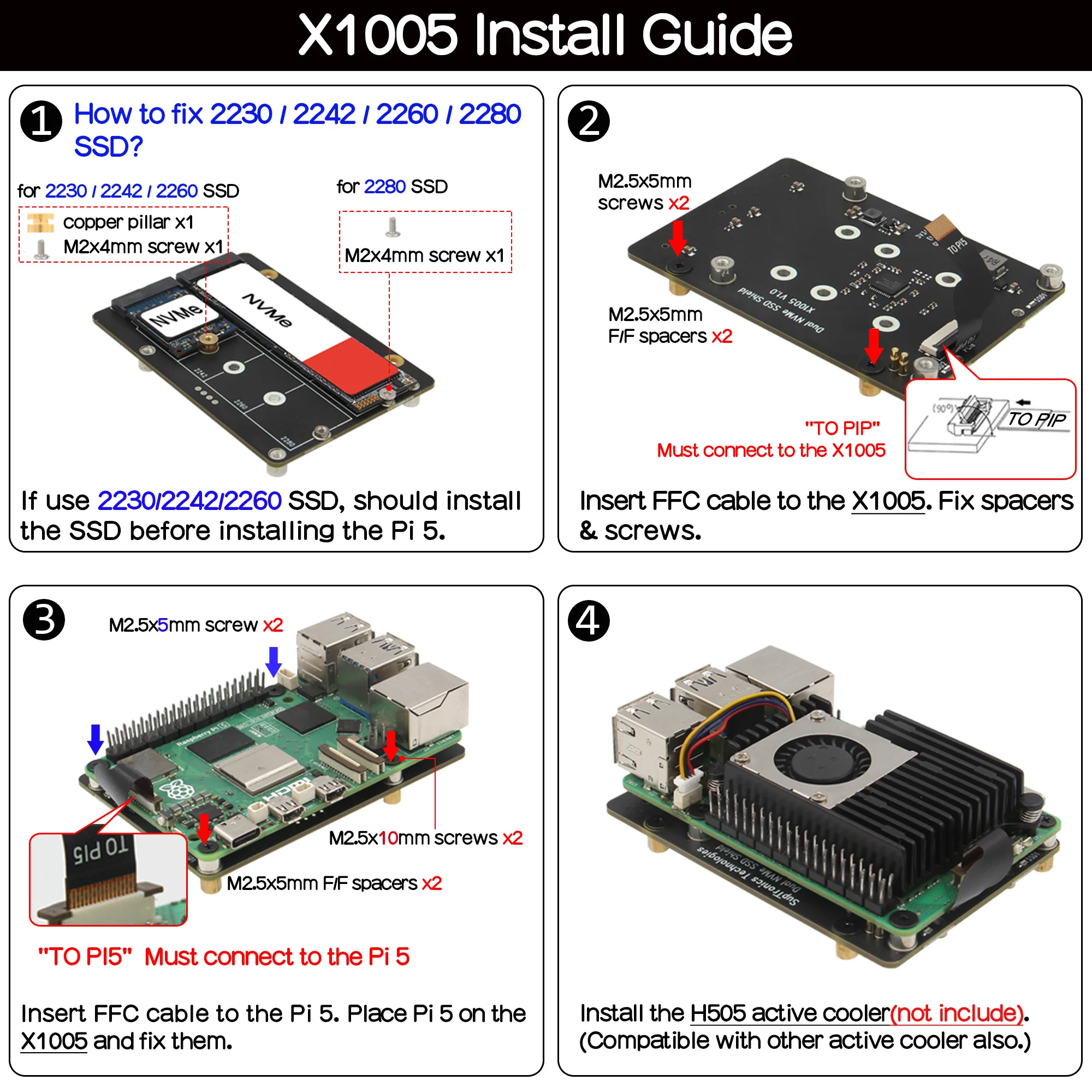

[Manual]

https://wiki.geekworm.com/X1005

[Matching Case P580-V2]

https://www.aliexpress.com/item/3256807149335164.html (P580 does not support X1005)

[Overview]

• X1005 NVMe dual SSD shiel is designed to provide a seamless and high-speed storage solution for your Raspberry Pi 5. Its sleek and compact design enables easy attachment of two M.2 SSDs with multiple lengths (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 5. With its PCIe 2.0 interface, you can experience data transfer rates of up to 5Gbps, allowing you to effortlessly transfer large amounts of data within seconds.

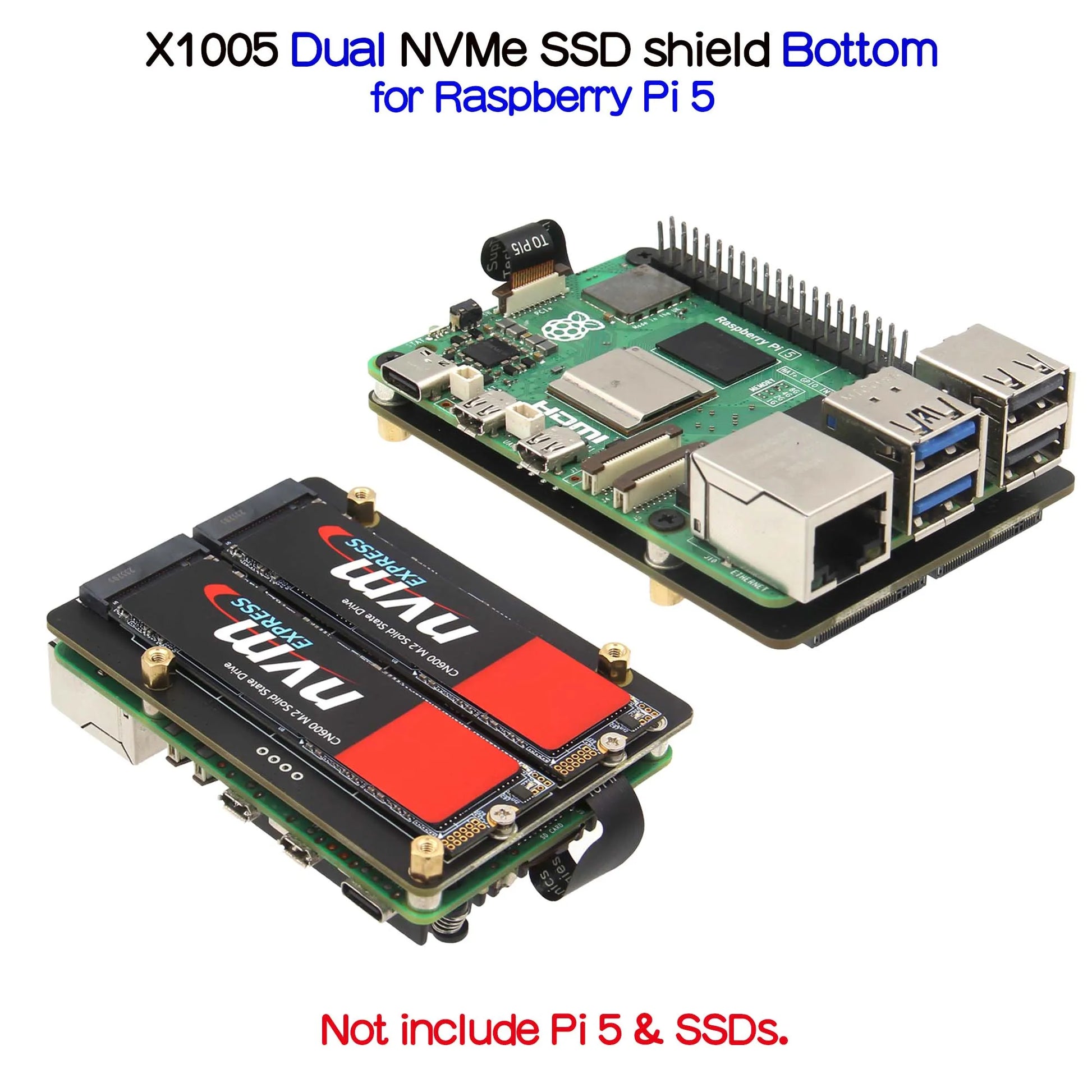

• The X1005 is installed on the rear side of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favorite HATs while also utilizing the NVMe shield. Additionally, it seamlessly integrates with the Raspberry Pi official passive cooler without compromising heat dissipation. The inclusion of mounting holes and standoffs provides added protection for your solid-disk drives while effectively dissipating heat. The built-in LED light indicates the current reading or writing status, eliminating any guesswork.

• The X1005 is an ideal storage solution for creating a home media center or building a network-attached storage (NAS) system. It allows you to store and stream your own videos, music, and digital photos within your home or even remotely across the world.

[Features]

• Supports NVMe boot.

• Support Hailo-8 AI Accelerator.

• Ideal PCIe storage solution for Raspberry Pi 5 - Dual M.2 NVMe SSD Shield

• Supports a total of 8TB storage capacity (4TB+4TB) with M.2 NVMe solid-state drives

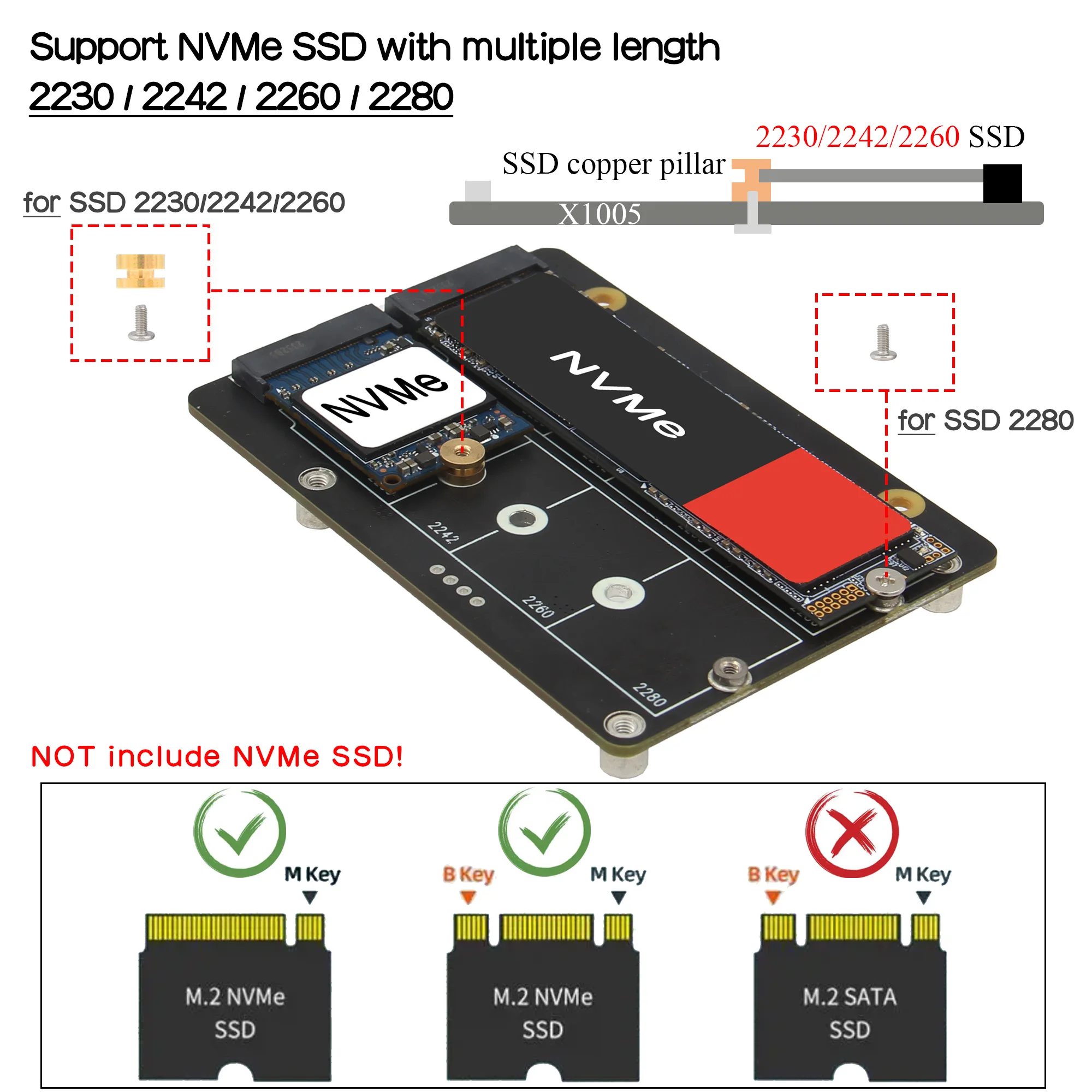

• Accommodates two various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230

• Supports PCIe 2.0 5Gbps for speedy data transfer and super-fast boot

• Fully compatible with the Raspberry Pi official active cooler

• LED indicators in blue display power and drive status

• Features an integrated high-performance PCIe packet switch

• Equipped with two high-efficiency DC/DC step-down converters, delivering a maximum of 6A to power your SSDs

• Designed to be attached on bottom, allows using your favorite HATs alongside it

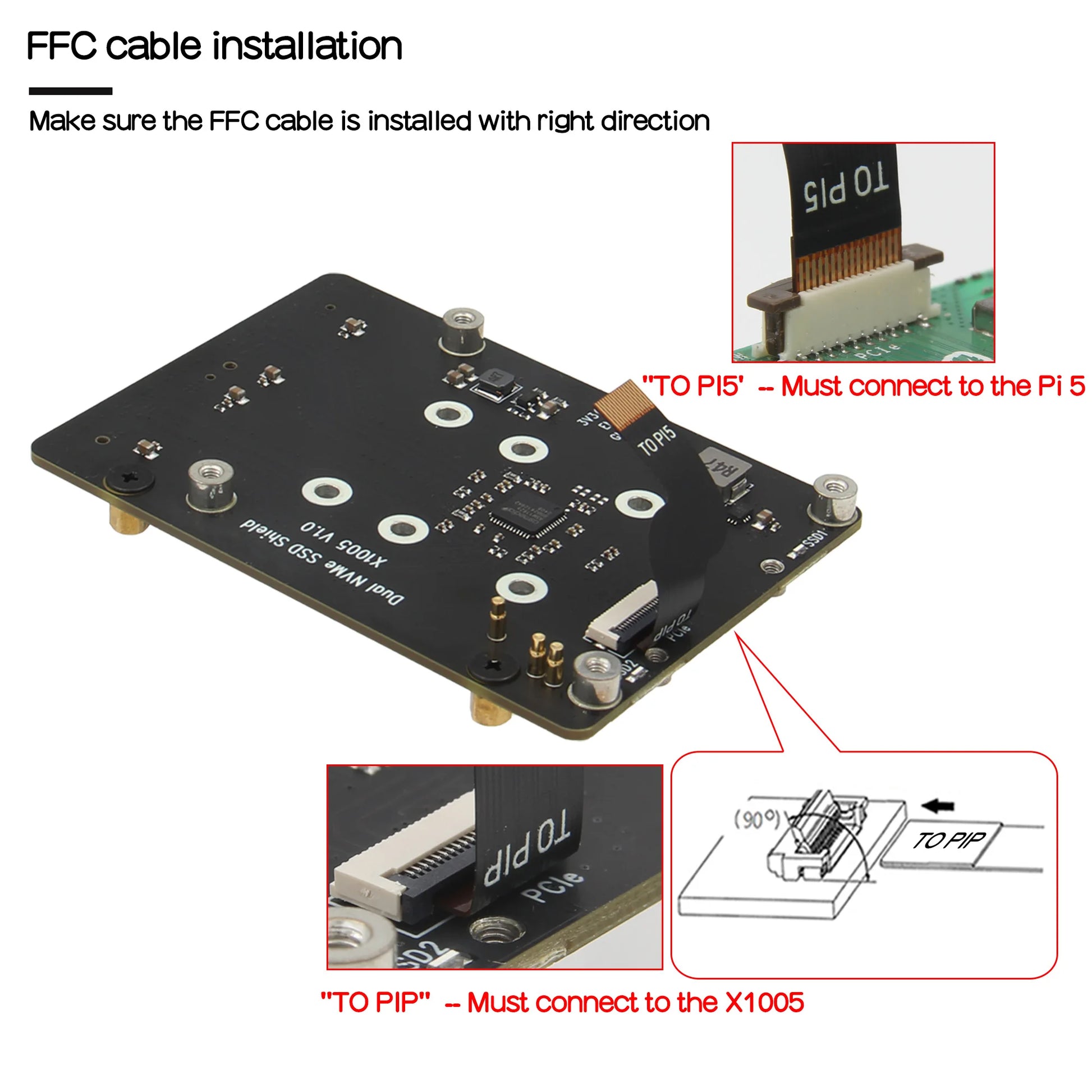

• Powering via both pogo pins and FFC, ensuring sufficient power supply without any worries

[Technical Specification]

• Power supply: 5Vdc +/-5% power via pogo pins & FFC, converted to 3.3V max 6A to power the SSDs

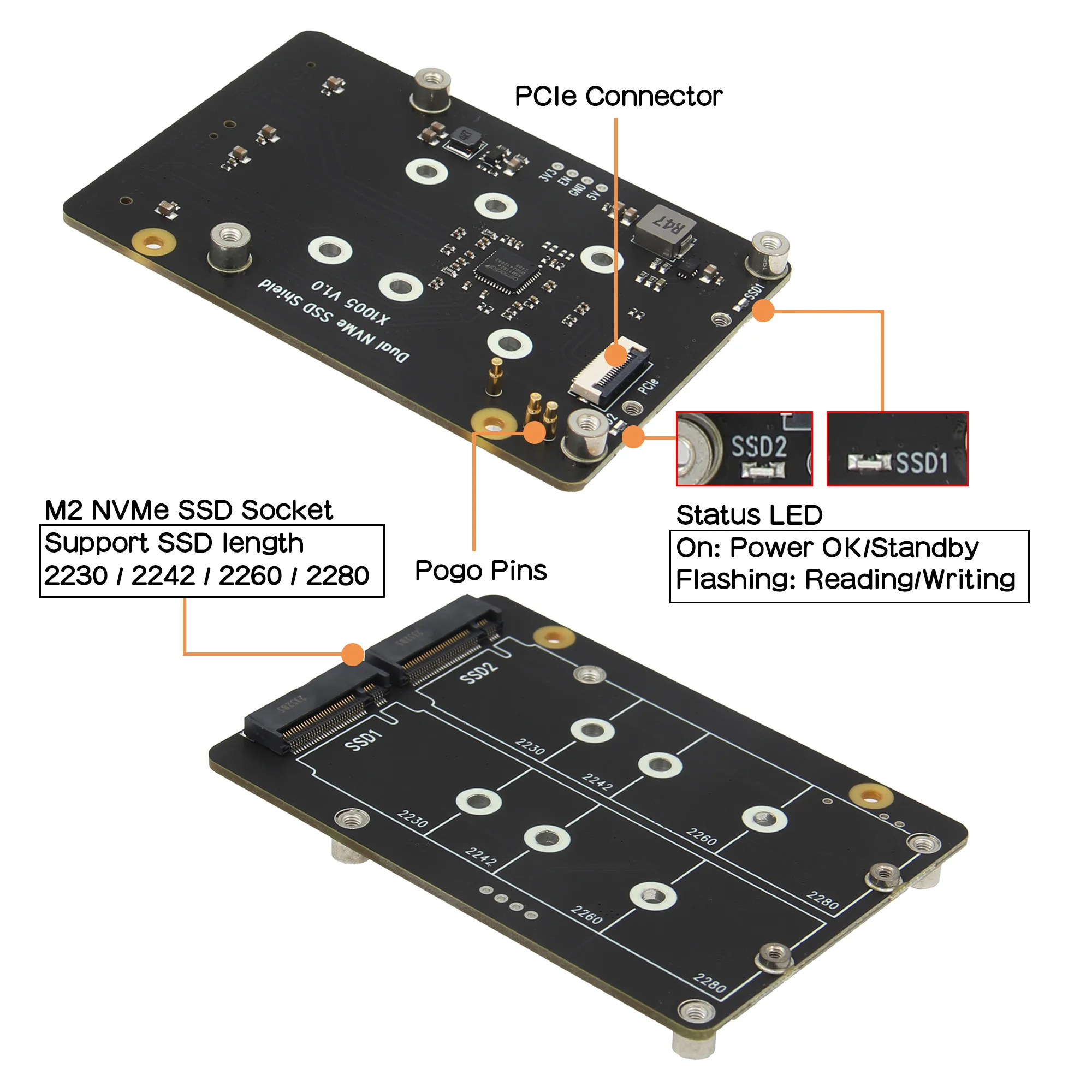

[Ports & Connectors]

• PCIe connector - 16-pin pitch0.5mm

• SSD connector - M.2 KEY-M 67P

• PCIe cable length 37mm x2

• PCB Size: 86.5mm x 60mm

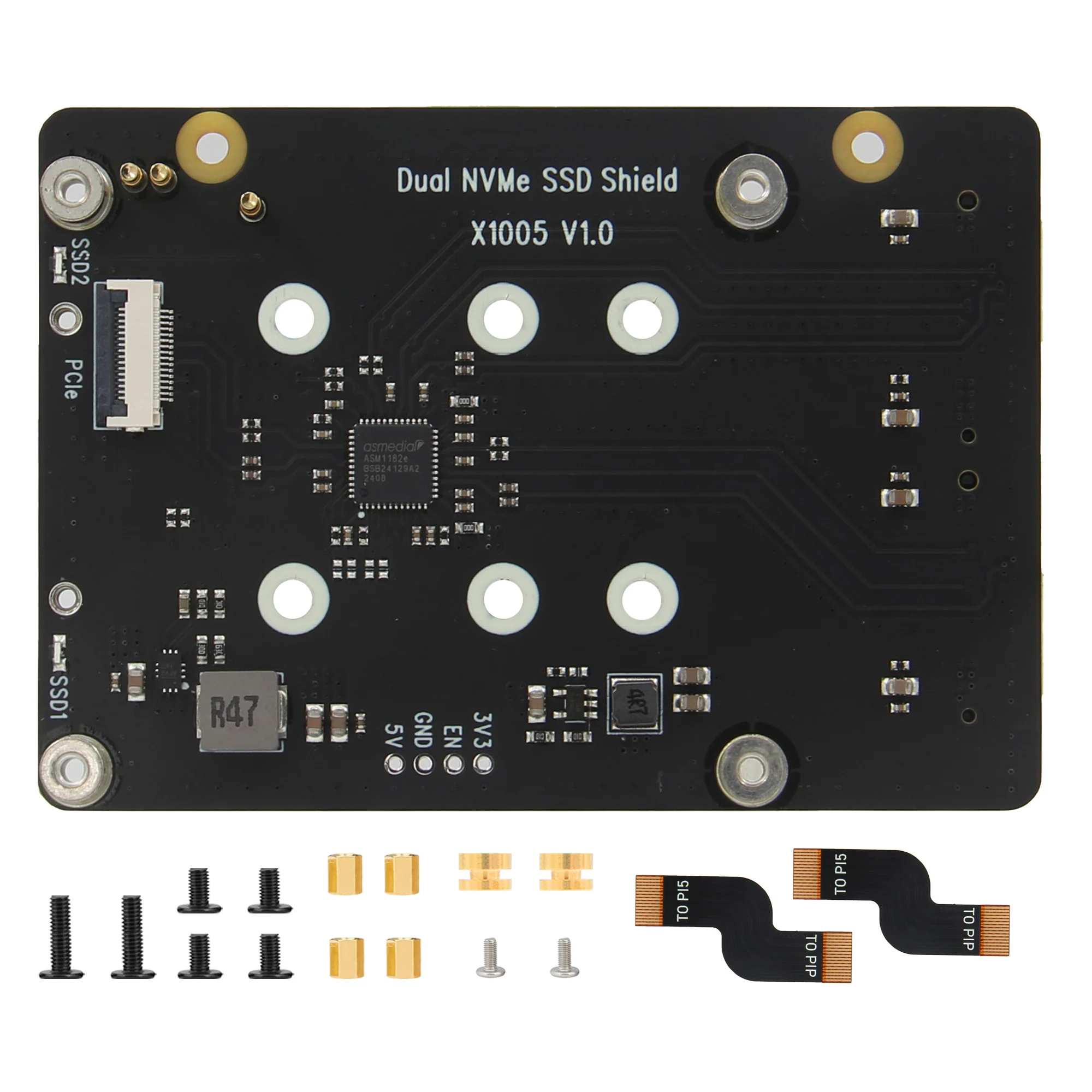

[Packing List]

• X1005 V1.0 NVMe shield x1

• PCIe FFC 37mm x 2 (1pc is for backup)

• M2.5*10mm Screw x 2

• M2.5*5mm Screw x 4

• M2.5*5mm Spacer x 4

• SSD Copper Pillar x 2 (to fix 2230 / 2242 / 2260 length SSD)

• M2*4 Screw x 2 (to fix SSD)
